714-13-144-31-018100 datasheet, PDF

Datasheet> All Categories > The connector> socket> 714-13-144-31-018100

714-13-144-31-018100: DescriptionIC Socket, SIP44, 44 Contact(s), ROHS COMPLIANT; CategoryThe connector socket; File Size199KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

714-13-144-31-018100 Overview

IC Socket, SIP44, 44 Contact(s), ROHS COMPLIANT

714-13-144-31-018100 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
Other features	SIP SOCKET
Contact to complete cooperation	GOLD (30) OVER NICKEL (100)
Contact completed and terminated	Gold (Au)
Contact material	NOT SPECIFIED
Device slot type	IC SOCKET
Type of equipment used	SIP44
JESD-609 code	e4
Number of contacts	44
Base Number Matches	1

Preview

Download Datasheet

View All

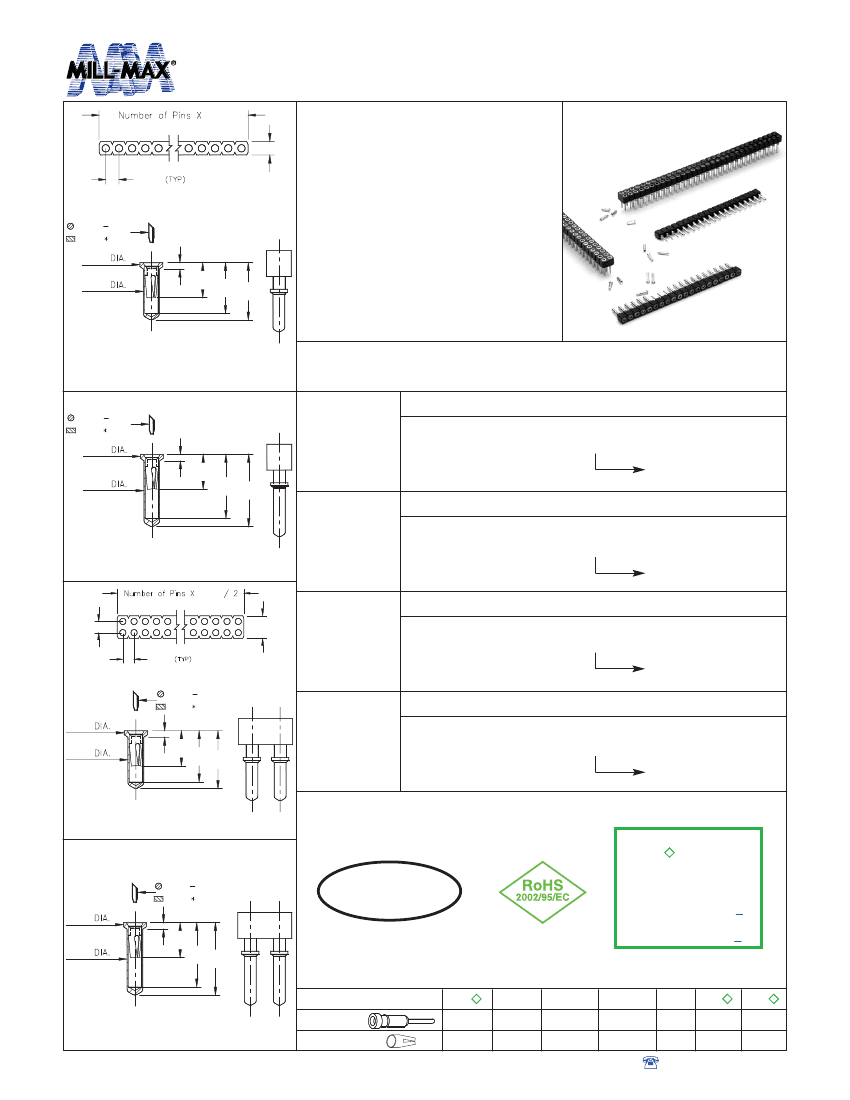

SINGLE-IN-LINE SOCKETS

Ultra Low Profile Carriers

Single and Double Row

2,54

Series 714...01X

•

Ultra low profile receptacles sit

0,46 above the board.

Series 714 uses M-M# 0552-1,

0552-2 pin receptacles. See page

127 for details.

•

0,38 0,53

0,25 0,46

1,4

0,97

2,11

3,05 3,45

0,46

•

Hi-Rel, 3-finger BeCu #11 clip is

rated at 3amps. See page 206

for details.

Fig. 1

0,38 0,53

0,25 0,46

1,4

2,11

0,97

3,81 4,32

Ordering Information

Single Row (0,99 min. mounting hole)

0,46

Fig. 1

714-XX-1_ _-31-012000

Specify # of pins

01-64

Single Row (0,99 min. mounting hole)

Fig. 2

2,54

0,38 0,53

0,25 0,46

1,4

0,97

2,11

0,46

3,05 3,45

5,08

714-XX-1_ _-31-018000

Specify # of pins

01-64

Double Row (0,99 min. mounting hole)

Fig. 3

714-XX-2_ _-31-012000

Specify # of pins

02-64

Double Row (0,99 min. mounting hole)

Fig. 4

714-XX-2_ _-31-018000

Specify # of pins

02-64

Fig. 3

For RoHS compliance,

select

plating

code.

For the all gold option

(XX=13) also change

part number from

714-XX-XXX-31-01X000

714-13-XXX-31-01X100

0,38

0,25

1,4

2,11

0,97

0,46

0,53

0,46

XX=Plating Code

See Below

3,81

4,32

SPECIFY PLATING CODE XX=



0,76µm Au

10µ” Au

0,76µm Au



Sleeve (Pin)

0,25µm Au

200µ”

5,08µm Sn/Pb 5,08µm Sn/Pb

200µ”Sn

5,08µm Sn 5,08µm Sn

5,08µm Sn/Pb

10µ” Au

0,76µm Au 5,08µm Sn

Fig. 4

Contact (Clip)

w w w. m i l l - m a x . c o m



516-922-6000
