T492D476J010SB4252WAFL

Description
CAPACITOR, TANTALUM, SOLID,
CategoryPassive components    capacitor
File Size1MB，16 Pages
ManufacturerKEMET
Websitehttp://www.kemet.com
Environmental Compliance
Download Datasheet Parametric View All

T492D476J010SB4252WAFL Overview

CAPACITOR, TANTALUM, SOLID,

T492D476J010SB4252WAFL Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerKEMET
package instruction, 2917
Reach Compliance Codecompli
Other featuresESR IS MEASURED AT 100 KHZ
capacitance47 µF
Capacitor typeTANTALUM CAPACITOR
dielectric materialsTANTALUM (DRY/SOLID)
ESR900 mΩ
high2.8 mm
JESD-609 codee4
leakage current0.0047 mA
length7.3 mm
Installation featuresSURFACE MOUNT
multi-layerN
negative tolerance5%
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package formSMT
method of packingWAFFLE PACK
polarityPOLARIZED
positive tolerance5%
Rated (DC) voltage (URdc)10 V
size code2917
surface mountYES
Delta tangent0.06
Terminal surfaceGold (Au)
Terminal shapeJ BEND
width4.3 mm

T492D476J010SB4252WAFL Preview

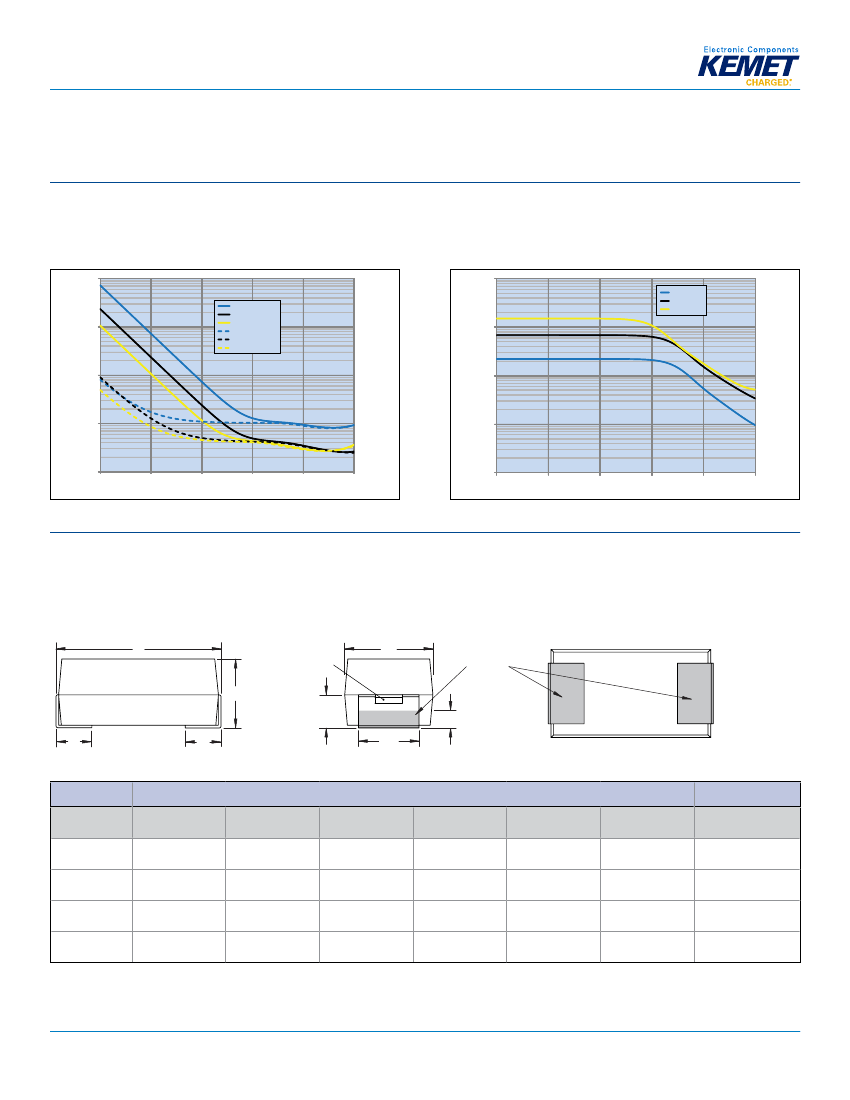

Tantalum Surface Mount Capacitors – MIL-PRF (CWR Style)
T492 MIL-PRF-55365/8 (CWR11 Style)
Overview
The KEMET T492 is approved to MIL-PRF-55365/8
(CWR11) with Weibull failure rates of B level (0.1% failures
per 1,000 hours), C level (0.01% failures per 1,000 hours),
D level (0.001% failures per 1,000 hours), or T level (0.01%
failures per 1,000 hours, Option C surge current, DPA,
radiographic inspection, 100% visual inspection, DCL and
ESR measurements within +3 standard deviations, and Group
C inspection). This CWR11 product is a precision-molded de-
vice with compliant terminations and indelible laser marking.
This is the military version of the global IEC/EIA standard,
represented by KEMET's T491. Tape & Reel per EIA 481 are
standard.
Benefits
• Established reliability options
• Tape & Reel standard packaging per EIA 481
• Symmetrical, compliant terminations
• Laser-marked case
• 100% surge current test available on all case sizes
• Qualified to MIL-PRF-55365/8 (CWR11 Style)
• Termination options B, C, H, and K
• Weibull failure options B, C, D, and T
• Exponential failure rates M, P, R, and S
• Voltage rating of 4 – 50 VDC
• Operating temperature range of −55°C to +125°C
Click image above for interactive 3D content
Open PDF in Adobe Reader for full functionality
Applications
Typical applications include decoupling and filtering in military and aerospace applications requiring CWR11 devices.
Environmental Compliance
RoHS Compliant (6/6) according to Directive 2002/95/EC when ordered with 100% Sn solder.
K-SIM
For a detailed analysis of specific part numbers, please visit ksim.kemet.com to access KEMET’s K-SIM software. KEMET
K-SIM is designed to simulate behavior of components with respect to frequency, ambient temperature, and DC bias levels.
One world. One KEMET
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
T2006_T492 • 6/4/2019
1
Tantalum Surface Mount Capacitors – MIL-PRF (CWR Style)
T492 MIL-PRF-55365/8 (CWR11 Style)
KEMET
Ordering Information
T
Capacitor
Class
492
Series
D
156
K
020
A
C
4251
Surge (C-Spec)
4250 = 25°C after
Weibull
4251 = −55°C and
85°C after Weibull
4252 = −55°C and
85°C before Weibull
TLVL = Weibull grade
level "T"
Packaging
(C-Spec)
Blank = 7" Reel
7280 = 13" Reel
7610 = Bulk bag
7640 = Bulk
plastic box
WAFL = Waffle
pack
Rated
Case Capacitance Capacitance
Voltage
Size
Code (pF)
Tolerance
(VDC)
A
B
C
D
First two digits J = ±5%
004 = 4
represent
K = ±10% 006 = 6.3
significant
M = ±20% 010 = 10
figures. Third
015 = 15
digit specifies
020 = 20
number of
025 = 25
zeros.
035 = 35
050 = 50
Failure Rate/
Termination Finish
Design
Weibull
A = non-ER
B = (0.1%/
1,000 hours)
C = (0.01%/
1,000 hours)
D = (0.001%/
1,000 hours)
T = (0.01%/
1,000 hours)
Exponential
M = (1.0%/
1,000 hours)
P = (0.1%/
1,000 hours)
R = (0.01%/
1,000 hours)
S = (0.001%/
1,000 hours
C = Hot solder
dipped
H = Standard
solder coated
(SnPb 5% Pb
minimum)
B = Gold-plated
K = Solder fused
T=
CWR11
Tantalum Established
reliability
Ordering Information – Defense MIL-PRF-55365/8
CWR11
Capacitor Style
M
Rated
Voltage
(VDC)
H
Termination Finish
B = Gold-plated
C = Hot solder
dipped
H = Solder-plated
K = Solder fused
105
Capacitance Code (pF)
K
Capacitance
Tolerance
B
Reliability Level
Weibull
A = non-ER
B = (0.1%/1,000 hours)
C = (0.01%/1,000 hours)
D = (0.001%/1,000 hours)
T= T Level* (0.01%/1,000
hours)
Exponential
M = (1.0%/1,000 hours)
P = (0.1%/1,000 hours)
R = (0.01%/1,000 hours)
S = (0.001%/1,000 hours
A
Surge Current
Option
A = +25°C after
Weibull
B = −55°C +85°C
after Weibull
C = −55°C +85°C
before Weibull
Blank = None
Per
C=4
MIL-PRF-55365/8 D = 6
F = 10
H = 15
J = 20
K = 25
M = 35
N = 50
First two digits represent J = ±5%
significant figures. Third
K = ±10%
digit specifies number of
M = ±20%
zeros.
* When T Level is ordered, no Surge Current Option is needed
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
T2006_T492 • 6/4/2019
2
Tantalum Surface Mount Capacitors – MIL-PRF (CWR Style)
T492 MIL-PRF-55365/8 (CWR11 Style)
Performance Characteristics
Item
Operating Temperature
Rated Capacitance Range
Capacitance Tolerance
Rated Voltage Range
DF (120 Hz)
ESR (100 kHz)
Leakage Current
−55°C to 125°C
0.1 – 100 µF at 120 Hz/25°C
J Tolerance (5%), K Tolerance (10%), M Tolerance (20%)
4 – 50 V
Refer to Part Number Electrical Specification Table
Refer to Part Number Electrical Specification Table
≤ 0.01 CV (µA) at rated voltage after 5 minutes
Performance Characteristics
Qualification
Test
Endurance
Condition
85°C at rated voltage, 2,000 hours
125°C at 2/3 rated voltage, 2,000 hours
Δ C/C
DF
DCL
ESR
Δ C/C
DF
DCL
ESR
Δ C/C
DF
DCL
ESR
+25°C
IL*
IL
IL
Δ C/C
DF
DCL
ESR
Δ C/C
DF
DCL
Characteristics
Within ±10% of initial value
Within initial limits
Within 1.25 x initial limit
Within initial limits
Within ±10% of initial value
Within initial limits
Within 1.25 x initial limit
Within initial limits
Within ±5% of initial value
Within initial limits
Within 1.25 x initial limit
Within initial limits
−55°C
+85°C
±10%
±10%
IL
1.5 x IL
n/a
10 x IL
Within ±5% of initial value
Within initial limits
Within initial limits
Within initial limits
Within ±10% of initial value
Within initial limits
Within initial limits
+125°C
±15%
1.5 x IL
12 x IL
Storage Life
125°C at 0 volts, 2,000 hours
Thermal Shock
MIL–STD–202, Method 107, Condition B, mounted,
−55°C to 125°C, 1,000 cycles
Extreme temperature exposure at a
succession of continuous steps at
+25°C, −55°C, +25°C, +85°C, +125°C,
+25°C
Temperature Stability
Δ C/C
DF
DCL
Surge Voltage
25°C and 85°C, 1.32 x rated voltage 1,000 cycles
(125°C, 1.2 x rated voltage)
MIL–STD–202, Method 213, Condition I, 100 G peak
MIL–STD–202, Method 204, Condition D,
10 Hz to 2,000 Hz, 20 G peak
Please contact KEMET for more information.
Mechanical Shock/
Vibration
Additional qualification
tests per MIL-PRF-55365/8
*IL = Initial Limit
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
T2006_T492 • 6/4/2019
3
Tantalum Surface Mount Capacitors – MIL-PRF (CWR Style)
T492 MIL-PRF-55365/8 (CWR11 Style)
Certification
MIL-PRF-55365/8
Electrical Characteristics
ESR vs. Frequency
1,000
T492B225/020_IMP
T492C685/020_IMP
Capacitance vs. Frequency
100
T492B225/020
T492C685/020
T492D156/020
Impedance, ESR (Ohms)
100
T492D156/020_IMP
T492B225/020_ESR
T492C685/020_ESR
T492D156/020_ESR
10
10
Capacitance (µF)
1,000,000
10,000,000
1
1
0.1
0.1
100
1,000
10,000
Frequency (Hz)
100,000
0.01
100
1,000
10,000
Frequency (Hz)
100,000
1,000,000
10,000,000
Dimensions – Millimeters (Inches)
Metric will govern
SIDE VIEW
L
H
P
P
Termination cutout
at KEMET's option,
either end
END VIEW
W
Solderable
Surfaces
BOTTOM VIEW
H
2
W
2
½ H
2
Min.
Case Size
KEMET
A
B
C
D
H
1.6 ±0.2
(0.063 ±0.008)
1.9 ±0.2
(0.075 ±0.008)
2.5 ±0.3
(0.098 ±0.012)
2.8 ±0.3
(0.110 ±0.012)
H
2
Minimum
0.7
(0.028)
0.7
(0.028)
1.0
(0.039)
1.0
(0.039)
L
Component
3.2 ±0.2
(0.126 ±0.008)
3.5 ±0.2
(0.138 ±0.008)
6.0 ±0.3
(0.236 ±0.012)
7.3 ±0.3
(0.287 ±0.012)
P ±0.3
(0.012)
0.8
(0.031)
0.8
(0.031)
1.3
(0.051)
1.3
(0.051)
W
1.6 ±0.2
(0.063 ±0.008)
2.8 ±0.2
(0.110 ±0.008)
3.2 ±0.3
(0.126 ±0.012)
4.3 ±0.3
(0.169 ±0.012)
W
2
±0.1
(0.004)
1.2
(0.047)
2.2
(0.087)
2.2
(0.087)
2.4
(0.094)
Typical Weight
(mg)
58.97
102.3
224.2
412.33
Note: When option C is selected for lead material, add an additional 0.38 mm (0.015 inch) to the above tolerances for "L", "W", "H", "P", "W
2
" and "H
2
."
These weights are provided as reference. If exact weights are needed, please contact your KEMET sales representative.
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
T2006_T492 • 6/4/2019
4
Tantalum Surface Mount Capacitors – MIL-PRF (CWR Style)
T492 MIL-PRF-55365/8 (CWR11 Style)
Table 1 – Ratings & Part Number Reference
Rated Rated Case Code/
Voltage Cap
Case Size
VDC at 85°C
4
4
4
4
4
4
4
4
6
6
6
6
6
6
6
6
6
6
10
10
10
10
10
10
10
10
10
15
15
15
15
15
15
15
15
15
20
20
20
20
20
20
20
20
VDC at 85°C
µF
2.2
4.7
6.8
10
15
33
68
100
1.5
2.2
3.3
4.7
6.8
10
15
22
47
68
1
1.5
2.2
3.3
4.7
6.8
15
33
47
0.68
1
1.5
2.2
3.3
4.7
10
22
33
0.47
0.68
1
1.5
2.2
3.3
4.7
6.8
µF
KEMET/EIA
A/3216-18
A/3216-18
B/3528-21
B/3528-21
B/3528-21
C/6032-28
D/7343-31
D/7343-31
A/3216-18
A/3216-18
A/3216-18
B/3528-21
B/3528-21
B/3528-21
C/6032-28
C/6032-28
D/7343-31
D/7343-31
A/3216-18
A/3216-18
A/3216-18
B/3528-21
B/3528-21
B/3528-21
C/6032-28
D/7343-31
D/7343-31
A/3216-18
A/3216-18
A/3216-18
B/3528-21
B/3528-21
B/3528-21
C/6032-28
D/7343-31
D/7343-31
A/3216-18
A/3216-18
A/3216-18
B/3528-21
B/3528-21
B/3528-21
C/6032-28
C/6032-28
KEMET/EIA
KEMET Part
Number
(See below for
part options)
T492A225(1)004(2)(3)(4)
T492A475(1)004(2)(3)(4)
T492B685(1)004(2)(3)(4)
T492B106(1)004(2)(3)(4)
T492B156(1)004(2)(3)(4)
T492C336(1)004(2)(3)(4)
T492D686(1)004(2)(3)(4)
T492D107(1)004(2)(3)(4)
T492A155(1)006(2)(3)(4)
T492A225(1)006(2)(3)(4)
T492A335(1)006(2)(3)(4)
T492B475(1)006(2)(3)(4)
T492B685(1)006(2)(3)(4)
T492B106(1)006(2)(3)(4)
T492C156(1)006(2)(3)(4)
T492C226(1)006(2)(3)(4)
T492D476(1)006(2)(3)(4)
T492D686(1)006(2)(3)(4)
T492A105(1)010(2)(3)(4)
T492A155(1)010(2)(3)(4)
T492A225(1)010(2)(3)(4)
T492B335(1)010(2)(3)(4)
T492B475(1)010(2)(3)(4)
T492B685(1)010(2)(3)(4)
T492C156(1)010(2)(3)(4)
T492D336(1)010(2)(3)(4)
T492D476(1)010(2)(3)(4)
T492A684(1)015(2)(3)(4)
T492A105(1)015(2)(3)(4)
T492A155(1)015(2)(3)(4)
T492B225(1)015(2)(3)(4)
T492B335(1)015(2)(3)(4)
T492B475(1)015(2)(3)(4)
T492C106(1)015(2)(3)(4)
T492D226(1)015(2)(3)(4)
T492D336(1)015(2)(3)(4)
T492A474(1)020(2)(3)(4)
T492A684(1)020(2)(3)(4)
T492A105(1)020(2)(3)(4)
T492B155(1)020(2)(3)(4)
T492B225(1)020(2)(3)(4)
T492B335(1)020(2)(3)(4)
T492C475(1)020(2)(3)(4)
T492C685(1)020(2)(3)(4)
(See below for
part options)
MIL-PRF-55365/8
DC
Part Number
Leakage
(See below for
part options)
CWR11C(6)225(1)(2)(5)
CWR11C(6)475(1)(2)(5)
CWR11C(6)685(1)(2)(5)
CWR11C(6)106(1)(2)(5)
CWR11C(6)156(1)(2)(5)
CWR11C(6)336(1)(2)(5)
CWR11C(6)686(1)(2)(5)
CWR11C(6)107(1)(2)(5)
CWR11D(6)155(1)(2)(5)
CWR11D(6)225(1)(2)(5)
CWR11D(6)335(1)(2)(5)
CWR11D(6)475(1)(2)(5)
CWR11D(6)685(1)(2)(5)
CWR11D(6)106(1)(2)(5)
CWR11D(6)156(1)(2)(5)
CWR11D(6)226(1)(2)(5)
CWR11D(6)476(1)(2)(5)
CWR11D(6)686(1)(2)(5)
CWR11F(6)105(1)(2)(5)
CWR11F(6)155(1)(2)(5)
CWR11F(6)225(1)(2)(5)
CWR11F(6)335(1)(2)(5)
CWR11F(6)475(1)(2)(5)
CWR11F(6)685(1)(2)(5)
CWR11F(6)156(1)(2)(5)
CWR11F(6)336(1)(2)(5)
CWR11F(6)476(1)(2)(5)
CWR11H(6)684(1)(2)(5)
CWR11H(6)105(1)(2)(5)
CWR11H(6)155(1)(2)(5)
CWR11H(6)225(1)(2)(5)
CWR11H(6)335(1)(2)(5)
CWR11H(6)475(1)(2)(5)
CWR11H(6)106(1)(2)(5)
CWR11H(6)226(1)(2)(5)
CWR11H(6)336(1)(2)(5)
CWR11J(6)474(1)(2)(5)
CWR11J(6)684(1)(2)(5)
CWR11J(6)105(1)(2)(5)
CWR11J(6)155(1)(2)(5)
CWR11J(6)225(1)(2)(5)
CWR11J(6)335(1)(2)(5)
CWR11J(6)475(1)(2)(5)
CWR11J(6)685(1)(2)(5)
(See below for
part options)
µA at +20°C
Max/5 Min
0.5
0.5
0.5
0.5
0.6
1.3
2.7
4.0
0.5
0.5
0.5
0.5
0.5
0.6
0.9
1.3
2.8
4.1
0.5
0.5
0.5
0.5
0.5
0.7
1.5
3.3
4.7
0.5
0.5
0.5
0.5
0.5
0.7
1.5
3.3
5.0
0.5
0.5
0.5
0.5
0.5
0.7
0.9
1.4
µA at +20°C
Max/5 Min
DF
ESR
Maximum
Operating
Temp
°C
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
°C
MSL
Reflow Temp
≤ 260°C
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Reflow Temp
≤ 260°C
% at +20°C
Ω at +20°C
120 Hz Max 100 kHz Max
6.0
8.0
6.0
8.0
6.0
5.5
6.0
4.0
6.0
3.5
6.0
2.2
6.0
1.1
8.0
0.9
6.0
8.0
6.0
8.0
6.0
8.0
6.0
5.5
6.0
4.5
6.0
3.5
6.0
3.0
6.0
2.2
6.0
1.1
6.0
0.9
4.0
10.0
6.0
8.0
6.0
8.0
6.0
5.5
6.0
4.5
6.0
3.5
6.0
2.5
6.0
1.1
6.0
0.9
4.0
12.0
4.0
10.0
6.0
8.0
6.0
5.5
6.0
5.0
6.0
4.0
6.0
2.5
6.0
1.1
6.0
0.9
4.0
14.0
4.0
12.0
4.0
10.0
6.0
6.0
6.0
5.0
6.0
4.0
6.0
3.0
6.0
2.4
% at +20°C
Ω at +20°C
120 Hz Max 100 kHz Max
Rated
Voltage
Rated
Cap
Case Code/
Case Size
KEMET Part Number
MIL-PRF-55365/8
Part Number
DC
Leakage
DF
ESR
Maximum
Operating
Temp
MSL
(1) To complete KEMET/CWR part number, insert M for ±20%, K for ±10%, or J for ±5%. Designates Capacitance tolerance.
(2) To complete KEMET/CWR part number, insert failure rate letter per the Ordering Information found on page 2. Designates Reliability Level.
(3) To complete KEMET part number, insert B = Gold-plated, C = Hot solder dipped, H or S = Solder-plated or K = Solder fused. Designates Termination Finish.
(4) To complete KEMET part number, insert 4250 = +25°C after Weibull, 4251 = −55°C +85°C after Weibull, or 4252 = −55°C +85°C before Weibull.
Designates Surge Current Option.
(5) To complete CWR part number, insert A = +25°C after Weibull, B = −55°C +85°C after Weibull, C = −55°C +85°C before Weibull or Z = None. Designates
Surge Current Option.
(6) To complete CWR part number, insert B = Gold-plated, C = Hot solder dipped, H = Solder-plated or K = Solder fused. Designates Termination Finish.
Refer to Ordering Information for additional details.
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
T2006_T492 • 6/4/2019
5
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

Recommended Resources

Single-phase silicon rectifier DC welding machine no-load automatic stop circuit

KZS10 series thyristor rectifier system block diagram

Digital strain circuit

Current controlled oscillator circuit

battery charging circuit

High efficiency emergency light power circuit

How to implement online simulation in the programmer of Omron CX-ONE software
I have an Omron program that is not connected to a PLC and I want to simulate it online. But when I opened the program, I found that the online simulation was gray. I seem to have set it to read-only ...
eeleader-mcu Industrial Control Electronics
Discussion on Dynamic Configuration of ARM's Interrupt Vector Table
[color=#0000FF]Friends who are familiar with the dynamic configuration of the interrupt vector table may wish to discuss it here. What is the implementation idea? [/color] I will post an article here ...
gufei ARM Technology
Interface circuit detailed explanation - principle, application, classification, processing
[b][size=18px]Interface Design[/size][/b] [b][size=18px]What is an interface? [/size][/b][color=#000][font=Arial][size=18px]An interface is a connection device between the CPU and peripherals, used to...
tiankai001 MCU
What is the package for the four-corner switch in DXP2004?
What is the package of the four-corner switch used in the microcontroller circuit in DXP2004? I think such a commonly used package should not need to be drawn by myself, right?...
老小儿 PCB Design
FRAM in MSP430
MSP430 has recently launched an MCU with ferroelectric FRAM memory, and is one of the earliest few in the industry to integrate it into the MCU. FRAM is called RAM, which means it has some properties ...
dsh__zhou Microcontroller MCU
Newbie 51 programming error, help!
[img]file:///C:\Documents and Settings\Administrator\Application Data\Tencent\Users\847022719\QQ\WinTemp\RichOle\K(HBP3~TQBAWOE(Q(XJI8)A.png[/img]How to change it? Please tell me!...
zuiqingf1978 51mcu
Shortcut:   S0 S1 S2 S3 S4 S5 S6 S7 S8 S9 SA SB SC SD SE SF SG SH SI SJ SK SL SM SN SO SP SQ SR SS ST SU SV SW SX SY SZ T0 T1 T2 T3 T4 T5 T6 T7 T8 T9 TA TB TC TD TE TF TG TH TI TJ TK TL TM TN TO TP TQ TR TS TT TU TV TW TX TY TZ U0 U1 U2 U3 U4 U6 U7 U8 UA UB UC UD UE UF UG UH UI UJ UK UL UM UN UP UQ UR US UT UU UV UW UX UZ V0 V1 V2 V3 V4 V5 V6 V7 V8 V9 VA VB VC VD VE VF VG VH VI VJ VK VL VM VN VO VP VQ VR VS VT VU VV VW VX VY VZ W0 W1 W2 W3 W4 W5 W6 W7 W8 W9 WA WB WC WD WE WF WG WH WI WJ WK WL WM WN WO WP WR WS WT WU WV WW WY X0 X1 X2 X3 X4 X5 X7 X8 X9 XA XB XC XD XE XF XG XH XK XL XM XN XO XP XQ XR XS XT XU XV XW XX XY XZ Y0 Y1 Y2 Y4 Y5 Y6 Y9 YA YB YC YD YE YF YG YH YK YL YM YN YP YQ YR YS YT YX Z0 Z1 Z2 Z3 Z4 Z5 Z6 Z8 ZA ZB ZC ZD ZE ZF ZG ZH ZJ ZL ZM ZN ZP ZR ZS ZT ZU ZV ZW ZX ZY

Popular Components

  1. SN74AS244ADWRE4
  2. CBC2518T470K
  3. NCP161AFCT280T2G
  4. EC2600ETTTS-131.250M
  5. B32526T3226K000
  6. 0805B243M500C
  7. 1812N111M501YHT
  8. ECS-042-20-1X-JTP
  9. AME8500AEFTDA27
  10. 3.0SMCJ17CA-AU_R2_000A1
  11. SC73P1601
  12. A2006WV-2x19P-G

Popular Articles

  1. Can sodium-ion batteries become the next generation of future batteries?
  2. The chip investment boom may just be beginning
  3. The 19th China Communication Integrated Circuit Technology Application Seminar is about to be held
  4. Realme GT2 Pro Master Edition back view: matrix triple camera + Naoto Fukasawa signature
  5. Getting Started Tutorial on Using a Digital Multimeter
  6. "Redundant Design" of PLC Control System
  7. ON Semiconductor divests wafer fabrication plant as part of Fab-Liter strategy
  8. Design of power supply anti-interference circuit based on 89C51/2 microcontroller and MAX638 chip
  9. Why does the motor generate shaft current? What are the reasons for motor overheating?
  10. Design of automobile central door lock system based on single chip microcomputer and wireless encryption technology

Technical ResourceMore

  1. Sound program based on LPC2292
  2. Liquid level constant value control scheme
  3. Changhong CHD34218 color TV IIC bus EEPROM data
  4. Ten-way sequential remote control circuit diagram
  5. Analysis of Problems in Using Logic Gate Circuits
  6. Microcomputer interface technology test questions
  7. Research on Feature Fusion Algorithm for Target Matching in Target Tracking
  8. Projection surface vertical line animation video tutorial
  9. Research on the Design of Ultra-Wideband High Power Synthesizer
  10. Multisim2001 Complete Tutorial

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 1357  747  20  2200  392  28  16  1  45  8
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
