Standalone via USB Interface
LM811 WiFi and Dual Mode Bluetooth® Combination Module
Product
Part No
Revised
LM811
See Last Page
04/JUL/2018
1.3
Datasheet Version
Android
XP
Vista
7
8
10
2mm
12mm
25mm

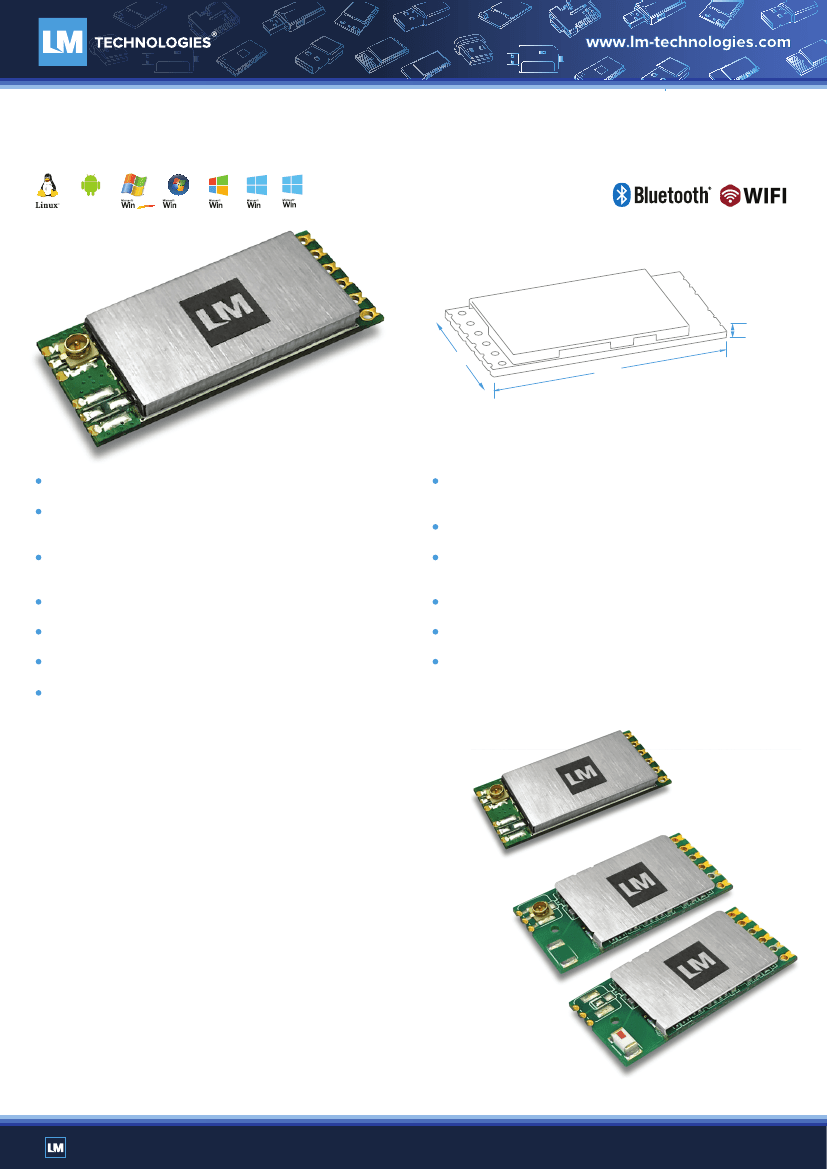

Features
WiFi 802.11 b/g/n
Bluetooth® v4.0 (Backwards compatible with Bluetooth® v2.0, v2.1
and v3.0)
WPA, WPA-PSK, WPA2, WPA2 -PSK and WEP (64bit & 128bit)
encryption schemes
Full speed Bluetooth® Piconet and Scatternet supported
5V IC Antenna or 3V3 IPEX Connector module options
USB 2.0 (Also Full Speed option)
PCM interface
Support sophisticated WiFi/Bluetooth® coexistence mechanism to
enhance performance
Support Bluetooth® adaptive power management mechanism
Linux (Kernel v4.3.6), Android 4.4 and
Windows XP – 10 compatible
25mm x 12mm x 2mm
See our website for this products certifications.
RoHS, REACH and WEEE
TWIN IPEX OPTION
SEE LAST PAGE
Overview
The LM811 combination module o ers coexistence for
Bluetooth® (Dual Mode) and WiFi operations, allowing the
host computer to wirelessly communicate with other
Bluetooth® and WiFi enabled devices.
This cost e ective module saves valuable PCB space within your product.
The LM811 module fully supports IEEE 802.11b/g/n/d/e/h/i
and Bluetooth® v2.0, v2.1, v3.0 and v4.0 standards.
Compatible with Linux (Kernel v4.3.6), Android 4.4 and Windows XP – 10 platforms.
The LM811 module also o ers low power consumption and an intelligent
coexistence mechanism, ideal for communicating with many wireless devices such
as tablets, smart phones and laptops.
LM811
Page 1 of 15
+44(0) 207 428 2647
|
sales@lm-technologies.com
Host Controller Interface (HCI) via USB Interface
General Specification
Wireless
Wireless Standard
WiFi:
LM811 WiFi and Dual Mode Bluetooth® Combination Module
Product
Part No
LM811
See Last Page
802.11 b/g/n
Bluetooth®:
v2.1+EDR/v3.0+HS/v4.0
Module Type
OS Compatibility
Security
Standalone or Host Controller Interface (HCI)
Linux, Android and Windows XP – 10
WiFi;
WPA, WPA-PSK, WPA2, WPA2 -PSK and WEP (64bit & 128bit)
Bluetooth®;
Simple Paring
Network Architecture
WiFi;
Ad hoc mode (Peer-to-Peer) and Infrastructure mode Software AP; WiFi Direct
Bluetooth®;
Pico Net; Scatter Net
Hardware
Chipset
Antenna
Interfaces
Realtek
Onboard Chip Antenna or IPEX Connector
USB 2.0 (Also Full Speed option)
PCM
RF Characteristics
Tx Output Power
WiFi;
17dBm – 802.11b@11Mbps 15dBm – 802.11g@6Mbps 14dBm –
802.11g@54Mbps 13dBm – 802.11n@MCS0_HT20 13dBm –
802.11n@MCS7_HT20 13dBm – 802.11n@MCS0_HT40 13dBm –
802.11n@MCS7_HT40
Bluetooth®:
Maximum 10dBm
Rx Sensitivity
WiFi;
-82dBm – 802.11b@11Mbps -71dBm – 802.11g@54MBps -67dBm – 802.11n@MCS7_HT20
-64dBm - 802.11n@MCS7_HT40
Bluetooth®:
-89dBm@1Mbps -90dBm@2Mbps -83dBm@3Mbps
LM811
Page 2 of 15
+44(0) 207 428 2647
|
sales@lm-technologies.com
Host Controller Interface (HCI) via USB Interface
General Specification (Continued)
RF Characteristics
Range (in open space)
WiFi:
LM811 WiFi and Dual Mode Bluetooth® Combination Module
Product
Part No
LM811
See Last Page
Up to 180m
Bluetooth®:
Up to 10m
Data Transfer Rate
WiFi:
802.11b: 1, 2, 5.5, 11Mbps; 802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps;
802.11n MCS0 to 7 for HT20MHz, MCS0 to 7 for HT40MHz
Bluetooth®:
Basic Rate 1Mbps; Enhanced Rate 2, 3Mbps;
High Speed 6, 9, 12, 18, 24, 36, 48, 54Mbps
Frequency
Modulation Scheme
2.4GHz to 2.4835 GHz
WiFi:
802.11b: CCK, DQPSK, DBPSK 802.11g: 64QAM, 16QAM, QPSK,
BPSK 802.11n: 64QAM, 16QAM, QPSK, BPSK
Bluetooth®:
8DPSK, π/4 DQPSK, GFSKFSK
Spread Spectrum
WiFi:
IEEE 802.11b: DSSS (Direct Sequence Spread Spectrum)
IEEE 802.11g/n: OFDM (Orthogonal Frequency Division Multiplexing)
Bluetooth®:
FHSS (Frequency Hopping Spread Spectrum)
Operating Channel
WiFi (2.4GHz):
11: (Ch. 1-11) – United States 13: (Ch. 1-13) – Europe
14: (Ch. 1-14) – Japan
Bluetooth® (2.4GHz):
Ch. 0 to 78
Physical Characteristics
Operating Temperature
Storage Temperature
Dimensions (L x W x H)
Weight
Certifications
Compliance
-20°C to +80°C ambient temperature 0 to 95 % (non-condensing)
-30°C to +85°C ambient temperature 0 to 95 % (non-condensing)
25mm x 12mm x 2mm
1.06g +/- 0.25g tolerance
See our website for this products certifications.
RoHS, REACH and WEEE
LM811
Page 3 of 15
+44(0) 207 428 2647
|
sales@lm-technologies.com
Host Controller Interface (HCI) via USB Interface
LM811 WiFi and Dual Mode Bluetooth® Combination Module
Product
Part No
LM811
See Last Page
Power Consumption
DC power for 5V
Description
O
Unassociated idle
Associated idle for 2.4GHz band
Data transfer for 2.4GHz
Performance
Typ
10
40
70
103
Units
uA
mA
mA
mA
DC power for 3.3V
Description
O
Unassociated idle
Associated idle for 2.4GHz band
Data transfer for 2.4GHz
Performance
Typ
16
90
141
168
Units
uA
mA
mA
mA
Note:
Data transfer test using the Linux driver: Linux_v4.3.6_11841.20140714
Note:
Data transfer test using the Linux driver: Linux_v4.3.6_11841.20140714
DC Power Input
Module
Min
Typical
Max
Unit
DC 5V (IC Antenna)
DC 3.3V (IPEX Connector)
4.75
3.135
5
3.3
5.25
V
3.465 V
Important:
3.3V IPEX connector products must only use 3.3V
5V IC Antenna products must only use 5V
Warning:
Do NOT use the wrong voltage on your module.
LM811
Page 4 of 15
+44(0) 207 428 2647
|
sales@lm-technologies.com
Host Controller Interface (HCI) via USB Interface
LM811 WiFi and Dual Mode Bluetooth® Combination Module
Product
Part No
LM811
See Last Page

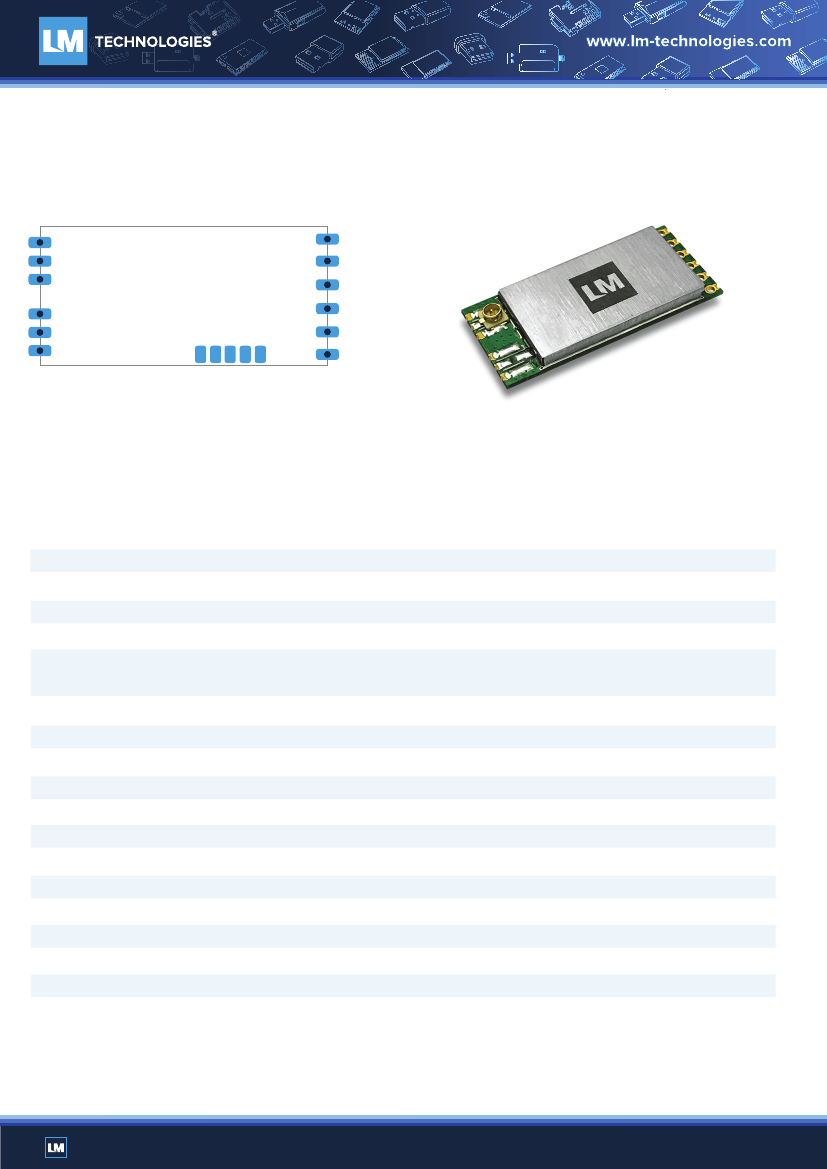

Pin Outs (17 PIN Version)
7
8
9
10
11
12
13 14 15 16 17
6
5
TOP VIEW
4
3
2
1
RF Type 1: TWIN IPEX Connector Module (17 PINS)
Pin Assignments
Pin
Signal
Type
Description
1
2
3
4
5
WO-WLAN
GND
USB D+
USB D-
VCC
Output
Power
I/O
I/O
Power
Chip Wake Host function
Ground
USB D+ signal
USB D- signal
Supply DC 3.3V for LM811 (IPEX Connector Module) /
Supply DC 5V for LM811 (IC Antenna Module)
6
7
8
9
10
11
12
13
14
15
16
17
SUSPEND
GND
ANT
GND
GND
ANT
GND
BT_PCM_IN
BT_PCM_OUT
BT_PCM_SYNK
BT_PCM_CLK
EXT_XIN
Input
Power
-
Power
Power
-
Power
Input
Output
I/O
I/O
-
Host Wake Chip function.
Ground
WiFi/Bluetooth® RF port (if you are NOT using the IPEX connector)
Ground
Ground
No Connection
Ground
PCM data Input. This pin is also shared with GPIO0 and 3DG_SEL_A
PCM data Output. This pin is also shared with GPIO1 and 3DG_SYNC_A.
PCM frame Synchronization. This pin is also shared with GPIO2.
PCM Clock. This pin is also shared with GPIO3.
No Connection
LM811
Page 5 of 15
+44(0) 207 428 2647
|
sales@lm-technologies.com
