MPLAD15KP7.0A –
MPLAD15KP200CA
Available
SURFACE MOUNT 15,000 WATT
TRANSIENT VOLTAGE SUPPRESSOR
DESCRIPTION
High-Reliability
screening available
in reference to
MIL-PRF-19500
These high power 15 kW rated transient voltage suppressors in a surface mount package are
provided with design features to minimize thermal resistance and cumulative heating. They
are particularly effective at meeting the multi-stroke lightning standard RTCA DO-160, section
22 for aircraft design. This efficient low profile package design is offered in standoff voltage
selections (V
WM
) of 7 volt to 200 volts in either unidirectional or bidirectional construction.
PLAD
(The cathode is the metal base
under the body of this device.)
Important:
For the latest information, visit our website
http://www.microsemi.com.
FEATURES
•
•
•
•
•
Available in both unidirectional and bidirectional construction (bidirectional with CA suffix).
High reliability with wafer fabrication and assembly lot traceability.
All parts surge tested.
Low profile surface mount package.
Optional upscreening is available with various screening and conformance inspection options based
on MIL-PRF-19500. Refer to
Upscreened Plastic Products
brochure on our web site for more details
on the screening options.

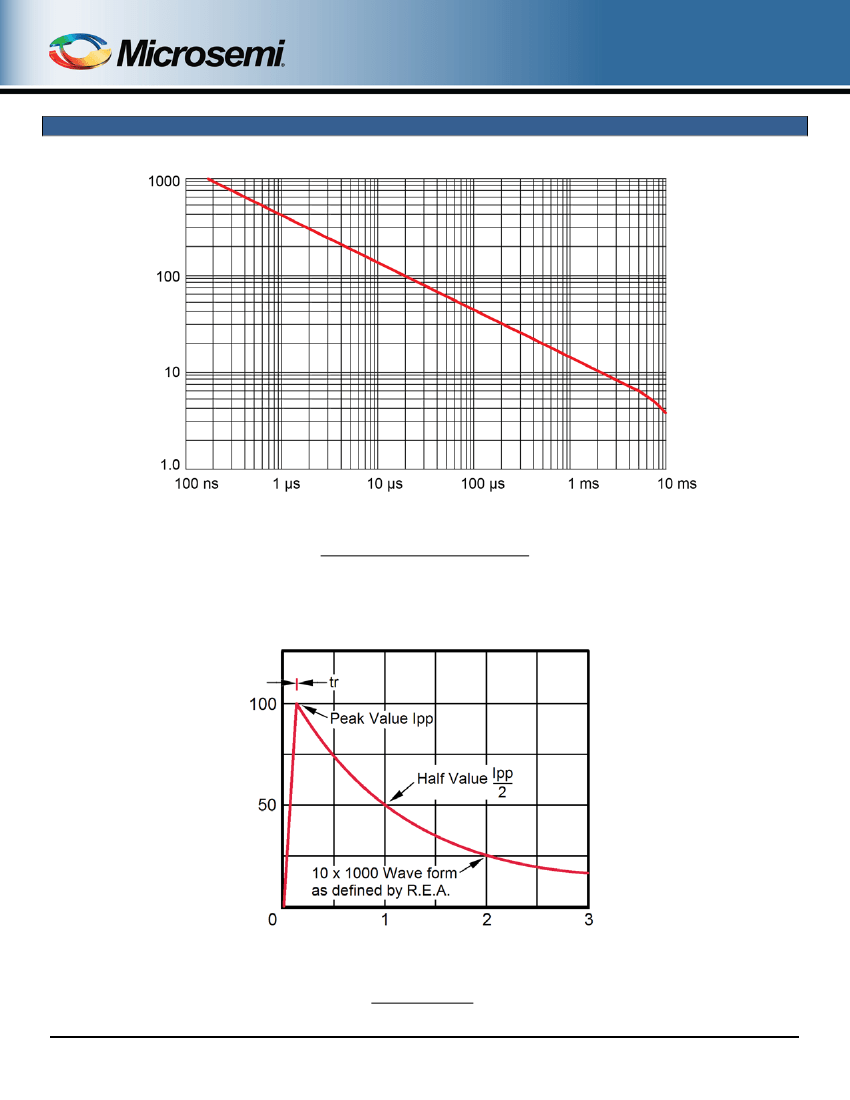

Suppresses transients up to 15,000 W @ 10/1000 μs (see
figure 1).
Moisture classification is Level 1 with no dry pack required per IPC/JEDEC J-STD-020B.
RoHS compliant versions are available.
3σ lot norm screening performed on standby current (I
D
).
Also available:
PLAD30KP
(30,000 watts)
MPLAD30KP14A thru
MPLAD30KP400CA
•
•
•
•
APPLICATIONS / BENEFITS
•
•
•
•
•
Protection from switching transients and induced RF.
Protection from ESD, and EFT per IEC 61000-4-2 and IEC 61000-4-4.
Secondary lightning protection per IEC 61000-4-5 with 42 ohms source impedance:
Class 1,2,3,4,5: MPLAD15KP7.0A to 200CA
Secondary lightning protection per IEC 61000-4-5 with 12 ohms source impedance:
Class 1,2,3,4: MPLAD15KP7.0A to 200CA
Secondary lightning protection per IEC 61000-4-5 with 2 ohms source impedance:
Class 2,3: MPLAD15KP7.0A to 200CA
Class 4: MPLAD15KP5.0 to 54CA
Pin injection protection per RTCA/DO-160F for Waveform 4 (6.4/69 μs at 25 ºC)*:
Level 4: MPLAD15KP7.0A to 200CA
Level 5: MPLAD15KP7.0A to 100CA
Pin injection protection per RTCA/DO-160F for Waveform 5A (40/120 μs at 25 ºC)*:
Level 4: MPLAD15KP7.0A to 28CA
*See
MicroNote 132
for further temperature derating selection.
•
MSC – Lawrence
6 Lake Street,
Lawrence, MA 01841
Tel: 1-800-446-1158 or
(978) 620-2600
Fax: (978) 689-0803
MSC – Ireland
Gort Road Business Park,
Ennis, Co. Clare, Ireland
Tel: +353 (0) 65 6840044
Fax: +353 (0) 65 6822298
Website:
www.microsemi.com
•
RF01004, Rev D (11/6/12)
©2012 Microsemi Corporation
Page 1 of 6
MPLAD15KP7.0A –
MPLAD15KP200CA
MAXIMUM RATINGS
@ 25 C unless otherwise specified
Parameters/Test Conditions
Junction and Storage Temperature
(1)
Thermal Resistance Junction-to-Ambient
Thermal Resistance Junction-to-Case
Peak Pulse Power @ 10/1000
µs
t
clamping
(0 volts to V
(
BR)
min)
Forward Clamping Voltage @ 500 Amps
(3)
Forward Surge Current
Solder Temperature @ 10 s
(5)
Steady-State Power dissipation
Notes:
1.
2.
3.
4.
5.
(2)
o
Symbol
T
J
and T
STG
R
ӨJA
R
ӨJC
P
PP
Value
-55 to +150
50
0.7
15,000
<100
<5
2.0
1500
260
(1)
2.5
(4)
71
Unit
ºC/W
ºC/W
ºC/W
W
ps
ns
V
A
ºC
W
W
Unidirectional
Bidirectional
(3)
T
A
= 25 °C
T
C
= 100 °C
V
FS
I
FSM
T
SP
P
D
When mounted on FR4 PC board with recommended mounting pad (see
pad layout).
Also see

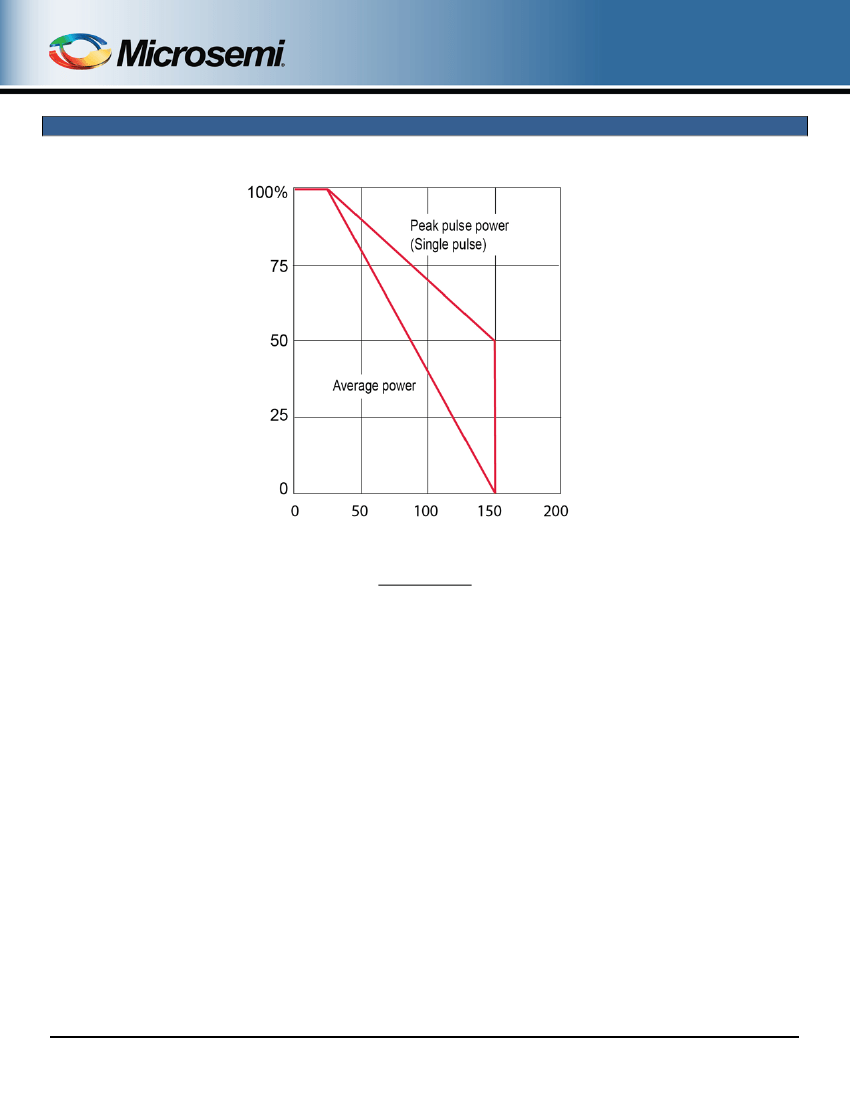

figures 1 and 2.
With impulse repetition rate (duty factor) of 0.05% or less.
At 8.3 ms half-sine wave (unidirectional devices only).
Case temperature controlled on heat sink as specified.
See MicroNote 134 for derating P
PP
when also applying steady-state power.
MECHANICAL and PACKAGING
•
•
•
•
•
•
•
•
CASE: Void-free transfer molded thermosetting epoxy body meeting UL94V-0.
TERMINALS: Tin-lead (90% Sn, 10% Pb) or RoHS (100% Sn) compliant annealed matte-tin plating readily solderable per MIL-
STD-750, method 2026.
MARKING: Body marked with part number.
POLARITY: For unidirectional devices, the cathode is on the metal backside (package bottom).
Available in bulk or custom tape-and-reel packaging.
TAPE-AND-REEL: Standard per EIA-481-B (add “TR” suffix to part number). Consult factory for quantities.
WEIGHT: 1 gram (approximate).
See
Package Dimensions
on last page.
PART NOMENCLATURE
M
Reliability Level*
M
MA
MX
MXL
*(see
High Reliability Up-
Screened Plastic Products
Portfolio)
Package Designation
PLAD 15K P
7.0
CA
e3
RoHS Compliance
e3 = RoHS compliant
Blank = non-RoHS compliant
Polarity
A = Unidirectional
CA = Bidirectional
Reverse Standoff Voltage
Plastic
P
PP
Rating (W)
RF01004, Rev D (11/6/12)
©2012 Microsemi Corporation
Page 2 of 6
MPLAD15KP7.0A –
MPLAD15KP200CA
SYMBOLS & DEFINITIONS
Definition
Breakdown Current: The current used for measuring breakdown voltage V
(BR)
.
Standby Current: The current at the rated standoff voltage V
WM
.
Peak Impulse Current: The peak current during the impulse.
Breakdown Voltage: The minimum voltage the device will exhibit at a specified current.
Clamping Voltage: Clamping voltage at I
PP
(peak pulse current) at the specified pulse conditions (typically shown as
maximum value).
Rated Working Standoff Voltage: The maximum peak voltage that can be applied over the operating temperature
range.
Temperature Coefficient of Breakdown Voltage: The change in breakdown voltage divided by change in temperature.
Symbol
I
(BR)
I
D
I
PP
V
(BR)
V
C
V
WM
α
V(BR)
ELECTRICAL CHARACTERISTICS
@ 25 ºC unless otherwise stated
REVERSE
STANDOFF
VOLTAGE
BREAKDOWN
VOLTAGE
MAXIMUM
CLAMPING
VOLTAGE
MAXIMUM
STANDBY
CURRENT
MAXIMUM
PEAK
PULSE
CURRENT
MAXIMUM
TEMPERATURE
COEFFICIENT
MICROSEMI PART NUMBER
V
WM
(Note 1)
V
C
@ I
PP
V
(BR)
@ I
(BR)
mA
150
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
Volts
12.0
12.9
13.6
14.4
15.4
17.0
18.2
19.9
21.5
23.2
24.4
26.0
27.6
29.2
32.4
35.5
38.9
42.1
45.5
48.4
53.3
58.1
64.5
69.4
72.7
77.4
82.4
87.1
93.6
96.8
103
113
121
126
137
146
162
177
193
209
243
259
275
291
322
I
D
@ V
WM
µA
3000
750
450
150
60
45
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
I
PP
(FIG. 3)
A
1251
1164
1101
1041
975
882
822
753
696
645
618
576
543
516
462
423
384
357
330
309
282
258
234
216
207
195
183
171
159
156
147
132
123
120
108
102
93
84
78
71
62
58
55
52
47
Volts
7.78 – 8.60
8.33 – 9.21
8.89 – 9.83
9.44 – 10.4
10.0 – 11.1
11.1 – 12.3
12.2 – 13.5
13.3 – 14.7
14.4 – 15.9
15.6 – 17.2
16.7 – 18.5
17.8 – 19.7
18.9 – 20.9
20.0 – 22.1
22.2 – 24.5
24.4 – 26.9
26.7 – 29.5
28.9 – 31.9
31.1 – 34.4
33.3 – 36.8
36.7 – 40.6
40.0 – 44.2
44.4 – 49.1
47.8 – 52.8
50.0 – 55.3
53.3 – 58.9
56.7 – 62.7
60.0 – 66.3
64.4 – 71.2
66.7 – 73.7
71.1 – 78.6
77.8 – 86.0
83.3 – 92.1
86.7 – 95.8
94.4 – 104.0
100 – 111
111 – 123
122 – 135
133 – 147
144 – 159
167 – 185
178 – 197
189 – 209
200 – 221
222 – 245
α
V(BR)
Unidirectional
MPLAD15KP7.0A
MPLAD15KP7.5A
MPLAD15KP8.0A
MPLAD15KP8.5A
MPLAD15KP9.0A
MPLAD15KP10A
MPLAD15KP11A
MPLAD15KP12A
MPLAD15KP13A
MPLAD15KP14A
MPLAD15KP15A
MPLAD15KP16A
MPLAD15KP17A
MPLAD15KP18A
MPLAD15KP20A
MPLAD15KP22A
MPLAD15KP24A
MPLAD15KP26A
MPLAD15KP28A
MPLAD15KP30A
MPLAD15KP33A
MPLAD15KP36A
MPLAD15KP40A
MPLAD15KP43A
MPLAD15KP45A
MPLAD15KP48A
MPLAD15KP51A
MPLAD15KP54A
MPLAD15KP58A
MPLAD15KP60A
MPLAD15KP64A
MPLAD15KP70A
MPLAD15KP75A
MPLAD15KP78A
MPLAD15KP85A
MPLAD15KP90A
MPLAD15KP100A
MPLAD15KP110A
MPLAD15KP120A
MPLAD15KP130A
MPLAD15KP150A
MPLAD15KP160A
MPLAD15KP170A
MPLAD15KP180A
MPLAD15KP200A
Bidirectional
MPLAD15KP7.0CA
MPLAD15KP7.5CA
MPLAD15KP8.0CA
MPLAD15KP8.5CA
MPLAD15KP9.0CA
MPLAD15KP10CA
MPLAD15KP11CA
MPLAD15KP12CA
MPLAD15KP13CA
MPLAD15KP14CA
MPLAD15KP15CA
MPLAD15KP16CA
MPLAD15KP17CA
MPLAD15KP18CA
MPLAD15KP20CA
MPLAD15KP22CA
MPLAD15KP24CA
MPLAD15KP26CA
MPLAD15KP28CA
MPLAD15KP30CA
MPLAD15KP33CA
MPLAD15KP36CA
MPLAD15KP40CA
MPLAD15KP43CA
MPLAD15KP45CA
MPLAD15KP48CA
MPLAD15KP51CA
MPLAD15KP54CA
MPLAD15KP58CA
MPLAD15KP60CA
MPLAD15KP64CA
MPLAD15KP70CA
MPLAD15KP75CA
MPLAD15KP78CA
MPLAD15KP85CA
MPLAD15KP90CA
MPLAD15KP100CA
MPLAD15KP110CA
MPLAD15KP120CA
MPLAD15KP130CA
MPLAD15KP150CA
MPLAD15KP160CA
MPLAD15KP170CA
MPLAD15KP180CA
MPLAD15KP200CA
Volts
7.0
7.5
8.0
8.5
9.0
10
11
12
13
14
15
16
17
18
20
22
24
26
28
30
33
36
40
43
45
48
51
54
58
60
64
70
75
78
85
90
100
110
120
130
150
160
170
180
200
mV/ ºC
5.0
6.0
6.0
7.0
8.0
9.0
10
11
12
13
15
16
18
19
22
24
27
29
30
35
38
40
45
49
51
55
60
64
69
70
75
84
90
94
102
109
122
132
145
157
183
195
207
219
243
NOTE 1:
Transient Voltage Suppressors are normally selected with reverse standoff voltage V
WM
, which should be equal to or greater than the
peak operating voltage.
NOTE 2:
Items listed in bold above are available ex-stock or with a short lead-time.
RF01004, Rev D (11/6/12)
©2012 Microsemi Corporation
Page 3 of 6
