PIC16C56-RCI/JW datasheet, PDF

PIC16C56-RCI/JW: Description8-BIT, UVPROM, 0.5 MHz, MICROCONTROLLER, CDIP18, 0.300 INCH, WINDOWED, CERDIP-18; CategoryThe embedded processor and controller Microcontrollers and processors; File Size2MB，52 Pages; ManufacturerMicrochip; Websitehttps://www.microchip.com; Environmental Compliance

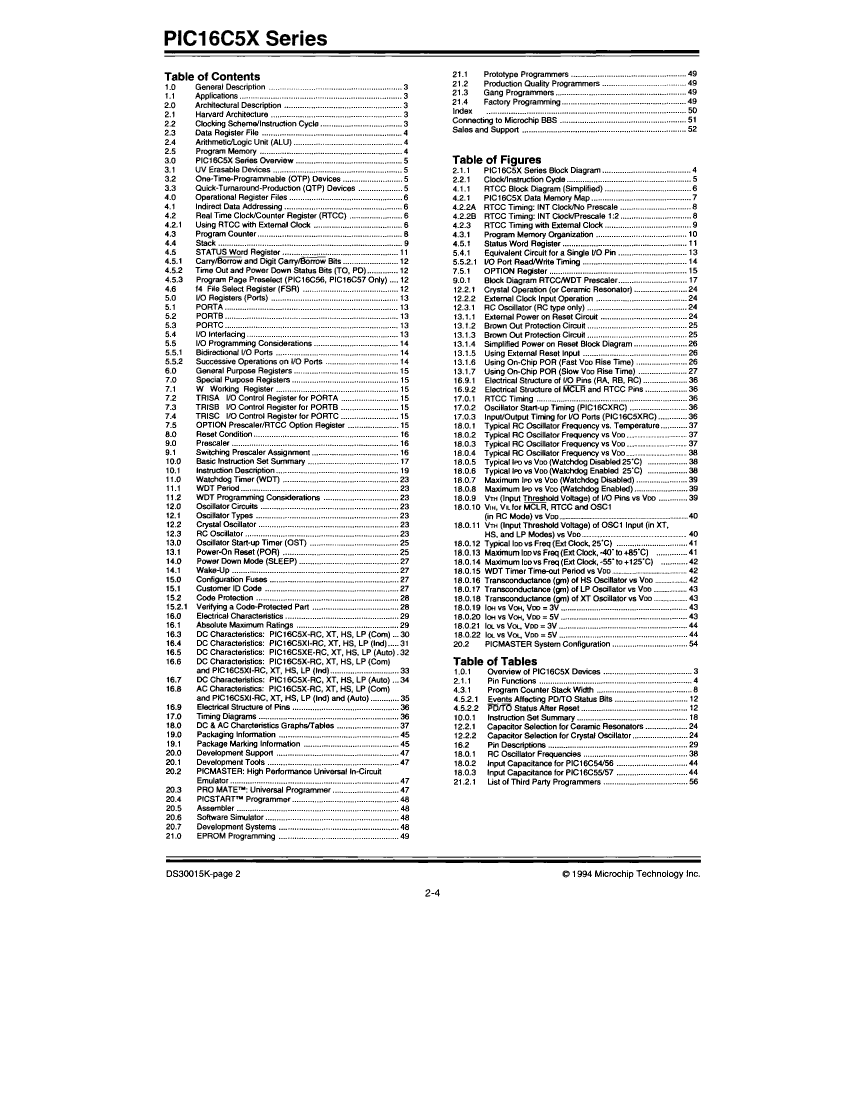

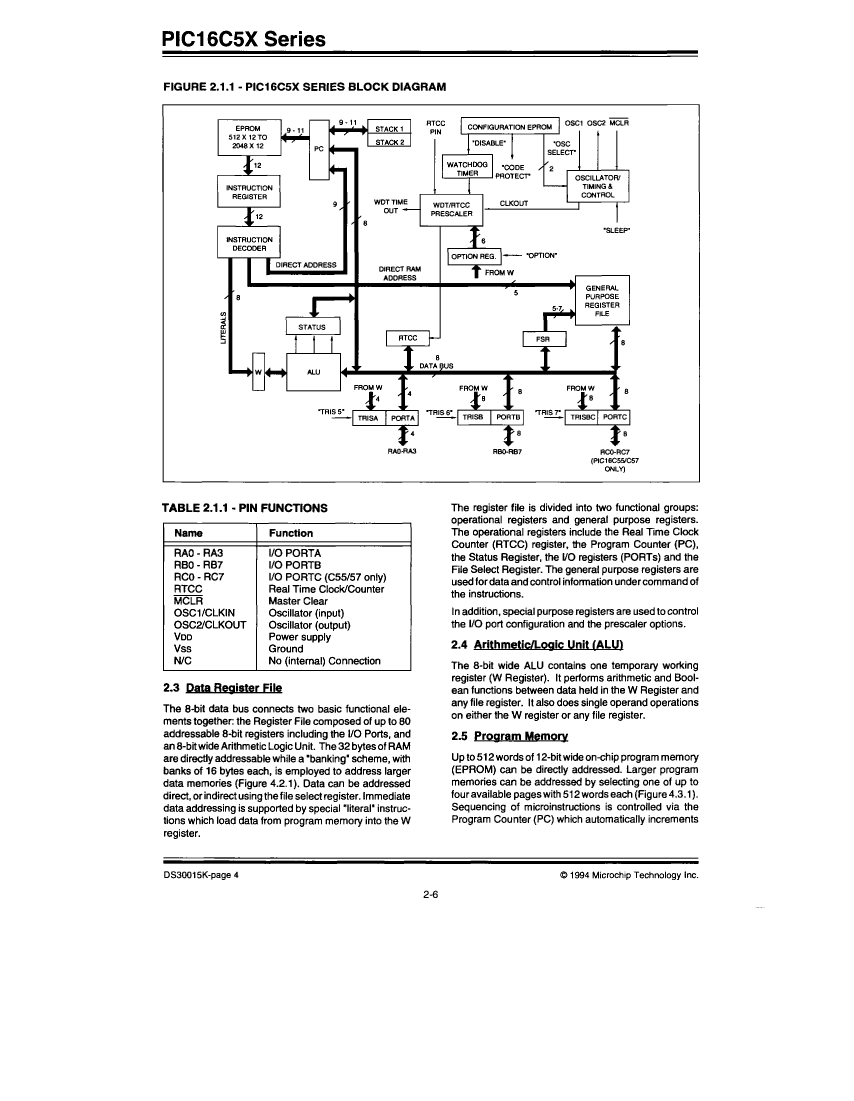

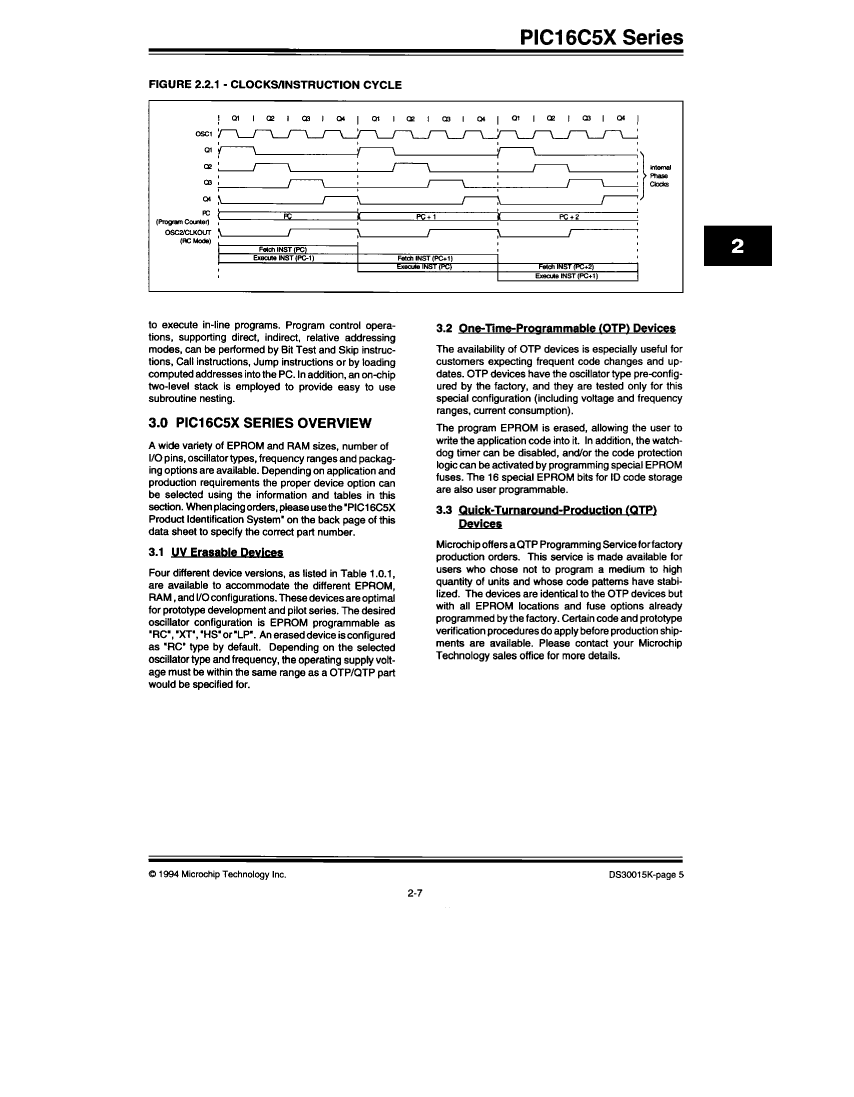

Download Datasheet Parametric View All

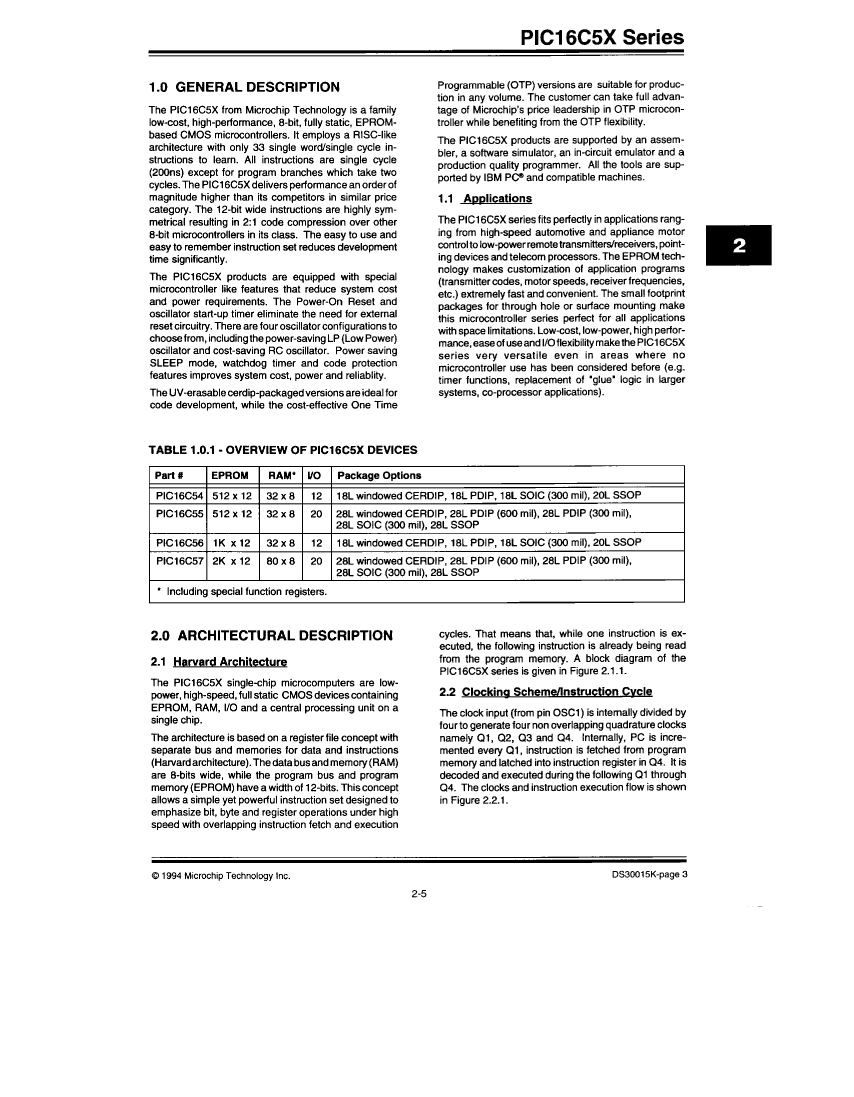

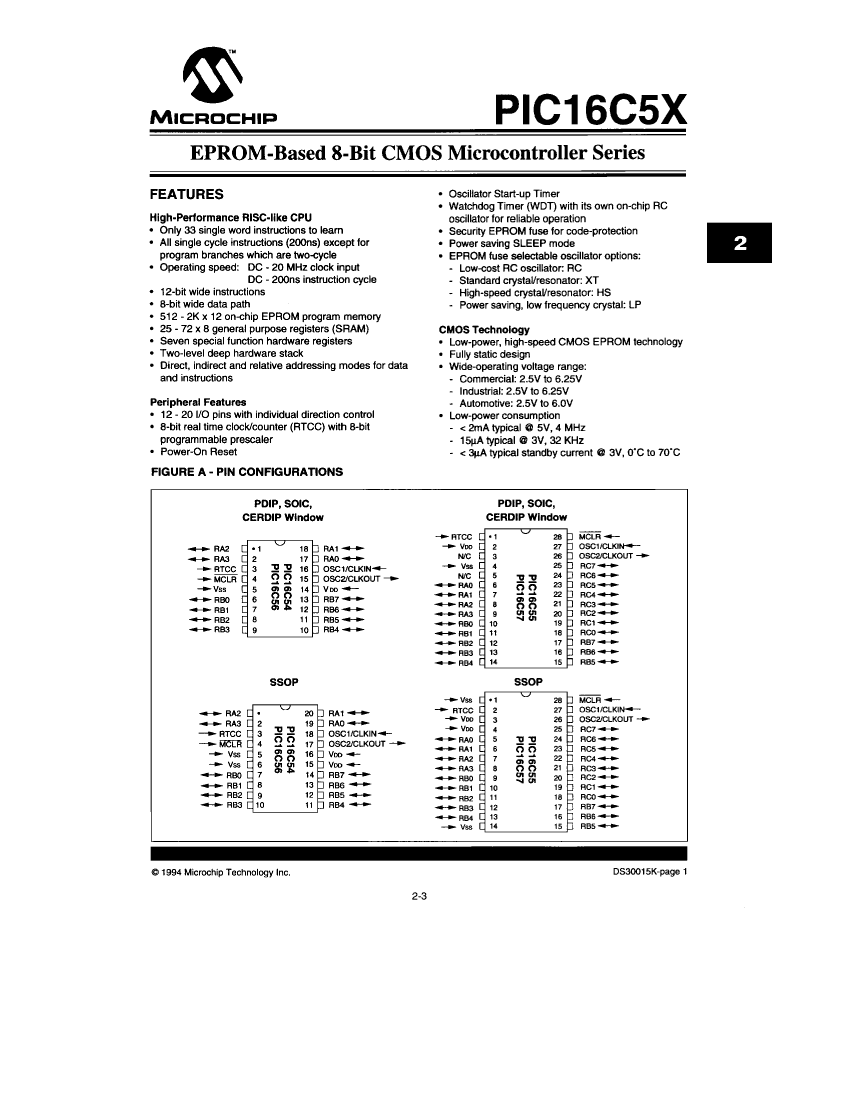

PIC16C56-RCI/JW Overview

8-BIT, UVPROM, 0.5 MHz, MICROCONTROLLER, CDIP18, 0.300 INCH, WINDOWED, CERDIP-18

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Microchip
Parts packaging code	DIP
package instruction	DIP, DIP18,.3
Contacts	18
Reach Compliance Code	compli
Has ADC	NO
Other features	ROM PROTECT
Address bus width
bit size	8
boundary scan	NO
CPU series	PIC
maximum clock frequency	4 MHz
DAC channel	NO
DMA channel	NO
External data bus width
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	R-GDIP-T18
JESD-609 code	e3
length	22.987 mm
low power mode	YES
Number of DMA channels
Number of external interrupt devices
Number of I/O lines	12
Number of serial I/Os
Number of terminals	18
Number of timers
On-chip data RAM width	8
On-chip program ROM width	12
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PWM channel	NO
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP18,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	3.3/5 V
Certification status	Not Qualified
RAM (bytes)	25
RAM (number of words)	25
rom(word)	1024
ROM programmability	UVPROM
speed	0.5 MHz
Maximum slew rate	3.3 mA
Maximum supply voltage	6.25 V
Minimum supply voltage	3 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Matte Tin (Sn)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER RISC
