50826-1423F datasheet, PDF - EEWORLD Datasheet

50826-1423F: DescriptionBoard Connector, 423 Contact(s), 3 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Guide Slot, Black Insulator, Plug; CategoryThe connector The connector; File Size189KB，3 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

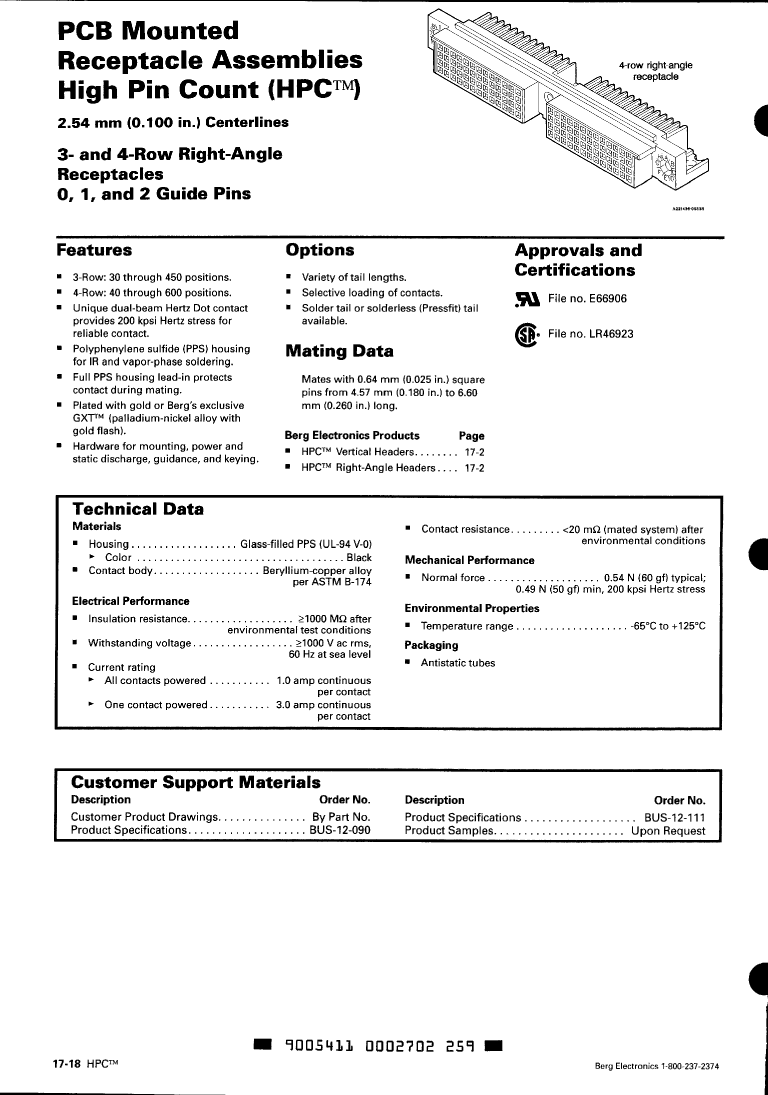

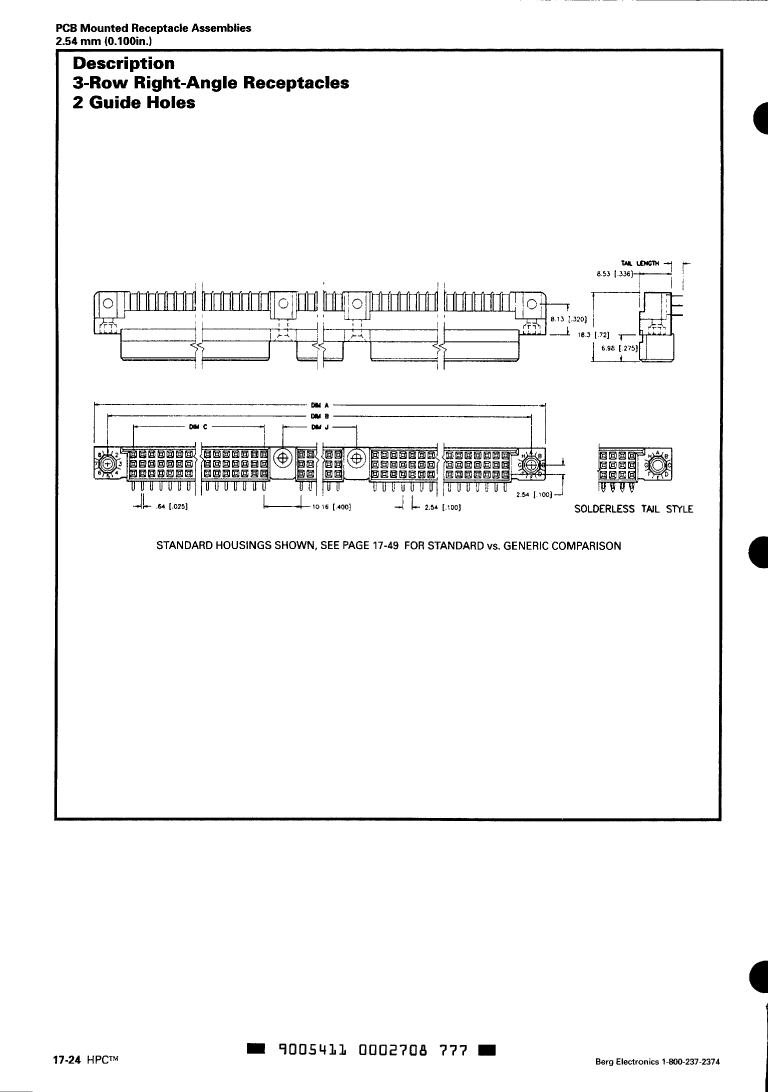

50826-1423F Overview

Board Connector, 423 Contact(s), 3 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Guide Slot, Black Insulator, Plug

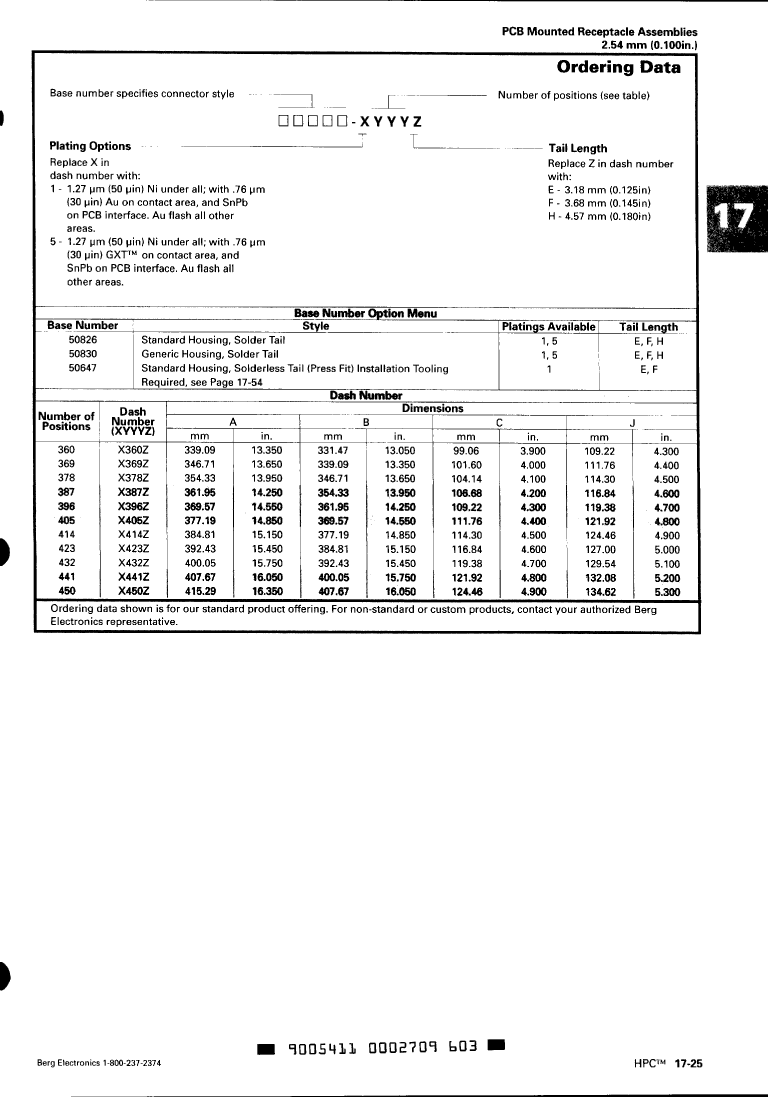

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compli
Other features	OPTIONAL POLARIZATION
Board mount options	HOLE .099-.111
body width	0.336 inch
subject depth	0.72 inch
body length	15.45 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE
Manufacturer's serial number	50826
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	GUIDE SLOT
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
polarization key	POLARIZED KEY
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.145 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	423
