51940-559 datasheet, PDF - EEWORLD Datasheet

51940-559: DescriptionBoard Connector, 22 Contact(s), Female, Straight, Press Fit Terminal, Guide Pin, Receptacle; CategoryThe connector The connector; File Size246KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

51940-559 Overview

Board Connector, 22 Contact(s), Female, Straight, Press Fit Terminal, Guide Pin, Receptacle

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compli
body width	0.47 inch
subject depth	0.5 inch
body length	2.55 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact arrangement	S16P6
Contact point gender	FEMALE
Contact material	COPPER ALLOY
Contact resistance	20 mΩ
Contact style	HYBRID
Dielectric withstand voltage	2500VDC V
Durability	200 Cycles
Insulation resistance	500000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC
Manufacturer's serial number	51940
Mixed contacts	YES
Installation option 1	GUIDE PIN
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.135 inch
Termination type	PRESS FIT
Total number of contacts	22

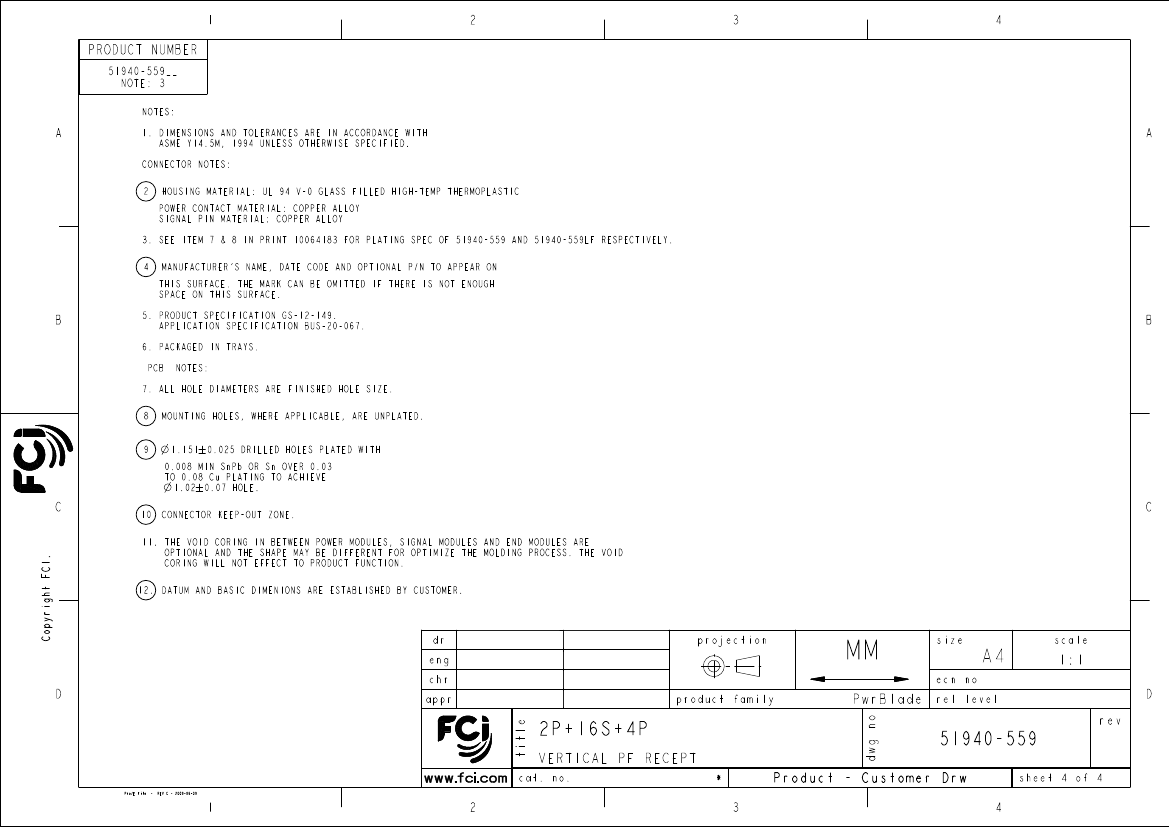

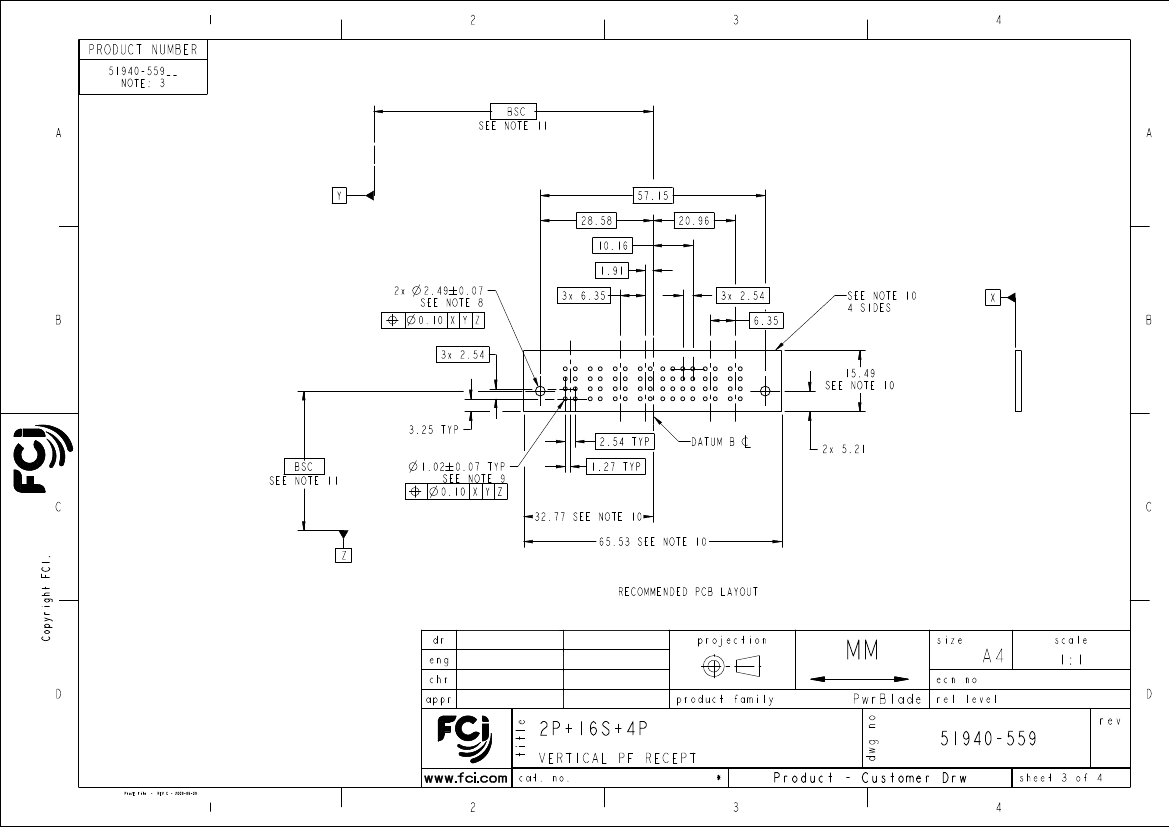

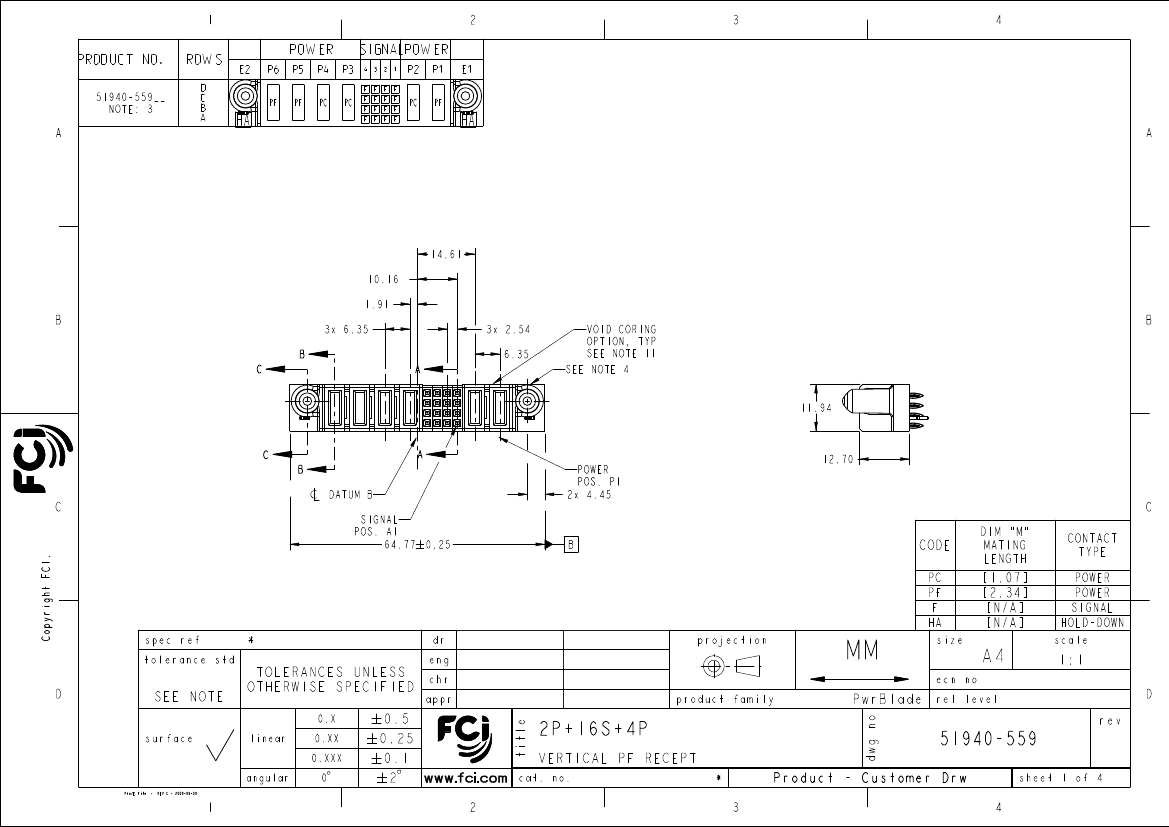

Luo Weller

Pei-Ming Zheng

2014/11/19

2014/11/23

Released

PDS: Rev :A

STATUS:Released

Printed: Nov 24, 2014

	51940-559	51940-559LF
Description	Board Connector, 22 Contact(s), Female, Straight, Press Fit Terminal, Guide Pin, Receptacle	PWRBLADE VERT LF REC
Maker	Amphenol	Amphenol
Reach Compliance Code	compli	compliant
body width	0.47 inch	0.47 inch
subject depth	0.5 inch	0.5 inch
body length	2.55 inch	2.55 inch
Body/casing type	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contact arrangement	S16P6	S16P6
Contact point gender	FEMALE	FEMALE
Contact material	COPPER ALLOY	COPPER ALLOY
Contact resistance	20 mΩ	20 mΩ
Contact style	HYBRID	HYBRID
Dielectric withstand voltage	2500VDC V	2500VDC V
Durability	200 Cycles	200 Cycles
Insulation resistance	500000000 Ω	500000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC
Manufacturer's serial number	51940	51940
Mixed contacts	YES	YES
Installation option 1	GUIDE PIN	GUIDE PIN
Installation option 2	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD
Number of connectors	ONE	ONE
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Guideline	UL	UL
reliability	COMMERCIAL	COMMERCIAL
Terminal length	0.135 inch	0.135 inch
Termination type	PRESS FIT	PRESS FIT
Total number of contacts	22	22
