This document was generated on 06/02/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
1201140081
Active
microchange_m12_connectors
Micro-Change® Molded Junction Box, Top Mount, 8 Ports, LEDs for PNP sensors, with
Mini-Change® Connector on PUR Cable, 5.0m (16.40' )
Documents:

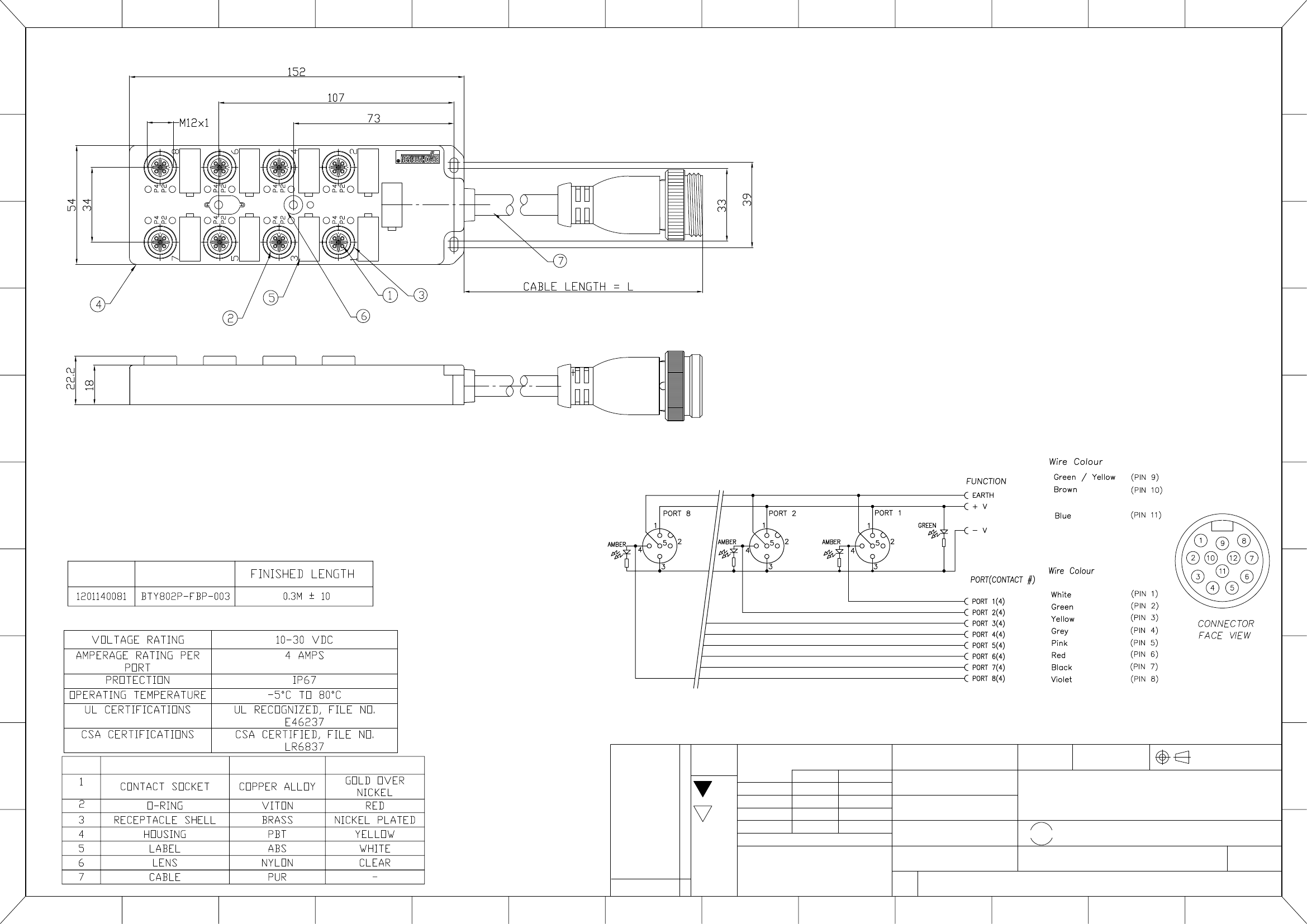

Drawing (PDF)
RoHS Certificate of Compliance (PDF)
Agency Certification
CSA
UL
LR6837
E152210
EU RoHS
China RoHS
Compliance Status
Not Reviewed
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Comments
IP Rating
NEMA Rating
Overview
Product Name
Passive Distribution Boxes
120114
PNP SENSORS
IP68
NEMA 6
microchange_m12_connectors
Micro-Change® (M12)
Search Parts in this Series
120114Series
Physical
Bus I/O
Cable Connector Orientation
Cable Length
Home Run Cable Length
Home Run Connector
Home Run Interface
Keyway
LED Indicator
Material - Cable Jacket
Material - Housing
Material - Metal
Material - Plating Mating
Orientation
Poles
Poles (wired)
Ports
Temperature Range - Operating
Wiring Configuration
Micro-Change® (M12)
Straight
0.305m (1.0' )
0.305m (1.0' )
Mini-Change® - 12 pole
Integrated Connector
Single
Yes
PUR
PBT
Copper Alloy
Gold over Nickel
Top Mount
5
4
8
-5°C to +90°C
Single I/O per Port
Electrical
Current - Maximum per Contact
Functional Wiring
Voltage - Maximum
12A per module, 4A per port
Parallel
10-30V DC
Material Info
Old Part Number
BTY802P-FBP
Reference - Drawing Numbers
Sales Drawing
SD-120114-082
