8609-132-51-13-765-015-E1 datasheet, PDF

8609-132-51-13-765-015-E1: DescriptionBoard Euro Connector, 32 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Gray Insulator, Receptacle; CategoryThe connector The connector; File Size254KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

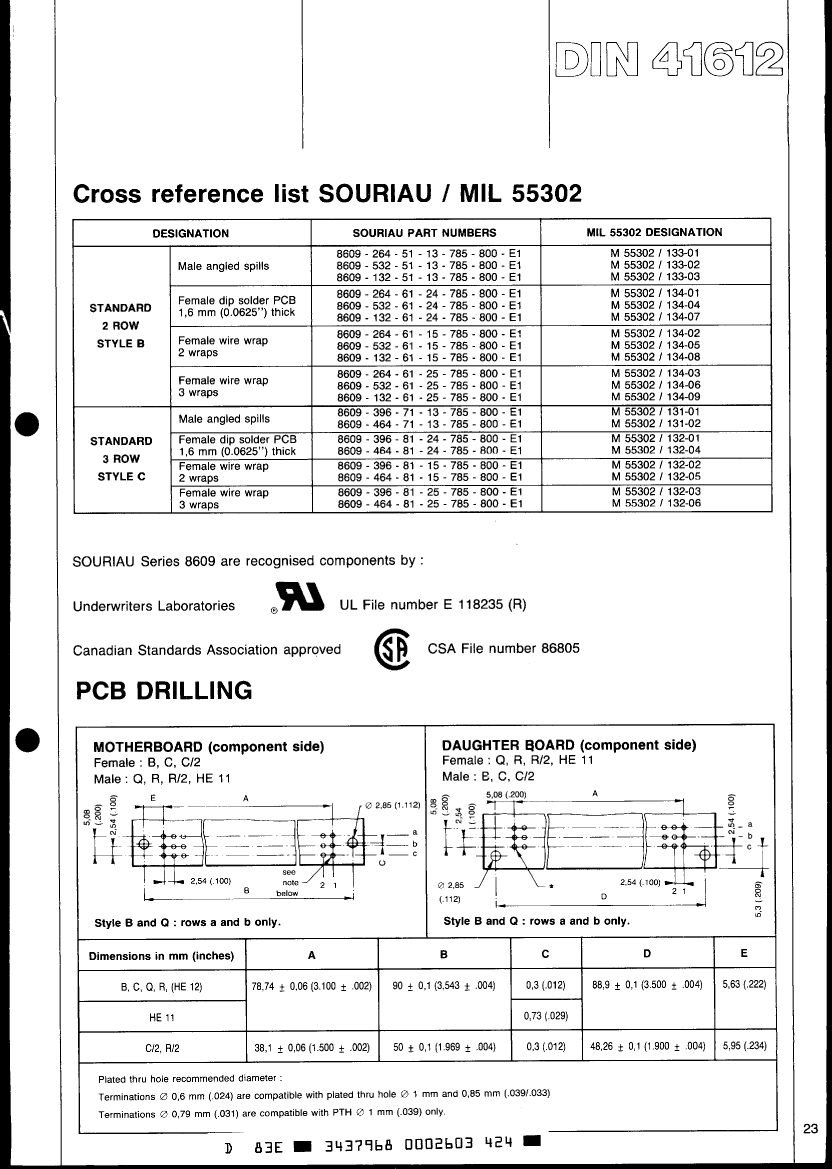

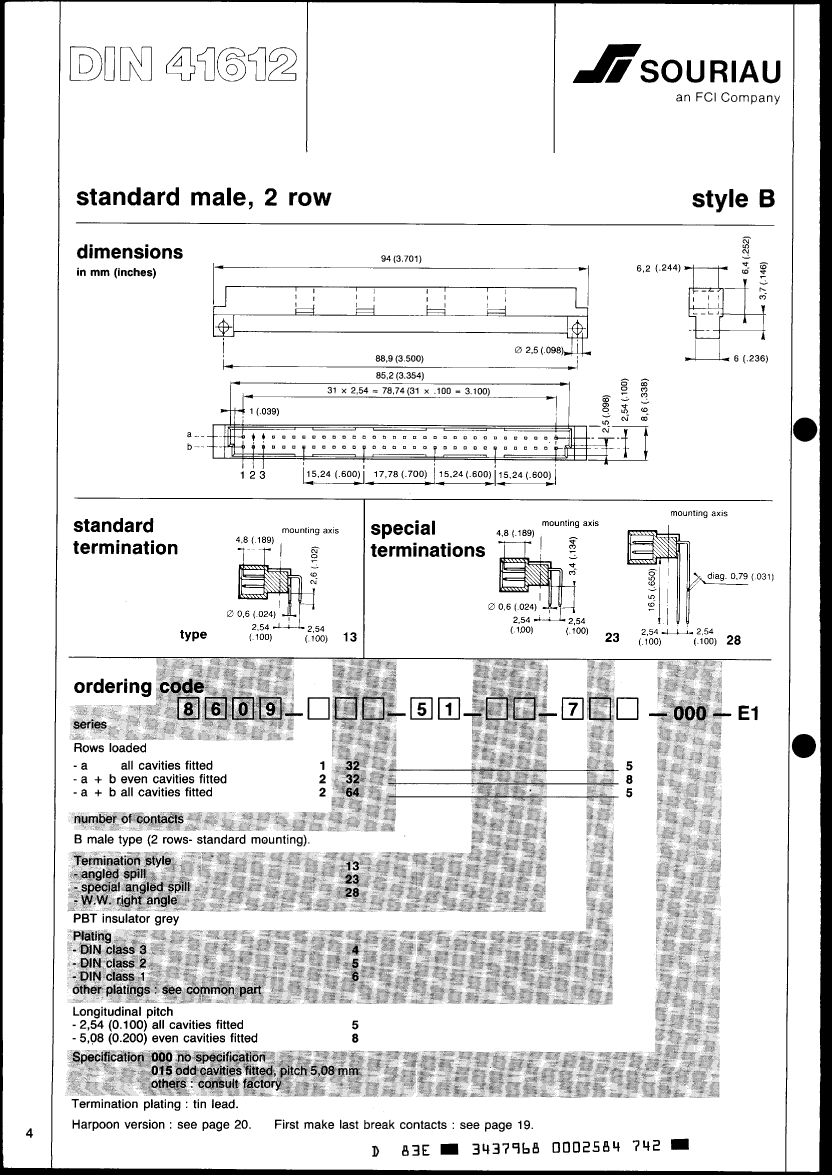

8609-132-51-13-765-015-E1 Overview

Board Euro Connector, 32 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Gray Insulator, Receptacle

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknow
body width	0.338 inch
subject depth	0.61 inch
body length	3.701 inch
Body/casing type	RECEPTACLE
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact style	SQ PIN-SKT
DIN compliance	YES
Insulator color	GRAY
insulator material	THERMOPLASTIC
Manufacturer's serial number	8609
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Loaded row name	A
PCB row number	2
Number of rows loaded	2
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.102 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	32
