Mill-Max Adds Single Row Series to Shrouded Male Connector Line

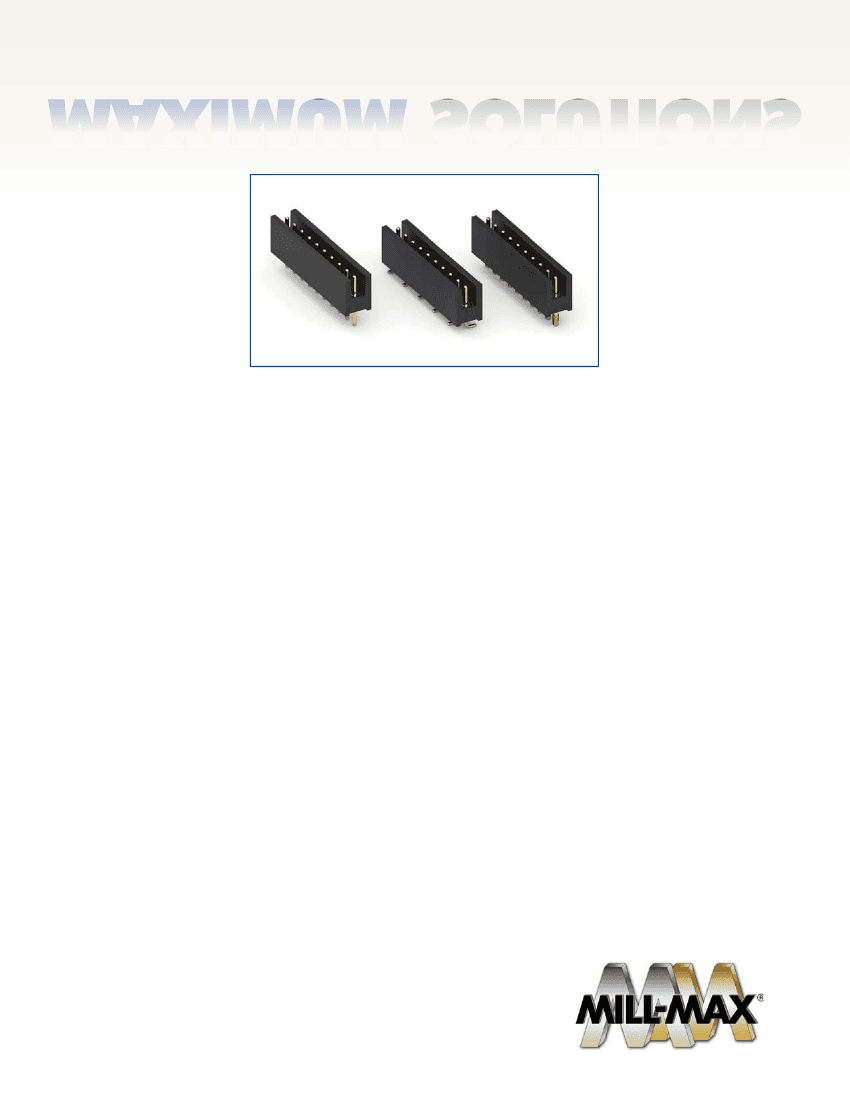

Mill-Max is pleased to announce the addition of a single row option to our shrouded male pin connector line. Shroud-
ed connectors are ideal for applications where a robust, secure connection is demanded, such as frequently mated
interconnects and blind mate conditions. These single row connectors are offered in through-hole and surface mount
termination styles and are available in up to 32 positions.
Through-hole:
Solder tail style: Series 800-XX-0XX-10-052000 (XX=2 to 32 pins)
Solderless, compliant press-fit style: Series 800-XX-0XX-61-051000 (XX=2 to 32 pins)
Surface mount:
Gull wing style: Series 800-XX-0XX-30-052000 (XX=3 to 32 pins)
The shroud of the connector extends above the pins affording full protection during handling, assembly, connecting
and disconnecting. Further, the shroud limits the amount of misalignment between connectors during mating and
de-mating – acting as a guide for blind mate applications.
Both the through-hole and surface mount versions have .100” (2,54 mm) spacing pin-to-pin. The connector body is
molded from Ryton, a high temperature, durable thermoplastic with excellent thermal stability, chemical resistance
and a flammability rating of UL94 V-0. The pins are made of precision-machined brass. The engaging leads are .030”
(0,76 mm) in diameter, .142” (3,61 mm) long and gold or matte tin-plated to provide a secure and reliable connection.
These connectors are RoHS compliant and suitable for lead-free reflow processes.
The new 800-XX-0XX-10-052000, 800-XX-0XX-61-051000 & 800-XX-0XX-30-052000 shrouded male connectors mate
with the following Mill-Max sockets, all of which are rated at 4.5 amps per contact:
Through-hole, straight solder tail: 801-XX-0XX-10-002000, 801-XX-0XX-10-001000
Through-hole, right angle solder tail: 801-XX-0XX-20-001000
Through-hole, compliant press-fit: 801-XX-0XX-61-001000, 801-XX-0XX-62-001000
Surface mount, gull wing; 801-XX-0XX-30-001000
3D connector models are available upon request for product engineering development. Contact Mill-Max Technical
Services for custom design options.
For more information, please visit: www.mill-max.com/PR632.
(1/13 -- PR632)
Mill-Max Mfg. Corp. • 190 Pine Hollow Road, Oyster Bay, NY 11771
516-922-6000 • Fax: 516-922-9253 •
www.mill-max.com
INTERCONNECTS

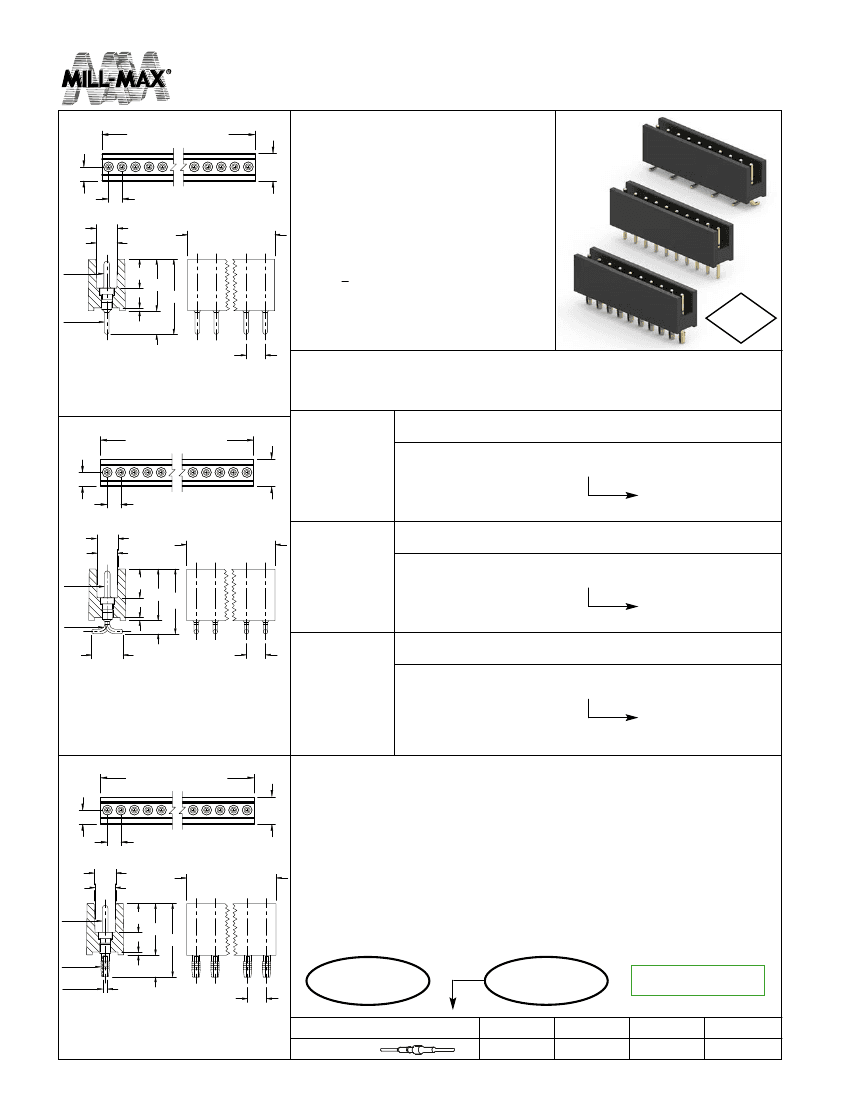

Series 800
.100” Grid (.030” dia.) Pins, Straight, SMT & Solderless Press-Fit
Single Row
Number
of Pins x .100"
.0975
.100
(TYP)
.195
•
Shrouded Pin interconnects available with
straight Series 800-XX-0XX-10-052000 or
surface mount 800-XX-0XX-30-052000 use
MM #5016 pins. See page 182 for details
•
Shrouded Pin interconnects with solderless
press-fit Series 800-XX-0XX-61-051000 use
MM #5607 pins. See page 182 for details.
The unique compliant tail pins conform to
.040”+.003” finished hole without stressing
inner layers. Patent No. 4,799,904
•
Insulators are high temperature thermoplastic
2002/95/EC
(.112)
.107
Number of Pins X .100"
.030 DIA.
.152
.271
(.395)
.024 DIA.
.015
.124
RoHS
.100
Fig. 1
Number of Pins x .100"
Ordering Information
Series 800...10-052
Straight Pin Header
.0975
.100
(TYP)
.195
Fig. 1
800-XX-0_ _-10-052000
Specify # of pins
01-32
(.112)
.107
Number of Pins X .100"
Series 800...30-052 Surface Mount Pin Header
.030 DIA.
.152
.015
.271
.341
(.070)
±.010
±.010
Fig. 2
800-XX-0_ _-30-052000
Specify # of pins
03-32
Compliant Tail Pin Header
.024 DIA.
.165
.100
Series 800...61-051
Coplanarity .005”. For Pin Counts >20
positions consult Technical Support.
Fig. 3
800-XX-0_ _-61-051000
Specify # of pins
01-32
Fig. 2
Number of Pins x .100"
.0975
.100
(TYP)
.195
(.112)
.107
Number of Pins X .100"
.030 DIA.
.152
.271
(.386)
.045 DIA.
.026 DIA.
.015
.115
.100
For Electrical,
Mechanical & Enviromental
Data, See pg. 4
XX=Plating Code
See Below
For RoHS compliance
select
plating code.
Fig. 3
w w w. m i l l - m a x . c o m
SPECIFY PLATING CODE XX=
10
10μ” Au
40
200μ” Sn
Pin Plating
84.2
516-922-6000
