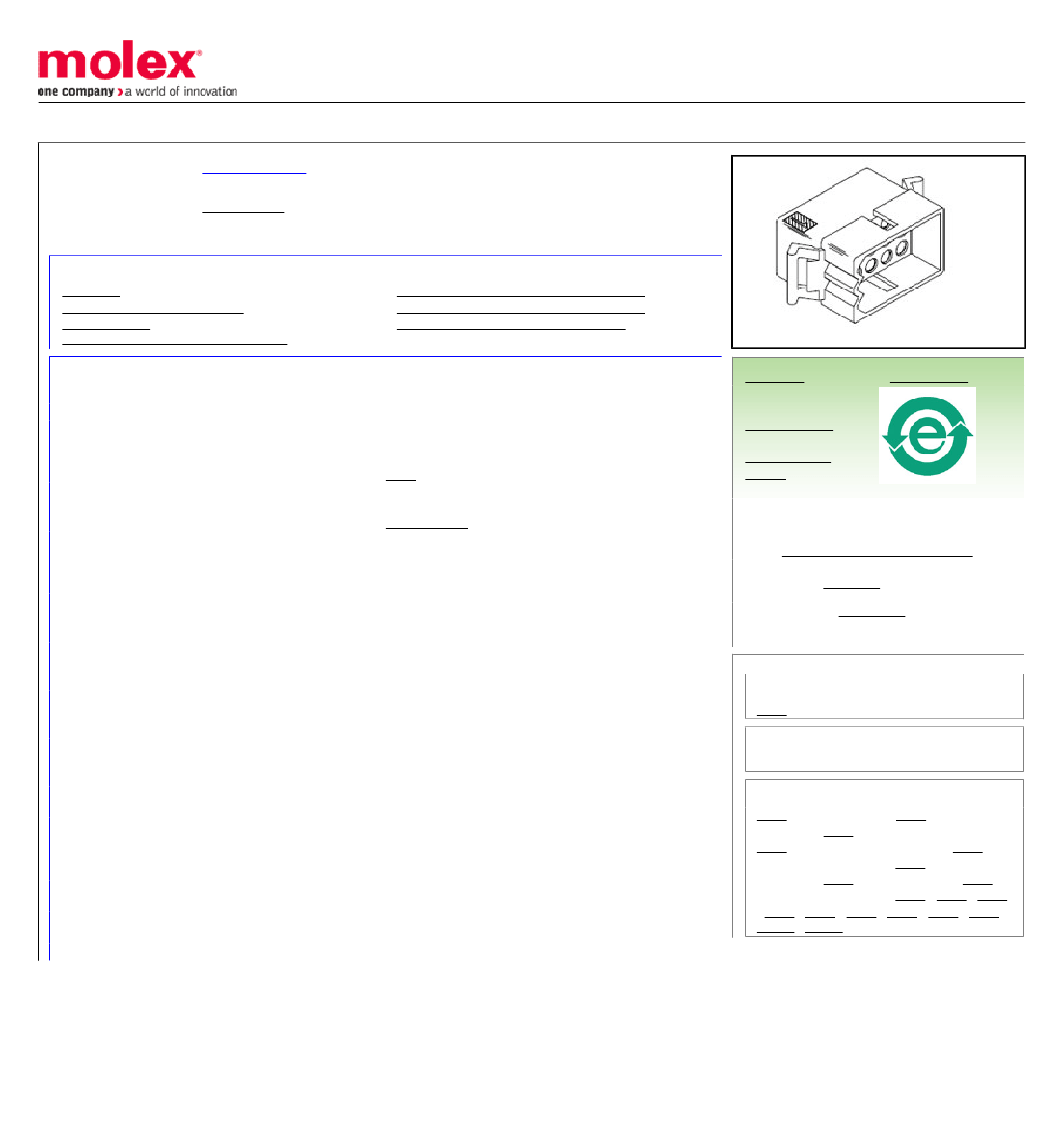

This document was generated on 05/17/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0003092158
Active
standard_093
2.36mm (.093") Diameter Standard .093 Pin and Socket Plug Housing, 15 Circuits, 3
Rows
Documents:
3D Model
Packaging Specification (PDF)

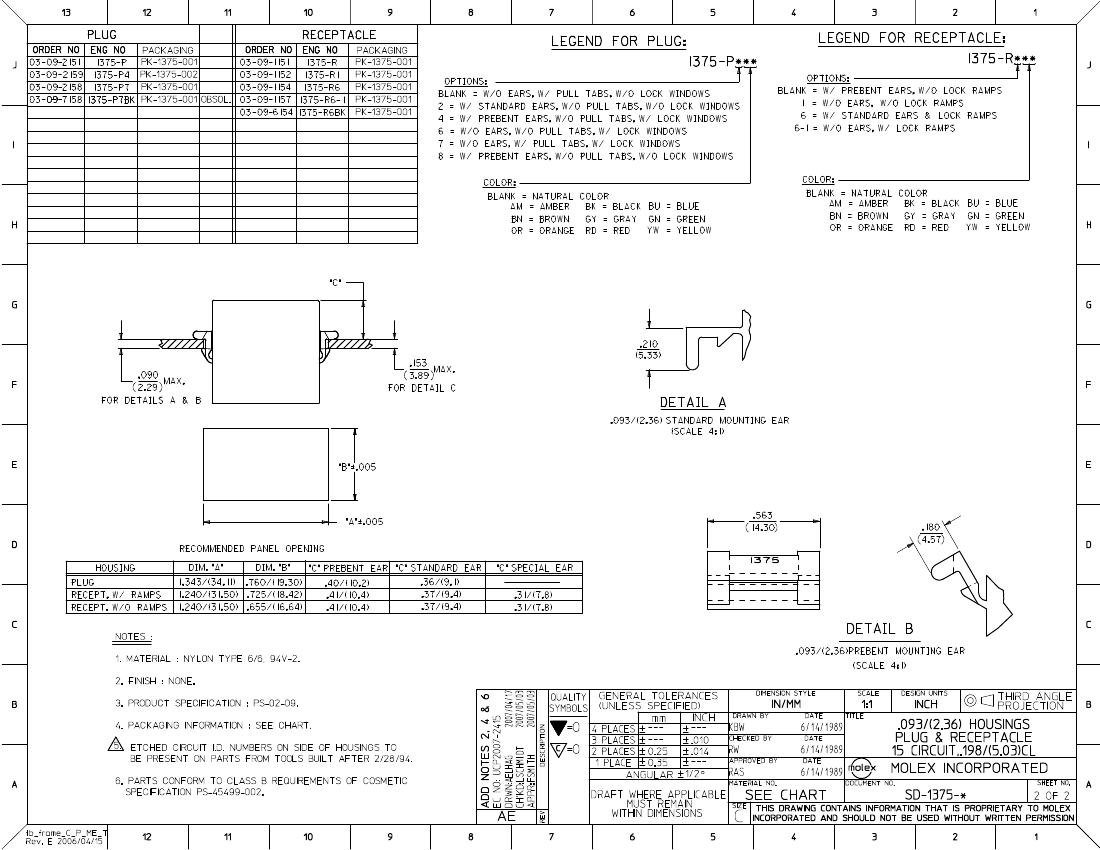

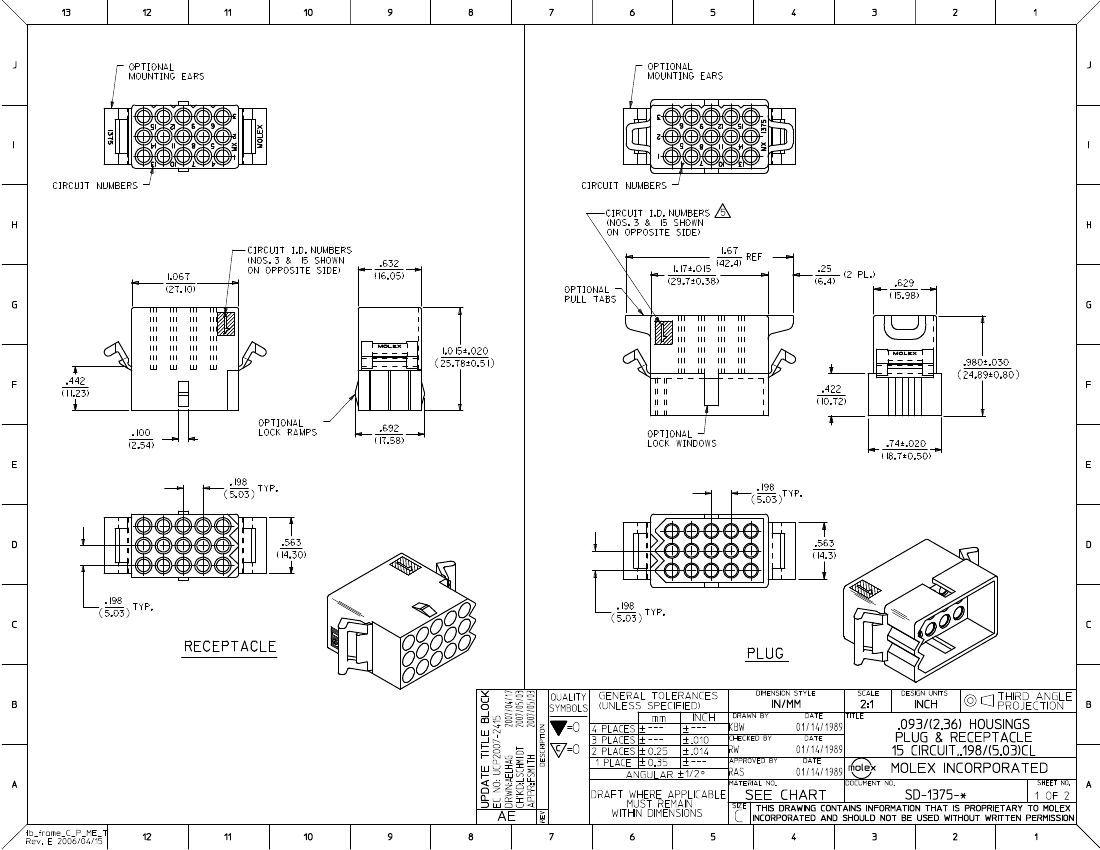

Drawing (PDF)
Product Specification PS-02-09 (PDF)
Product Specification PS-1375-001 (PDF)
Product Specification PS-1375-002 (PDF)
RoHS Certificate of Compliance (PDF)
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Series
Agency Certification
CSA
UL
LR19980
E29179
General
Product Family
Series
Comments
Overview
Product Name
Crimp Housings
1375
12.5A max. can be achieved when housing is used with
42477 or 42478 terminals
standard_093
Standard .093"
Physical
Circuits (maximum)
Color - Resin
Flammability
Gender
Glow-Wire Compliant
Material - Resin
Number of Rows
Packaging Type
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Stackable
Temperature Range - Operating
15
Natural
94V-2
Dual
No
Nylon
3
Bag
No
0.198 In
5.03 mm
No
-40°C to +105°C
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
1375Series
Mates With
1375r
Use With
1189 Crimp Terminals, 1190 Crimp
Terminals, 1376 Male PC Tail Terminals,
1377 Female PC Tail Terminals, 1380
Male Crimp Terminals, 1381 Female Crimp
Terminals, 1433 Crimp Terminals, 1434
Male Crimp Terminals, 1973 , 2151 , 2273
, 2870 , 2871 , 4272 , 4550 , 6271 , 6310 ,
42477 , 42478
Electrical
Current - Maximum per Contact
9.5A
Material Info
Old Part Number
1375P7
Reference - Drawing Numbers
Packaging Specification
Product Specification
Sales Drawing
PK-1375-001
PS-02-09, PS-1375-001, PS-1375-002
SD-1375-*
This document was generated on 05/17/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
