XDA15M0/26M00 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> XDA15M0/26M00

XDA15M0/26M00: DescriptionD Subminiature Connector, 15 Contact(s), Male-Male, Solder Terminal, Hole .112-.124, Receptacle,; CategoryThe connector The connector; File Size122KB，5 Pages; ManufacturerPositronic Industries

Download Datasheet Parametric View All

XDA15M0/26M00 Overview

D Subminiature Connector, 15 Contact(s), Male-Male, Solder Terminal, Hole .112-.124, Receptacle,

XDA15M0/26M00 Parametric

Parameter Name	Attribute value
Objectid	1672713660
Reach Compliance Code	unknown
ECCN code	EAR99
YTEOL	8.18
Other features	OTHER STACKING CONNECTOR, 26 CONTACTS AVAILABLE
body width	1.119 inch
subject depth	0.745 inch
body length	1.541 inch
Body/casing type	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE-MALE
Contact material	COPPER ALLOY
contact mode	STAGGERED
Contact resistance	10 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
MIL compliance	NO
Mixed contacts	NO
Installation option 1	HOLE .112-.124
Installation method	RIGHT ANGLE
Installation type	BOARD AND PANEL
PCB row number	5
Number of rows loaded	2+3
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Plating thickness	FLASH inch
Rated current (signal)	5 A
Guideline	UL, CSA
Shell surface	ZINC
Shell material	STEEL
Housing size	2/A
Terminal length	0.125 inch
Terminal pitch	2.286 mm
Termination type	SOLDER
Total number of contacts	15
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

Mixed Density

Dual Port

Series

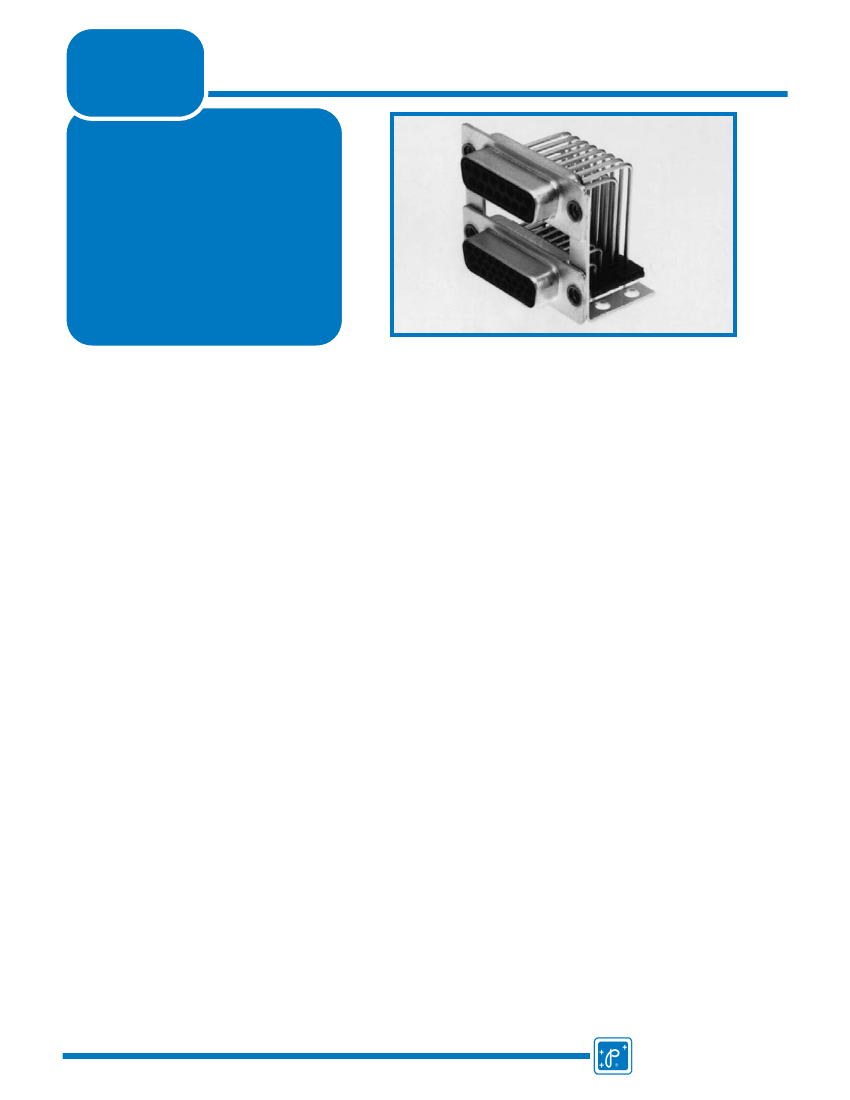

PROFESSIONAL QUALITY PRINTED BOARD MOUNT MIXED DENSITY DUAL PORT

VERTICALLY STACKED CONNECTOR ASSEMBLY

FOR SHELTERED INDOOR/OUTDOOR ENVIRONMENTAL APPLICATIONS

Size 20 and 22 Contacts

Two Connectors Vertically

Stacked and Assembled

As a Single Connector Unit

Professional Quality

Connectors

U.L. Recognized

File #E49351

CSA Recognized

File #LR54219

Telecommunication

U.L. File #14098

Mixed Density Dual Port Series connectors utilize one standard den-

sity connector and one high density connector, vertically stacked and

assembled into a single connector unit. This single connector unit per-

mits saving of panel and printed board space and decreases final

assembly costs.

Mixed Density Dual Port Series connectors are professional quality

connectors

recommended

for

use

sheltered,

non-

corrosive indoor and outdoor environments having normal ventilation.

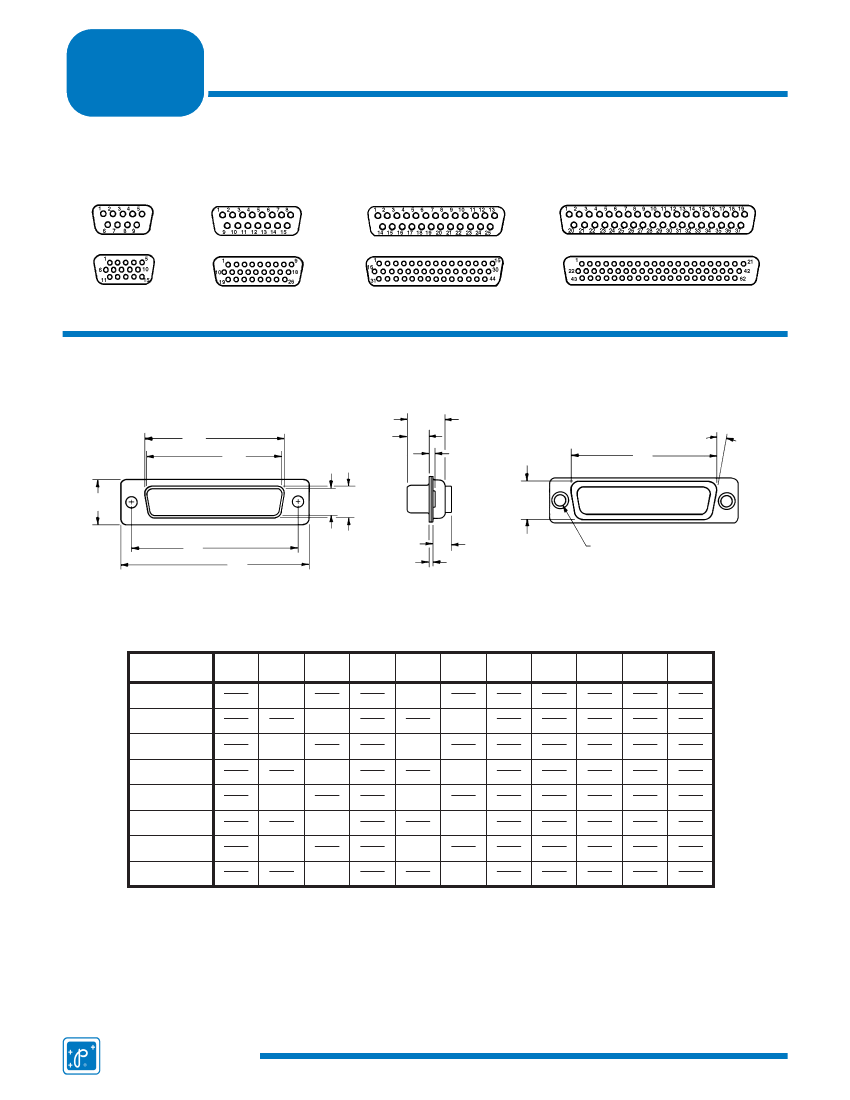

Connector contact variants are the normal density over a high den-

sity connector: 9 over 15, 15 over 26, 25 over 44 and 37 over 62.

Connector genders can be mixed, i.e., one male and one female con-

nector within one Mixed Density Dual Port assembly. The two connec-

tors may be spaced apart to three standard dimensional spacings. The

connector may also be partially populated with contacts which are

installed in the connector body to customer selected contact positions.

Mounting angle brackets can be ordered riveted to the connector by

specifying R2, R6, R7 or R8 options. Locking systems are available uti-

lizing 4-40 threaded jackscrew systems, polarized or non-polarized, or

with a quick release Vibration Lock System for either front or rear panel

mounted connectors.

Mixed Density Dual Port Series connectors comply with the dimen-

sional requirements of MIL-DTL-24308.

MIXED DENSITY DUAL PORT SERIES TECHNICAL CHARACTERISTICS

MATERIALS AND FINISHES:

Insulator:

Glass-filled polyester per MIL-M-24519,

UL 94V-0 for high density connectors

and nylon resin, UL 94V-0 for standard

density connectors. Black color.

Male contacts – precision machined

copper alloy. Female contacts – preci-

sion machined high tensile phosphor

bronze.

Gold flash over nickel plate. Other finishes

available upon request.

Steel with tin plate, or zinc plate with

dichromate seal. Other materials and

finishes available upon request.

Steel or brass with tin plate, or zinc with

dichromate seal.

Nylon resin, UL 94V-0, black color.

Beryllium copper with tin plate.

Steel with zinc plate and dichromate

seal, or clear zinc plate.

Lock tabs, steel with nickel plate.

MECHANICAL CHARACTERISTICS:

Fixed Contacts:

Size 20 contacts on the top connector,

0.040 inch [1.02 mm] diameter. Size 22

contacts on the bottom connector, 0.030

inch [0.76 mm] diameter. Female contacts

– rugged open entry design.

Contact Retention in Insulator:

7 lbs. [31 N].

Contact Terminations:

Printed board mount with 90° termina-

tions supported in footprint pattern by a

plastic cross bar. Termination diameter

0.030 inch [0.76 mm] and 0.028 inch

[0.71 mm].

Male shells may be dimpled for EMI/ESD

ground paths.

Trapezoidally shaped shells and polar-

ized jackscrews.

Riveted fasteners with 0.120 inch [3.05

mm] diameter clearance hole, 4-40

threads, or 4-40 threads with nylon lock

insert.

Rapid installation push-on fasteners.

Jackscrews and vibration locking sys-

tems for either front or rear panel mount-

ed connectors.

500 operations minimum per IEC 512-5.

-55°C to +125°C.

Contacts:

Contact Plating:

Shells:

Mounting Spacers

and Brackets:

Cross Bar:

Push-On Fasteners:

Jackscrew Systems:

Vibration Lock Systems:

Contact Current Rating:

Shells:

Polarization:

Mounting Bracket

Riveted to Connector:

Mounting to Printed Board:

Locking Systems:

ELECTRICAL CHARACTERISTICS:

5 amperes for standard density

connectors. 3 amperes for high

density connectors.

Initial Contact Resistance:

0.010 ohms maximum.

Proof Voltage:

Insulator Resistance:

Clearance and Creepage

Distance [minimum]:

Working Voltage:

1,000 V r.m.s.

5 G ohms.

0.039 inch [1.0 mm].

300 V r.m.s.

Mechanical Operations:

Temperature Range:

CLIMATIC CHARACTERISTICS:

Positronic

Industries, Inc.
