43270-0011 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 43270-0011

43270-0011: DescriptionBoard Connector, 0+22 Contact(s), 2 Row(s), Right Angle, 0.165 inch Pitch, Solder Terminal, Locking, Black Insulator; CategoryThe connector The connector; File Size167KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

43270-0011 Overview

Board Connector, 0+22 Contact(s), 2 Row(s), Right Angle, 0.165 inch Pitch, Solder Terminal, Locking, Black Insulator

43270-0011 Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknow
Board mount options	SPLIT BOARD LOCK
body width	0.38 inch
subject depth	0.764 inch
body length	1.87 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN ON NI
Contact completed and terminated	TIN OVER NICKEL
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Insulator color	BLACK
insulator material	NYLON
Manufacturer's serial number	43270
Plug contact pitch	0.165 inch
Match contact row spacing	0.165 inch
Installation option 1	LOCKING
Installation option 2	LATCH
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.191 mm
Plating thickness	100u inch
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.12 inch
Terminal pitch	4.191 mm
Termination type	SOLDER
Total number of contacts	0+22

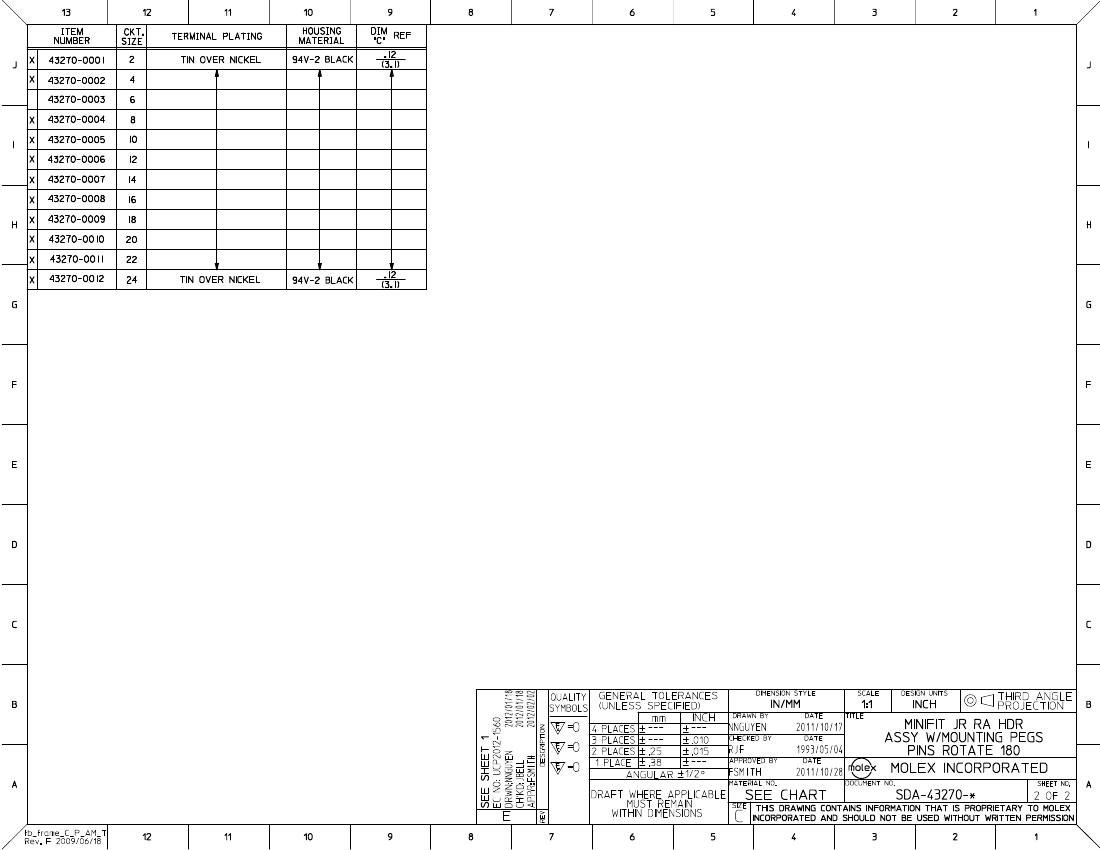

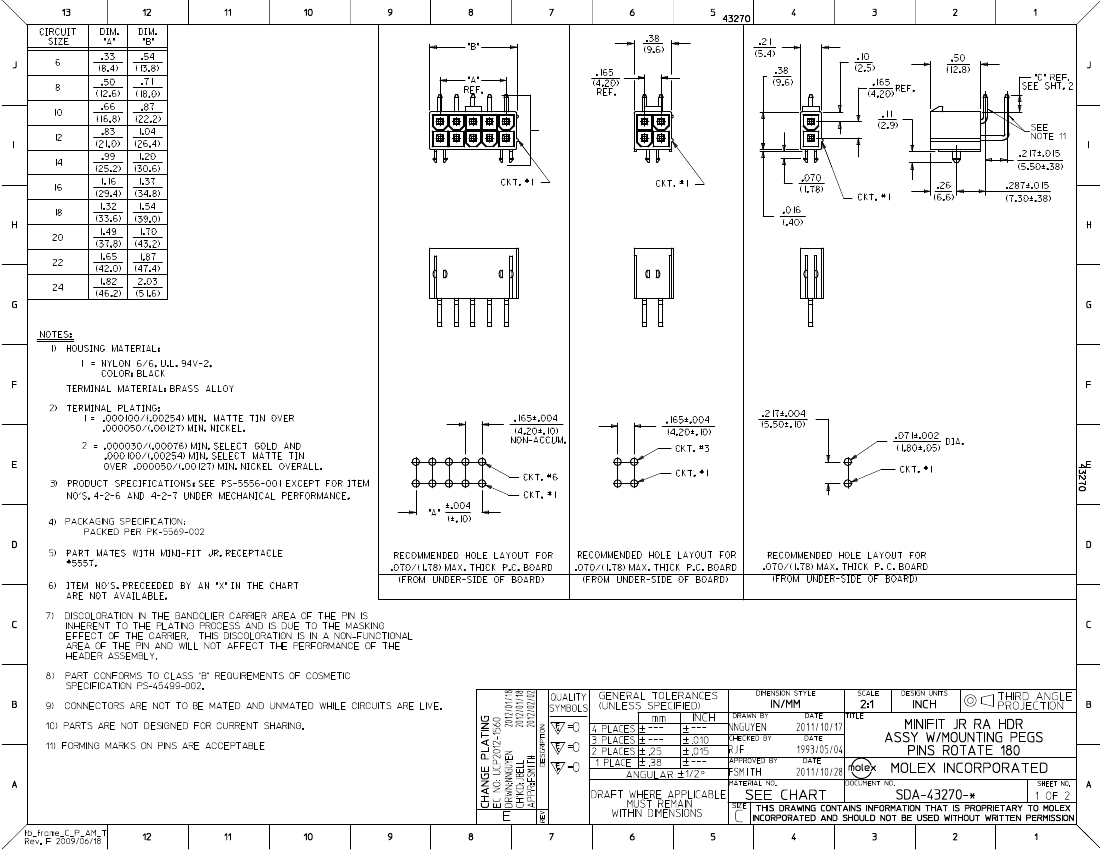

Preview

Download Datasheet

View All

43270-0011 Related Products

	43270-0011	43270-0006	0432700003	43270-0008	43270-0005
Description	Board Connector, 0+22 Contact(s), 2 Row(s), Right Angle, 0.165 inch Pitch, Solder Terminal, Locking, Black Insulator	Board Connector, 0+12 Contact(s), 2 Row(s), Right Angle, 0.165 inch Pitch, Solder Terminal, Locking, Black Insulator	minifit JR. RA W/mtg.prgs 6ckt	Board Connector, 0+16 Contact(s), 2 Row(s), Right Angle, 0.165 inch Pitch, Solder Terminal, Locking, Black Insulator	Board Connector, 0+10 Contact(s), 2 Row(s), Right Angle, 0.165 inch Pitch, Solder Terminal, Locking, Black Insulator
Reach Compliance Code	unknow	unknow	-	unknow	unknown
Board mount options	SPLIT BOARD LOCK	SPLIT BOARD LOCK	-	SPLIT BOARD LOCK	SPLIT BOARD LOCK
body width	0.38 inch	0.38 inch	-	0.38 inch	0.38 inch
subject depth	0.764 inch	0.764 inch	-	0.764 inch	0.764 inch
body length	1.87 inch	1.04 inch	-	1.37 inch	0.87 inch
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	-	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	SN ON NI	SN ON NI	-	SN ON NI	SN ON NI
Contact completed and terminated	TIN OVER NICKEL	TIN OVER NICKEL	-	TIN OVER NICKEL	TIN OVER NICKEL
contact mode	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR
Contact style	SQ PIN-SKT	SQ PIN-SKT	-	SQ PIN-SKT	SQ PIN-SKT
Insulator color	BLACK	BLACK	-	BLACK	BLACK
insulator material	NYLON	NYLON	-	NYLON	NYLON
Manufacturer's serial number	43270	43270	-	43270	43270
Plug contact pitch	0.165 inch	0.165 inch	-	0.165 inch	0.165 inch
Match contact row spacing	0.165 inch	0.165 inch	-	0.165 inch	0.165 inch
Installation option 1	LOCKING	LOCKING	-	LOCKING	LOCKING
Installation option 2	LATCH	LATCH	-	LATCH	LATCH
Installation method	RIGHT ANGLE	RIGHT ANGLE	-	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	-	BOARD	BOARD
Number of connectors	ONE	ONE	-	ONE	ONE
PCB row number	2	2	-	2	2
Number of rows loaded	2	2	-	2	2
PCB contact pattern	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR
PCB contact row spacing	4.191 mm	4.191 mm	-	4.191 mm	4.191 mm
Plating thickness	100u inch	100u inch	-	100u inch	100u inch
Guideline	UL	UL	-	UL	UL
reliability	COMMERCIAL	COMMERCIAL	-	COMMERCIAL	COMMERCIAL
Terminal length	0.12 inch	0.12 inch	-	0.12 inch	0.12 inch
Terminal pitch	4.191 mm	4.191 mm	-	4.191 mm	4.191 mm
Termination type	SOLDER	SOLDER	-	SOLDER	SOLDER
Total number of contacts	0+22	0+12	-	0+16	10
