52556-1210 datasheet, PDF - EEWORLD Datasheet

52556-1210: DescriptionBoard Connector, 12 Contact(s), 1 Row(s), Female, Straight, 0.059 inch Pitch, Solder Kinked Leads Terminal, Guide Slot, Plug; CategoryThe connector The connector; File Size46KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

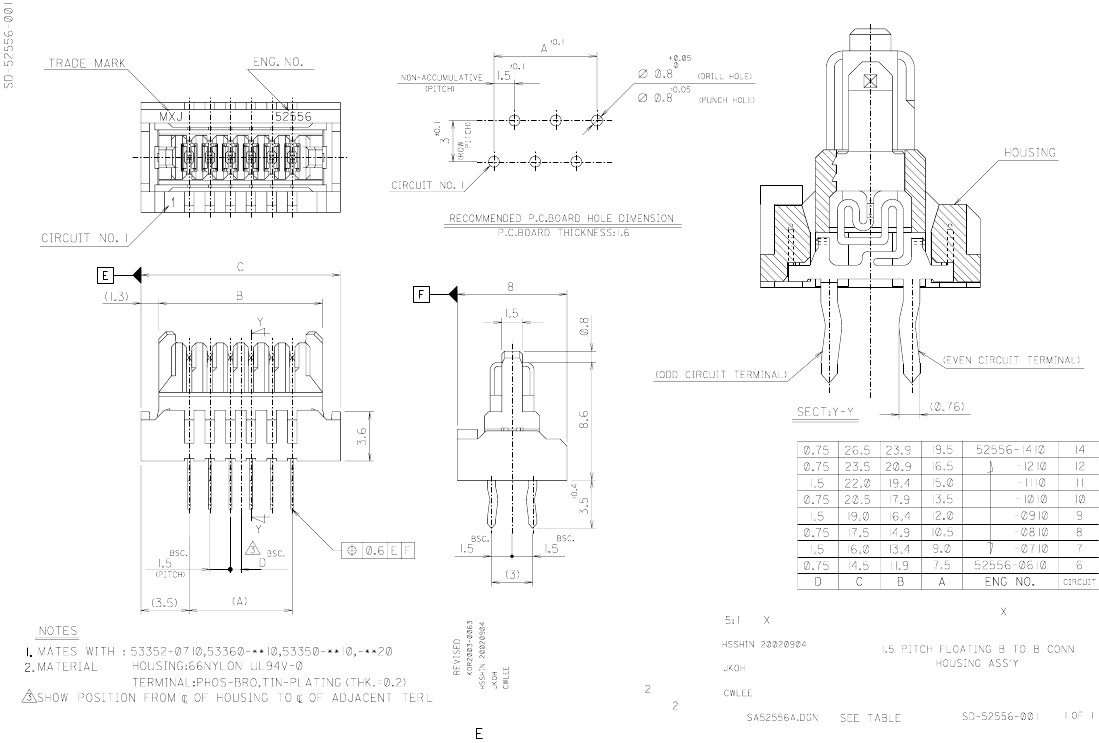

Download Datasheet Parametric View All

52556-1210 Overview

Board Connector, 12 Contact(s), 1 Row(s), Female, Straight, 0.059 inch Pitch, Solder Kinked Leads Terminal, Guide Slot, Plug

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknow
Other features	ROHS AND ELV COMPLIANT
body width	0.315 inch
subject depth	0.37 inch
body length	0.925 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
insulator material	NYLON
Manufacturer's serial number	52556
Plug contact pitch	0.059 inch
Installation option 1	GUIDE SLOT
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	1
PCB contact pattern	STAGGERED
PCB contact row spacing	2.9972 mm
polarization key	POLARIZED HOUSING
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.138 inch
Terminal pitch	2.9972 mm
Termination type	SOLDER KINKED LEADS
Total number of contacts	12
