52976-1547 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 52976-1547

52976-1547: DescriptionCard Edge Connector, 15 Contact(s), 1 Row(s), Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking; CategoryThe connector The connector; File Size306KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

52976-1547 Overview

Card Edge Connector, 15 Contact(s), 1 Row(s), Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking

52976-1547 Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknow
Other features	LEAD FREE
Board mount options	FITTING NAIL
body width	0.095 inch
subject depth	0.189 inch
body length	0.433 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	AU ON NI
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	40 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	250VAC V
Durability	10 Cycles
Insulation resistance	50000000 Ω
insulator material	POLYPHENYLENE SULPHIDE
Plug contact pitch	0.02 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
PCB contact pattern	RECTANGULAR
Rated current (signal)	0.4 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.508 mm
Termination type	SURFACE MOUNT
Total number of contacts	15

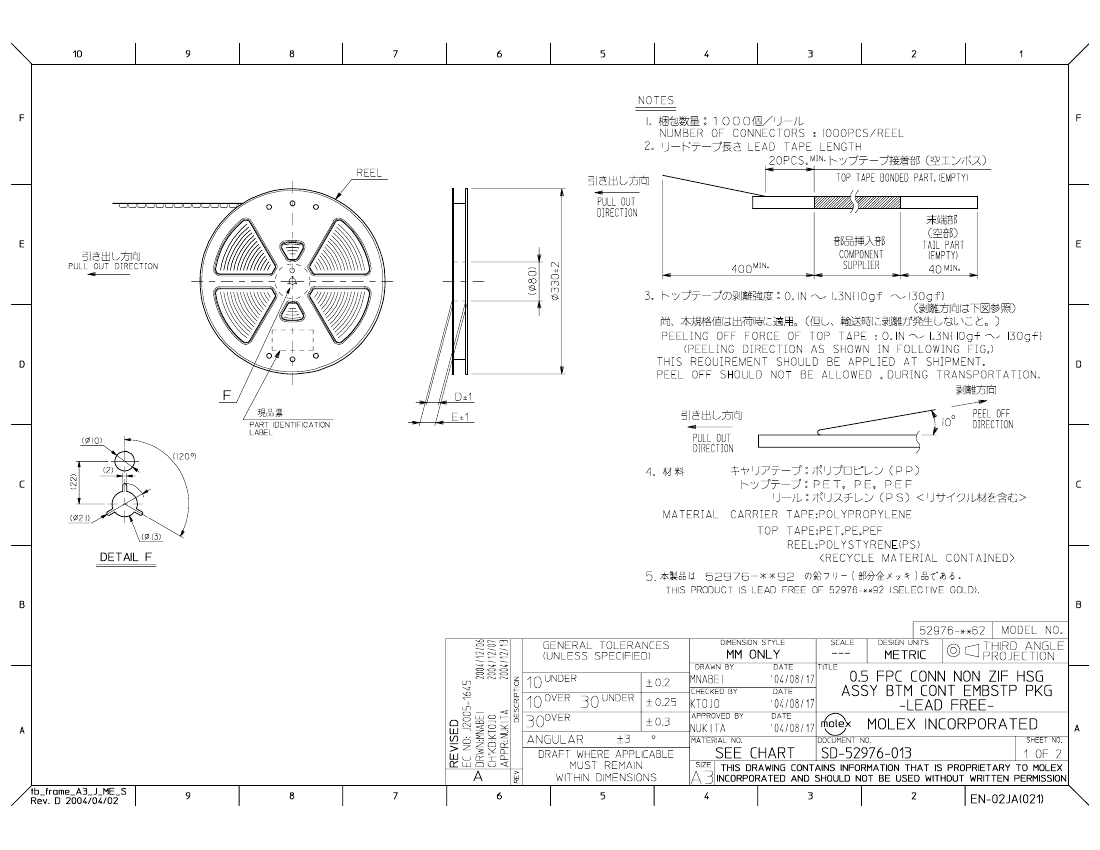

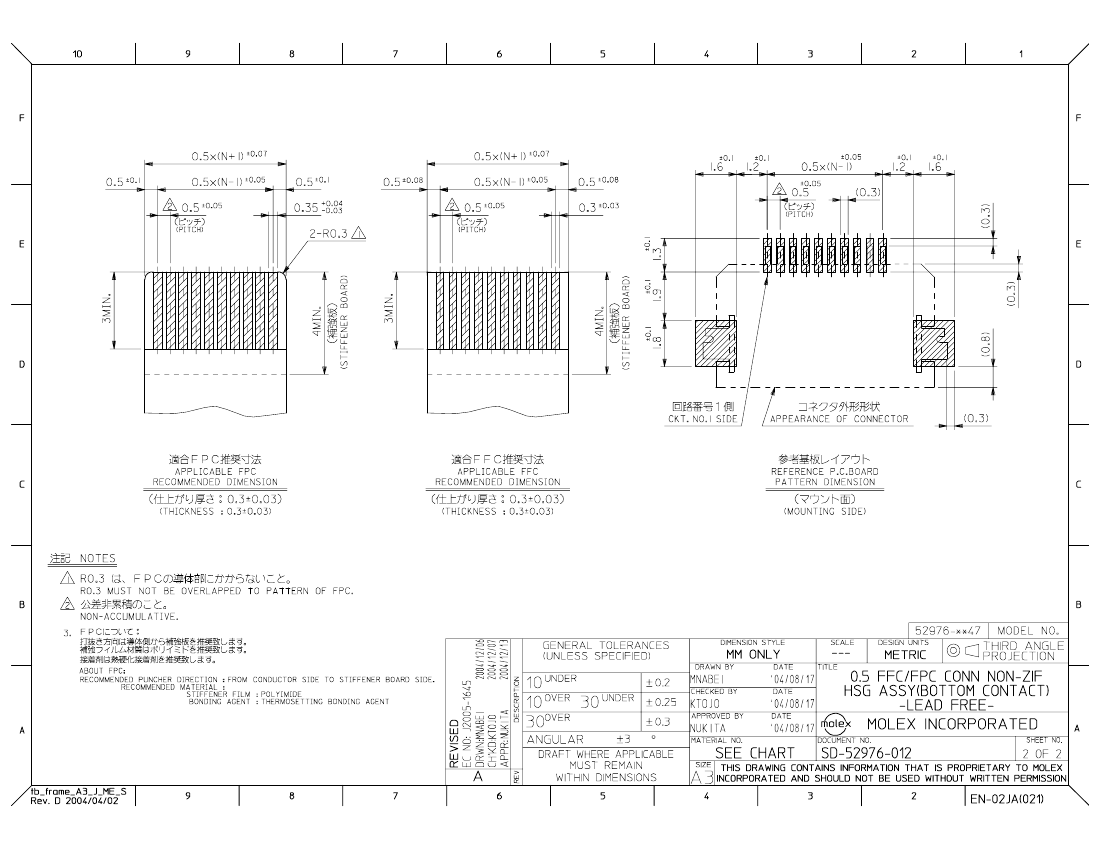

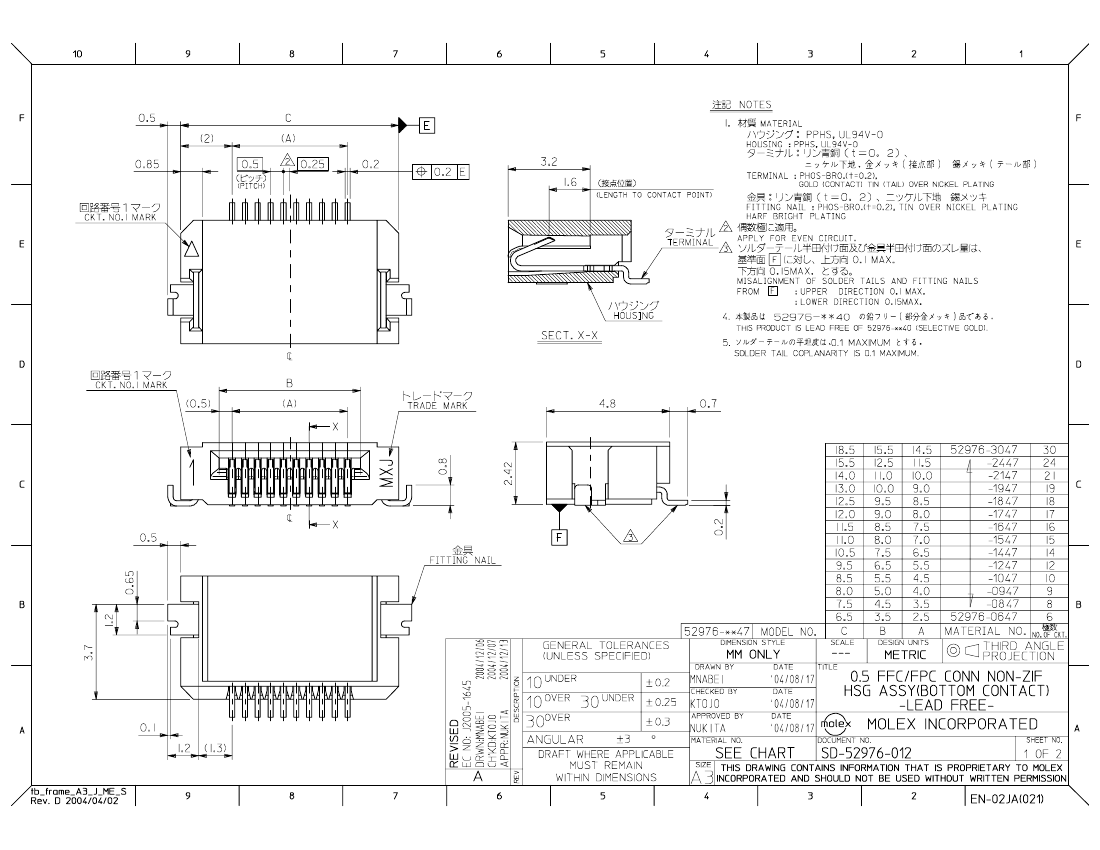

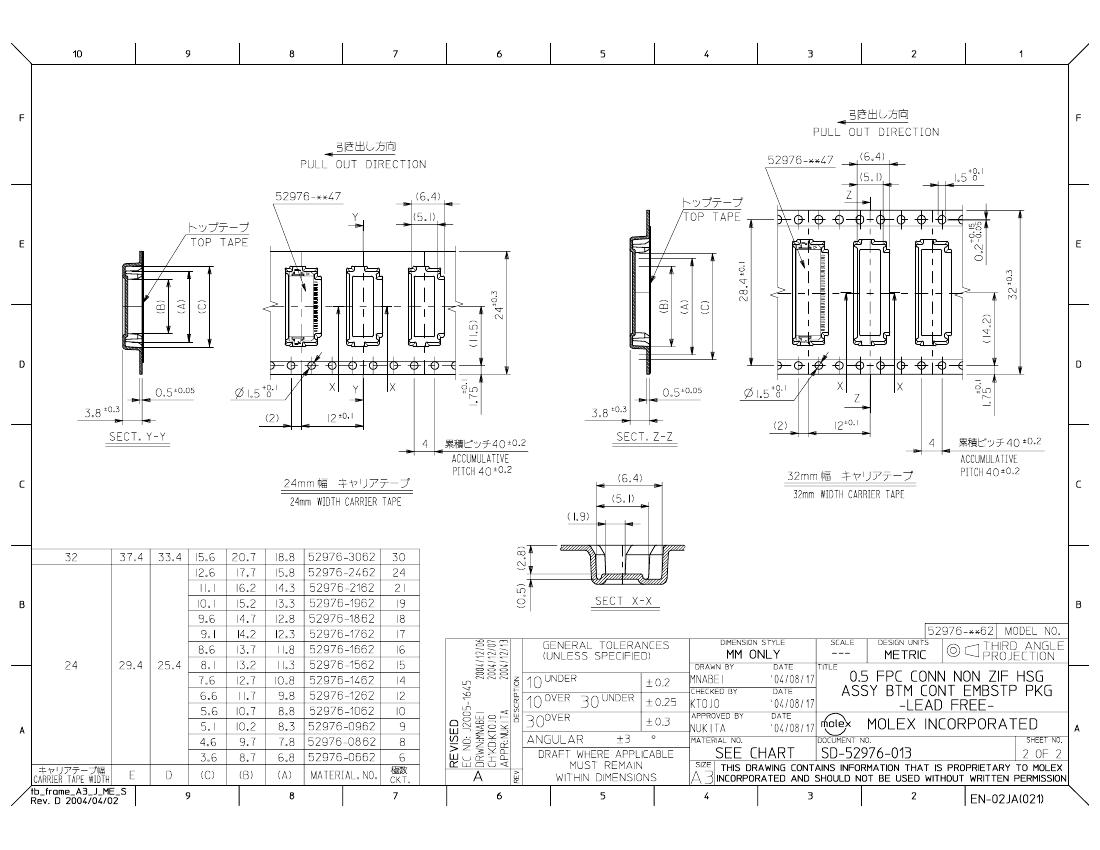

Preview

Download Datasheet

View All

52976-1547 Related Products

	52976-1547	52976-1062	52976-2162	52976-1562
Description	Card Edge Connector, 15 Contact(s), 1 Row(s), Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking	Card Edge Connector, 10 Contact(s), 1 Row(s), Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking	Card Edge Connector, 21 Contact(s), 1 Row(s), Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking	Card Edge Connector, 15 Contact(s), 1 Row(s), Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking
Maker	Molex	Molex	Molex	Molex
Reach Compliance Code	unknow	unknown	unknown	compli
Other features	LEAD FREE	ELV, ROHS COMPL. & EMBSTP PKG	ELV, ROHS COMPL. & EMBSTP PKG	ELV, ROHS COMPL. & EMBSTP PKG
Board mount options	FITTING NAIL	FITTING NAIL	FITTING NAIL	FITTING NAIL
body width	0.095 inch	0.095 inch	0.095 inch	0.095 inch
subject depth	0.189 inch	0.189 inch	0.189 inch	0.189 inch
body length	0.433 inch	0.335 inch	0.551 inch	0.433 inch
Connector type	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	40 mΩ	40 mΩ	40 mΩ	40 mΩ
Contact style	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
Dielectric withstand voltage	250VAC V	250VAC V	250VAC V	250VAC V
Durability	10 Cycles	10 Cycles	10 Cycles	10 Cycles
Insulation resistance	50000000 Ω	50000000 Ω	50000000 Ω	50000000 Ω
insulator material	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE
Plug contact pitch	0.02 inch	0.02 inch	0.02 inch	0.02 inch
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD
PCB row number	1	1	1	1
Number of rows loaded	1	1	1	1
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Rated current (signal)	0.4 A	0.4 A	0.4 A	0.4 A
Guideline	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	0.508 mm	0.508 mm	0.508 mm	0.508 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	15	10	21	15
Is it Rohs certified?	-	conform to	conform to	conform to
