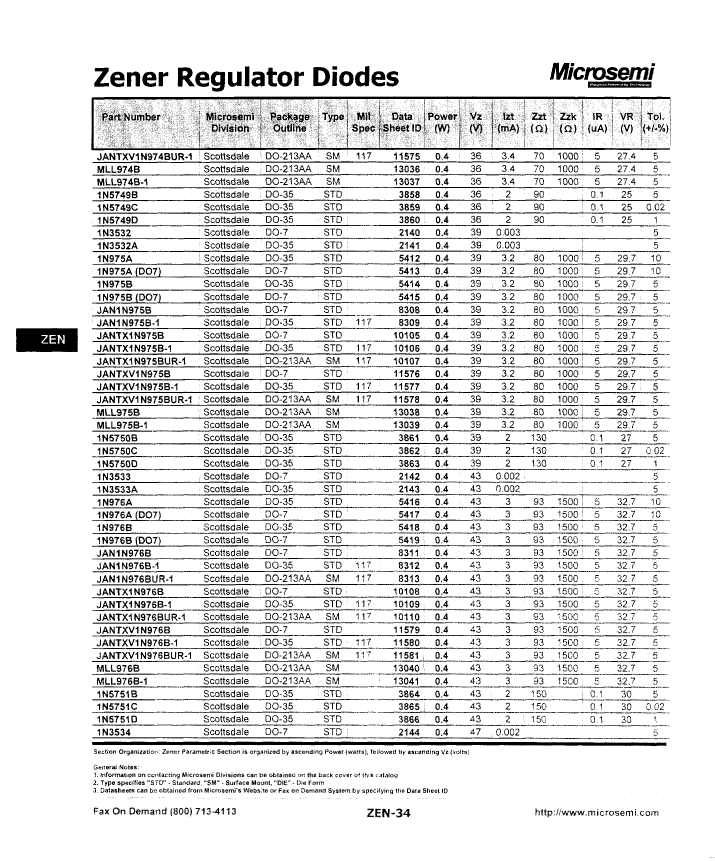

Zener Diode, 39V V(Z), 10%, 0.4W, Silicon, Unidirectional, DO-7, DO-7, 2 PIN
| Parameter Name | Attribute value |
| Is it lead-free? | Lead free |
| Is it Rohs certified? | conform to |
| Maker | Microsemi |
| Parts packaging code | DO-7 |
| package instruction | O-XALF-W2 |
| Contacts | 2 |
| Reach Compliance Code | compli |
| ECCN code | EAR99 |
| Shell connection | ISOLATED |
| Configuration | SINGLE |
| Diode component materials | SILICON |
| Diode type | ZENER DIODE |
| JEDEC-95 code | DO-7 |
| JESD-30 code | O-XALF-W2 |
| JESD-609 code | e3 |
| Number of components | 1 |
| Number of terminals | 2 |
| Package body material | UNSPECIFIED |
| Package shape | ROUND |
| Package form | LONG FORM |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| polarity | UNIDIRECTIONAL |
| Maximum power dissipation | 0.4 W |
| Certification status | Not Qualified |
| Nominal reference voltage | 39 V |
| surface mount | NO |
| technology | ZENER |
| Terminal surface | MATTE TIN |
| Terminal form | WIRE |
| Terminal location | AXIAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| Maximum voltage tolerance | 10% |
| Working test current | 3.2 mA |
| Base Number Matches | 1 |
| 1N975AE3(DO7) | 1N3533E3 | 1N975B(DO7) | 1N976B(DO7) | 1N976BE3(DO7) | 1N3532E3 | 1N975BE3(DO7) | 1N976AE3(DO7) | CRS20-621JV | CRS32-391GV | |
|---|---|---|---|---|---|---|---|---|---|---|
| Description | Zener Diode, 39V V(Z), 10%, 0.4W, Silicon, Unidirectional, DO-7, DO-7, 2 PIN | Zener Diode, 43V V(Z), 5%, 0.4W, Silicon, Unidirectional, DO-7, DO-7, 2 PIN | Zener Diode, 39V V(Z), 5%, 0.4W, Silicon, Unidirectional, DO-7, DO-7, 2 PIN | Zener Diode, 43V V(Z), 5%, 0.4W, Silicon, Unidirectional, DO-7, DO-7, 2 PIN | Zener Diode, 43V V(Z), 5%, 0.4W, Silicon, Unidirectional, DO-7, DO-7, 2 PIN | Zener Diode, 39V V(Z), 5%, 0.4W, Silicon, Unidirectional, DO-7, DO-7, 2 PIN | Zener Diode, 39V V(Z), 5%, 0.4W, Silicon, Unidirectional, DO-7, DO-7, 2 PIN | Zener Diode, 43V V(Z), 10%, 0.4W, Silicon, Unidirectional, DO-7, DO-7, 2 PIN | Fixed Resistor, Metal Glaze/thick Film, 0.125W, 620ohm, 150V, 5% +/-Tol, 250ppm/Cel, Surface Mount, 0805, CHIP | Fixed Resistor, Metal Glaze/thick Film, 0.25W, 390ohm, 200V, 2% +/-Tol, 250ppm/Cel, Surface Mount, 1206, CHIP |
| package instruction | O-XALF-W2 | O-XALF-W2 | O-XALF-W2 | O-XALF-W2 | O-XALF-W2 | O-XALF-W2 | O-XALF-W2 | O-XALF-W2 | CHIP | CHIP |
| Reach Compliance Code | compli | compli | unknow | unknow | unknow | compli | unknow | compli | unknown | unknown |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Number of terminals | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Package shape | ROUND | ROUND | ROUND | ROUND | ROUND | ROUND | ROUND | ROUND | RECTANGULAR PACKAGE | RECTANGULAR PACKAGE |
| surface mount | NO | NO | NO | NO | NO | NO | NO | NO | YES | YES |
| technology | ZENER | ZENER | ZENER | ZENER | ZENER | ZENER | ZENER | ZENER | METAL GLAZE/THICK FILM | METAL GLAZE/THICK FILM |
| Is it Rohs certified? | conform to | - | incompatible | incompatible | conform to | - | conform to | conform to | - | - |
| Parts packaging code | DO-7 | - | DO-7 | DO-7 | DO-7 | - | DO-7 | DO-7 | - | - |
| Contacts | 2 | - | 2 | 2 | 2 | - | 2 | 2 | - | - |
| Shell connection | ISOLATED | ISOLATED | ISOLATED | ISOLATED | ISOLATED | ISOLATED | ISOLATED | ISOLATED | - | - |
| Configuration | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | - | - |
| Diode component materials | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON | - | - |
| Diode type | ZENER DIODE | ZENER DIODE | ZENER DIODE | ZENER DIODE | ZENER DIODE | ZENER DIODE | ZENER DIODE | ZENER DIODE | - | - |
| JEDEC-95 code | DO-7 | DO-7 | DO-7 | DO-7 | DO-7 | DO-7 | DO-7 | DO-7 | - | - |
| JESD-30 code | O-XALF-W2 | O-XALF-W2 | O-XALF-W2 | O-XALF-W2 | O-XALF-W2 | O-XALF-W2 | O-XALF-W2 | O-XALF-W2 | - | - |
| JESD-609 code | e3 | - | e0 | e0 | e3 | - | e3 | e3 | e3 | e3 |
| Number of components | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - | - |
| Package body material | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED | - | - |
| Package form | LONG FORM | LONG FORM | LONG FORM | LONG FORM | LONG FORM | LONG FORM | LONG FORM | LONG FORM | - | - |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | - | NOT SPECIFIED | NOT SPECIFIED | 260 | - | 260 | NOT SPECIFIED | - | - |
| polarity | UNIDIRECTIONAL | UNIDIRECTIONAL | UNIDIRECTIONAL | UNIDIRECTIONAL | UNIDIRECTIONAL | UNIDIRECTIONAL | UNIDIRECTIONAL | UNIDIRECTIONAL | - | - |
| Maximum power dissipation | 0.4 W | 0.4 W | 0.4 W | 0.4 W | 0.4 W | 0.4 W | 0.4 W | 0.4 W | - | - |
| Certification status | Not Qualified | - | Not Qualified | Not Qualified | Not Qualified | - | Not Qualified | Not Qualified | - | - |
| Nominal reference voltage | 39 V | 43 V | 39 V | 43 V | 43 V | 39 V | 39 V | 43 V | - | - |
| Terminal surface | MATTE TIN | - | TIN LEAD | TIN LEAD | MATTE TIN | - | MATTE TIN | MATTE TIN | TIN OVER NICKEL | TIN OVER NICKEL |
| Terminal form | WIRE | WIRE | WIRE | WIRE | WIRE | WIRE | WIRE | WIRE | - | - |
| Terminal location | AXIAL | AXIAL | AXIAL | AXIAL | AXIAL | AXIAL | AXIAL | AXIAL | - | - |
| Maximum time at peak reflow temperature | NOT SPECIFIED | - | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | - | NOT SPECIFIED | NOT SPECIFIED | - | - |
| Maximum voltage tolerance | 10% | 5% | 5% | 5% | 5% | 5% | 5% | 10% | - | - |
| Working test current | 3.2 mA | 0.002 mA | 3.2 mA | 3 mA | 3 mA | 0.003 mA | 3.2 mA | 3 mA | - | - |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - | - |
