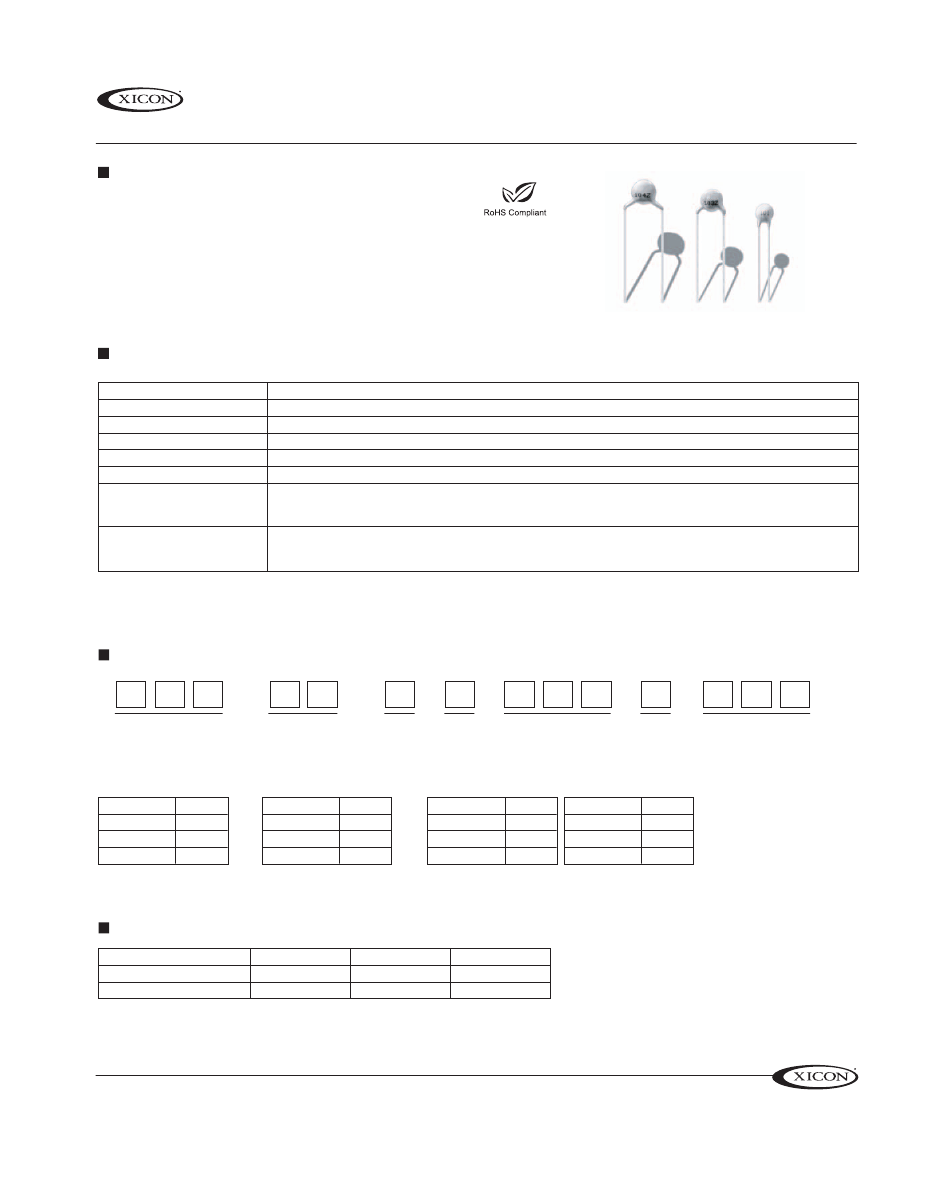

Class II Ceramic Disc Capacitors (RoHS Compliant) CDR Series
FEATURES
• Large capacitance in small sizes
• Non linear temperature coefficient of capacitance.
CHARACTERISTICS
Item
Operating Temperature Range
Capacitance Tolerance (min.)
Working Voltage (WVDC)
Insulation Resistance
Test Voltage
Life Test
Characteristics
-25°C ~ +85°C
Within the tolerance at 1MHz, 1~3Vrms, 25°C
50WV, 100WV, or 500WV
10,000MΩ min. or 200MΩμF, whichever is less
2.5 x WVDC
At 2 x WVDC @85°C for 1000 hours @ 85°C, capacitors shall meet the following: the capacitance change for
Y5P will be ±10%; Z5U will be ±20%; Z5V will be ±30%: the dissipation factor for Y5P and Z5U will be
≤50x10
-3
;
Z5V will be
≤75x10
-3
.
At exposure in the ambient temperature of 40°C, and at 95% RH for 500 hours: the capacitance change for Y5P will
be ±10%; Z5U will be ±20%; Z5V will be ±30%: the dissipation factor for Y5P and Z5U will be
≤50x10
-3
; Z5V will be
≤75x10
-3
.
Humidity Test
PART NUMBERING SYSTEM
1st
digit
2nd
digit
#
ø's
1
4
Series
0
5
0
P
Temp.
Coeff.
2
Lead
Space
-
1
0
1
K
Tolerance
-
R
C
Voltage
Actual Value
Capacitance (pF)
Suffix
(RoHSCompliant)
Temp. Coeff.
Y5P
Z5U
Z5V
Code
P
Z
Q
Lead Space
2.5mm
5.0mm
9.5mm
Code
2
5
9
Tolerance
±0.25pF
±5%
±10%
Code
C
J
K
Tolerance
±20%
±0.5pF
+80/-20%
Code
M
D
Z
TEMPERATURE COEFFICIENT CHARACTERISTICS
Temperature Coefficient
Operating Temp. Range
Capacitance Change
Y5P
-25°C ~ +85°C
±10%
Z5U
+10°C ~ +85°C
+20%, -55%
Z5V
+10°C ~ +85°C
+30%, -80%
XICON PASSIVE COMPONENTS • (800) 628-0544
XC-600140
Date Revised: 7/17/06
