NRSZ182M50V18X35.5TRF datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> NRSZ182M50V18X35.5TRF

NRSZ182M50V18X35.5TRF: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 1800uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT; CategoryPassive components capacitor; File Size162KB，8 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp; Environmental Compliance

Download Datasheet Parametric View All

NRSZ182M50V18X35.5TRF Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 1800uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT

NRSZ182M50V18X35.5TRF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Nichicon
package instruction	,
Reach Compliance Code	compli
ECCN code	EAR99
capacitance	1800 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
Custom functions	Sizes Subject to Change or Availability
diameter	18 mm
dielectric materials	ALUMINUM (WET)
JESD-609 code	e3
leakage current	0.9 mA
length	35.5 mm
Manufacturer's serial number	NRSZ
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package shape	CYLINDRICAL PACKAGE
Package form	Radial
method of packing	TR, CARDBOARD, 14 INCH
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	50 V
ripple current	2160 mA
series	NRSZ
surface mount	NO
Delta tangent	0.11
Terminal surface	Matte Tin (Sn)
Terminal shape	WIRE

Preview

Download Datasheet

View All

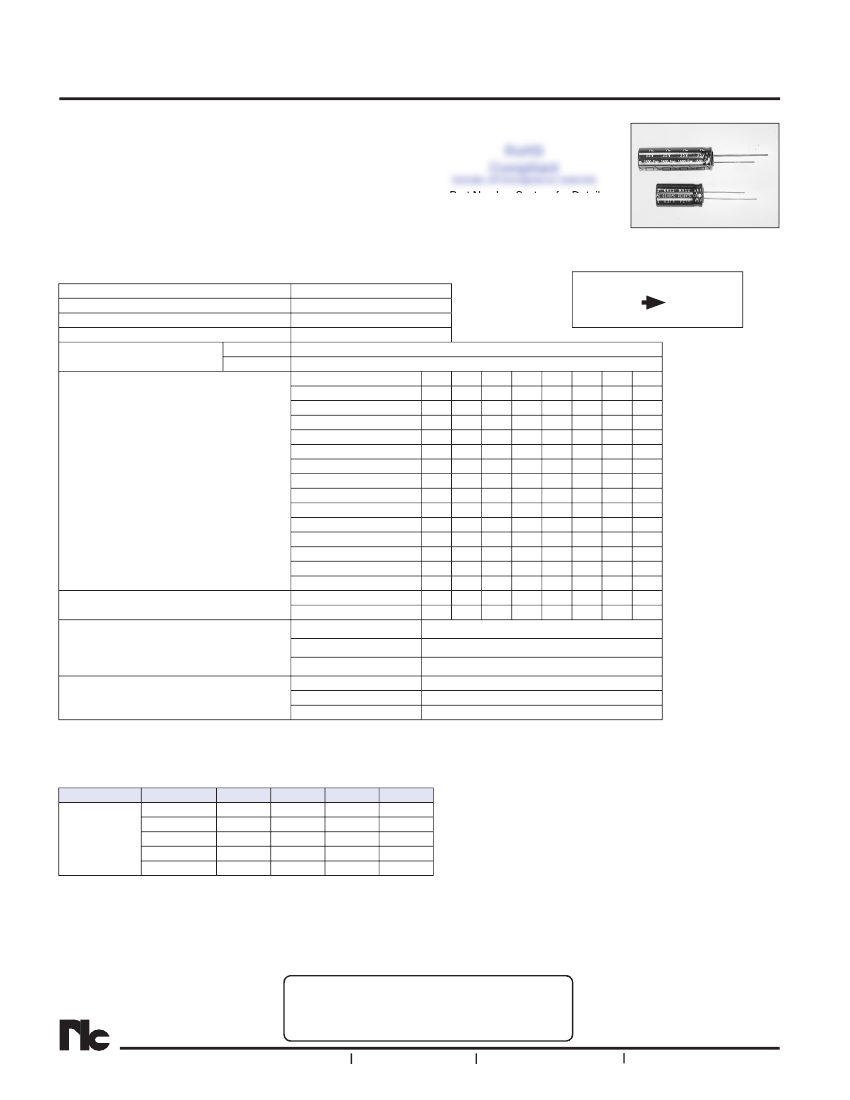

Miniature Aluminum Electrolytic Capacitors

LOW IMPEDANCE AT HIGH FREQUENCY RADIAL LEADS, POLARIZED

ALUMINUM ELECTROLYTIC CAPACITORS

RoHS

FEATURES

Compliant

includes all homogeneous materials

• VERY LOW IMPEDANCE

• LONG LIFE AT 105

C (2000 ~ 5000 hrs.)

*See Part Number System for Details

• HIGH STABILITY AT LOW TEMPERATURE

• IDEALLY FOR USE IN SWITCHING POWER SUPPLIES AND

..CONVERTORS

CHARACTERISTICS

Rated Voltage Range

Capacitance Range

Operating Temperature Range

Capacitance Tolerance

After 1 min.

Max. Leakage Current @ 20°C

After 2 min.

LOW IMPEDANCE

NRSZ Series

Max. Tanδ ~ 120Hz/20°C

Low Temperature Stability

Impedance Ratio @ 120Hz

Load Life Test at Rated W.V. & 105°C

5,000 hours: 12.5 ~ 18φ

3,000 hours: 8 ~ 10φ

2,000 hours: 5 ~ 6.3φ

Shelf Life Test

105°C for 1,000 hours

No Load

6.3 ~ 100VDC

0.47 ~ 12,000μF

(today’s standard)

-55 ~ +105°C

±20% (M)

0.03CV or 4μA, whichever is greater

0.01CV or 3μA, whichever is greater

W.V. (VDC)

6.3 10

63 100

S.V. (VDC)

79 125

0.22 0.19 0.16 0.14 0.12 0.10 0.08 0.07

C < 1,200μF

0.23 0.20 0.17 0.15 0.13 0.11

C = 1,500μF

C = 1,800μF

0.23 0.20 0.17 0.15 0.13 0.11

C = 2,200μF

0.24 0.21 0.18 0.16 0.14

0.25 0.22 0.19 0.17 0.15

C = 2,700μF

C = 3,300μF

0.26 0.23 0.20 0.18 0.16

C = 3,900μF

0.28 0.25 0.22 0.20

C = 4,700μF

0.29 0.26 0.23 0.21

C = 5,600μF

0.31 0.28 0.25

C = 6,800μF

0.33 0.30 0.27

C = 8,200μF

0.36 0.33

0.40

C = 10,000μF

0.44

C = 12,000μF

Z-25°C/Z+20°C

Z-40°C/Z+20°C

NRSZ

NRSY

(reduced sizes)

Capacitance Change

Tanδ

Leakage Current

Capacitance Change

Tanδ

Leakage Current

Within ±20% of initial measured value

Less than 200% of speciﬁed maximum value

Less than speciﬁed maximum value

Within ±20% of initial measured value

Less than 200% of speciﬁed maximum value

Less than speciﬁed maximum value

*NRSZ102M6.3V8X20 is 4,500 Hours @ 105°C

Unless otherwise speciﬁed here, capacitor shall meet JIS C-5141 Characteristics W.

RIPPLE CURRENT CORRECTION FACTORS

Frequency (Hz)

Cap. (μF)

0.47 ~ 4.7

5.6 ~ 47

56 ~ 270

330 ~ 1000

1200 ~ 12000

120

0.40

0.50

0.70

0.80

0.90

0.68

0.76

0.85

0.93

0.95

10K

0.78

0.87

0.90

0.98

1.0

100K

1.00

1.0

Multiplier

Please review the notes on correct use, safety and precautions found on

pages T10

T11

of NIC’s

Electrolytic Capacitor catalog.

Also found at

www.niccomp.com/precautions

If in doubt or uncertainty, please review your speciﬁc application - process details with

NIC’s technical support personnel:

tpmg@niccomp.com

PRECAUTIONS

154

NIC COMPONENTS CORP.

www.niccomp.com

www.lowESR.com

www.RFpassives.com

www.SMTmagnetics.com
