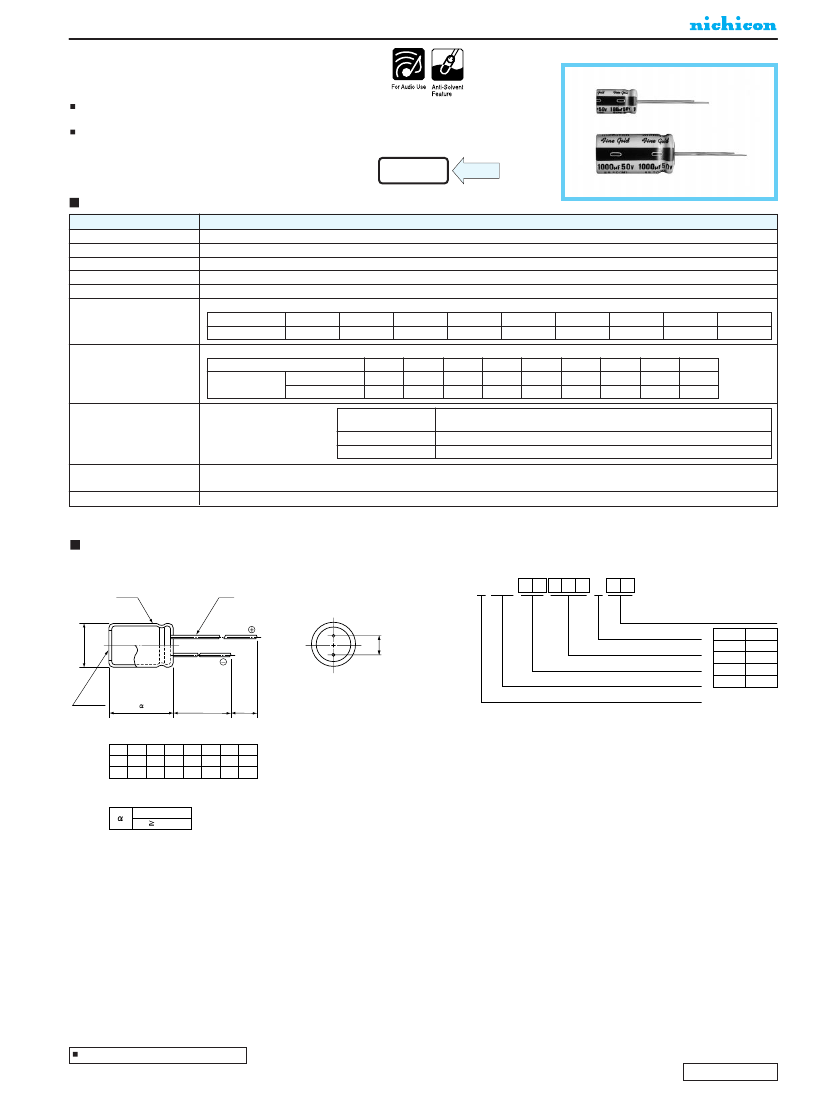

ALUMINUM ELECTROLYTIC CAPACITORS
FG
High Grade Type, For Audio Equipment
series
"Fine Gold" MUSE acoustic series suited for high grade
audio equipment, using state of the art etching techniques.
Rich sound in the bass register and clearer high end, most
suited for AV equipment like DVD, MD.
FG
Specifications
Item
Category Temperature Range
Rated Voltage Range
Rated Capacitance Range
Capacitance Tolerance
Leakage Current
tan
δ
—40~+85°C
6.3~100V
0.1~10000µF
±20% at 120Hz, 20°C
High Grade
FW
Performance Characteristics
After 1 minute's application of rated voltage, leakage current is not more than 0.01CV or 3 (µA) , whichever is greater.
For capacitance of more than 1000µF add 0.02 for every increase of 1000µF.
Rated voltage(V)
tan
δ(MAX.)
Measurement frequency : 120Hz, Temperature : 20°C
6.3
0.22
10
0.19
16
0.16
25
0.14
35
0.12
50
0.10
63
0.09
80
0.09
100
0.08
Measurement frequency : 120Hz
Rated voltage(V)
Stability at Low Temperature
6.3
4
8
10
3
6
16
2
4
25
2
4
35
2
3
50
2
3
63
2
3
80
2
3
100
2
3
Impedance ratio
ZT/Z20(MAX.)
Z—25°C/ Z+20°C
Z—40°C/ Z+20°C
Endurance
After 1000 hours' application
of rated voltage at 85°C,
capacitors meet the
characteristic requirements
listed at right.
Capacitance change
tan
δ
Leakage current
Within ±20% of the initial measurement for units of not more than 16V or
φ
6.3
Within ±15% of the initial measurement for units of not less than 25V or above
φ
6.3
150% or less of initial specified value
Initial specified value or less
Shelf Life
Marking
After leaving capacitors under no load at 85°C for 1000 hours, they meet the specified
value for endurance characteristics listed above.
Printed with black color letter on gold sleeve.
Radial Lead Type
Type numbering system (Example : 10V 47
µ
F)
1
2
3
4
5
6
7
8
9 10 11
Sleeve
φd
U FG 1 A 4 7 0 M D J
Configuration
φD+
0.5MAX
P±
0.5
Capacitance tolerance(±20%)
Rated Capacitance(47µF)
Rated voltage(10V)
Series name
φD
5
6.3
8 • 10
12.5~18
Code
DJ
EJ
PJ
HJ
Pressure
relief vent
(φ6.3up)
Type
L+
MAX
15
MIN
4
MIN
φD
P
φd
5 6.3 8 10 12.5 16 18
2.0 2.5 3.5 5.0 5.0 7.5 7.5
0.6 0.6 0.6 0.6 0.8 0.8 0.8
(L<20) 1.5
(L 20) 2.0
Please refer to page 18, 19, 20 about the formed or taped product spec.
Please refer to page 3 for the minimum order quantity.
Dimension table in next page.
CAT.8100Q
