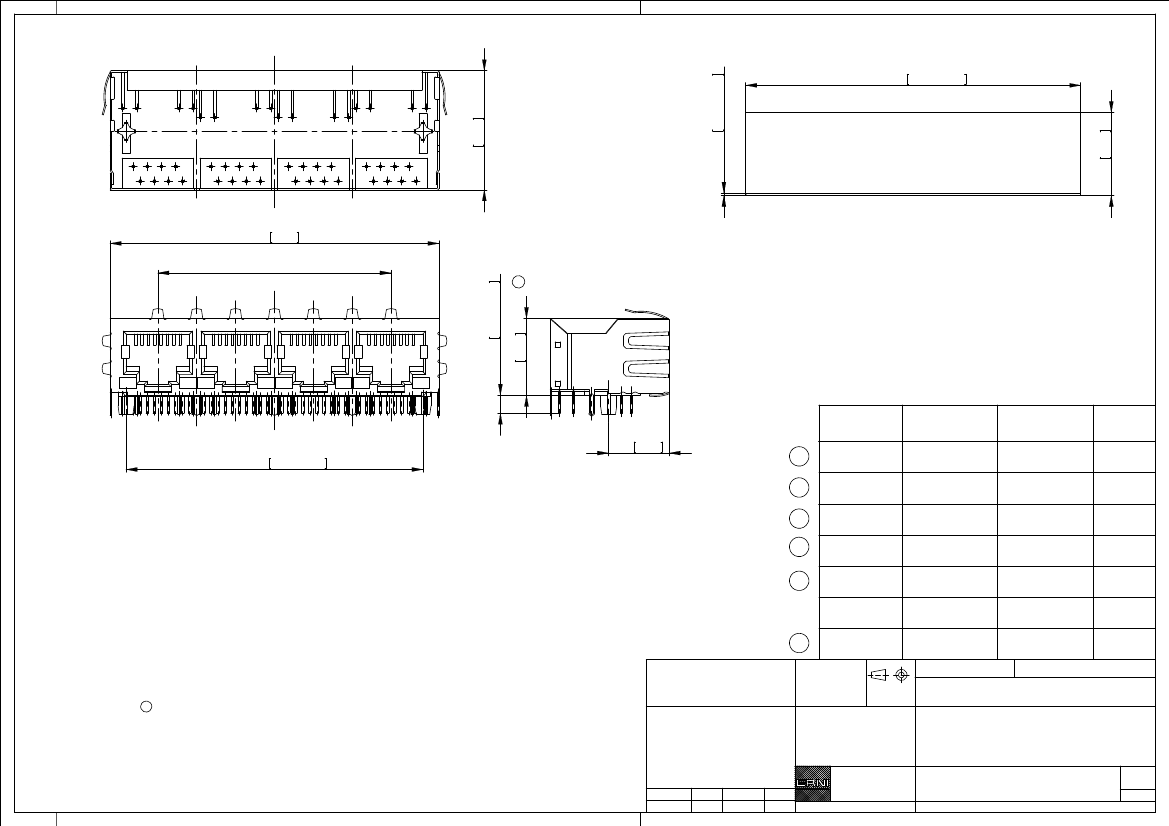

RECOMMENDED PANEL CUTOUT
EMPFOHLENER FRONTPLATTEN AUSSCHNITT
0,38 ±0,10 0,015 ±0,004
60,19 ±0,20 2,370 ±0,008
21,59 0,850
MAX
59,09 2,326
6 x 6.99 [0.275] = (41.94 [1.651])
3,05 ±0,50 0,120 ±0,020
B
13,80 0,543
1
8
1
8
1
8
1
8
NOTE 1: REAR SHIELD TABS BETWEEN EACH PORT (T)
NOTE 2: SIDE GROUND TAB REAR OF PEG 3.05 mm (R)
NOTE 3: PANEL GROUND FLANGES BOTH SIDES, BOTTOM AND TOP (GF5)
NO.
IDENT.-NR.
10,89 0,429
LED 2
LED 1
53,34 ±0,13 2,100 ±0,005
LED 2 LEFT
LED 2 LINKS
YELLOW
GREEN
GREEN
GREEN
RED
YELLOW
ORANGE/GREEN
Scale
LED 1 RIGHT
LED 1 RECHTS
GREEN
YELLOW
GREEN
RED
GREEN
YELLOW
ORANGE/GREEN
14,89 0,586
TOP OF PCB
LP
LED
CODE
L1
L2
L3
L4
L5
L8
L9
a
a
a
a
a
203294
203295
203296
203297
203298
203282
Consider protection memo from DIN 34
MATERIALS AND FINISH
HOUSING: GLASS FILLED POLYESTER UL 94 V-0 BLACK
SHIELDING: Cu ALLOY, PLATED WITH Ni
CONTACTS: PHOSPHOR BRONZE
CONTACT FINISH: Au, 0.8 µm (30 µin) OVER Ni
TERMINAL FINISH: Sn MATTE
B
LED LENS: EPOXY
MECHANICAL CHARACTERISTICS
DURABILITY: 1000 MATING CYCLES
ELECTRICAL CHARACTERISTICS
CONTACT RESISTANCE: 30 MILLIOHMS MAX
OPERATING TEMPERATURE: 0°C TO 70°C
a
Information:
203299
Tolerances
All Dimensions
in mm
1:1
SCHEMATIC NO: M3D01
All rights reserved.
Only for Information.
To insure that this is the latest
version of this drawing, please
contact one of the ERNI companies
before using.
B
Index
09.06.2008
Date
Designation
Subject to modification without
prior notice.
Drawing will not be updated.
MOD JACK - MJIM
8C8T, 1x4, INT. MAG., LED
www.ERNI.com
Class
203293
MJIM
I (1/2)
A3

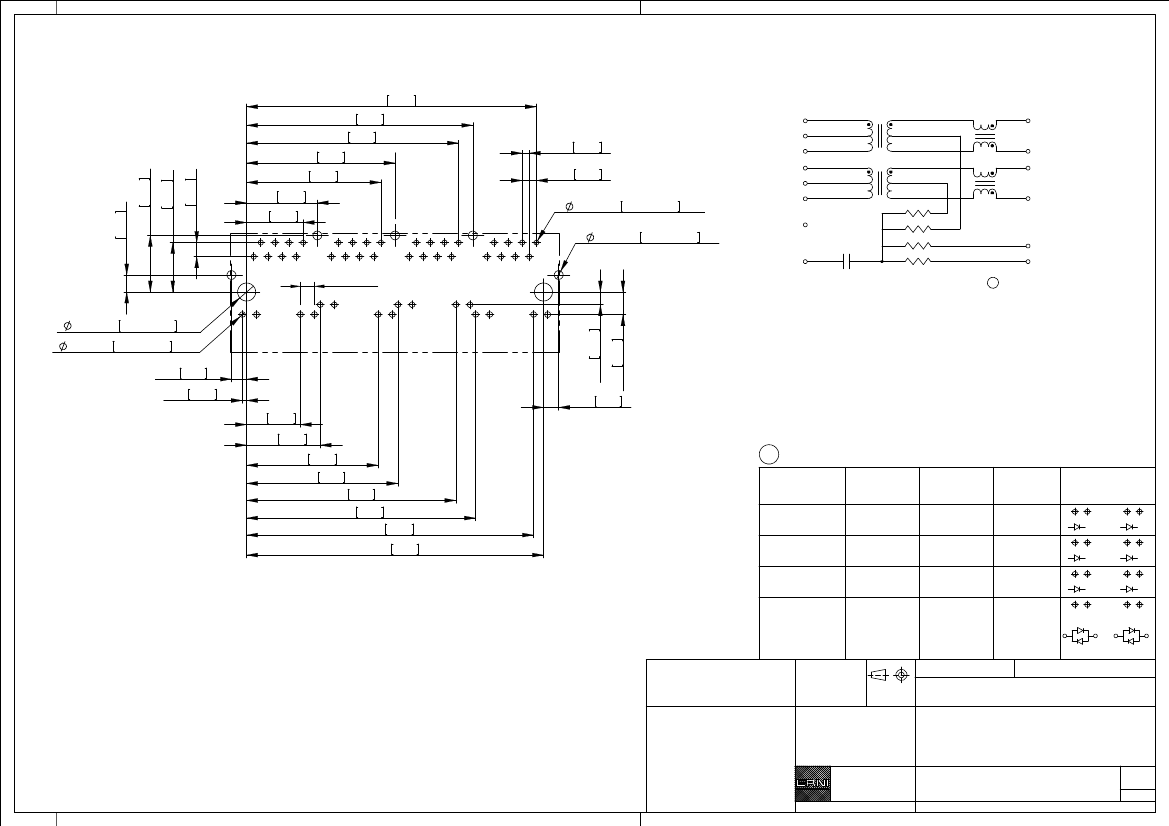

RECOMMENDED PCB LAYOUT - COMPONENT SIDE VIEW
EMPFOHLENES LEITERPLATTEN-LAYOUT (BESTÜCKUNGSSEITE)
ALL TOLERANCES ±0.05 [.002] UNLESS NOTED
52,07 2,050
40,64 1,600
38,10 1,500
26,67 1,050
10,16 0,400
8,89 0,350
2,54 0,100
24,13 0,950
12,70 0,500
10,16 0,400
1,27 0,050
2,54 0,100
0,89 ±0,07 0,035 ±0,003
X32
X5
ELECTRICAL SCHEMATIC M3D01
ELEKTRISCHER SCHALTPLAN
PCB
P1
CT P4
P2
P3
CT P5
P6
N/C P7
CABLE
J1
J2
J3
J6
3,05 0,120
8
1
1
8
8
1
9 10
1
8
1,60 ±0,07 0,063 ±0,003
GND P8
1000pF/2KV
4X 75
Ohms
B
J4,5
J7,8
2.54 [.100]
11 12
9 10
3,25 ±0,07 0,128 ±0,003
1,02 ±0,07 0,040 ±0,003
X2
X16
9 10
11 12
11 12
9 10
11 12
2,29 0,090
4,06 0,160
2,73 0,107
0,76 0,030
9,65 0,380
13,21 0,520
23,62 0,930
2,73 0,107
LED SPECIFICATIONS
a
COLOR
FARBE
YELLOW
GREEN
RED
Vf
TYP
2.1
2.2
2.25
LED ANWEISUNG
Vf
MAX
2.5
2.5
2.5
If
mA
20
20
20
CIRCUIT DIAGRAM
SCHALTSKIZZE
9 10
9 10
9 10
9 10
G
N
Information:
Tolerances
All Dimensions
in mm
MAGNETICS SPECIFICATIONS @ 25°C
AUTO MDIX COMPATIBLE
TURNS RATIO:
(P1-P2 : J1-J2)
(P3-P6 : J3-J6)
OCL(100 KHz, 0.1 Vrms, 8 mA)
(P1-P2 : P3-P6)
DCR (P1-P2, P3-P6)
INSERTION LOSS:
0.1-100 MHz
RETURN LOSS:
0.5 - 30 MHz:
40 MHz:
50 MHz
60 - 80 MHz
CROSSTALK:
1-100 MHz
CMR:
0.1 - 30 MHz
30 - 60 MHz
60 - 100 MHz
ISOLATION
1CT : 1 ±3%
1CT : 1 ±3%
350µH MIN
0.9 OHMS MAX
-1.1 dB MAX
-18 dB MIN
-15.5 dB MIN
-13.6 dB MIN
-12 dB MIN
-40 dB TYP
-50 dB TYP
-40 dB TYP
-35 dB TYP
1500 Vrms
27,18 1,070
37,59 1,480
41,15 1,620
51,56 2,030
53,34 2,100
11 12
11 12
11 12
11 12
G
N
ORANGE/GREEN
2.05/2.2
2.5
20
1:1
Scale
Designation
All rights reserved.
Only for Information.
To insure that this is the latest
version of this drawing, please
contact one of the ERNI companies
before using.
Subject to modification without
prior notice.
Drawing will not be updated.
Consider protection memo from DIN 34
MOD JACK - MJIM
8C8T, 1x4, INT. MAG., LED
www.ERNI.com
Class
203293
MJIM
I (2/2)
A3
