DH-26P7-M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> DH-26P7-M

DH-26P7-M: DescriptionD Type Connector,; CategoryThe connector The connector; File Size47KB，2 Pages; ManufacturerOn-Shore Technology ( OST ); Websitehttp://www.on-shore.com

Download Datasheet Parametric View All

DH-26P7-M Overview

D Type Connector,

DH-26P7-M Parametric

Parameter Name	Attribute value
Maker	On-Shore Technology ( OST )
Reach Compliance Code	unknow

DH-26P7-M Preview

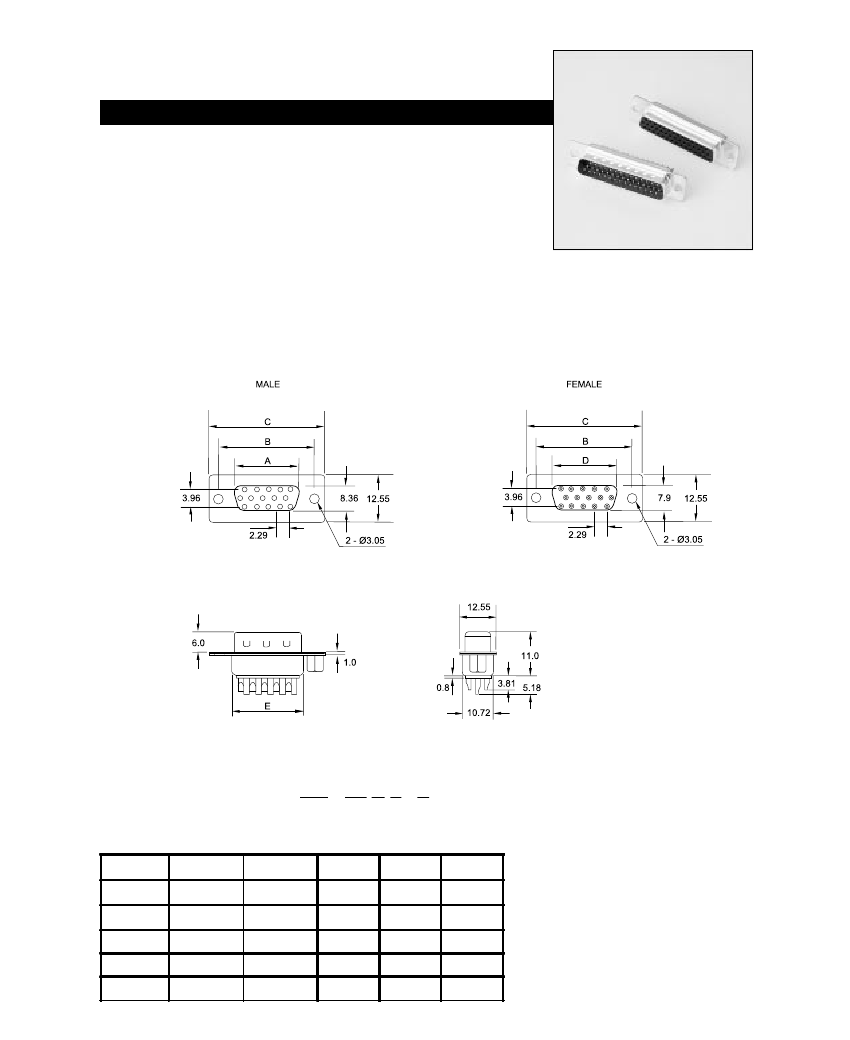

Series: DH

High Density Solder Cup D-Sub

Current rating 3A

Series options:

C = Clinch nuts (bottom side)

T = Threaded inserts (top side)

MALE

FEMALE

3.96

8.36

12.55

3.96

7.9

12.55

2.29

2 - Ø3.05

2.29

2 - Ø3.05

12.55

6.0

1.0

11.0

0.8

3.81

5.18

10.72

Ordering example:

DH - 15 P 1 - T

Positions

16.92

25.25

38.25

55.42

52.86

24.99

33.32

47.04

63.50

61.11

30.81

39.10

53.10

69.32

66.90

16.33

24.66

37.66

54.84

52.34

19.28

27.51

41.30

57.71

55.30

Specifications

D-Sub Connector Series:

Ratings:

Current

Dielectric strength

Contact resistance

Insulator resistance

AC 1000V for 1 minute

30mΩ max. at DC 100mA

1000MΩ min. at DC 500V

Material:

Plastic

Color

Contact male

Contact female

Shell

Temperature

PBT Glass-filled, UL94V-0

Black

Brass

Phosphor Bronze

Tin

-55°C / +105°C, 260°C for 5 sec. (solder bath resistant)

ORDERING PROCEDURE

1) Series

2) Number of Positions (see chart for available positions)

3) Gender:

P = Male

S = Female

4) Plating:

1 = Full Flash Gold

6 = Selective Flash Gold

7 = Selective 10µ Gold*

8 = Selective 30µ Gold*

* May Require Minimums

5) Series options:

A = 4-40 Jack screws assembled on connector

B = Board locks

C = Clinch nuts

F = Ferrite

G = Grounding straps

J = 4-40 Jack screws (bulk packed)

M = Machined pins

P = All plastic

T = Threaded inserts

Please refer to following pages for ordering examples.

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
