PH1-230/120-051 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> PH1-230/120-051

Preview

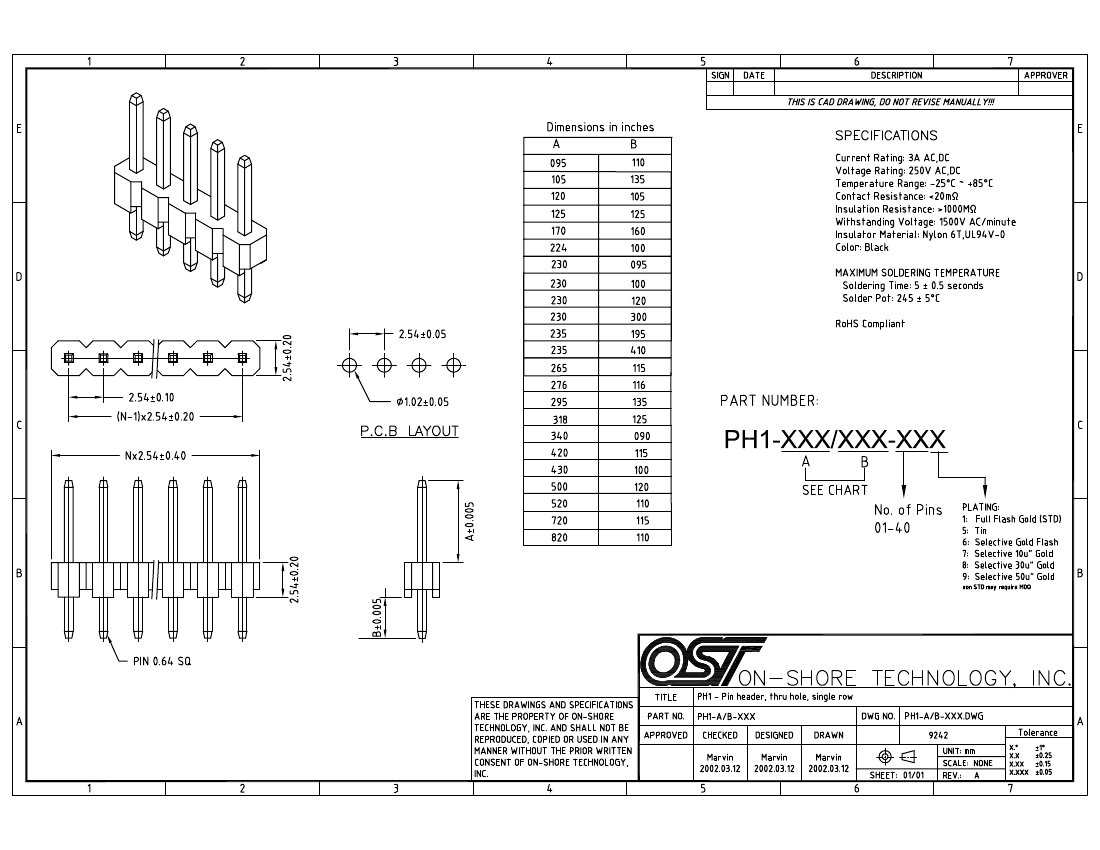

PH1-230/120-051: DescriptionBoard Connector, 5 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator; CategoryThe connector The connector; File Size70KB，1 Pages; ManufacturerOn-Shore Technology ( OST ); Websitehttp://www.on-shore.com; Environmental Compliance

Download Datasheet Parametric Compare View All

PH1-230/120-051 Overview

Board Connector, 5 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator

PH1-230/120-051 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	On-Shore Technology ( OST )
Reach Compliance Code	compli
body width	0.1 inch
subject depth	0.1 inch
body length	0.5 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD FLASH OVER NICKEL
Contact completed and terminated	Gold Flash (Au) - with Nickel (Ni) barrie
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	NYLON
MIL compliance	NO
Plug contact pitch	0.1 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	FLASH inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.12 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	5
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

PH1-230/120-051 Related Products

	PH1-230/120-051	PH1-820/110-161	PH1-500/120-401	PH1-230/120-061	PH1-230/120-021
Description	Board Connector, 5 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator	Board Connector, 16 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator	Board Connector, 40 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator	Board Connector, 6 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator	Board Connector, 2 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator
Reach Compliance Code	compli	compli	compliant	compli	compli
body width	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
subject depth	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
body length	0.5 inch	1.6 inch	4 inch	0.6 inch	0.2 inch
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD FLASH OVER NICKEL	AU	GOLD FLASH OVER NICKEL	GOLD FLASH OVER NICKEL	GOLD FLASH OVER NICKEL
Contact point gender	MALE	MALE	MALE	MALE	MALE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V	1500VAC V	1500VAC V	1500VAC V	1500VAC V
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	NYLON	NYLON	NYLON	NYLON	NYLON
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE
PCB row number	1	1	1	1	1
Number of rows loaded	1	1	1	1	1
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Plating thickness	FLASH inch	FLASH inch	FLASH inch	FLASH inch	FLASH inch
Rated current (signal)	3 A	3 A	3 A	3 A	3 A
Guideline	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.12 inch	0.11 inch	0.12 inch	0.12 inch	0.12 inch
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	5	16	40	6	2
Is it Rohs certified?	conform to	-	conform to	conform to	conform to
Maker	On-Shore Technology ( OST )	-	On-Shore Technology ( OST )	On-Shore Technology ( OST )	On-Shore Technology ( OST )
Contact completed and terminated	Gold Flash (Au) - with Nickel (Ni) barrie	-	Gold Flash (Au) - with Nickel (Ni) barrier	Gold Flash (Au) - with Nickel (Ni) barrie	Gold Flash (Au) - with Nickel (Ni) barrie
Contact material	COPPER ALLOY	-	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
DIN compliance	NO	-	NO	NO	NO
Filter function	NO	-	NO	NO	NO
IEC compliance	NO	-	NO	NO	NO
MIL compliance	NO	-	NO	NO	NO
Mixed contacts	NO	-	NO	NO	NO
Options	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
UL Flammability Code	94V-0	-	94V-0	94V-0	94V-0
