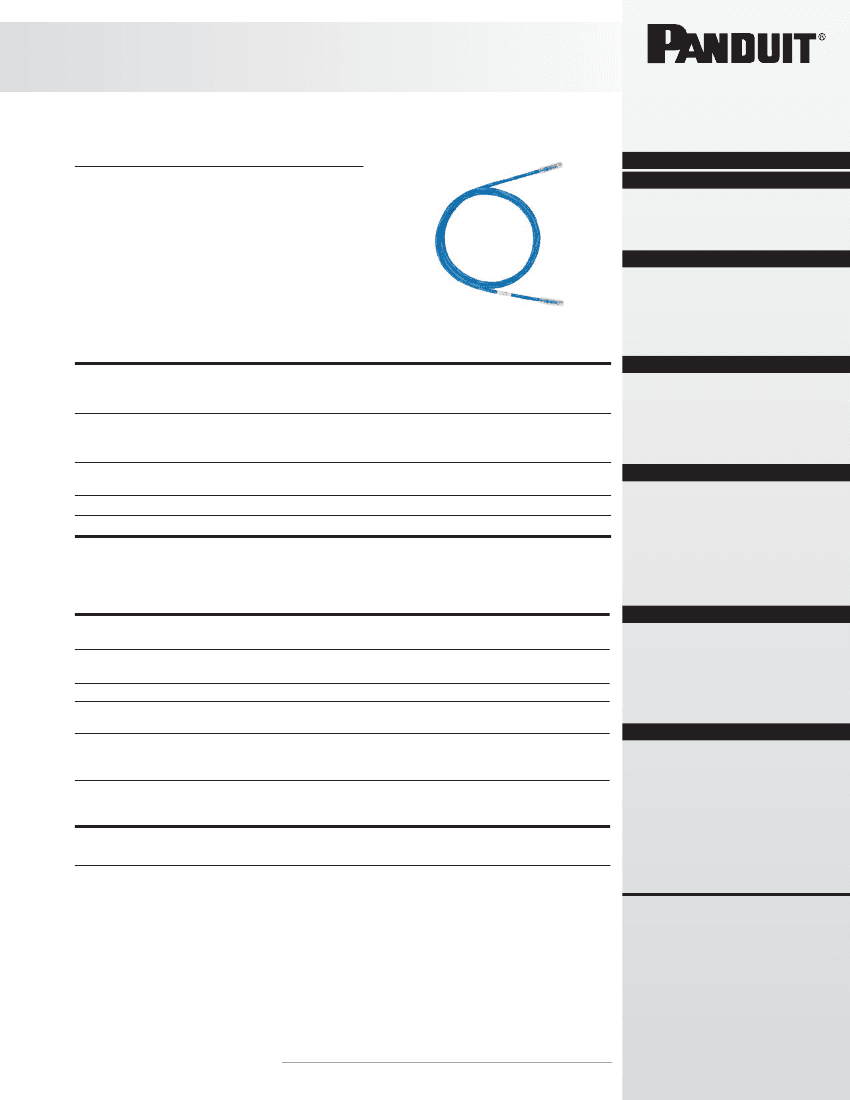

PanView iQ
™
Copper Patch Cords
S P E C I F I C AT I O N S H E E T
specifications
Category 6 and Category 6A patch cords shall be
constructed of fully shielded or unshielded twisted pair
stranded copper cable with the addition of a ninth
conductor. The patch cords shall be terminated at each
end with an enhanced performance modular plug that
also terminates the ninth conductor on the top of the
plug. The patch cords shall be used in conjunction with
intelligent patch panels containing the ninth
conductor receptacle.
PanView iQ
™
System
PanView iQ
™
Patch Cords
Category 6 UTP:
UTP metric:
S/FTP 10Gig:
UTP 10Gig:
PVUTPSPC*BBUY
PVUTPSPC**MBBUY
PVSTP6X***MB^
PVUTP6X***MB^
PanView iQ
™
Patch Panels
Modular, intelligent, blank 24-port
Flat unshielded:
PVQ-MIQPU24
Flat shielded:
PVQ-MIQPS24
Angled
unshielded:
PVQ-MIQAPU24
Angled shielded:
PVQ-MIQAPS24
PanView iQ
™
Intelligence Modules
technical information
Category 6/Class E
performance:
Category 6A/Class E
A
performance:
FCC compliance:
IEC compliance:
UL listed:
Exceeds all ANSI/TIA-568-C.2 Category 6 and ISO 11801 2nd
Edition Class E channel standard requirements at swept
frequencies up to 250 MHz
Exceeds all ANSI/TIA-568-C.2 Category 6A and ISO 11801 2nd
Edition Class E
A
channel standard requirements at swept
frequencies up to 500 MHz
Meets FCC Part 68 Subpart F; contacts plated with 50
micro-inches of gold
Meets IEC 60603-7
UL1863
Panel manager
(PM):
Expansion
module (EM):
PVQ-PM
PVQ-EM
NOTE: PM requires PanView iQ
™
Power Supply
(not included).
PanView iQ
™
Hardware Kits
Kit with (4) PanView iQ
™
Patch Panels,
(1) PanView iQ
™
PM, (3) PanView iQ
™
EMs, and accessories
Flat
unshielded kit:
PVQ-MIQPS96F
Angled
unshielded kit:
PVQ-MIQPS96A
NOTE: PM requires PanView iQ
™
Power Supply
(not included).
key features and benefits
100% performance tested
Internal pair manager
Slender strain relief boot
Patented tangle free latch
Quality materials
Component-level testing assures that each patch cord will
exceed the critical electrical performance requirements
Optimizes performance and consistency by reducing
untwist at plug
Provides easy access in high-density applications
Prevents snags and provides easy release, saving time on
frequent moves, adds, and changes
Utilizes 24 AWG UTP or 26 AWG S/FTP stranded copper
cable and RJ45 modular plugs; plug contacts plated with
50 microinches of gold for superior performance
Provides continuity through the patch cord, enabling the
PanView iQ
™
System to monitor connectivity
PanView iQ
™
Power Supply
12 volt power supply
(North America):
PVQ-PS12VDC-S
(Europe):
PVQ-PS12VDC-E
(UK):
PVQ-PS12VDC-U
(Japan):
PVQ-PS12VDC-J
(China):
PVQ-PS12VDC-C
PIM
™
Software Platform and Modules
Base functionality
module:
PIM-BASE
Connectivity
management
module:
PIM-CONNECT‡
Maintenance,
support,
and warranty
agreement:
Ninth conductor continuity
applications
Panduit’s PViQ
™
System Hardware, which
includes intelligent patch panels, modules,
and cabling, seamlessly feeds information
directly into the Physical Infrastructure
Manager
™
(PIM
™
) Software Platform to
provide continuous real-time patch field
monitoring and visibility of physical
infrastructure connectivity for enhanced
system reliability and security and capacity
management. PViQ
™
Patch Panels support
tiered installations to provide customers with
the flexibility of installing passive connectivity
that may be upgraded to fully managed at a
future time. PViQ
™
Copper Patch Cords are a
component of the PViQ
™
System. With certified
performance to Category 6 and Category 6A
standards, these patch cords are ideal for
today's high-performance applications. The
ninth conductor enables robust monitoring of
the patch field with the PViQ
™
System.
PIM-CAMA
PIM-MEDIA
Software and
documentation:
*Available in 3, 5, 7, 9, 14, or 20 feet
**Available in 1, 2, 3, 5, 7, or 10 meters
***Available in 1, 2, 3, 5, or 10 meters
^Available in BU (Blue), GR (Green), RD (Red),
YL (Yellow), or BL (Black).
‡To order this module, add the appropriate letter to
the end of the part number, based on the size of the
installation: -S (<50 racks); -M (50-199 racks); -L
(200-399 racks); -X (400+ racks). For example, the
part number for the Connectivity Management
Module for 250 racks is PIM-CONNECT-L.
w w w. p a n d u i t . c o m
