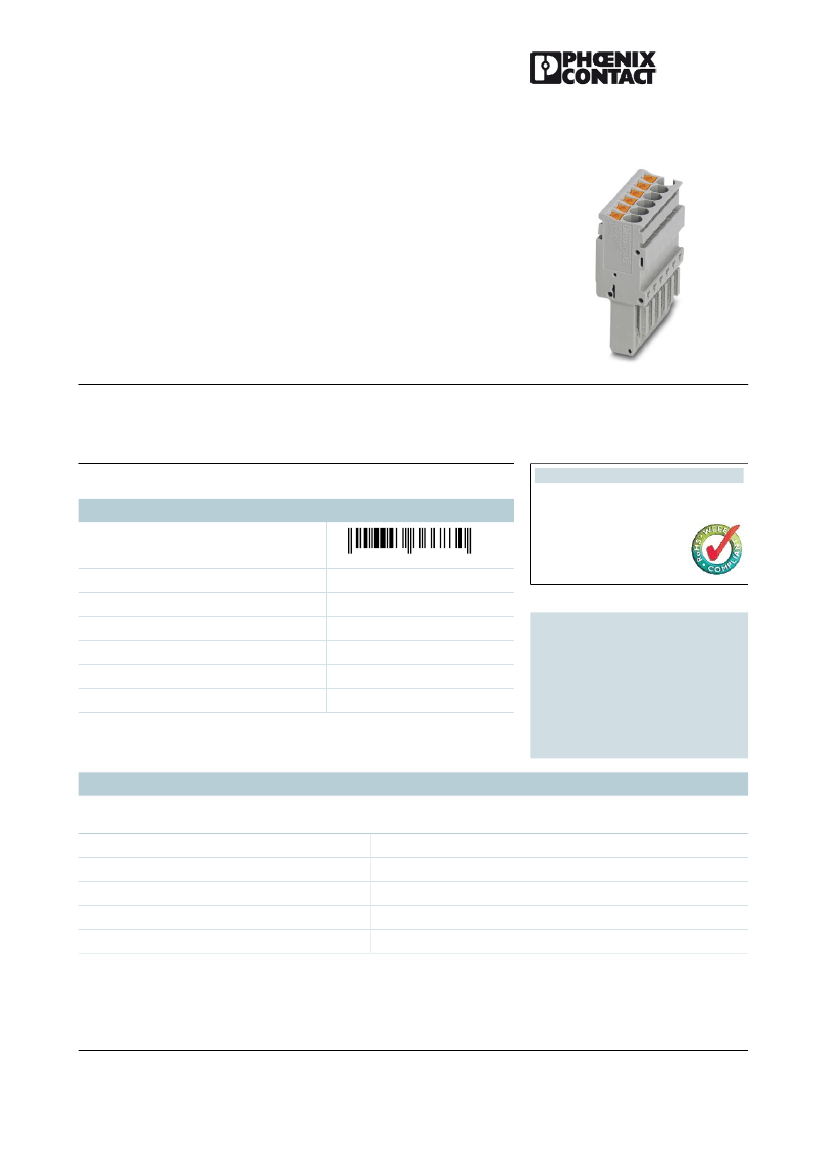

PP-H 2,5/ 9
Order No.: 3209947
The illustration shows 6-position versions
http://catalog.phoenixcontact.net/phoenix/treeViewClick.do?UID=3209947
Plug, Connection method: Push-in connection, Number of positions: 9,
Cross section: 0.14 mm² - 4 mm², AWG: 26 - 12, Width: 46.8 mm,
Height: 39 mm, Color: gray
Product notes
Commercial data
EAN
4
046356
366830
WEEE/RoHS-compliant since:
04/17/2008
sales group
Pack
Customs tariff
Gross weight in pieces
Net weight per piece
Catalog page information
A671
25 Pcs.
85366990
0.030428 KG
0.02846 KG
Page 413 (C-3-2013)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
Technical data
General
Number of levels
Number of connections
Color
Insulating material
Inflammability class according to UL 94
1
1
gray
PA
V0
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.com
Page 1 / 6
Aug 13, 2014
PP-H 2,5/ 9
Order No.: 3209947
http://catalog.phoenixcontact.net/phoenix/treeViewClick.do?UID=3209947
Area of application
Railway industry
Mechanical engineering
Plant engineering
General
Maximum load current
Rated surge voltage
Pollution degree
Surge voltage category
Insulating material group
Connection in acc. with standard
Maximum load current (lower level)
Additional text
Nominal current I
N
(lower level)
Nominal voltage U
N
Open side panel
Number of positions
Dimensions
Width
Length
Height
Connection data
Connection in acc. with standard
Connection method
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Conductor cross section stranded min.
Conductor cross section stranded max.
Min. AWG conductor cross section, stranded
Max. AWG conductor cross section, stranded
Conductor cross section stranded, with ferrule
without plastic sleeve min.
Conductor cross section stranded, with ferrule
without plastic sleeve max.
IEC 61984
Push-in connection
0.14 mm²
4 mm²
26
12
0.14 mm²
2.5 mm²
26
14
0.14 mm²
2.5 mm²
46.8 mm
15.8 mm
39 mm
24 A (with 2.5 mm² conductor cross section)
6 kV
3
III
I
IEC 61984
24 A
with 4 mm² conductor cross section
24 A
500 V
nein
9
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.com
Page 2 / 6
Aug 13, 2014
PP-H 2,5/ 9
Order No.: 3209947
http://catalog.phoenixcontact.net/phoenix/treeViewClick.do?UID=3209947
Conductor cross section stranded, with ferrule
with plastic sleeve min.
Conductor cross section stranded, with ferrule
with plastic sleeve max.
2 conductors with same cross section, stranded,
TWIN ferrules with plastic sleeve, max.
Stripping length
Internal cylindrical gage
Certificates / Approvals
0.14 mm²
2.5 mm²
0.5 mm²
10 mm
A3
Certification
Certifications applied for:
Certification Ex:
CSA, cULus Recognized, ABS, BV, GL, LR, NK, RS
Accessories
Item
Assembly
3040559
3040630
3040614
3040591
3040601
3040627
3040643
PR
PR/2
PRZ
PSH 3- 6
PSH 5-10
PZ/2
PZ/4
Latching, Number of positions: 1, Color: orange
Latching, Number of positions: 2, Color: orange
Latching, Length: 3 mm, Width: 5.2 mm, Number of positions: 2,
Color: orange
Shield connection clamp, Color: black
Shield connection clamp, Color: black
Strain relief, Number of positions: 2, Color: black
Strain relief, Number of positions: 4, Color: black
Designation
Description
Connector/Adapter
3002843
3002856
3002869
0201731
0201689
ISH 2,5/0,2
ISH 2,5/0,5
ISH 2,5/1,0
MPS-IH BK
MPS-IH BU
Insulating sleeve, Color: white
Insulating sleeve, Color: gray
Insulating sleeve, Color: black
Insulating sleeve, Color: black
Insulating sleeve, Color: blue
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.com
Page 3 / 6
Aug 13, 2014
PP-H 2,5/ 9
Order No.: 3209947
http://catalog.phoenixcontact.net/phoenix/treeViewClick.do?UID=3209947
0201702
0201728
0201676
0201663
0201692
0201744
Covers
3209824
3061431
MPS-IH GN
MPS-IH GY
MPS-IH RD
MPS-IH WH
MPS-IH YE
MPS-MT
Insulating sleeve, Color: green
Insulating sleeve, Color: gray
Insulating sleeve, Color: red
Insulating sleeve, Color: white
Insulating sleeve, Color: yellow
Test plugs, Color: silver
DF-SP-H 2,5
DFS-SP-H 2,5
Flange cover, Length: 35.8 mm, Width: 4.5 mm, Height: 24.7 mm,
Color: gray
Flange cover, Length: 35.8 mm, Width: 4.5 mm, Height: 24.7 mm,
Color: gray
General
3209691
3209714
3209727
3209730
3209756
3209507
3209769
3209772
3209785
3209798
3209808
3209811
3040631
PH 2,5/ 2
PH 2,5/ 4
PH 2,5/ 5
PH 2,5/ 6
PH 2,5/ 8
PH 2,5/ 9
PH 2,5/10
PH 2,5/11
PH 2,5/12
PH 2,5/13
PH 2,5/14
PH 2,5/15
PRT/2
Cable housing, Length: 19.9 mm, Width: 10.4 mm, Height: 36.8
mm, Number of positions: 2, Color: gray
Cable housing, Length: 19.9 mm, Width: 20.8 mm, Height: 36.8
mm, Number of positions: 4, Color: gray
Cable housing, Length: 19.9 mm, Width: 26 mm, Height: 36.8 mm,
Number of positions: 5, Color: gray
Cable housing, Length: 19.9 mm, Width: 31.2 mm, Height: 36.8
mm, Number of positions: 6, Color: gray
Cable housing, Length: 19.9 mm, Width: 41.6 mm, Height: 36.8
mm, Number of positions: 8, Color: gray
Cable housing, Length: 19.9 mm, Width: 46.8 mm, Height: 36.8
mm, Number of positions: 9, Color: gray
Cable housing, Length: 19.9 mm, Width: 52 mm, Height: 36.8 mm,
Number of positions: 10, Color: gray
Cable housing, Length: 19.9 mm, Width: 57.2 mm, Height: 36.8
mm, Number of positions: 11, Color: gray
Cable housing, Length: 19.9 mm, Width: 62.4 mm, Height: 36.8
mm, Number of positions: 12, Color: gray
Cable housing, Length: 19.9 mm, Width: 67.6 mm, Height: 36.8
mm, Number of positions: 13, Color: gray
Cable housing, Length: 19.9 mm, Width: 72.8 mm, Height: 36.8
mm, Number of positions: 14, Color: gray
Cable housing, Length: 19.9 mm, Width: 78 mm, Height: 36.8 mm,
Number of positions: 15, Color: gray
Latching, can only be released using a screwdriver, Number of
positions: 2, Color: orange
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.com
Page 4 / 6
Aug 13, 2014
PP-H 2,5/ 9
Order No.: 3209947
http://catalog.phoenixcontact.net/phoenix/treeViewClick.do?UID=3209947
Sleeve housing
3209701
3209743
PH 2,5/ 3
PH 2,5/ 7
Cable housing, Length: 19.9 mm, Width: 15.6 mm, Height: 36.8
mm, Number of positions: 3, Color: gray
Cable housing, Length: 19.9 mm, Width: 36.4 mm, Height: 36.8
mm, Number of positions: 7, Color: gray
Drawings
Circuit diagram
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.com
Page 5 / 6
Aug 13, 2014
