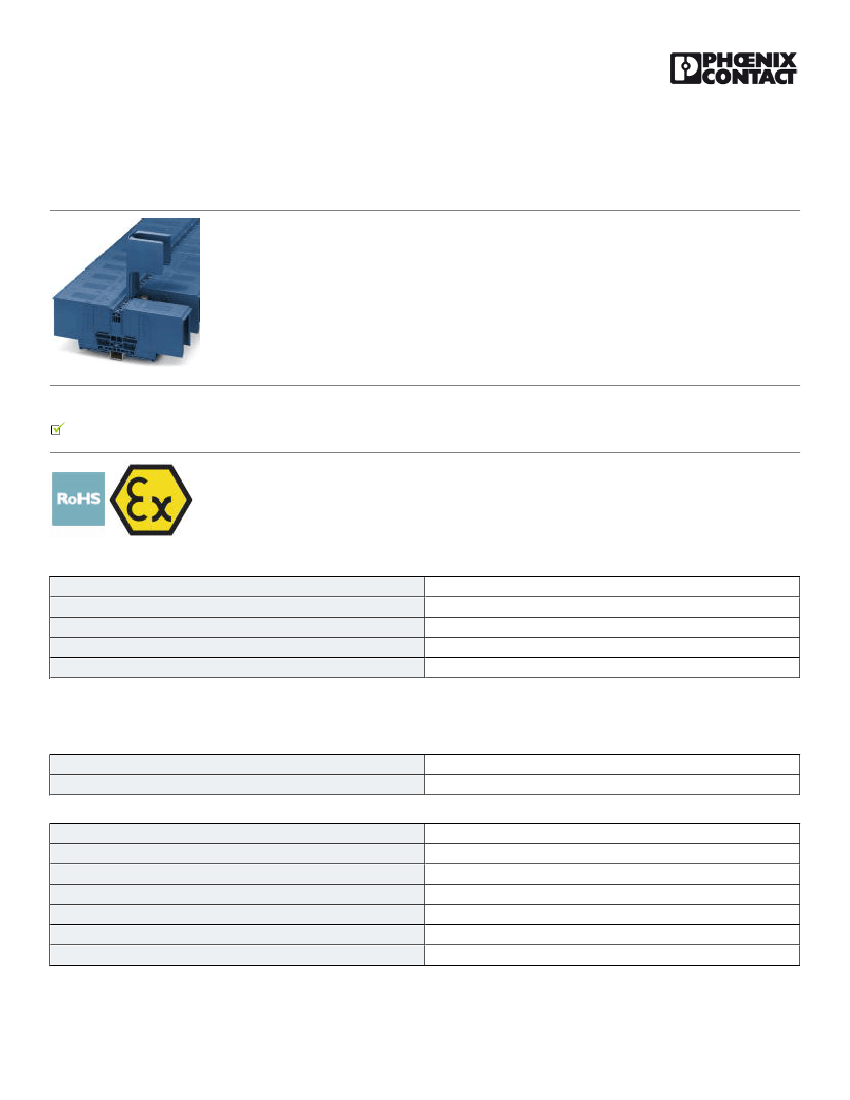

Bolt connection terminal block - RBO 16-HC BU - 3247990
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Bolt connection terminal block, Connection method: Bolt connection, Number of positions: 1, Cross section:
25 mm² - 300 mm², AWG: 4 - 600, Width: 54.8 mm, Color: blue, Mounting type: NS 35/7,5, NS 35/15, ct screw
connection
Why buy this product
Tested for railway applications
Key Commercial Data
Packing unit
Minimum order quantity
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 STK
5 STK
672.000 g
85369010
China
Technical data
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
General
Number of positions
Number of levels
Number of connections
Potentials
Nominal cross section
Color
Insulating material
1
1
2
1
300 mm²
blue
PA
10/06/2016 Page 1 / 17
https://www.phoenixcontact.com/us/products/3247990
Bolt connection terminal block - RBO 16-HC BU - 3247990
Technical data
General
Flammability rating according to UL 94
Area of application
V0
Railway industry
Machine building
Plant engineering
Rated surge voltage
Degree of pollution
Overvoltage category
Insulating material group
Maximum load current
Nominal current I
N
Nominal voltage U
N
Open side panel
Relative insulation material temperature index (Elec., UL 746 B)
Static insulating material application in cold
Behavior in fire for rail vehicles (DIN 5510-2)
Flame test method (DIN EN 60695-11-10)
Oxygen index (DIN EN ISO 4589-2)
NF F16-101, NF F10-102 Class I
NF F16-101, NF F10-102 Class F
Surface flammability NFPA 130 (ASTM E 162)
Specific optical density of smoke NFPA 130 (ASTM E 662)
Smoke gas toxicity NFPA 130 (SMP 800C)
Calorimetric heat release NFPA 130 (ASTM E 1354)
Fire protection for rail vehicles (DIN EN 45545-2) R22
Fire protection for rail vehicles (DIN EN 45545-2) R23
Fire protection for rail vehicles (DIN EN 45545-2) R24
Fire protection for rail vehicles (DIN EN 45545-2) R26
8 kV
3
III
I
520 A (At a conductor cross section of 300 mm²)
520 A
1500 V
No
130 °C
-60 °C
Test passed
V0
>32 %
2
2
passed
passed
passed
28 MJ/kg
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) 130 °C
Dimensions
Width
Length
Height NS 35/7,5
Height NS 35/15
Pitch
54.8 mm
283.5 mm
91.8 mm
99.3 mm
54.8 mm
Connection data
Note
Connection bolts
10/06/2016 Page 2 / 17
https://www.phoenixcontact.com/us/products/3247990
Bolt connection terminal block - RBO 16-HC BU - 3247990
Technical data
Connection data
Connection method
Connection in acc. with standard
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Min. AWG conductor cross section, flexible
Max. AWG conductor cross section, flexible
Cable lug connection according to standard
Min. cross section for cable lug connection
Max. cross section for cable lug connection
Hole diameter, min.
Cable lug width, max.
Bolt diameter
Screw thread
Tightening torque, min
Tightening torque max
Cable lug connection according to standard
Min. cross section for cable lug connection
Max. cross section for cable lug connection
Hole diameter, min.
Cable lug width, max.
Bolt diameter
Screw thread
Tightening torque, min
Tightening torque max
Screw thread
Tightening torque, min
Tightening torque max
Bolt connection
IEC 60947-7-1
25 mm²
300 mm²
4
600
25 mm²
300 mm²
4
600
DIN 46234
25 mm²
240 mm²
17 mm
38 mm
16 mm
M16
25 Nm
35 Nm
DIN 46235
50 mm²
300 mm²
17 mm
48 mm
16 mm
M16
25 Nm
35 Nm
M16
25 Nm
35 Nm
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
CSA
IEC 60947-7-1
V0

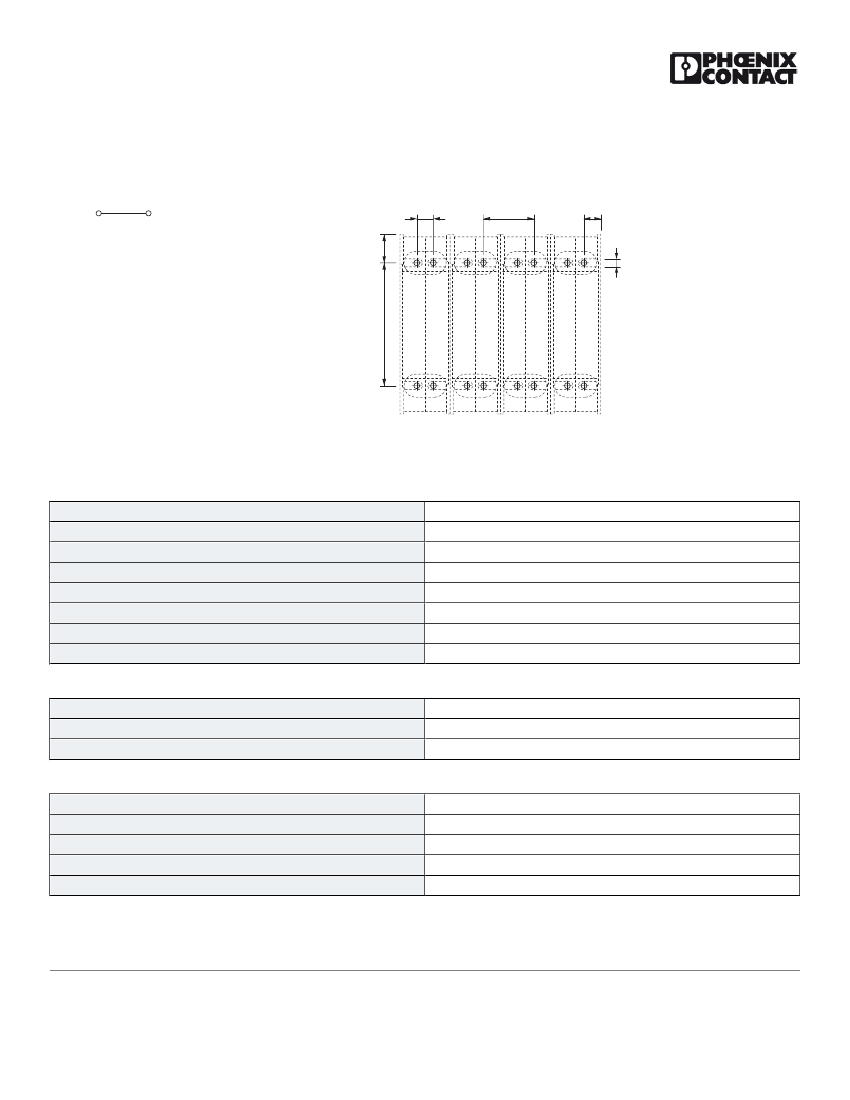

Drawings
10/06/2016 Page 3 / 17
https://www.phoenixcontact.com/us/products/3247990
Bolt connection terminal block - RBO 16-HC BU - 3247990
Circuit diagram
27,3
Dimensional drawing
54,8
14
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
27141120
27141120
27141120
27141120
27141120
27141120
27141120
27141120
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC000897
EC000897
EC000897
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211811
39121410
39121410
39121410
39121410
Approvals
Approvals
10/06/2016 Page 4 / 17
100
28
Ø 6,4
https://www.phoenixcontact.com/us/products/3247990
Bolt connection terminal block - RBO 16-HC BU - 3247990
Approvals
Approvals
UL Recognized / CSA / EAC / EAC
Ex Approvals
IECEx / ATEX / EAC Ex
Approval details
UL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm FILE E 60425
4-1000
540 A
1000 V
B
4-1000
540 A
600 V
C
4-1000
540 A
600 V
CSA
http://www.csagroup.org/services/testing-and-certification/certified-product-listing/ 13631
C
4-1000
540 A
1000 V
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
EAC EAC-Zulassung
EAC 7500651.22.01.00246
Accessories
Accessories
Bridge
10/06/2016 Page 5 / 17
