Network cable - VS-IP20-IP20-93C/0,5 - 1404371
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)

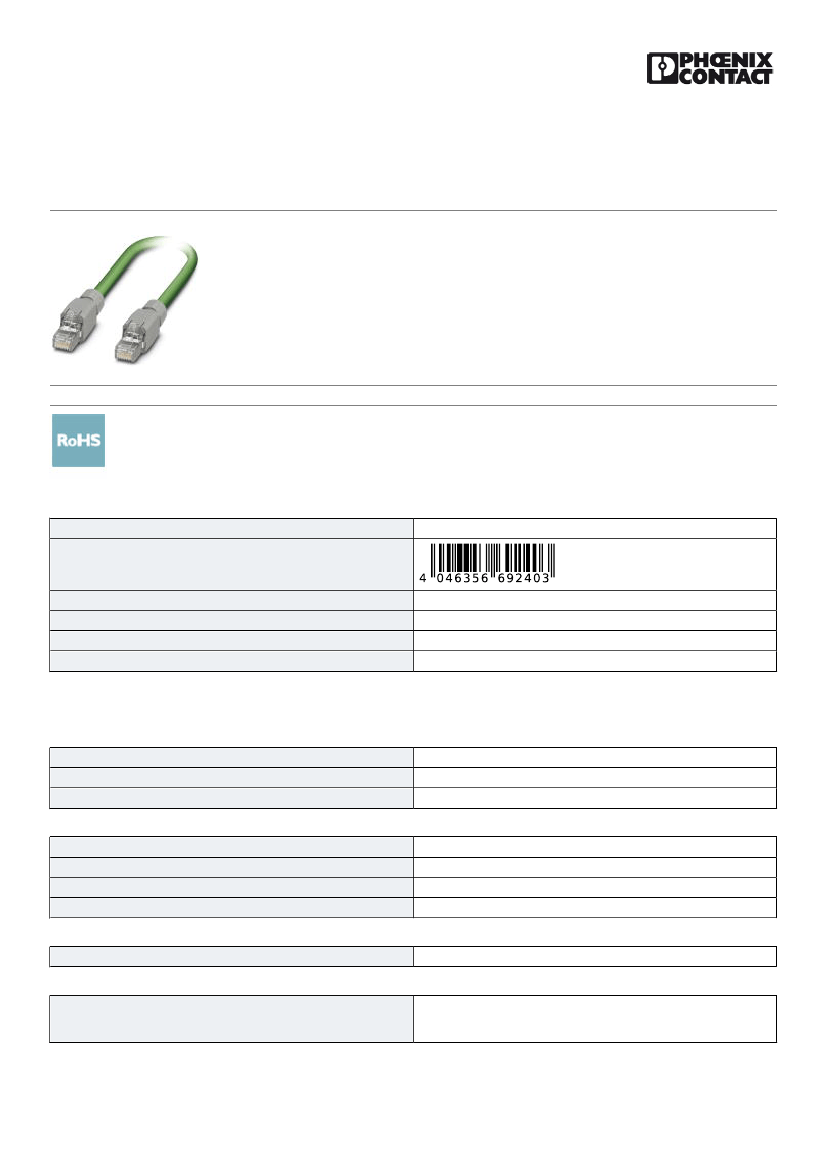

Assembled PROFINET cable, CAT5e, shielded, star-quad, 22 AWG suitable for use with drag chain (7-wire),
RAL 6018 (yellow-green), RJ45 plug/IP20 to RJ45 plug/IP20, length: 0.5 m
Key Commercial Data
Packing unit
GTIN
GTIN
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
4046356692403
45.610 g
85444210
Poland
1 pc
Technical data
Ambient conditions
Degree of protection
Ambient temperature (operation)
IP20
-10 °C ... 60 °C (fixed routing)
-10 °C ... 60 °C (Flexibly installed)
General data
Number of positions
Overvoltage category
Degree of pollution
Alternative short product description
4
I
1
PROFINET cable
Standards and Regulations
Flammability rating according to UL 94
V0
Cable
Product labeling
"sequential length in metres" PN-CABLE-934-C / PUR-4X22AWG/7
Trailing * 22AWG (SHIELDED) (UL) E119100 CMX 75°C VERIFIED
(UL) CAT 5E PATCH CABLE FRNC * (Cable printing cable supplier)
01/04/2019 Page 1 / 5
https://www.phoenixcontact.com/in/products/1404371
Network cable - VS-IP20-IP20-93C/0,5 - 1404371
Technical data
Cable
Cable type
Cable type (abbreviation)
Signal type/category
PROFINET drag chain CAT5
93C
PROFINET CAT5 (IEC 11801), 100 Mbps
EtherCAT CAT5 (IEC 11801), 100 Mbps
Cable structure
Conductor cross section
AWG signal line
Conductor structure signal line
Core diameter including insulation
Wire colors
Overall twist
Shielding
Optical shield covering
External sheath, color
Outer sheath thickness
External cable diameter D
Minimum bending radius, fixed installation
Minimum bending radius, flexible installation
Number of bending cycles
Bending radius
Traversing path
Traversing rate
Acceleration
Torsion force
Tensile strength GRP
Cable weight
Outer sheath, material
Material, inner sheath
Material conductor insulation
Conductor material
Insulation resistance
Loop resistance
Wave impedance
Near end crosstalk attenuation (NEXT)
1x4xAWG22/7; SF/TQ
4x 0.34 mm²
22
7x 0.25 mm
1.5 mm
White, yellow, blue, orange
Star quad
Aluminum-coated foil, tinned copper braided shield
85 %
green RAL 6018
approx. 0.9 mm
6.5 mm ±0.2 mm
5xD
7.5 x D
3000000
100 mm
10 m
4 m/s
4 m/s²
± 30 °/m
≤ 150 N
61 kg/km
PUR
FRNC
PE
Tin-plated Cu litz wires
≥ 500 MΩ*km
≤ 120.00 Ω/km
100 Ω ±15 Ω (at 1 ... 100 MHz)
80 dB (with 1 MHz)
76 dB (at 4 МHz)
70 dB (at 10 MHz)
65 dB (at 16 MHz)
63 dB (at 20 МHz)
60 dB (at 31.25 МHz)
55 dB (at 62.5 МHz)
01/04/2019 Page 2 / 5
®
https://www.phoenixcontact.com/in/products/1404371
Network cable - VS-IP20-IP20-93C/0,5 - 1404371
Technical data
Cable
50 dB (at 100 MHz)
Attenuation
2.1 dB (with 1 MHz)
4 dB (at 4 МHz)
6.3 dB (at 10 MHz)
8 dB (at 16 MHz)
9 dB (at 20 МHz)
11.4 dB (at 31.25 МHz)
16.5 dB (at 62.5 МHz)
21.3 dB (at 100 MHz)
Signal speed
Signal runtime
Coupling resistance
Nominal voltage, cable
Test voltage Core/Core
Test voltage Core/Shield
Special properties
Flame resistance
Halogen-free
Resistance to oil
Other resistance
Ambient temperature (operation)
Ambient temperature (installation)
Ambient temperature (storage/transport)
0.66 c
5.3 ns/m
≤ 20.00 mΩ/m (at 10 MHz)
600 V (UL rating)
2000 V (50 Hz, 1 min.)
2000 V (50 Hz, 1 min.)
Electrical properties according to EN 50288-2-2
according to IEC 60332-1-2
yes
in accordance with DIN EN 60811-2-1
UV resistant
-40 °C ... 70 °C (cable, fixed installation)
-40 °C ... 70 °C (cable, flexible installation)
-20 °C ... 60 °C
-50 °C ... 70 °C
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

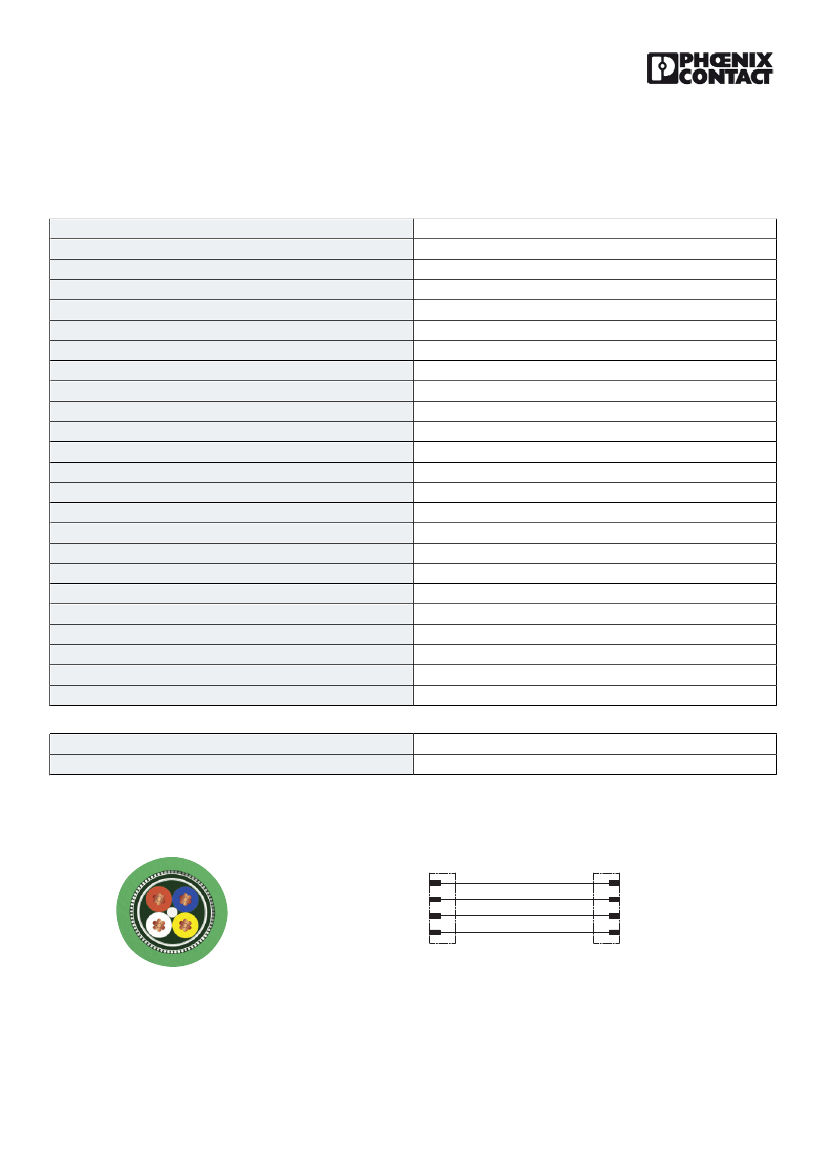

Drawings
Cable cross section
RJ45
1
2
3
6
Circuit diagram
RJ45
1 YE
2 OG
3 WH
6 BU
PROFINET drag chain CAT5 [93C]
01/04/2019 Page 3 / 5
https://www.phoenixcontact.com/in/products/1404371
Network cable - VS-IP20-IP20-93C/0,5 - 1404371
Dimensional drawing
max. 59
16,05
14
RJ45 connector, IP20
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
272607xx
27260701
27260701
19030300
27060300
27060308
27060308
27060308
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC000830
EC002599
EC002599
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
31261501
31261501
31261501
31261501
26121604
Approvals
Approvals
Approvals
EAC
01/04/2019 Page 4 / 5
14,6
https://www.phoenixcontact.com/in/products/1404371
Network cable - VS-IP20-IP20-93C/0,5 - 1404371
Approvals
Ex Approvals
Approval details
EAC
B.00767
Phoenix Contact 2019 © - all rights reserved
http://www.phoenixcontact.com
01/04/2019 Page 5 / 5
