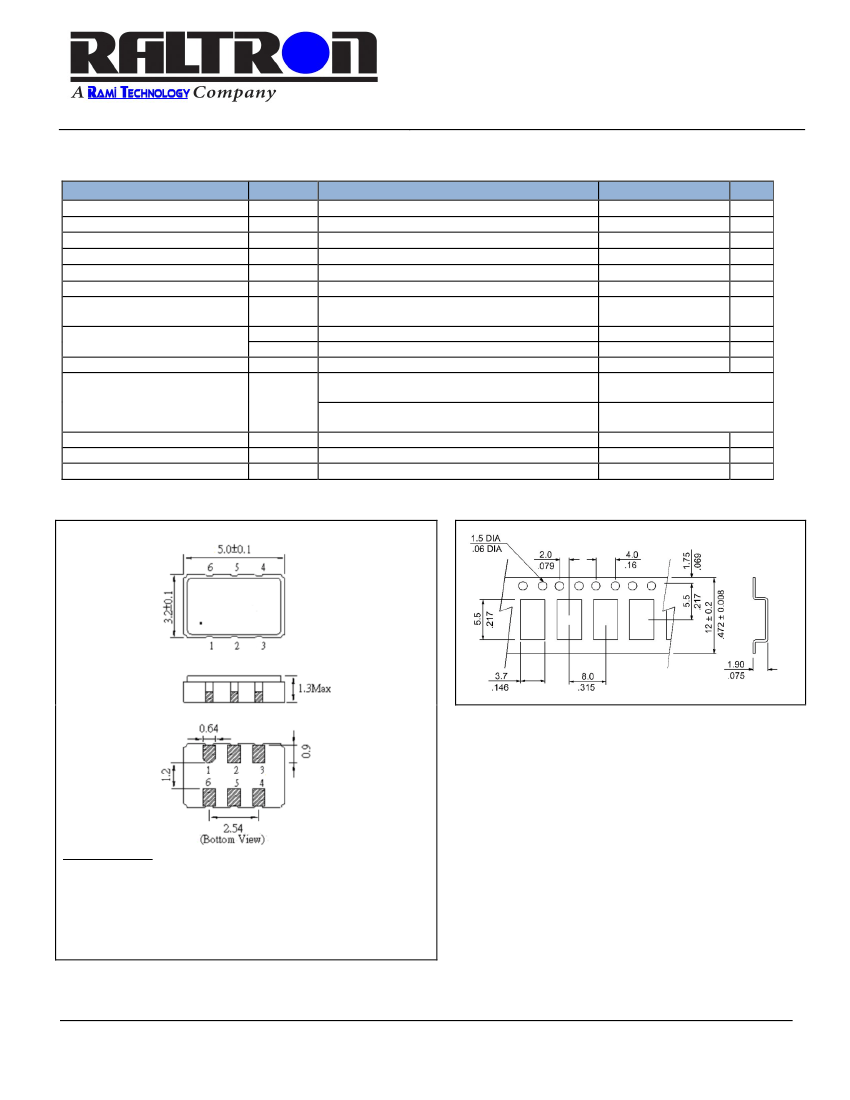

LVPECL CLOCK OSCILLATOR

Page 1 of 3

CP5032-25.000-2.5-25-X-T-TR

◼

ELECTRICAL SPECIFICATION

SYMBOL

fo

V

CC

I

S

Ta

T

(stg)

---

f/fo

V

OL

V

OH

---

E/D

Pin 1: Low (0.3 x Vcc)

Symmetry (Duty Cycle)

Rise Time and Fall Time

Jitter, RMS, max.

DC

tr / tf

J

@50% Vdd

@20% to 80% Vdd

1, 12kHz < F

j

< 20MHz

CONDITIONS

Ta=25°C

Vcc ±5%

Vcc; Ta=+25C;

---

Absolute max

Inclusive of 25°C Tolerance and Changes due to

Operating Temperature

V

OL

, max

V

OH

, min

Terminus to V

CC

–

2V

Pin 1: N.C. (Open) or High (0.7 x Vcc)

Enable / Disable Function

VALUE

25.000

2.5

80

-40 to +85

-55 to +125

LVPECL

±25

UNIT

MHz

VDC

mA

C

ppm

PARAMETER

Nominal Frequency

Supply Voltage

Supply Current, max

Operating Temperature Range

Storage Temperature Range

Output Logic Type

Overall Freq. Stability, Max.

Output Voltage

Output Load

V

CC

–

1.620

VDC

V

CC

–

1.025

VDC

50

Ω

Pin 4 & 5

–

Oscillation

(Enabled)

Pin 4 & 5

–

High Impedance

(Disabled)

45 to 55

%

1.0

ns

1.0

ps

◼

MECHANICAL SPECIFICATION

◼

CARRIER TAPE DIMENSIONS

NOTE: REFER TO EIA-481 FOR DIMENSIONS NOT LISTED

◼

PACKAGING

178 mm REEL DIAMETER

12 mm TAPE WIDTH, 8 mm PITCH

QUANTITY: 1000 PIECES PER REEL

PIN FUNCTIONS:

[1] ENABLE / DISABLE

[2] NC

[3] GND

[4] OUTPUT

[5] COMPLEMENTARY

[6] VCC

OUTPUT

RALTRON ELECTRONICS

▪

10400 N.W. 33

rd

Street

▪

Miami, Florida 33172

▪

U.S.A.

Telephone: +1-305-593-6033

▪

Fax: +1-305-594-3973

▪

e-mail: sales@raltron.com

▪

web: http://www.raltron.com
