CD74HC161M datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > logic> logic> CD74HC161M

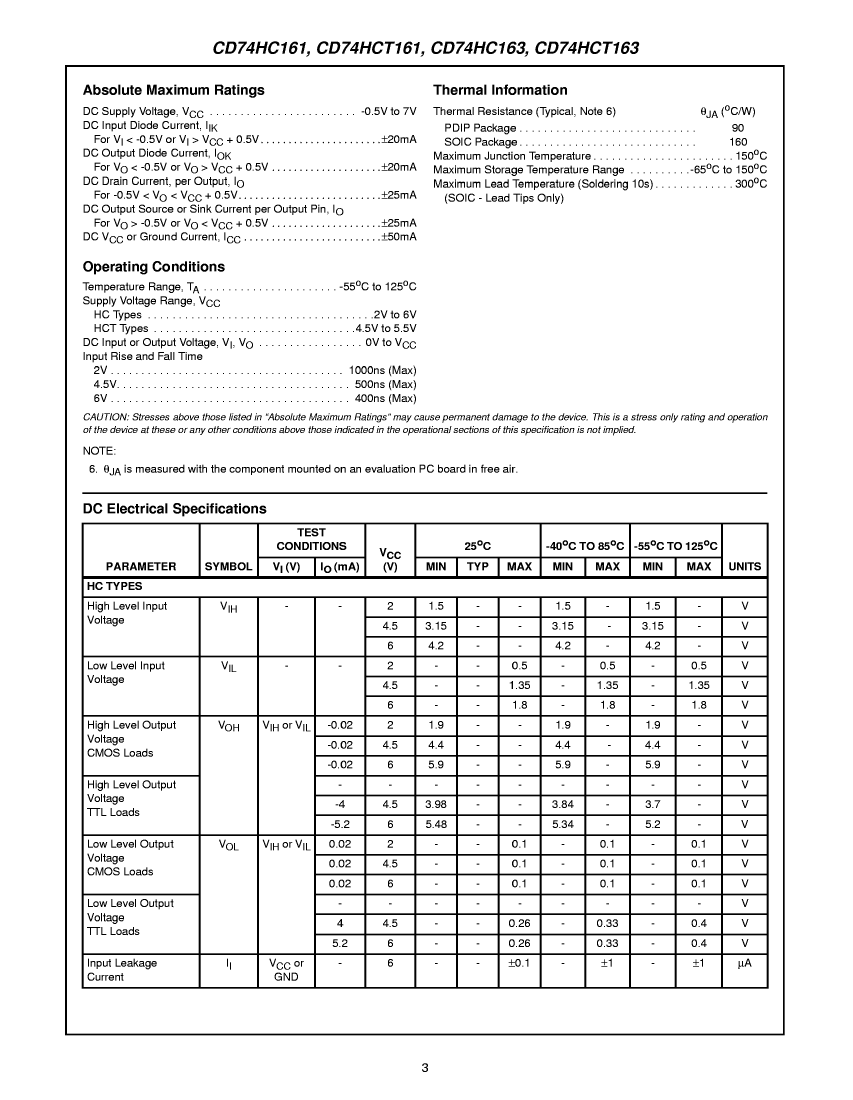

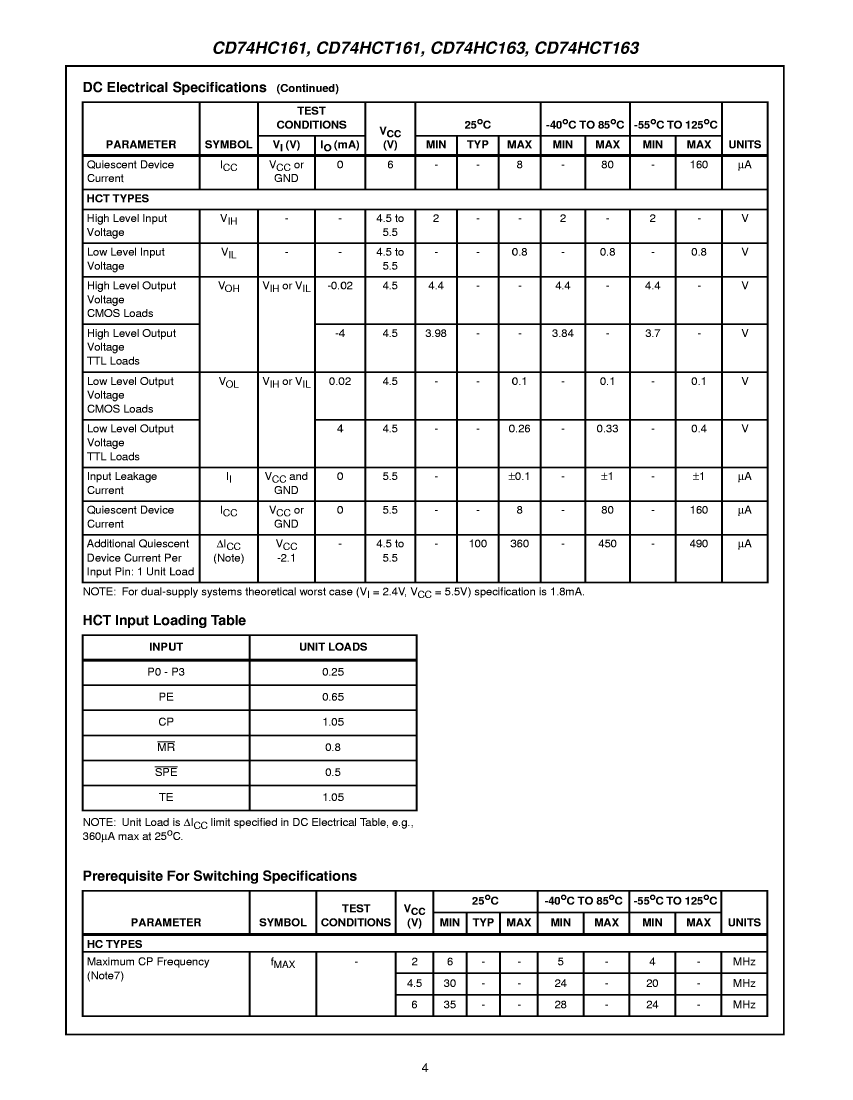

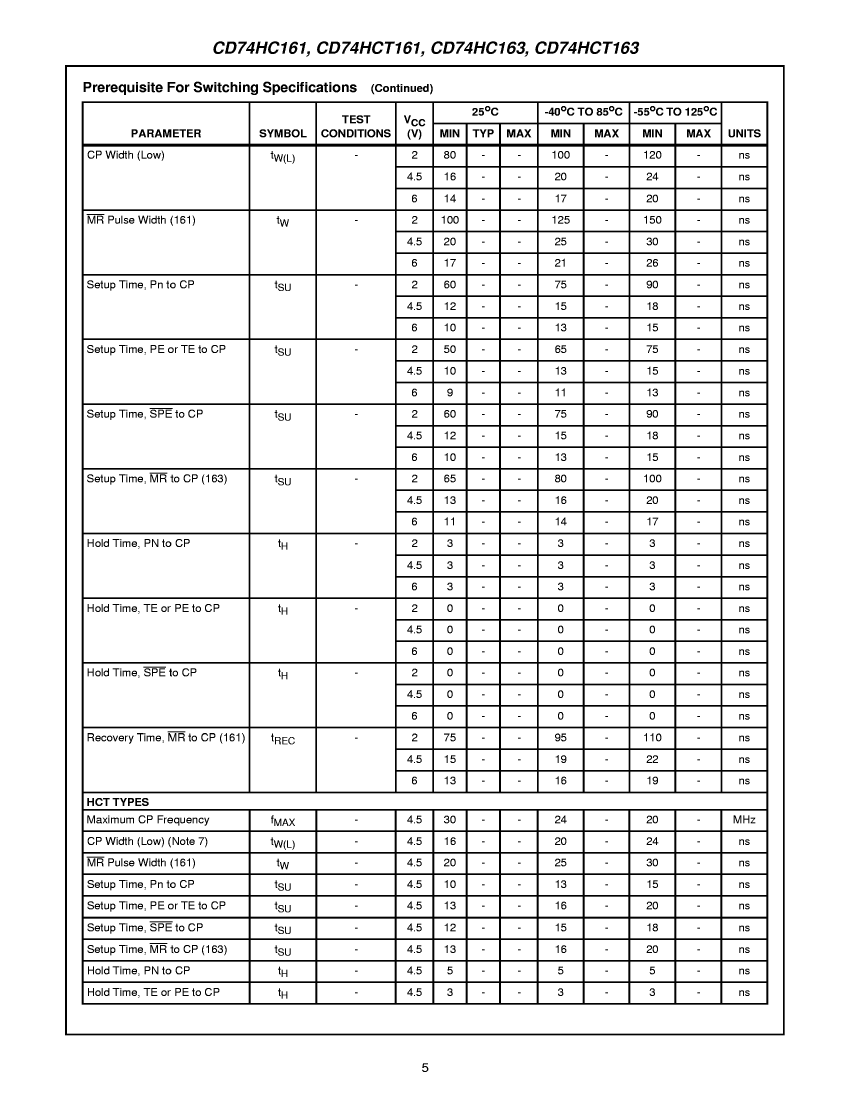

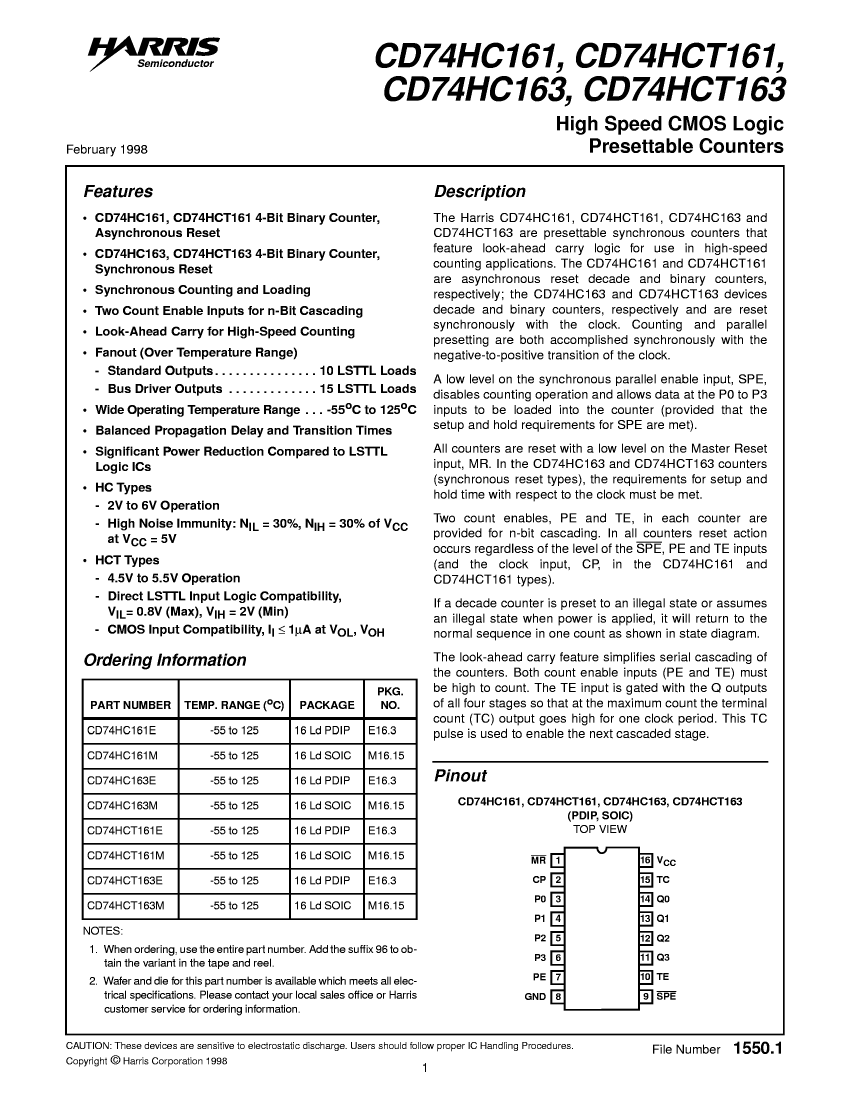

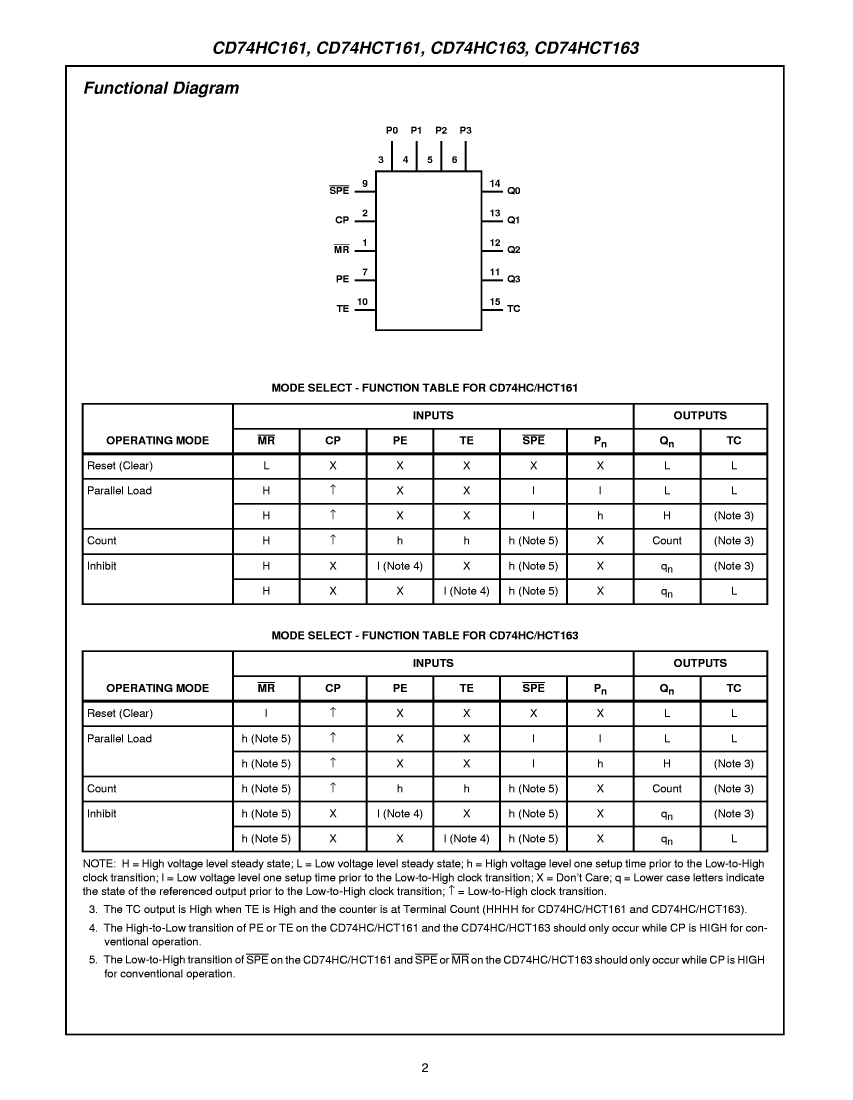

Preview

CD74HC161M: DescriptionIC,COUNTER,UP,4-BIT BINARY,HC-CMOS,SOP,16PIN,PLASTIC; Categorylogic logic; File Size486KB，9 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

CD74HC161M Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CD74HC161M	-	-	View	Buy Now

CD74HC161M Overview

IC,COUNTER,UP,4-BIT BINARY,HC-CMOS,SOP,16PIN,PLASTIC

CD74HC161M Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Renesas Electronics Corporation
package instruction	SOP, SOP16,.25
Reach Compliance Code	_compli
Counting direction	UP
JESD-30 code	R-PDSO-G16
JESD-609 code	e0
Load capacitance (CL)	50 pF
Load/preset input	YES
Logic integrated circuit type	BINARY COUNTER
Maximum Frequency@Nom-Su	24000000 Hz
MaximumI(ol)	0.004 A
Operating mode	SYNCHRONOUS
Number of functions	1
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP16,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	2/6 V
Certification status	Not Qualified
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL

Preview

Download Datasheet

View All

CD74HC161M Related Products

	CD74HC161M	CD74HCT163M	CD74HCT161M	CD74HCT163E	CD74HCT161E	CD74HC163M	CD74HC163E
Description	IC,COUNTER,UP,4-BIT BINARY,HC-CMOS,SOP,16PIN,PLASTIC	IC,COUNTER,UP,4-BIT BINARY,HCT-CMOS,SOP,16PIN,PLASTIC	IC,COUNTER,UP,4-BIT BINARY,HCT-CMOS,SOP,16PIN,PLASTIC	IC,COUNTER,UP,4-BIT BINARY,HCT-CMOS,DIP,16PIN,PLASTIC	IC,COUNTER,UP,4-BIT BINARY,HCT-CMOS,DIP,16PIN,PLASTIC	IC,COUNTER,UP,4-BIT BINARY,HC-CMOS,SOP,16PIN,PLASTIC	IC,COUNTER,UP,4-BIT BINARY,HC-CMOS,DIP,16PIN,PLASTIC
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	SOP, SOP16,.25	SOP, SOP16,.25	SOP, SOP16,.25	DIP, DIP16,.3	DIP, DIP16,.3	SOP, SOP16,.25	DIP, DIP16,.3
Reach Compliance Code	_compli	not_compliant	not_compliant	not_compliant	not_compliant	_compli	_compli
Counting direction	UP	UP	UP	UP	UP	UP	UP
JESD-30 code	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDIP-T16	R-PDIP-T16	R-PDSO-G16	R-PDIP-T16
JESD-609 code	e0	e0	e0	e0	e0	e0	e0
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Load/preset input	YES	YES	YES	YES	YES	YES	YES
Logic integrated circuit type	BINARY COUNTER	BINARY COUNTER	BINARY COUNTER	BINARY COUNTER	BINARY COUNTER	BINARY COUNTER	BINARY COUNTER
MaximumI(ol)	0.004 A	0.004 A	0.004 A	0.004 A	0.004 A	0.004 A	0.004 A
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Number of functions	1	1	1	1	1	1	1
Number of terminals	16	16	16	16	16	16	16
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	SOP	DIP	DIP	SOP	DIP
Encapsulate equivalent code	SOP16,.25	SOP16,.25	SOP16,.25	DIP16,.3	DIP16,.3	SOP16,.25	DIP16,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	IN-LINE	SMALL OUTLINE	IN-LINE
power supply	2/6 V	5 V	5 V	5 V	5 V	2/6 V	2/6 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES	NO	NO	YES	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	GULL WING	THROUGH-HOLE	THROUGH-HOLE	GULL WING	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	2.54 mm	2.54 mm	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maker	Renesas Electronics Corporation	-	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation
Maximum Frequency@Nom-Sup	-	24000000 Hz	24000000 Hz	24000000 Hz	24000000 Hz	-	-
Nominal supply voltage (Vsup)	-	5 V	5 V	5 V	5 V	-	-
