HD74LV245T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> HD74LV245T

HD74LV245T: DescriptionLV/LV-A/LVX/H SERIES, 8-BIT TRANSCEIVER, TRUE OUTPUT, PDSO20, TSSOP-20; Categorylogic logic; File Size136KB，7 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

HD74LV245T Overview

LV/LV-A/LVX/H SERIES, 8-BIT TRANSCEIVER, TRUE OUTPUT, PDSO20, TSSOP-20

HD74LV245T Parametric

Parameter Name	Attribute value
Maker	Renesas Electronics Corporation
Parts packaging code	TSSOP
package instruction	TSSOP,
Contacts	20
Reach Compliance Code	compli
Other features	WITH DIRECTION CONTROL
series	LV/LV-A/LVX/H
JESD-30 code	R-PDSO-G20
length	6.5 mm
Logic integrated circuit type	BUS TRANSCEIVER
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	20
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
propagation delay (tpd)	16 ns
Certification status	Not Qualified
Maximum seat height	1.1 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	2 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
width	4.4 mm

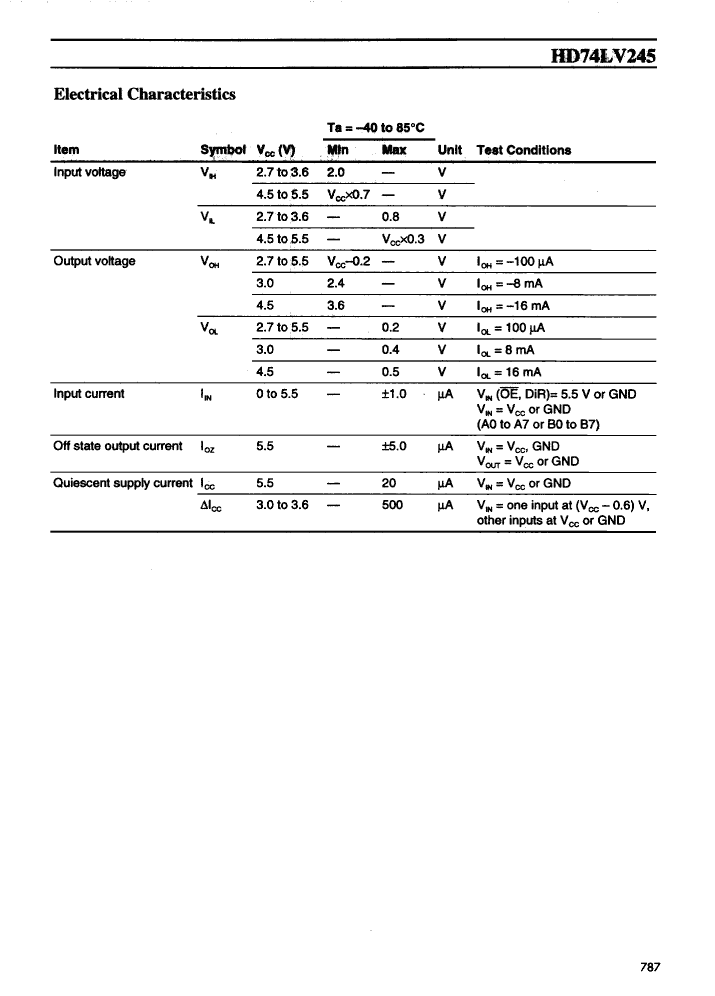

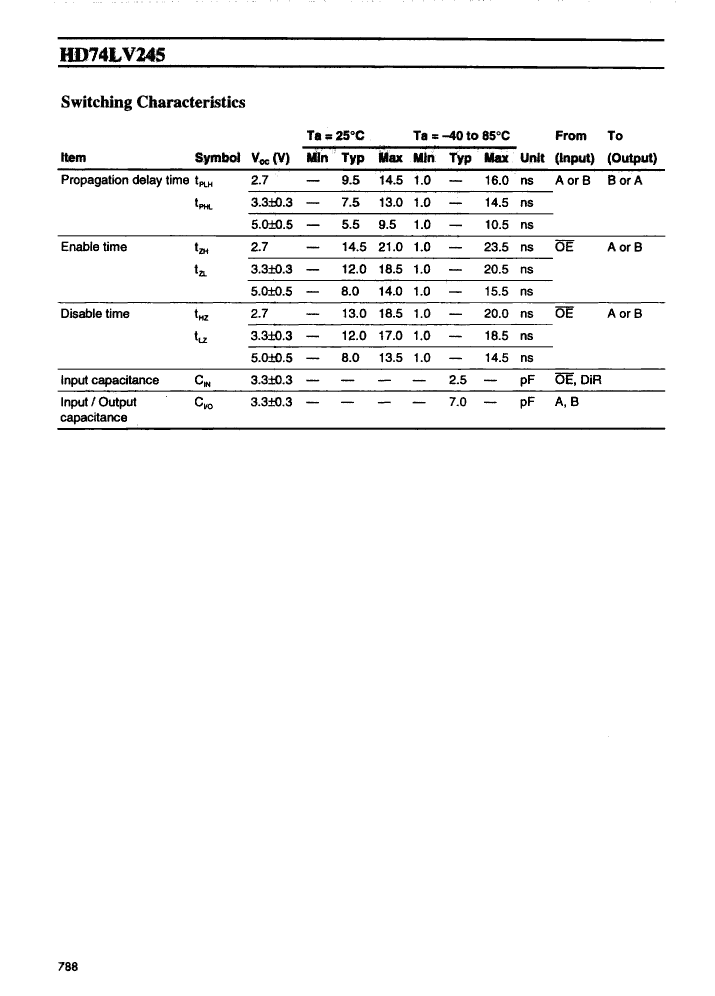

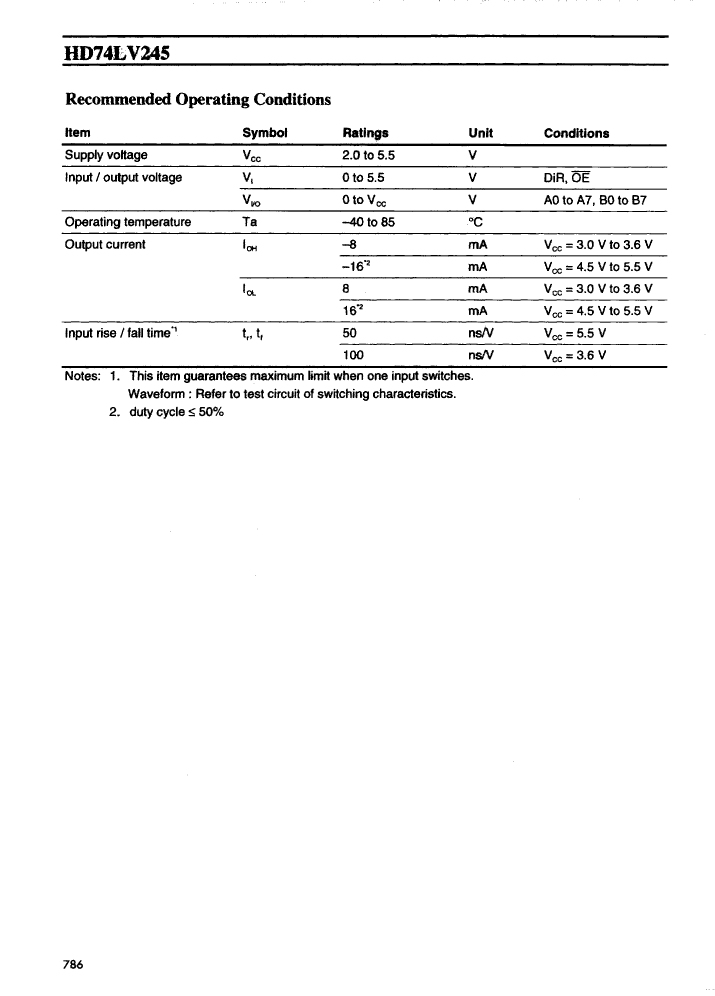

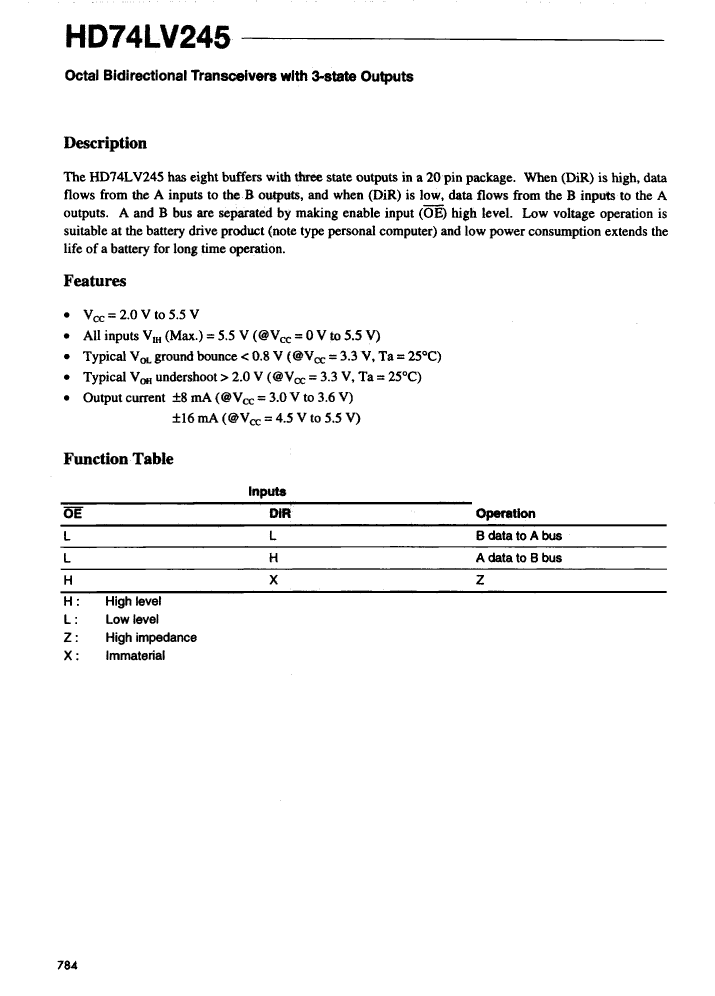

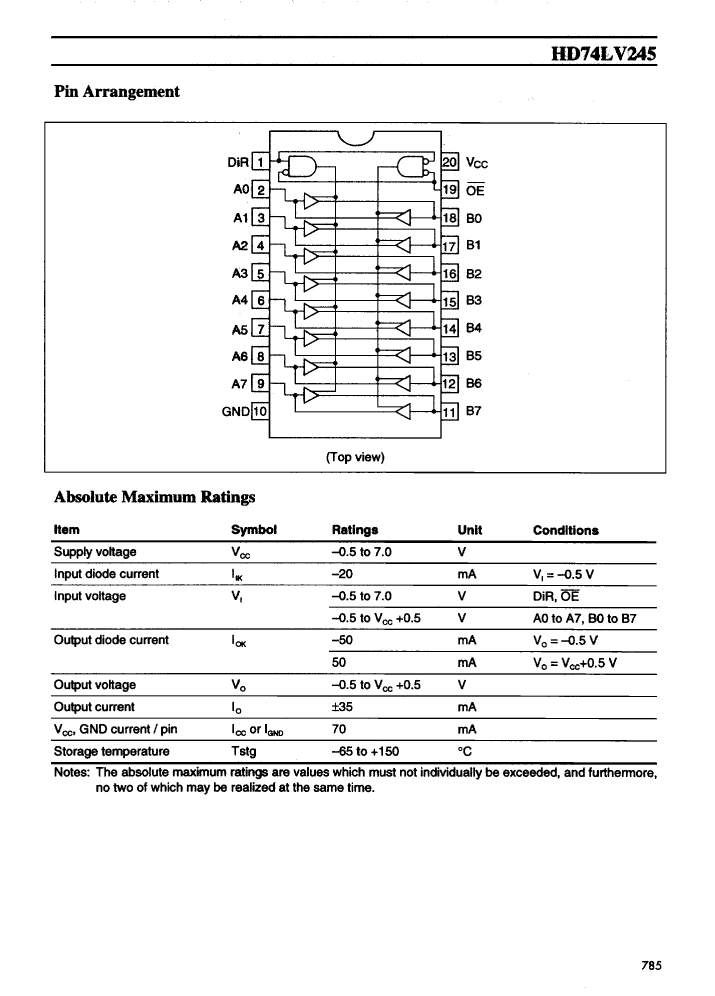

Preview

Download Datasheet

View All

HD74LV245T Related Products

	HD74LV245T	HD74LV245FP	HD74LV245RP
Description	LV/LV-A/LVX/H SERIES, 8-BIT TRANSCEIVER, TRUE OUTPUT, PDSO20, TSSOP-20	LV/LV-A/LVX/H SERIES, 8-BIT TRANSCEIVER, TRUE OUTPUT, PDSO20, EIAJ, SOP-20	LV/LV-A/LVX/H SERIES, 8-BIT TRANSCEIVER, TRUE OUTPUT, PDSO20, SOP-20
Maker	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation
Parts packaging code	TSSOP	SOIC	SOIC
package instruction	TSSOP,	SOP,	SOP,
Contacts	20	20	20
Reach Compliance Code	compli	compliant	compliant
Other features	WITH DIRECTION CONTROL	WITH DIRECTION CONTROL	WITH DIRECTION CONTROL
series	LV/LV-A/LVX/H	LV/LV-A/LVX/H	LV/LV-A/LVX/H
JESD-30 code	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20
length	6.5 mm	12.6 mm	12.8 mm
Logic integrated circuit type	BUS TRANSCEIVER	BUS TRANSCEIVER	BUS TRANSCEIVER
Number of digits	8	8	8
Number of functions	1	1	1
Number of ports	2	2	2
Number of terminals	20	20	20
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
Output characteristics	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSSOP	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE	SMALL OUTLINE
propagation delay (tpd)	16 ns	16 ns	16 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.1 mm	2.2 mm	2.65 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	2 V	2 V	2 V
surface mount	YES	YES	YES
technology	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING	GULL WING
Terminal pitch	0.65 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL
width	4.4 mm	5.5 mm	7.5 mm
