DATA SHEET
PHOTOCOUPLER
PS2381-1
4-PIN LSOP PHOTOCOUPLER
OPERATING AMBIENT TEMPERATURE 115°C
−NEPOC
Series−
DESCRIPTION
The PS2381-1 is an optically coupled isolator containing a GaAs light emitting diode and an NPN silicon
phototransistor.
This package is mounted in a plastic 4-LSOP (Long Mini-Flat Small Outline Package) for high density applications.
The package has shield effect to cut off ambient light.
FEATURES
• Operating ambient temperature: 115°C
• Isolation distance (0.4 mm MIN.)
• High isolation voltage (BV = 5 000 Vr.m.s.)
• 4-pin LSOP (Long Mini-Flat Small Outline Package) type
• High-speed switching (t
r
= 4
μ
s TYP., t
f
= 5
μ
s TYP.)
• Embossed tape product: PS2381-1-F3: 3 000 pcs/reel
• Pb-Free product
• Safety standards
• UL approved: No. E72422
• CSA approved: No. CA 101391 (CA5A, CAN/CSA-C22.2 60065, 60950)
• SEMKO approved: No. 911049
• DIN EN60747-5-2 (VDE0884 Part2) approved: No. 40028917 (Option)
• CQC approved: CQC10001041058 for GB4943-2001
CQC10001041059 for GB8898-2001
1
2
4
PIN CONNECTION
(Top View)
3
1. Anode
2. Cathode
3. Emitter
4. Collector
APPLICATIONS
• Power supply
• FA/OA equipment
The information in this document is subject to change without notice. Before using this document, please
confirm that this is the latest version.
Not all products and/or types are available in every country. Please check with an NEC Electronics
sales representative for availability and additional information.
Document No. PN10801EJ01V0DS (1st edition)
Date Published March 2010 NS
Printed in Japan
2010
PS2381-1
PACKAGE DIMENSIONS (Unit: mm)
3.8±0.3
4
3
2.3 MAX.
2.0±0.1
0.1±0.1
0.15±0.1
1
2
10.2±0.3
7.5±0.2
2.54
0.45±0.1
0.25 M
0.7
+0.3
–0.4
PHOTOCOUPLER CONSTRUCTION
Parameter
Air Distance
Outer Creepage Distance
Isolation Distance
Unit (MIN.)
8 mm
8 mm
0.4 mm
MARKING EXAMPLE
No. 1 pin Mark
2381
N031
Type Number
Assembly Lot
N
0
31
Week Assembled
Year Assembled
(Last 1 Digit)
CTR Rank Code
Remark
"PS" and "-1" are omitted from original type number
2
Data Sheet PN10801EJ01V0DS
PS2381-1
ORDERING INFORMATION
Part Number
Order Number
Solder Plating
Specification etc.
PS2381-1
PS2381-1-F3
PS2381-1Y-AX
PS2381-1Y-F3-AX
Pb-Free and
Halogen Free
20 pcs (Tape 20 pcs cut)
Embossed Tape 3 000 pcs/reel
Packing Style
Safety Standard
Approval
Standard products
(UL, CSA, SEMKO
approved)
PS2381-1-V
PS2381-1-V-F3
PS2381-1Y-V-AX
PS2381-1Y-V-F3-AX
20 pcs (Tape 20 pcs cut)
Embossed Tape 3 000 pcs/reel
DIN EN60747-5-2
(VDE0884 Part2)
Approved (Option)
Application Part
*1
Number
PS2381-1
*1
For the application of the Safety Standard, following part number should be used.
ABSOLUTE MAXIMUM RATINGS (T
A
= 25°C, unless otherwise specified)
Parameter
Diode
Forward Current (DC)
Reverse Voltage
Power Dissipation
Derating
*1
Symbol
I
F
V
R
Ratings
60
6
1.0
Unit
mA
V
mW/°C
Δ
P
D
/°C
P
D
*2
Power Dissipation
Peak Forward Current
Transistor
100
1.5
80
7
50
1.5
mW
A
V
V
mA
mW/°C
I
FP
V
CEO
V
ECO
I
C
Collector to Emitter Voltage
Emitter to Collector Voltage
Collector Current
Power Dissipation
Derating
*1
Δ
P
C
/°C
P
C
BV
P
T
T
A
T
stg
Power Dissipation
Isolation Voltage
*3
150
5 000
250
–40 to +115
–40 to +125
mW
Vr.m.s.
mW
°C
°C
Total Power Dissipation
Operating Ambient Temperature
Storage Temperature
*1
Derating from T
A
= 25°C.
*2
PW = 100
μ
s, Duty Cycle = 1%
*3
AC voltage for 1 minute at T
A
= 25°C, RH = 60% between input and output.
Pins 1-2 shorted together, 3-4 shorted together.
Data Sheet PN10801EJ01V0DS
3
PS2381-1
ELECTRICAL CHARACTERISTICS (T
A
= 25°C)
Parameter
Diode
Forward Voltage
Reverse Current
Terminal Capacitance
Transistor
Collector to Emitter Dark
Current
Coupled
Current Transfer Ratio
(I
C
/I
F
)
*1
Symbol
V
F
I
R
C
t
I
CEO
I
F
= 5 mA
V
R
= 5 V
Conditions
MIN.
TYP.
1.1
MAX.
1.4
5
Unit
V
μ
A
pF
V = 0 V, f = 1 MHz
I
F
= 0 mA, V
CE
= 24 V
15
100
nA
CTR
I
F
= 5 mA, V
CE
= 5 V
I
F
= 1 mA, V
CE
= 5 V
50
10
100
50
400
%
Collector Saturation
Voltage
Isolation Resistance
Isolation Capacitance
Rise Time
Fall Time
*2
V
CE (sat)
I
F
= 10 mA, I
C
= 2 mA
0.3
V
Ω
R
I-O
C
I-O
t
r
t
f
V
I-O
= 1 kV
DC
V = 0 V, f = 1 MHz
V
CC
= 5 V, I
C
= 2 mA, R
L
= 100
Ω
10
11
0.4
4
5
pF
μ
s
*2
*1
CTR rank
CTR rank
W
CTR (%)
130 to 260
20 to
L
100 to 300
20 to
M
50 to 150
10 to
N
50 to 400
10 to
Conditions
I
F
= 5 mA, V
CE
= 5 V
I
F
= 1 mA, V
CE
= 5 V
I
F
= 5 mA, V
CE
= 5 V
I
F
= 1 mA, V
CE
= 5 V
I
F
= 5 mA, V
CE
= 5 V
I
F
= 1 mA, V
CE
= 5 V
I
F
= 5 mA, V
CE
= 5 V
I
F
= 1 mA, V
CE
= 5 V
*2
Test circuit for switching time
V
CC
PW = 100
μ
s
Duty cycle = 1/10
I
F
In monitor
50
Ω
R
L
= 100
Ω
Output
10%
t
r
t
f
V
OUT
90%
Input
t
on
t
d
t
s
t
off
4
Data Sheet PN10801EJ01V0DS
PS2381-1

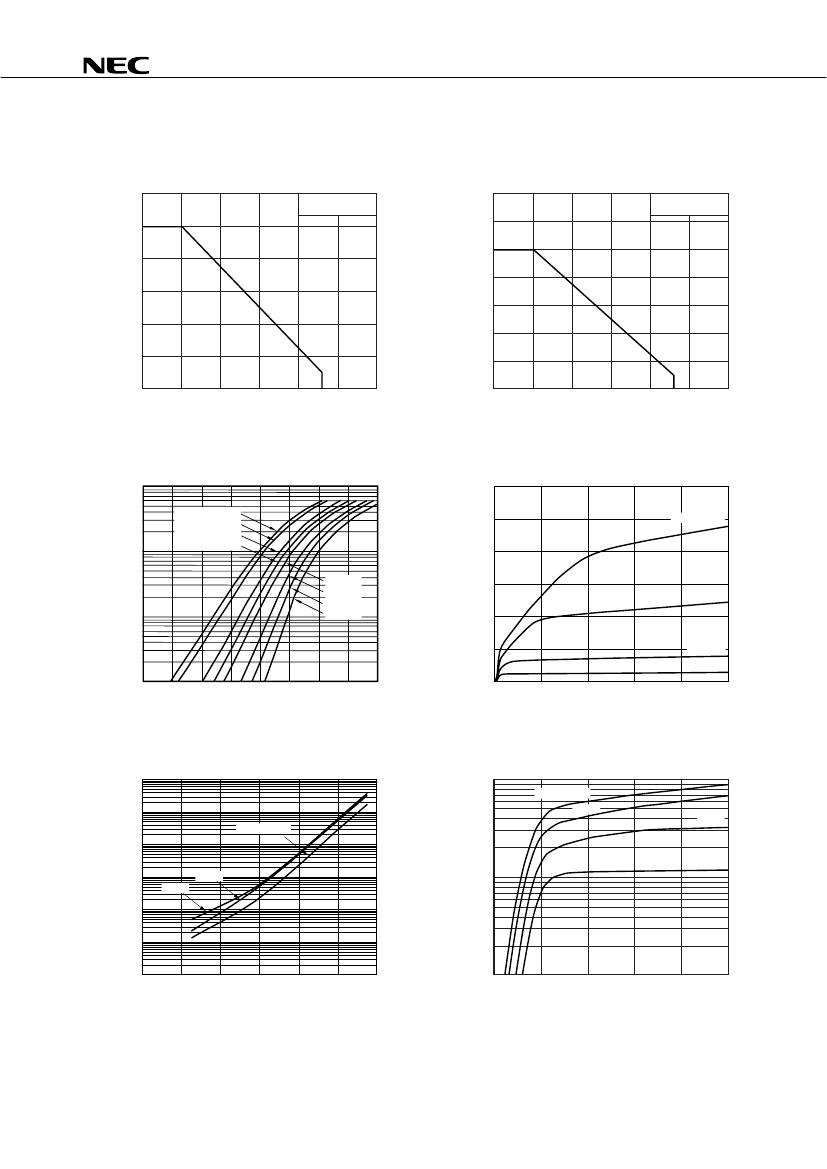

TYPICAL CHARACTERISTICS (T
A
= 25°C, unless otherwise specified)
DIODE POWER DISSIPATION vs.
AMBIENT TEMPERATURE
Diode Power Dissipation P
D
(mW)
1.0 mW/°C
100
80
60
40
20
115
TRANSISTOR POWER DISSIPATION vs.
AMBIENT TEMPERATURE
Transistor Power Dissipation P
C
(mW)
210
1.5 mW/°C
180
150
120
90
60
30
0
25
50
75
100
115
120
0
25
50
75
100
125
150
125
150
Ambient Temperature T
A
(°C)
Ambient Temperature T
A
(°C)
FORWARD CURRENT vs.
FORWARD VOLTAGE
100
T
A
= +115
°
C
+100
°
C
+60
°
C
+40
°
C
+25
°
C
0
°
C
–20
°
C
–40
°
C
COLLECTOR CURRENT vs.
COLLECTOR TO EMITTER VOLTAGE
30
25
20
15
5 mA
10
5
2 mA
1 mA
I
F
= 10 mA
10
1
0.1
0.7
Collector Current I
C
(mA)
Forward Current I
F
(mA)
0.8
0.9
1.0
1.1
1.2
1.3
1.4
1.5
0
2
4
6
8
10
Forward Voltage V
F
(V)
Collector to Emitter Voltage V
CE
(V)
COLLECTOR TO EMITTER DARK
CURRENT vs. AMBIENT TEMPERATURE
Collector to Emitter Dark Current I
CEO
(nA)
100 000
10 000
V
CE
= 24 V
1 000
100
80 V
10
1
0.1
0
70 V
COLLECTOR CURRENT vs.
COLLECTOR SATURATION VOLTAGE
10
I
F
= 10 mA
5 mA
2 mA
Collector Current I
C
(mA)
1 mA
1
20
40
60
80
100
115
0.1
0
0.2
0.4
0.6
0.8
1.0
Ambient Temperature T
A
(°C)
Collector Saturation Voltage V
CE (sat)
(V)
Remark
The graphs indicate nominal characteristics.
Data Sheet PN10801EJ01V0DS
5
