51K107-106N4

Description
RF BNC Connector, Female, Cable Mount, Crimp Terminal, Jack,
CategoryThe connector    The connector
File Size117KB,2 Pages
ManufacturerRosenberger
Websitehttps://www.rosenberger.com/
Download Datasheet Parametric View All

51K107-106N4 Overview

RF BNC Connector, Female, Cable Mount, Crimp Terminal, Jack,

51K107-106N4 Parametric

Parameter NameAttribute value
MakerRosenberger
Reach Compliance Codecompli
Other featuresVSWR MAX AT 8 GHZ, APPLICABLE CABLE: RG 141A/U; RG 58/U
Body/casing typeJACK
Characteristic impedance50 Ω
Connector typeRF BNC CONNECTOR
Contact to complete cooperationGOLD (31) OVER NICKEL
Contact completed and terminatedGOLD (31) OVER NICKEL
Contact point genderFEMALE
Coupling typeBAYONET
DIN complianceNO
Filter functionNO
IEC complianceNO
Insertion loss0.16 dB
insulator materialPOLYTETRAFLUORO ETHYLENE
JESD-609 codee4
MIL complianceNO
Manufacturer's serial number51K107-106N4
Installation methodSTRAIGHT
Installation typeCABLE
Maximum operating frequency10 GHz
OptionsGENERAL PURPOSE
Panel mountingNO
Termination typeCRIMP
voltage standing wave ratio1.47
TECHNICAL DATA SHEET
BNC 50
STRAIGHT JACK
51K107-106N4

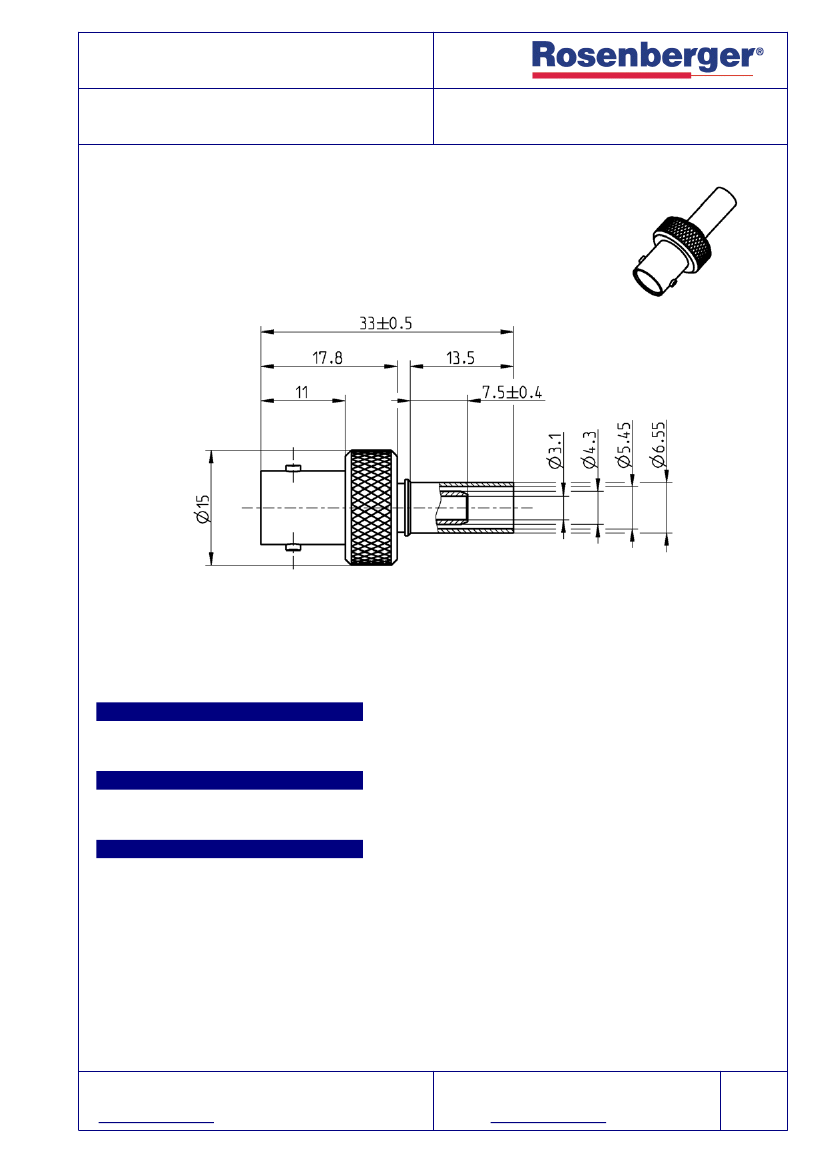

All dimensions are in mm; tolerances according to ISO 2768 m-H
Interface
According to
IEC 60169-8, MIL-PRF-39012, CECC 22120
Documents
Assembly instruction
51 P1
Material and plating
Connector parts
Center contact
Outer contact
Body
Dielectric
Crimping ferrule
Material
Beryllium copper
Brass
Brass
PTFE
Copper
Plating
Gold, min. 0.8 µm, over chemical nickel
Flash white bronze over silver(e.g. Optargen®)
Flash white bronze over silver(e.g. Optargen®)
Flash white bronze over silver(e.g. Optargen®)
RF_35/12.04/3.0
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
1/2
