KM23C4000CG-12 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > storage> storage> KM23C4000CG-12

Preview

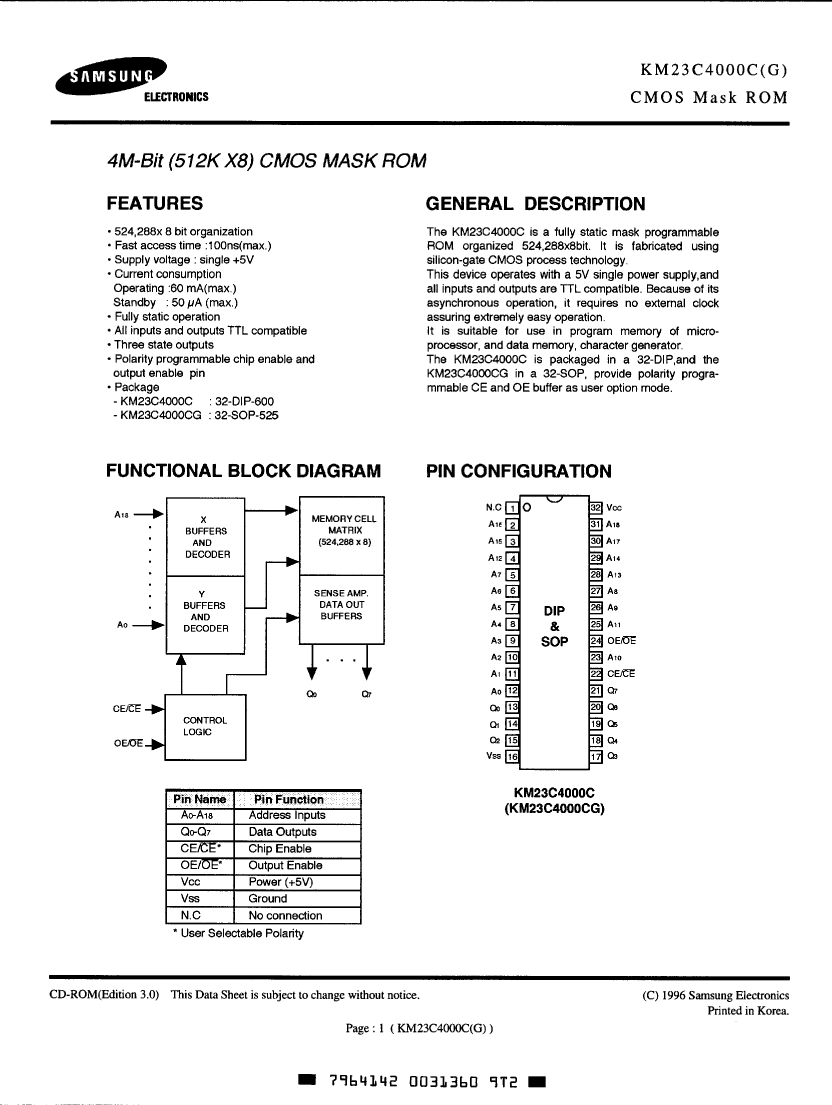

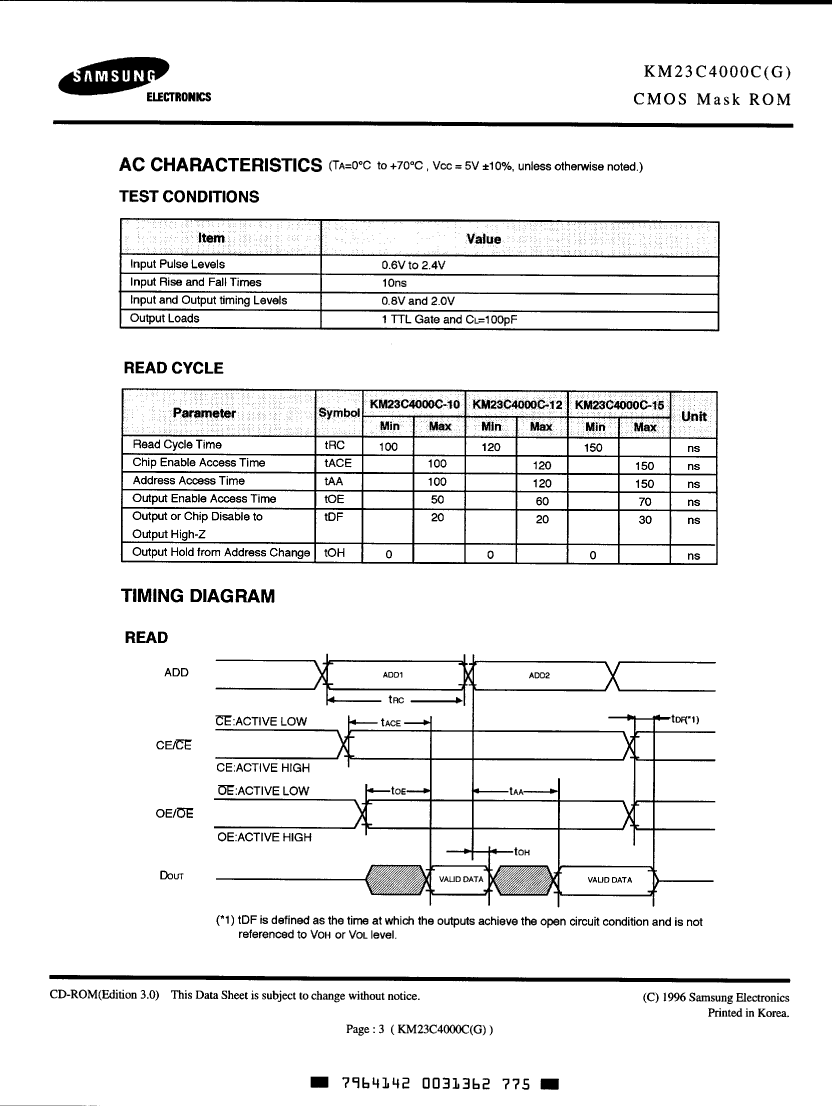

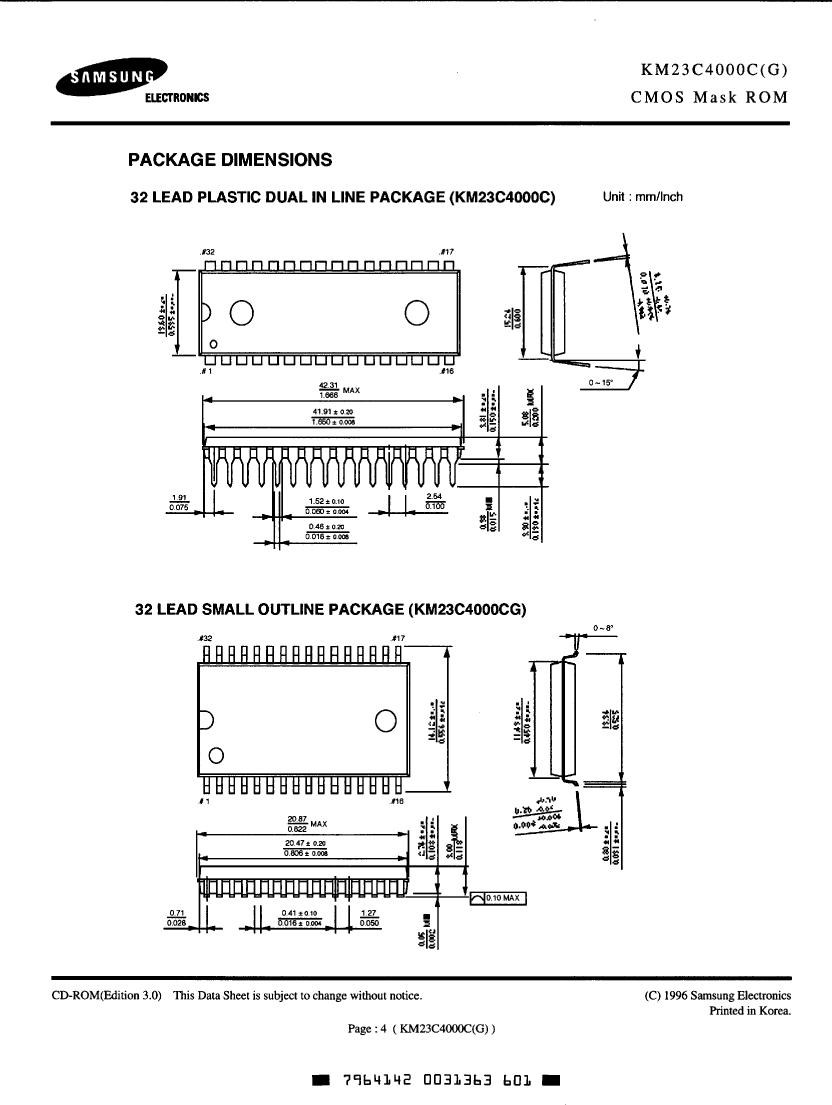

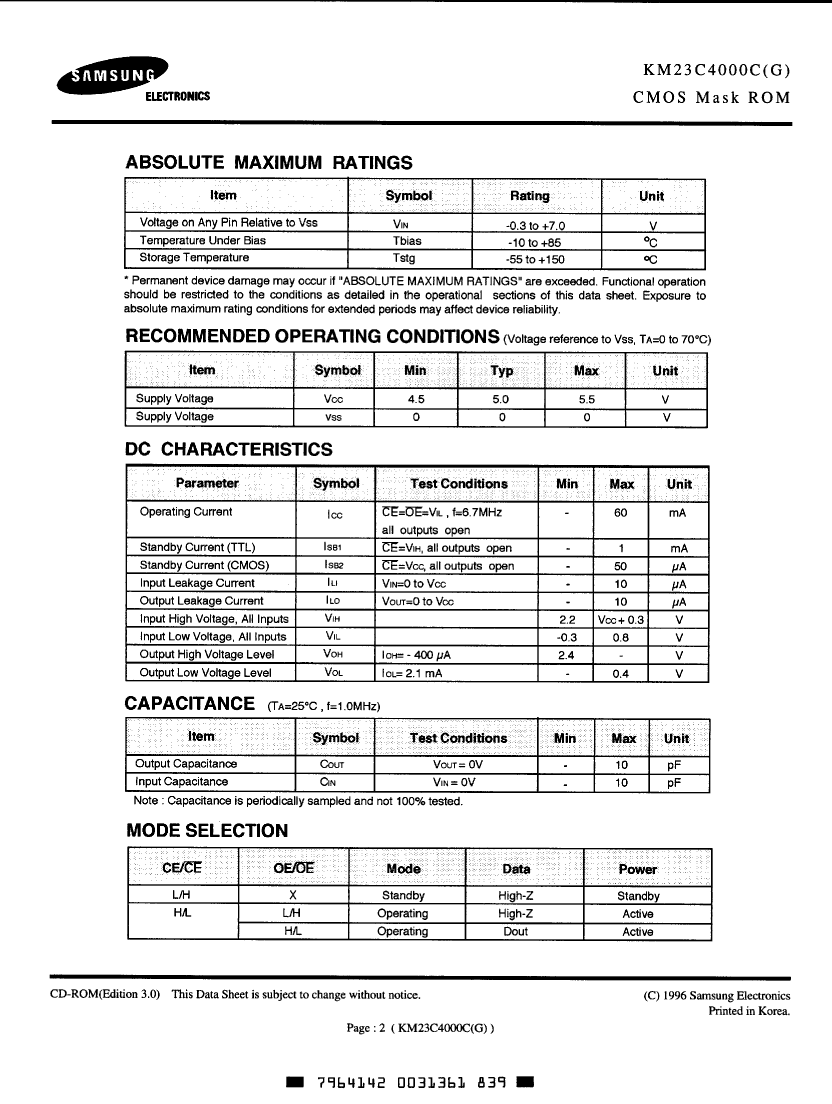

KM23C4000CG-12: DescriptionMASK ROM, 512KX8, 120ns, CMOS, PDSO32; Categorystorage storage; File Size266KB，4 Pages; ManufacturerSAMSUNG; Websitehttp://www.samsung.com/Products/Semiconductor/

Download Datasheet Parametric Compare View All

KM23C4000CG-12 Overview

MASK ROM, 512KX8, 120ns, CMOS, PDSO32

KM23C4000CG-12 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	SAMSUNG
package instruction	SOP, SOP32,.56
Reach Compliance Code	unknow
Maximum access time	120 ns
JESD-30 code	R-PDSO-G32
JESD-609 code	e0
memory density	4194304 bi
Memory IC Type	MASK ROM
memory width	8
Humidity sensitivity level	3
Number of terminals	32
word count	524288 words
character code	512000
Maximum operating temperature	70 °C
Minimum operating temperature
organize	512KX8
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP32,.56
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
power supply	5 V
Certification status	Not Qualified
Maximum standby current	0.00005 A
Maximum slew rate	0.06 mA
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	40

Preview

Download Datasheet

View All

KM23C4000CG-12 Related Products

	KM23C4000CG-12	KM23C4000C-10	KM23C4000C-12	KM23C4000C-15	KM23C4000CG-10	KM23C4000CG-15
Description	MASK ROM, 512KX8, 120ns, CMOS, PDSO32	MASK ROM, 512KX8, 100ns, CMOS, PDIP32	MASK ROM, 512KX8, 120ns, CMOS, PDIP32	MASK ROM, 512KX8, 150ns, CMOS, PDIP32	MASK ROM, 512KX8, 100ns, CMOS, PDSO32	MASK ROM, 512KX8, 150ns, CMOS, PDSO32
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	SAMSUNG	SAMSUNG	SAMSUNG	SAMSUNG	SAMSUNG	SAMSUNG
package instruction	SOP, SOP32,.56	DIP, DIP32,.6	DIP, DIP32,.6	DIP, DIP32,.6	SOP, SOP32,.56	SOP, SOP32,.56
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow
Maximum access time	120 ns	100 ns	120 ns	150 ns	100 ns	150 ns
JESD-30 code	R-PDSO-G32	R-PDIP-T32	R-PDIP-T32	R-PDIP-T32	R-PDSO-G32	R-PDSO-G32
JESD-609 code	e0	e0	e0	e0	e0	e0
memory density	4194304 bi	4194304 bi	4194304 bi	4194304 bi	4194304 bi	4194304 bi
Memory IC Type	MASK ROM	MASK ROM	MASK ROM	MASK ROM	MASK ROM	MASK ROM
memory width	8	8	8	8	8	8
Humidity sensitivity level	3	3	3	3	3	3
Number of terminals	32	32	32	32	32	32
word count	524288 words	524288 words	524288 words	524288 words	524288 words	524288 words
character code	512000	512000	512000	512000	512000	512000
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	512KX8	512KX8	512KX8	512KX8	512KX8	512KX8
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP	DIP	DIP	SOP	SOP
Encapsulate equivalent code	SOP32,.56	DIP32,.6	DIP32,.6	DIP32,.6	SOP32,.56	SOP32,.56
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	IN-LINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260	260	260	260	260	260
power supply	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum standby current	0.00005 A	0.00005 A	0.00005 A	0.00005 A	0.00005 A	0.00005 A
Maximum slew rate	0.06 mA	0.06 mA	0.06 mA	0.06 mA	0.06 mA	0.06 mA
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	NO	NO	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	GULL WING	GULL WING
Terminal pitch	1.27 mm	2.54 mm	2.54 mm	2.54 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	40	40	40	40	40	40
