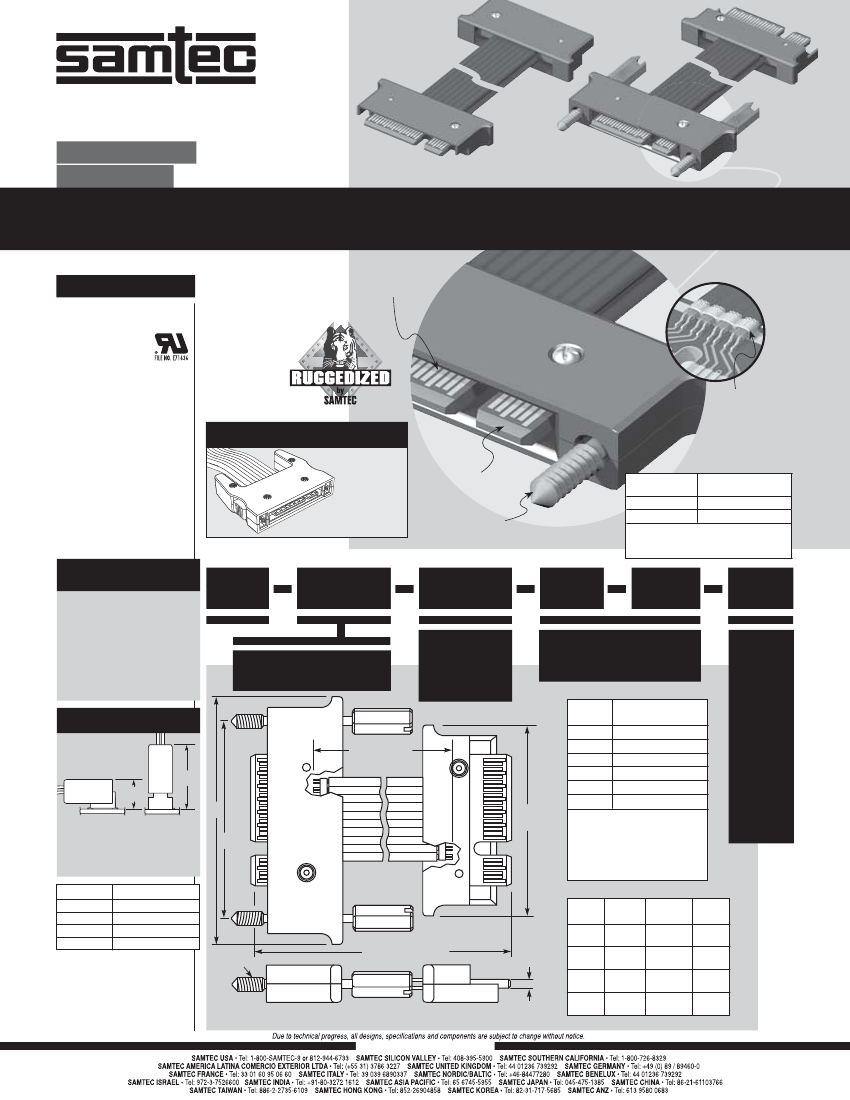

F-211 SUPPLEMENT
(0,80mm) .0315"
EEDP–016–06.00–RA1–RA1–4
EEDP SERIES
EEDP–016–08.00–DS1–RA2–1
HIGH SPEED EDGE CARD CABLE ASSEMBLY
SPECIFICATIONS
For complete specifications
see www.samtec.com?EEDP
Cable:
30 AWG
twinax micro ribbon
Signal Routing:
100Ω Differential
Cable Bending Radius:
(11,11mm) 7/16" min
Current Rating:
1 A max
Propagation Delay:
4.67 nsec/meter
Operating Temp Range:
-20°C to +90°C
Skew (pair-to-pair):
<10 ps/ft
Skew (within a pair):
<5 ps/ft
EMI Performance:
FCC Class A
Pinout Map:
See web address above
RoHS Compliant:
Yes
Mates with:
MEC8-02-RA, HSEC8
100Ω
Differential
Pair Routing
30 AWG
twinax ribbon
cable
APPLICATIONS
Latching
system
option
for rugged
applications.
Mates with
Vertical and
Right Angle
connectors
on board
Captive Panel Screw and
Latching Options
Cable
Length
19.68" (0,5m)
39.37" (1m)
Rated @ 7dB
Insertion Loss
7.25 GHz / 14.50 Gbps
3.42 GHz / 6.84 Gbps
Performance and complete test data
available at www.samtec.com?EEDP
or contact sig@samtec.com
APPLICATION
SPECIFIC
• Customized routings
• Board hardware for
mounting with right angle
captive screws (RAH-01)
• Other terminations
• Other lengths
Contact dr@samtec.com
EEDP
NO. OF
PAIRS
WIRE
LENGTH
END
NO. 1
END
NO. 2
WIRING
OPTION
–“XX.XX”
–008, –016,
–024, –032
= Wire Length
in Inches
(95,3mm) 03.75"
minimum
Specify
END OPTION
from chart
END
OPTION
ASSEMBLY
Vertical
Vertical with Screws
Right Angle
Right Angle with Screws
Vertical with Latches
Right Angle with Latches
–1
= Pin 1 to
Pin 1
–2
= Pin 1 to
Pin 2
–DVX
–DSX
-RAX
–RSX
–LVX
–RLX
APPLICATIONS
MEC8–RA
to
EEDP–RAX
(6,76)
.266
N
(17,99)
.708
Wire Length
(1,27) .050
–3
= Pin 1 to
Pin N-1
(–024 N/A)
N-1
–4
= Pin 1 to
Pin N
(–024 N/A)
B
HSEC8
to
EEDP–DVX
A
C
Processing conditions will
affect mated height.
02
01
Specify X=1 for standard orientation;
X=2 for flipped orientation
(XX1 to XX1 and XX2 to XX2
require -3 or -4 wiring)
(XX1 to XX2 and XX2 to XX1
require -1 or -2 wiring)
CABLE
EEDP–08
EEDP–16
EEDP–24
EEDP–32
CONNECTOR
HSEC8/MEC8–113
HSEC8/MEC8–125
HSEC8/MEC8–137
HSEC8/MEC8–149
NO. OF
PAIRS
–008
A
(24,51)
.965
(35,10)
1.382
(44,70)
1.760
(53,31)
2.099
B
(34,67)
1.365
(45,26)
1.782
(54,86)
2.160
(63,47)
2.499
C
(26,00)
1.024
(35,99)
1.417
(45,01)
1.772
(54,00)
2.126
Note:
Cable lengths longer than
40.00" (1 meter) are not
supported with S.I. test data.
Note:
This Series is non-standard,
non-returnable.
#4-40
Thread
OAL = Wire Length
+ (17,65) .695
(1,60)
.062
–016
–024
END NO. 1
(-DS1 STANDARD SHOWN)
END NO. 2
(-RA2 FLIPPED SHOWN)
–032
WWW.SAMTEC.COM
