REVISION P
No OF POSITIONS
-013 (8 PAIR)
-025 (16 PAIR)
-049 (32 PAIR)
(PER ROW)
ERDP-XXX-XX.XX-XXX-XXX-X-X
LENGTH
-XX.XX (INCHES)
(01.72[43.7] MIN)
(SEE NOTE 8)
(SEE NOTE 9)

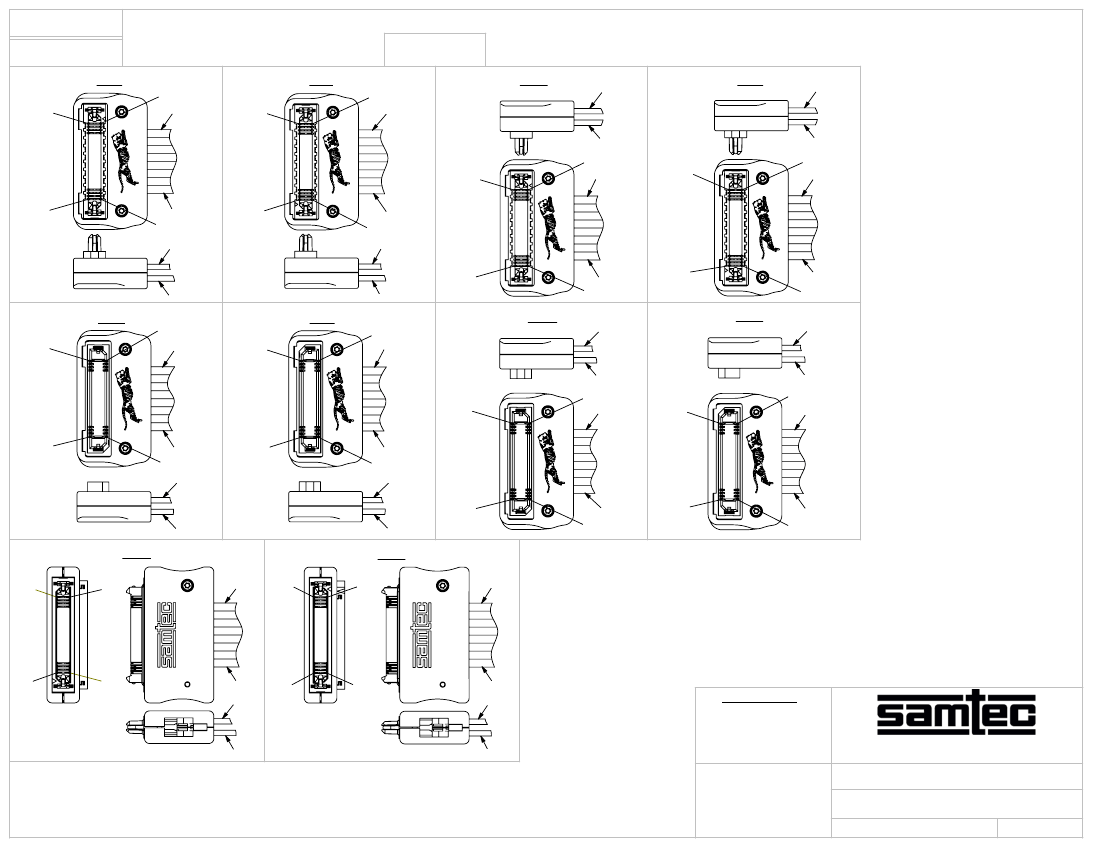

FIRST END
-TTR: TERMINAL, TOP, RIGHT
-TTL: TERMINAL, TOP, LEFT
-TBR: TERMINAL, BOTTOM, RIGHT
-TBL: TERMINAL, BOTTOM, LEFT
-STR: SOCKET, TOP, RIGHT
-STL: SOCKET, TOP, LEFT
-SBR: SOCKET, BOTTOM, RIGHT
-SBL: SOCKET, BOTTOM, LEFT
-TEU: TERMINAL, EDGEMOUNT, UP
-TED: TERMINAL, EDGEMOUNT, DOWN
END OPTION
**
*-L: 1ST END STD LATCH, 2ND END SQUEEZE LATCH
*-R: 1ST END SQUEEZE LATCH, 2ND END STD LATCH
-D: BOTH ENDS STD LATCH
-N: NO CAPS (BOTH ENDS HAVE STD LATCH)
*-B: BOTH ENDS SQUEEZE LATCH
*-F: 1ST END SCREW OPTION, 2ND END FRICTION LATCH
*-S: 1ST END FRICTION LATCH, 2ND END SCREW OPTION
*-C: BOTH ENDS SCREW OPTION
*-G: 1ST END SCREW OPTION, 2ND END SQUEEZE LATCH
* -T: 1ST END SQUEEZE LATCH, 2ND END SCREW OPTION

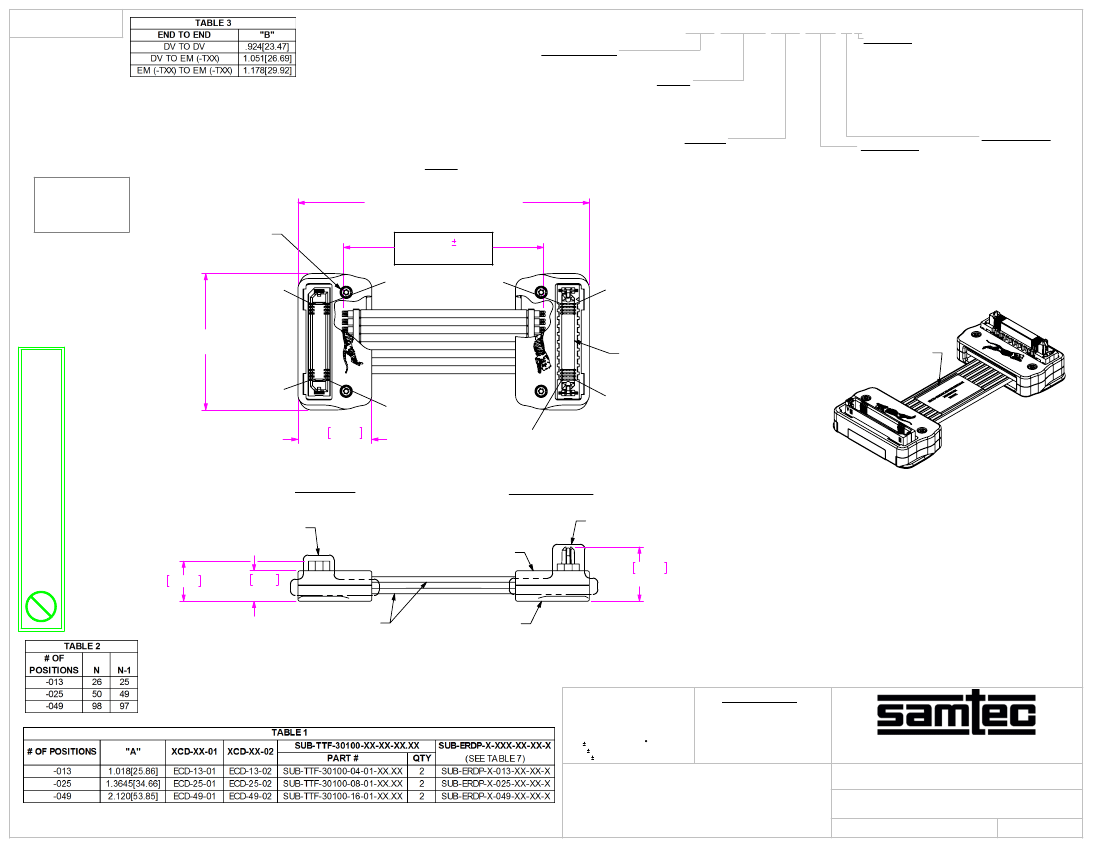

(ERDP-025-XX.XX-STL-TTR-1-D SHOWN)
DO NOT
SCALE FROM
THIS PRINT
XX.XX + "B" REF (SEE TABLE 3)
(OVERALL LENGTH)
FIG 1
STS-04
(SEE NOTE 7)
XX.XX 1%
(CABLE LENGTH)
01
02
02
01
* OPTION ONLY AVAILABLE WITH -TEX OPTIONS
(SEE NOTE 10)
**LATCH OPTION REQUIRED, PART NUMBER
MUST BE COMPLETE TO BE VALID
***NOT RELEASED FOR PRODUCTION
HDRL-11
(SEE NOTE 5)
(TOP CABLE REMOVED FOR CLARITY)
WIRING OPTION
-1: PIN 1 TO PIN 1

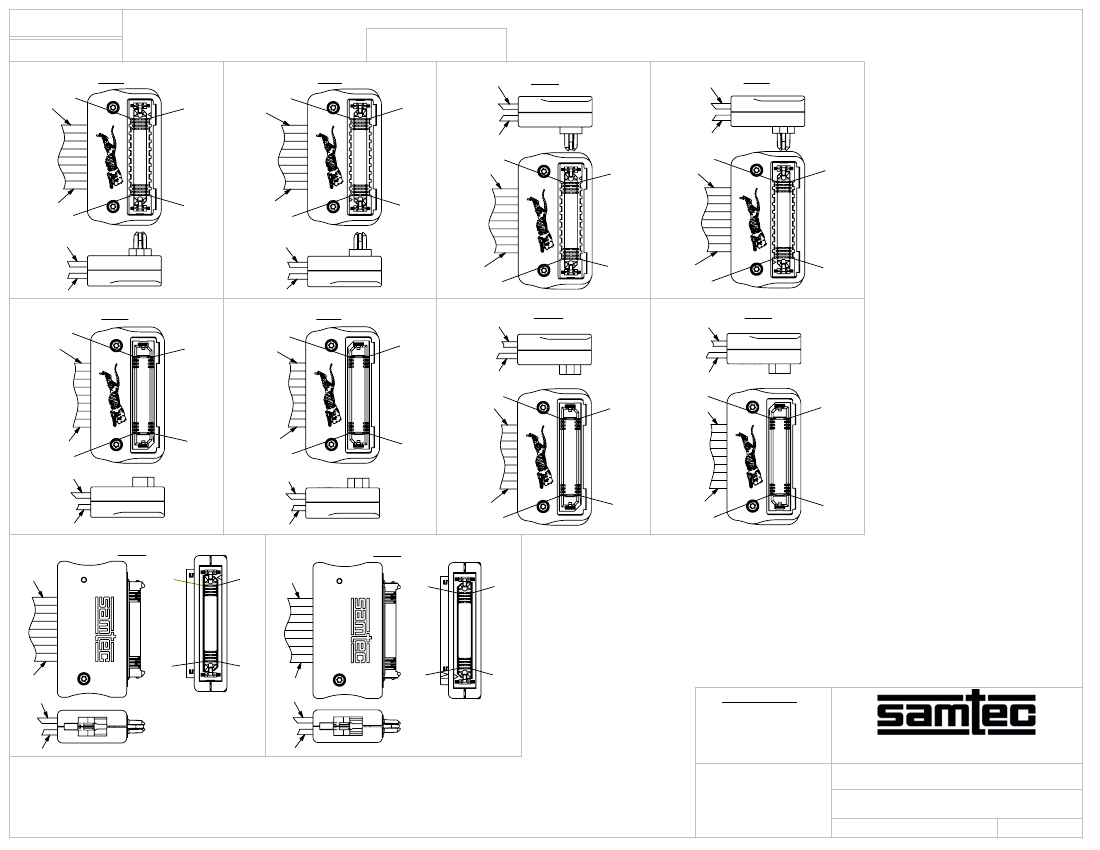

SECOND END
-2: PIN 1 TO PIN 2
-TTR: TERMINAL, TOP, RIGHT
-3: PIN 1 TO PIN N-1
-TTL: TERMINAL, TOP, LEFT
-TBR: TERMINAL, BOTTOM, RIGHT -4: PIN 1 TO PIN N

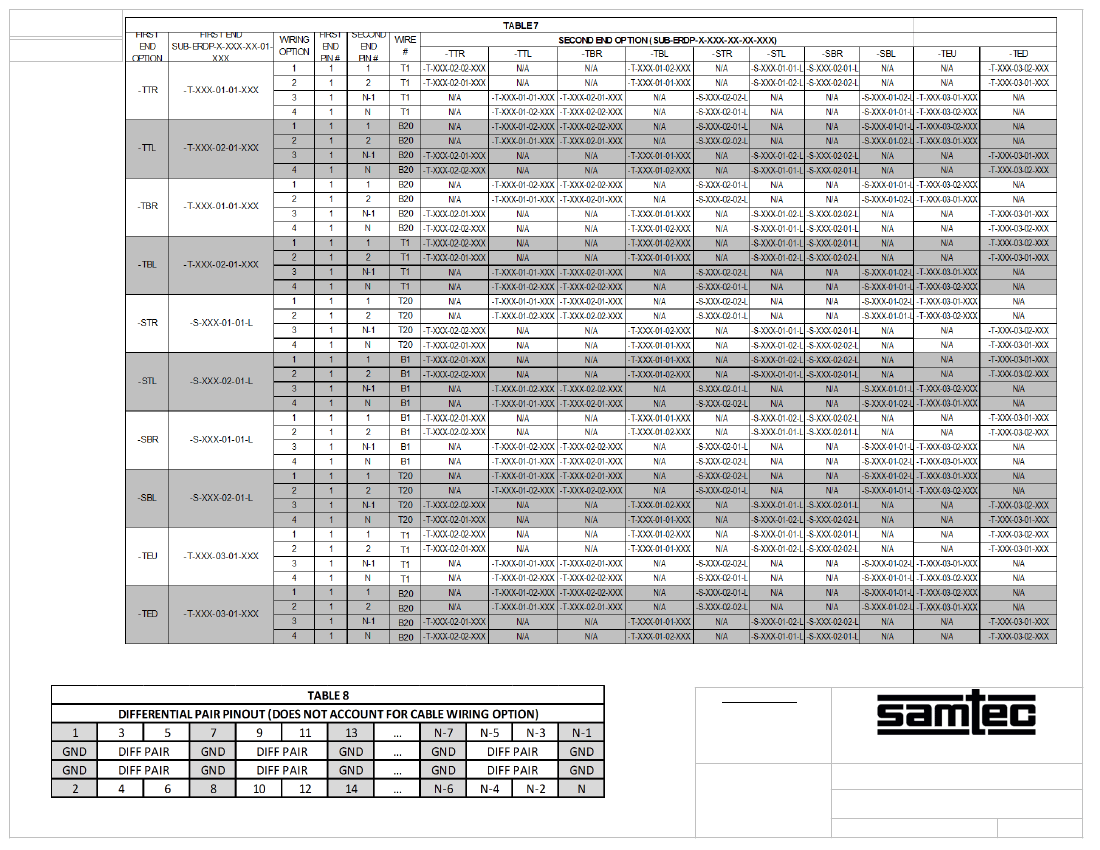

(SEE TABLE 7, SHEET 5)
-TBL: TERMINAL, BOTTOM, LEFT
-STR: SOCKET, TOP, RIGHT
-STL: SOCKET, TOP, LEFT
-SBR: SOCKET, BOTTOM, RIGHT
-SBL: SOCKET, BOTTOM, LEFT
-TEU: TERMINAL, EDGEMOUNT, UP
-TED: TERMINAL, EDGEMOUNT, DOWN
"A"
REF
Pb
THIS PRODUCT MANUFACTURED
WITH LEAD-FREE PROCESSING
SOME CENTER FEATURES ON
CONNECTORS REMOVED
FOR CLARITY
N-1
(SEE TABLE 2)
N
(SEE TABLE 2)
.738 18.75
REF
N-1
(SEE TABLE 2)
N
(SEE TABLE 2)
FIRST END
SUB-ERDP-X-XXX-XX-XX-X
SECOND END
SUB-ERDP-X-XXX-XX-XX-X
NOTES:
1.
REPRESENTS A CRITICAL DIMENSION.
2. PARTS TO BE PROCESSED PER SAMTEC ACCEPTABILITY REQUIREMENTS:
HDR-PI-01 “CABLE ASSEMBLY WORKMANSHIP STANDARDS”.
3. ALL ASSEMBLIES TO BE 100% ELECTRICALLY TESTED.
4. ALL ASSEMBLIES TO BE 100% HI-POT TESTED AT 300V.
5. LABEL TO BE CENTERED ON LOWER CABLE AS SHOWN. LABEL TO CONTAIN:
LINE 1 - PART NUMBER “ERDP-XXX-XX.XX-XXX-XXX-X-X”
LINE 2 - SHOP ORDER NUMBER “XXXXXX”
LINE 3 - DATE CODE “XXXXX”
6. FOR PACKAGING REQUIREMENTS REFERENCE PACKAGING STANDARDS.
7. TIGHTEN STS-04 FASTENERS TO 1.4-1.7 IN-LBS (4 PLCS).
8. SUB-TCF LENGTH IS EQUAL TO ERCD LENGTH.
9. CABLE LENGTHS LONGER THAN 40.00 INCHES ARE NOT SUPPORTED BY S.I. TEST DATA.
10. -B, -C, -G, & -T OPTION ONLY AVAILABLE WITH -TEX ON BOTH ENDS. -L &- S OPTION
ONLY AVAILABLE WITH -TEX ON SECOND END. -R & -F OPTION ONLY AVAILABLE WITH
-TEX ON FIRST END.
ECD-XX-01
.401 10.19 REF .304 7.72
REF
SUB-TTF-30100-XX-01-XX.XX
ECD-XX-02
.542 13.76
REF
TOLERANCES DO NOT APPLY
TO REFERENCE DIMENSIONS.
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
ANGLES
2
.XX: .01[.3]
.XXX: .005[.13]
.XXXX: .0020[.051]
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 1:1
0.8MM EDGE RATE TWIN-AX CABLE ASSEMBLY
SEE TABLE 8 (SHEET 5)
F:\DWG\MISC\MKTG\ERDP-XXX-XX.XX-XXX-XXX-X-X-MKT.SLDDRW
BY:
J. BORGELT 1/21/2008
ERDP-XXX-XX.XX-XXX-XXX-X-X
SHEET
1
OF
5
ERDP-XXX-XX.XX-XXX-XXX-X-X
REVISION P
N-1
(SEE TABLE 2)
N
(SEE TABLE 2)
"C"
REF
01
02

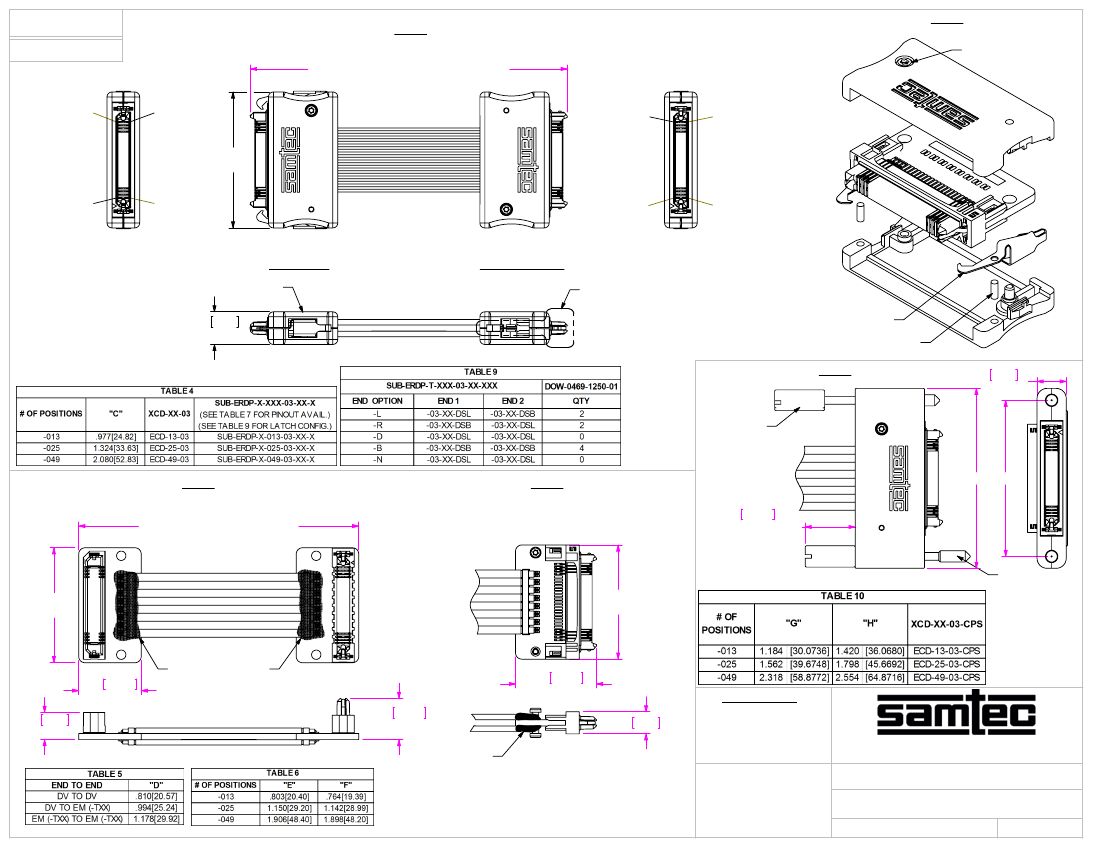

(ERDP-025-XX.XX-TED-TEU-2-R SHOWN)
XX.XX + "B" REF (SEE TABLE 3, SHEET 1)
(OVERALL LENGTH)
N-1
(SEE TABLE 2)
N
(SEE TABLE 2)
FIG 2
(DOWEL POSITION SHOWN)
STS-04 (SEE NOTE 7)
FIG 5
01
02
FIRST END
ECD-XX-03
SECOND END
SUB-ERDP-X-XXX-03-XX
LTC-16-01
DOW-0469-1250-01
(ERDP-025-XX.XX-XXX-TEU-1-S SHOWN)
.326 8.29
REF
FIG 6
.292 7.42
REF
CPS-4-40-11-X
(ERDP-025-XX.XX-STL-TTR-1-N SHOWN)
XX.XX + "D" REF (SEE TABLE 5)
(OVERALL LENGTH)
FIG 3
(ERDP-025-XX.XX-XXX-TEU-1-N SHOWN)
.500 12.70
REF (TYP)
(FULLY TIGHTENED)
4-40 THREAD
CLASS 2A
FIG 4
"H"
"G"
"E"
REF
"F"
REF
.625 15.88
REF
.272 6.91
REF
ADD UV EPOXY
BOTH SIDES OF PCB
.413 10.48
REF
ADD UV EPOXY
.809 20.55
REF
.220 5.60 REF
