VAWQ6-Q24-S12H-SMT: DescriptionVAWQ6-Q24-S12H-SMT; CategoryPower/power management The power supply circuit; File Size297KB，3 Pages; ManufacturerCUI; Websitehttp://www.cui.com; Environmental Compliance

Download Datasheet Parametric Compare View All

VAWQ6-Q24-S12H-SMT Overview

VAWQ6-Q24-S12H-SMT

VAWQ6-Q24-S12H-SMT Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	PACKAGE-24/15
Reach Compliance Code	compli
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
control mode	VOLTAGE-MODE
Efficiency (main output)	80%
Maximum input voltage	36 V
Minimum input voltage	9 V
Nominal input voltage	24 V
JESD-30 code	R-XDMA-X15
Maximum grid adjustment rate	0.5%
Maximum load regulation	0.5%
Number of functions	1
Output times	1
Number of terminals	15
Maximum operating temperature	71 °C
Minimum operating temperature	-25 °C
Maximum output current	0.47 A
Maximum output voltage	12.24 V
Minimum output voltage	11.76 V
Nominal output voltage	12 V
Package body material	PLASTIC/EPOXY
encapsulated code	DMA
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Protect	OUTPUT OVER CURRENT
Ripple voltage (main output)	0.03535 Vrms
surface mount	YES
technology	HYBRID
Temperature level	OTHER
Terminal form	UNSPECIFIED
Terminal location	DUAL
Maximum total power output	5.64 W
Fine-tuning/adjustable output	NO
Base Number Matches	1

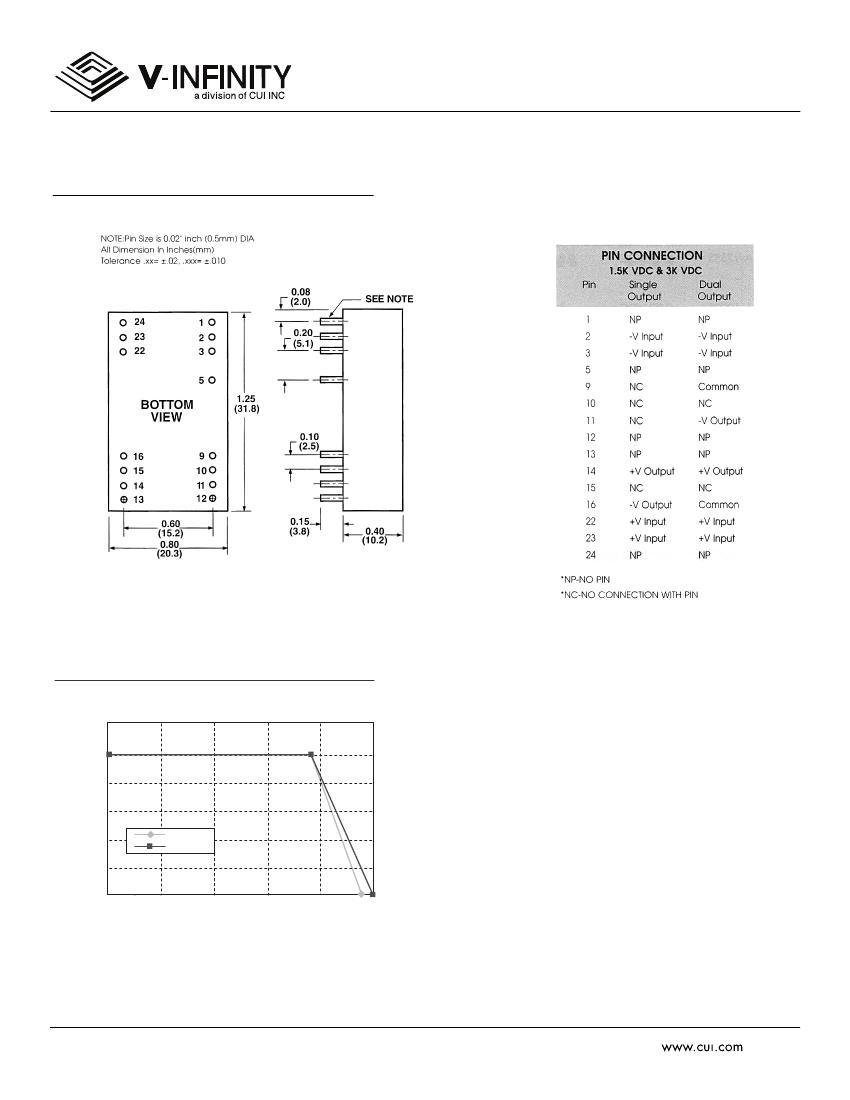

Preview

Download Datasheet

View All

rev.

page

date

1 of 3

10/2008

PART NUMBER:

VAWQ6 series

DESCRIPTION:

dc-dc converter

features

·5-6W isolated output

·efficiency to 80%

·24-Pin DIP package

·4:1 input range

·regulated outputs

·continuous short circuit protection

·Pi input filter

model

number

VAWQ6-Q24-S3R3

VAWQ6-Q24-S5

VAWQ6-Q24-S12

VAWQ6-Q24-S15

VAWQ6-Q24-D5

VAWQ6-Q24-D12

VAWQ6-Q24-D15

VAWQ6-Q48-S3R3

VAWQ6-Q48-S5

VAWQ6-Q48-S12

VAWQ6-Q48-S15

VAWQ6-Q48-D5

VAWQ6-Q48-D12

VAWQ6-Q48-D15

NOTES:

input

voltage

9-36VDC

18-72VDC

output

voltage

3.3VDC

5VDC

12VDC

15VDC

±5VDC

±12VDC

±15VDC

3.3VDC

5VDC

12VDC

15VDC

±5VDC

±12VDC

±15VDC

output

current

1000mA

470mA

400mA

±500mA

±230mA

±190mA

1000mA

470mA

400mA

±500mA

±230mA

±190mA

input current

no load

full load

15mA

191mA

15mA

267mA

15mA

294mA

15mA

25mA

7.5mA

12mA

313mA

288mA

297mA

267mA

100mA

134mA

149mA

157mA

146mA

149mA

135mA

efficiency

72%

78%

80%

78%

70%

78%

79%

80%

79%

80%

77%

1. suffix “HM” for 1.5K Vdc isolation

2. suffix “H” for 3K Vdc isolation

3. suffix “-SMT” for SMT case style

20050

SW

112

th

Ave. Tualatin, Oregon

97062

phone

503.612.2300

fax

503.612.2382
