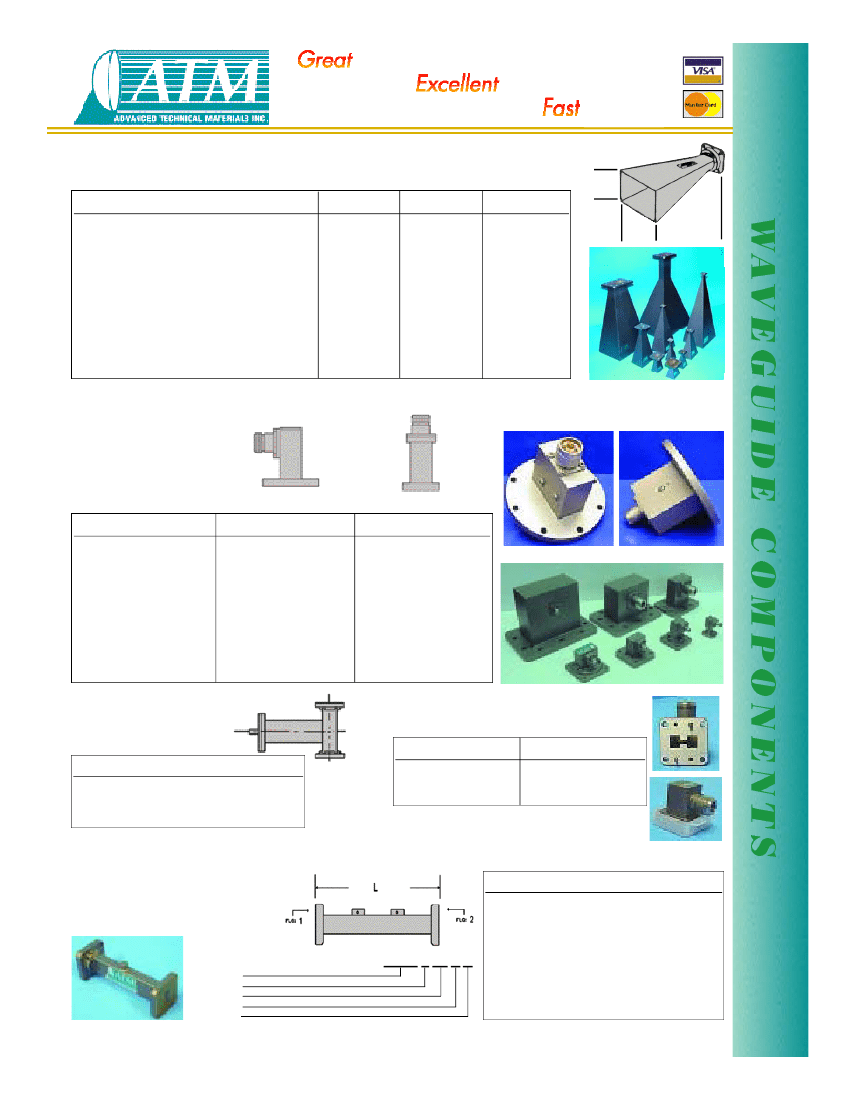

187-253-6: DescriptionSTANDARD GAIN HORN; File Size80KB，1 Pages; ManufacturerATM [Advanced Technical Materials]

Download Datasheet View All

187-253-6 Overview

STANDARD GAIN HORN

Preview

Download Datasheet

View All

Service

Price

Delivery

Lightweight

STANDARD GAIN

Corrosion Protection

Low VSWR

Other gains, brackets, coax (SMA, N) connectors available

WG Size

(WR)

WR 650

WR 430

WR 340

WR 284

WR 229

WR 187

WR 159

WR 137

WR 112

WR 102

WR 90

WR 75

WR 62

WR 51

WR 42

WR 34

WR 28

Freq

(GHz)

1.12 - 1.70

1.70 - 2.60

2.20 - 3.30

2.60 - 3.95

3.30 - 4.90

3.95 - 5.85

4.09 - 7.05

5.85 - 8.20

7.05 - 10.0

7.00 - 11.0

8.20 - 12.4

10.0 - 15.0

12.4 - 18.0

15.0 - 22.0

18.0 - 26.5

22.0 - 33.0

26.5 - 40.0

Model No. Model No. Model No.

(10dB Gain) (15dB Gain) (20dB Gain)

650-440-2

430-440-2

340-440-2

284-440-6

229-440-2

187-440-6

159-440-2

137-440-2

112-440-6

102-440-6

90-440-6

75-440-6

62-440-6

51-440-6

42-440-6

34-440-6

28-440-6

650-441-2

430-441-2

340-441-2

284-441-6

229-441-2

187-441-6

159-441-2

137-441-2

112-441-6

102-441-6

90-441-6

75-441-6

62-441-6

51-441-6

42-441-6

34-441-6

28-441-6

N/A

430-442-2

340-442-2

284-442-6

229-442-2

187-442-6

159-442-2

137-442-2

112-442-6

102-442-6

90-442-6

75-442-6

62-442-6

51-442-6

42-442-6

34-442-6

28-442-6

HORN

15dB Gain

21.77

14.50

15.63

15.34

10.40

9.40

8.00

6.51

6.65

6.00

5.46

4.69

3.46

2.84

2.37

2.12

1.87

16.24

10.75

6.69

5.83

4.41

3.57

3.15

2.50

2.15

2.23

1.95

1.33

1.72

1.00

0.85

0.70

0.55

21.93

14.50

9.45

7.96

6.00

4.88

4.33

3.42

2.93

3.04

2.66

2.25

2.19

1.36

1.14

0.95

0.76

20dB Gain

N/A N/A

40.5 16.0

35.00 11.81

29.75 10.67

23.50 8.60

13.136 6.30

11.73 7.64

12.19 4.57

10.78 3.64

11.13 3.94

10.06 3.62

8.00 2.98

5.75 2.11

4.88 1.93

4.00 1.56

3.56 1.29

3.12 1.01

N/A

22.0

18.79

15.57

12.25

8.51

9.80

6.26

4.97

5.57

4.87

3.88

2.88

2.51

2.13

1.76

1.38

12.14

8.00

5.71

4.33

3.62

2.89

2.68

2.02

1.63

1.58

1.26

0.93

0.77

0.60

0.53

0.42

10dB Gain

15.98

10.5

9.0

7.50

6.45

5.50

4.28

3.15

2.55

3.00

2.01

1.94

1.61

1.43

1.25

1.13

1.00

6.07

4.00

3.43

3.46

2.36

2.12

1.58

1.48

1.18

1.14

1.15

0.92

0.68

0.56

0.44

0.39

0.315

Full Waveguide Frequency Range

VSWR over Frequency Range 1.25 max.

Rectangular Waveguide

* K connectors & Square Flange

Flange Code: 2=CPRF; 6=Cover

Example:

137-252-1

Other Flange Types Available

WAVEGUIDE TO COAX ADAPTERS

Right Angle

Waveguide

Size

WR 650

WR 430

WR 284

WR 229

WR 187

WR 159

WR 137

WR 112

WR 90

WR 75

WR 62

WR 51

WR 42

WR 34

WR 28

Freq

(GHz)

1.12 - 1.70

1.70 - 2.60

2.60 - 3.95

3.30 - 4.90

3.95 - 5.85

4.90 - 7.05

5.80 - 8.20

7.05 - 10.0

8.20 - 12.4

10.0 - 15.0

12.4 - 18.0

15.0 - 22.0

18.0 - 26.5

22.0 - 33.0

26.5 - 40.0

Model No.

(SMA)

650-251-2

430-251-2

284-251-6

229-251-2

187-251-6

159-251-2

137-251-2

112-251-6

90-251-6

75-251-6

62-251-6

51-251-6

42.251-6

34-251-6*

28-25K-6*

Model No.

(Type N)

650-253-2

430-253-2

284-253-6

229-253-2

187-253-6

159-253-2

137-253-2

112-253-6

90-253-6

75-253-6

62-253-6

N/A

End Launch

Model No.

(SMA)

N/A

284-201-2

229-201-2

187-201-2

159-201-2

137-201-2

112-201-2

90-201-2

75-201-2

62-201-2

N/A

Model No.

(Type N)

N/A

284-203-2

229-203-2

187-203-2

159-203-2

137-203-2

112-203-2

90-203-2

75-203-2

62-203-2

N/A

WAVEGUIDE PHASE SHIFTER

Mechanical phase adjustment

Driver shaft and lock

Motor drive available

WG Size

159

137

112

Freq

Min. Phase

(GHz)

Adjust

5.90 - 6.40

360

5.90 - 6.40

360

7.90 - 6.40

360

14.0 - 14.5

360

14.0 - 14.5

360

VSWR

Max

1.15

Model

No.

159-410-2-2

137-410-2-2

112-410-6-6

75-410-2-2

62-410-6-6

DOUBLE RIDGE

WAVEGUIDE/COAX ADAPTERS

Waveguide

Size

WRD 750

WRD 650

WRD 580

WRD 475

Freq

(GHz)

7.50 - 18.0

6.50 - 18.0

5.80 - 16.0

4.75 - 11.0

Model No.

(SMA)

750-251-C3

650-251-C3

580-251-C3

475-251-C3

Model No.

(Type N)

750-253-C3

650-253-C3

580-253-C3

475-253-C3

Flange Code: 2=CPRG; 6=Cover; 7=Choke

Flange Code: C3=Cover, G3 = Grooved (WRD)

Example:

580-253-G1

Other Flange Types Available

WAVEGUIDE FIXED ATTENUATORS

ATM offers a series of rectangular waveguide

attenuators covering the waveguide sizes

WR-28 through WR-650. The assembly

construction includes a precision element for optimum

electrical performance.

Description:

Basic

Model No.

WG Size

Freq

(GHz)

Length

Inches

Power

Watt

Ordering Information:

Basic Model #:

Material:

Attenuation:

Flange 1:

Flange 2:

Typical Part #:

137-600 B -10 -1 -1

A=Alum, B=Brass

3dB, 6dB, 10dB, 20dB, 30dB, 40dB

1=CPRG, 2=CPRF 6=Cover, 7=Choke, 8=Special

See above

284-600

229-600

187-600

159-600

137-600

112-600

90-600

75-600

62-600

51-600

42-600

34-600

28-600

WR284

WR229

WR187

WR159

WR137

WR112

WR90

WR75

WR62

WR51

WR42

WR34

WR28

2.60 - 3.95

3.30 - 4.90

3.95 - 5.85

4.90 - 7.05

5.95 - 8.20

7.05 - 10.0

8.20 - 12.4

10.0 - 15.0

12.4 - 18.0

15.0 - 22.0

18.0 - 26.5

22.0 - 33.0

26.5 - 40.0

8.5

3.5

49 Rider Ave, Patchogue, NY 11772 Phone:

631-289-0363

Fax:

631-289-0358

E-mail:

atmemail@juno.com

Web:

www.atmmicrowave.com
