PESC-02-12-04-01-L-VT-LC

Description
Board Connector, Female, Straight, Solder Terminal, Locking, Black Insulator
CategoryThe connector    The connector
File Size713KB,1 Pages
ManufacturerSAMTEC
Websitehttp://www.samtec.com/
Download Datasheet Parametric View All

PESC-02-12-04-01-L-VT-LC Overview

Board Connector, Female, Straight, Solder Terminal, Locking, Black Insulator

PESC-02-12-04-01-L-VT-LC Parametric

Parameter NameAttribute value
MakerSAMTEC
Reach Compliance Codecompli
body width0.472 inch
subject depth0.67 inch
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU ON NI
Contact completed and terminatedTIN OVER NICKEL
Contact point genderFEMALE
Contact styleHYBRID
Insulator colorBLACK
insulator materialLIQUID CRYSTAL POLYMER (LCP)
Manufacturer's serial numberPESC
Mixed contactsYES
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Plating thickness10u inch
Rated current (signal)5.7 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.097 inch
Termination typeSOLDER
F-212
TM
STRIP
(2,54mm) .100"

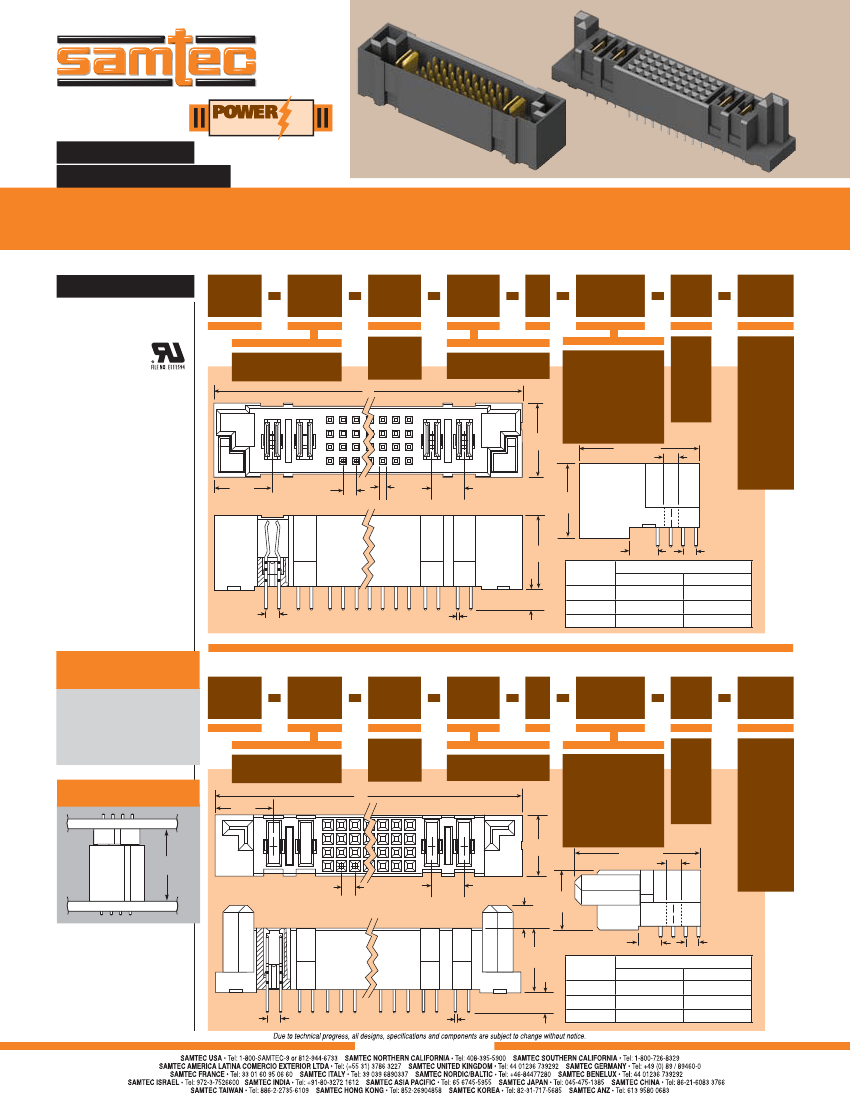

PETC, PESC SERIES
35
PETC–01–40–01–01–L–VT
PESC–02–40–02–01–L–VT
35A SIGNAL/POWER COMBO SYSTEM
SPECIFICATIONS
For complete specifications
see www.samtec.com?PETC
or www.samtec.com?PESC
Insulator Material:
Black LCP
Terminal Material:
Copper Alloy
Plating:
Sn or Au over 50µ"
(1,27µm) Ni
Current Rating
(Power Pin):
See PET/PES Series
Current Rating
(Signal Pin):
5.0A @ 80°C with
8 contacts powered
Insertion Depth
(Power Pin):
(5,00mm) .197" to
(8,46mm) .333"
Wiping Distance
(Power Pin):
(0,38mm) .015"
Operating Temp Range:
-55°C to +125°C for Au
-55°C to +105°C for Sn
Voltage Rating:
Signal: 450 VAC/636 VDC
Power: 650 VAC/919 VDC
RoHS Compliant:
Yes
Lead–Free Solderable:
Yes
PETC
POWER
PINS
SIGNAL
PINS
POWER
PINS
01
PLATING
OPTION
TAIL
OTHER
OPTION
–01, –02, –04
A
04
–12
–40
–01, –02, –04
–L
= 10µ" (0,25µm)
Gold on contact area,
Matte Tin on tail
–VT
=Vertical
–SD
= Screw
Down
(Right
Angle only)
–RA
= Right
Angle
–T
(14,50)
.571
= Matte Tin
(23,50) .925
(3,81) .150 DIA
–LC
= Locking
Clip
(Manual
placement
required)
(11,43)
.450
01
(2,54)
.100
(0,64)
.025
SQ
(6,35)
.250
TYP
(14,50)
.571
(14,62)
.575
–RA–SD
(5,77)
.227
(2,54)
.100
A
POWER
PINS/END
12 SIGNAL PINS 40 SIGNAL PINS
(2,54)
.100
(2,35)
.093
(0,50) .020
–01
–02
–04
(39,37) 1.550
(52,07) 2.050
(77,47) 3.050
(57,15) 2.250
(69,85) 2.750
(95,25) 3.750
APPLICATION
SPECIFIC OPTION
• Other signal pin and
power pin counts
• Asymmetric power pin
placement
Call Samtec.
PESC
POWER
PINS
SIGNAL
PINS
POWER
PINS
01
PLATING
OPTION
TAIL
OTHER
OPTION
–01, –02, –04
MATED HEIGHT
A
(11,43)
.450
–12
–40
04
–01, –02, –04
–L
= 10µ" (0,25µm)
Gold on contact area,
Matte Tin on tail
–VT
=Vertical
–SD
= Screw
Down
(Right
Angle only)
–RA
= Right
Angle
–T
(12,00)
.472
= Matte Tin
(25,20) .992
(3,81) .150 DIA
–LC
= Locking
Clip
(Manual
placement
required)
(19mm)
.748"
(2,54)
.100
01
(6,35)
.250
TYP
(4,40)
.173
(12,00)
.472
Note:
The number of power
pins on each end must equal.
Note:
Other Gold plating
options available.
Contact Samtec.
Note:
Some sizes, styles
and options are non-standard,
non-returnable.
–RA–SD
(12,64)
.497
(4,29)
.169
(2,54)
.100
A
POWER
PINS/END
12 SIGNAL PINS 40 SIGNAL PINS
(2,35)
.093
(2,54) .100
(0,50) .020
–01
–02
–04
(39,37) 1.550
(52,07) 2.050
(77,47) 3.050
(57,15) 2.250
(69,85) 2.750
(95,25) 3.750
WWW.SAMTEC.COM
