REVISION V
DO NOT
SCALE FROM
THIS PRINT
DESIGNED & DIMENSIONED
IN MILLIMETERS[INCHES]
S2SDX-XX-XXX-XX-XX.XX-XX-XXX
TEFLON CABLE OPTION
-T: TEFLON (AVAILABLE WITH
24, 28 & 30AWG ONLY)
(LEAVE BLANK FOR STANDARD
PVC INSULATION)
No OF POSITONS
-02, -04, -05, -07, -10, -15, -20,
-25, & -30 (PER ROW)
AVAILABLE AS STANDARD
-05 THRU -50 AVAILABLE AS ASO
WIRE GAUGE (AWG)
-24, -26, -28, & 30
COLOR CODE:
(LEAVE BLANK FOR ALL BLACK WIRE)
-C: COLOR CODED WIRE, SEE TABLE 3,
SHEET 3 FOR COLOR SEQUENCE
(AVAILABLE WITH 24 AWG ONLY &
NOT AVAILABLE WITH TEFLON)
PLATING SPECIFICATION
-L: LIGHT SELECTIVE
-S: SELECTIVE
4.39 .173 REF
5.29 .208 REF
-NXX OPTION (END 2)
(ONLY AVAILABLE WITH -D, -DL, -DR, -DS)
-NUS: NOTCH UP, STRAIGHT
(PIN 1 TO N-1) (SEE FIG 2)
-NDS: NOTCH DOWN, STRAIGHT
(PIN 1 TO 2) (SEE FIG 4)
-NUX: NOTCH UP, CROSSED
(PIN 1 TO N) (SEE FIG 3)
-NDX: NOTCH DOWN, CROSSED
(PIN 1 TO 1) (SEE FIG 5)
END OPTION
-S: SINGLE ENDED (SEE FIG 1)
-D: DOUBLE ENDED (SEE FIG'S 2, 3, 4, 5, 6, & 7)
-SR: SINGLE ENDED WITH RETENTION LATCH
(SEE FIG 6)
-DR: DOUBLE ENDED WITH RETENTION LATCH
(SEE FIG 7)
-SS: DUAL SCREW DOWN, SINGLE ENDED CABLE
(SEE FIG 8 , SHT 3) (ONLY AVAILABLE UP TO
30 POSITIONS) (USES ISD2-XX-D-DS,
CPS-RR-M2-01-N, AND ACCRT-01)
-DS: DUAL SCREW DOWN, DOUBLE ENDED CABLE
(SEE FIG 9, SHT 3) (ONLY AVAILABLE UP TO
30 POSITIONS) (USES ISD2-XX-D-DS,
CPS-RR-M2-01-N, AND ACCRT-01)
ASSEMBLED LENGTH
SPECIFY IN INCHES
SINGLE ENDED: 02.75 INCH MINIMUM
DOUBLE ENDED: 02.75 INCH MINIMUM
** = NOT RELEASED FOR PRODUCTION
N (SEE TABLE 1)
2.00 .079 REF
"A"REF
02
7.52 .296
REF
01
N-1 (SEE TABLE 1)
2.00 .079 REF
3.32 .131 REF
"B" REF
"C" REF
"A"
4.42 .174
REF
11.38 .448
REF
ISD2-XX-D
1.60 .063 REF
C
ASSEMBLED LENGTH
(SEE NOTE 8)
SFSD: DWC-XX-XX-300
SFSDT: DWCT-XX-XX-XX
"A"
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.

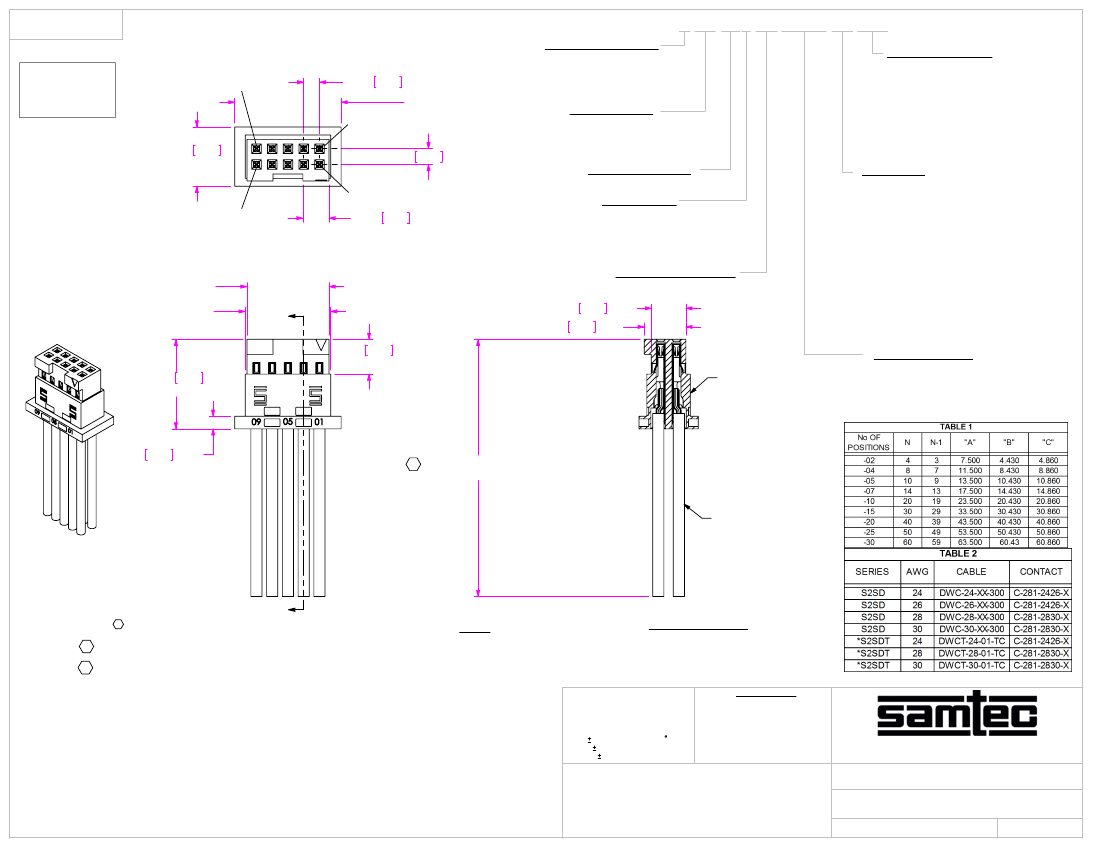

FIG 1
2. MINIMUM PULLOUT FORCE: 11.1N [2.5LBS].
S2SDX-05-24-X-XX.XX-S SHOWN
C
3. CONTACTS MUST BE INSERTED UNTIL RETENTION
FEATURES LOCK INTO PLACE.
C
4. ALL FINISHED GOODS ARE TO BE ELECTRICALLY
TESTED INCLUDING HI-POT TEST AT 1000 VOLTS DC.
AFTER FINAL ELECTRICAL TEST, LABEL EACH ASSEMBLY WITH (1) ET STAMP
ON THE BODY.
5. TINNED COPPER WIRE IS RoHS COMPLIANT.
6. PARTS TO BE LAYER PACKAGED.
7. END OF DISCRETE WIRE MUST FALL WITHIN THIS RANGE AFTER CRIMP.
8. FOR LENGTHS OF 12.00 INCHES AND LESS, TOLERANCE TO BE ± 3.18[.125],
FOR LENGTHS GREATER THAN 12.00 INCHES, TOLERANCE TO BE ± 2%
9. REFER TO CRIMP SPECIFICATIONS PRINT FOR CRIMP AND STRIP DIMENSIONS,
TOLERANCES, TOOLING AND ITS REQUIREMENTS.
10. NOTE DELETED
11. -TC TEFLON IS TO BE USED EXCLUSIVE WITH DOUBLE ENDED ASSEMBLIES,
ALL SINGLE ENDED ASSEMBLIES USE SILVER PLATED DWCT-XX-01.
12. CUT LENGTH IS ASSEMBLY LENGTH MINUS OVERALL LENGTH SUBTRACTOR.
13. DUAL POLARIZATION FEATURE NOT AVAILABLE ON BODIES LESS THAN 5 POSITIONS.
SECTION "A"-"A"
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN MILLIMETERS.
TOLERANCES ARE:
DECIMALS
X.X: 0.3 [.01]
2
X.XX: 0.13 [.005]
X.XXX: 0.051 [.0020]
ANGLES
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
*
PROPRIETARY NOTE
*
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
SHEET SCALE: 2:1
MATERIAL:
DO NOT SCALE DRAWING
INSULATOR: LCP, COLOR: BLACK
CONTACT: BeCU
CABLE INSULATION
S2SD: PVC, COLOR: (SEE 'COLOR CODE')
S2SDT: TEFLON, COLOR: BLUE
CABLE WIRE
S2SD: TINNED COPPER
S2SDT: SILVERED COPPER or TINNED COPPER (SEE DWCT PRINT FOR OPTIONS)
F:\DWG\MISC\MKTG\S2SDX-XX-XXX-XX-XX.XX-XX-XXX-MKT.SLDDRW
2.00mm SOCKET DISCRETE CABLE ASSEMBLY
DWG. NO.
DESCRIPTION:
S2SDX-XX-XXX-XX-XX.XX-XX-XXX
BY:
J. BORGELT 2/20/09
SHEET
1
OF
4
REVISION V
02
01
NOTCH
UP
N
N-1
C
ASSEMBLED LENGTH
(SEE NOTE 8)
N-1
NOTCH
UP
01
02
N
2.64 .104 REF
(No OF POS X 2.00[.079])
+ 3.50[.138] REF
(S2SDX-05-28-X-XX.XX-D-NUS SHOWN)
(SAME AS FIG 1, EXCEPT AS SHOWN)
(PIN 01 TO N-1)

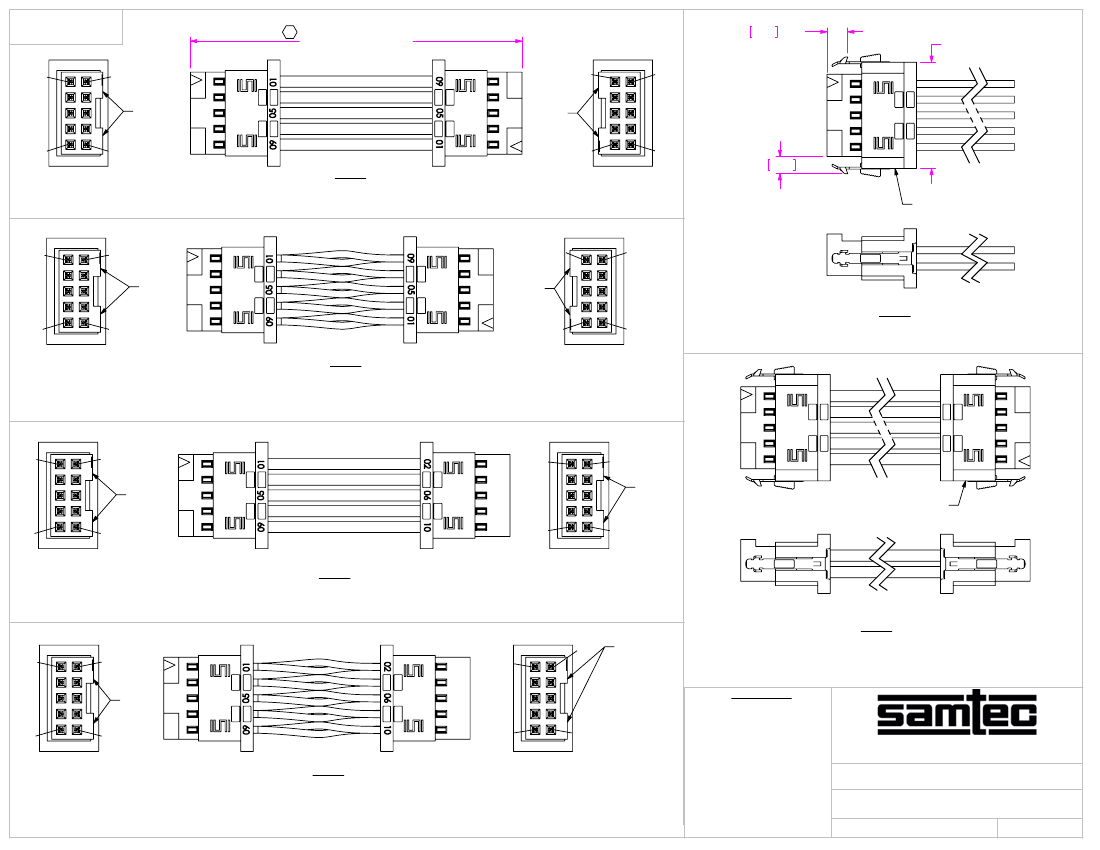

FIG 2
2.19 .086 REF
ISD2-XX-D-M
02
01
NOTCH
UP
NOTCH
UP
N-1
N
N
N-1
01
02
(S2SDX-05-28-X-XX.XX-SR SHOWN)
(SAME AS FIG 1, EXCEPT AS SHOWN)
FIG 6
(S2SDX-05-28-X-XX.XX-D-NUX SHOWN)
(SAME AS FIG 1, EXCEPT AS SHOWN)
(PIN 01 TO N)
FIG 3
02
01
NOTCH
UP
02
01
NOTCH
DOWN
ISD2-XX-D-M
N
N-1
N
N-1
(S2SDX-05-28-X-XX.XX-D-NDS SHOWN)
(SAME AS FIG 1, EXCEPT AS SHOWN)
(PIN 01 TO 02)
(S2SDX-05-28-X-XX.XX-DR-DUS SHOWN)
(SAME AS FIG 6, EXCEPT AS SHOWN)
F:\DWG\MISC\MKTG\S2SDX-XX-XXX-XX-XX.XX-XX-XXX-MKT.SLDDRW
FIG 4
FIG 7
02
01
NOTCH
UP
02
01
NOTCH
DOWN
N
N-1
N
N-1
(S2SDX-05-28-X-XX.XX-D-NDX SHOWN)
(SAME AS FIG 1, EXCEPT AS SHOWN)
(PIN 01 TO 01)
FIG 5
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
*
PROPRIETARY NOTE
*
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
2.00mm SOCKET DISCRETE CABLE ASSEMBLY
DWG. NO.
DESCRIPTION:
S2SDX-XX-XXX-XX-XX.XX-XX-XXX
BY:
J. BORGELT 2/20/09
SHEET
2
OF
4
REVISION V
CPS-RR-M2-01-X
ASSEMBLED LENGTH
(SEE NOTE 8 & 12)
ISD2-XX-D-DS
(ASSEMBLED LENGTH X 2)
+ 12.70[.500] ADDER
(SEE NOTE 8 & 12)
CUT LINE
(APPLIES TO -S, & -SR END OPTIONS ONLY)
(TO BE BUILT DOUBLE-ENDED INITIALLY
FOR E-TEST AND THEN SEPERATED)
IN-PROCESS 1
-DS: DOUBLE ENDED WITH SCREW DOWN
(S2SDX-05-28-X-XX.XX-DS-NUS SHOWN)
(SAME AS FIG 8, EXCEPT AS SHOWN)

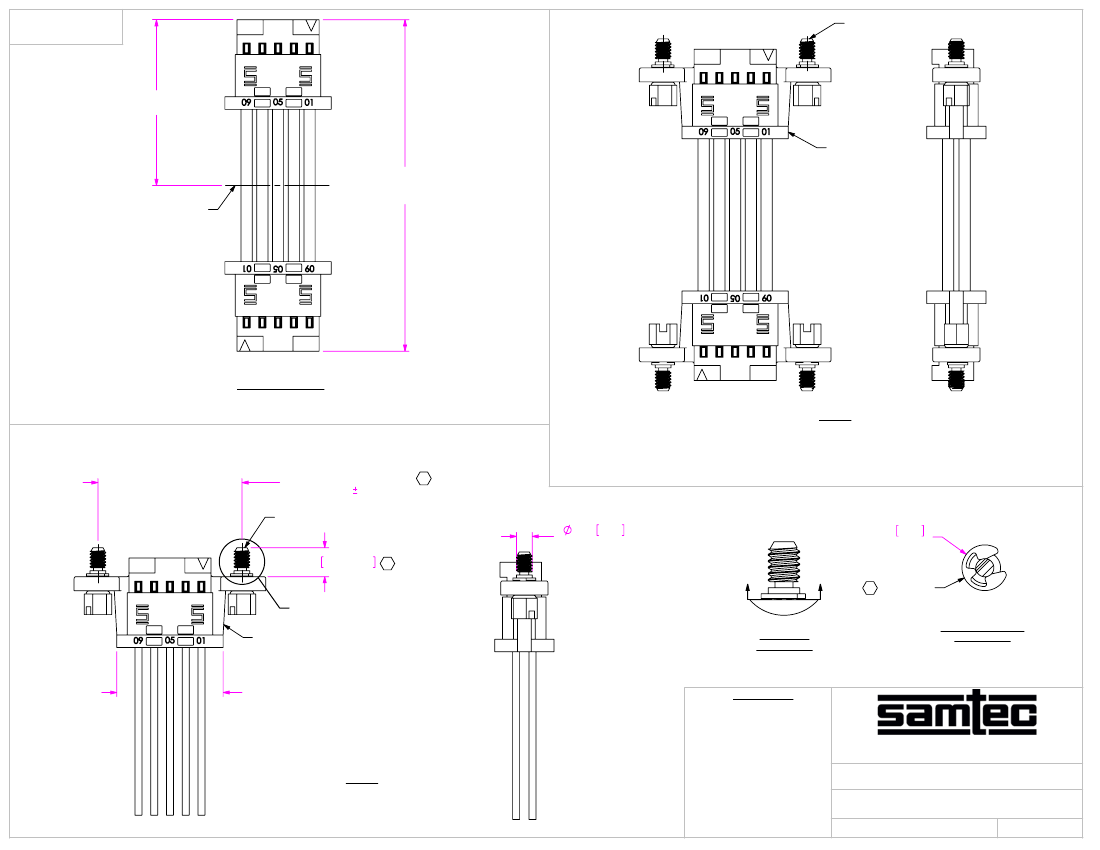

FIG 9
(No OF POS X 2.00[.079])
C
+ 8.29[.326] 0.30[.012]
CPS-RR-M2-01-X
2.00 .079
REF
C
"C"
"C"
R1.45 .057
REF
3.68±0.30 .145±.012
C ACCRT-01
SECTION "C"-"C"
SCALE 4 : 1
'B'
ISD2-XX-D-DS
DETAIL 'B'
SCALE 4 : 1
(No OF POS X 2.00[.079])
+ 3.50[.138] REF
F:\DWG\MISC\MKTG\S2SDX-XX-XXX-XX-XX.XX-XX-XXX-MKT.SLDDRW
*
PROPRIETARY NOTE
*
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
-SS: SINGLE ENDED WITH SCREW DOWN
(S2SDX-05-28-X-XX.XX-SS SHOWN)
(SAME AS FIG 1, EXCEPT AS SHOWN)
FIG 8
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
2.00mm SOCKET DISCRETE CABLE ASSEMBLY
DESCRIPTION:
DWG. NO.
S2SDX-XX-XXX-XX-XX.XX-XX-XXX
BY:
J. BORGELT 2/20/09
SHEET
3
OF
4
REVISION V
3.18 .125
3.18 .125

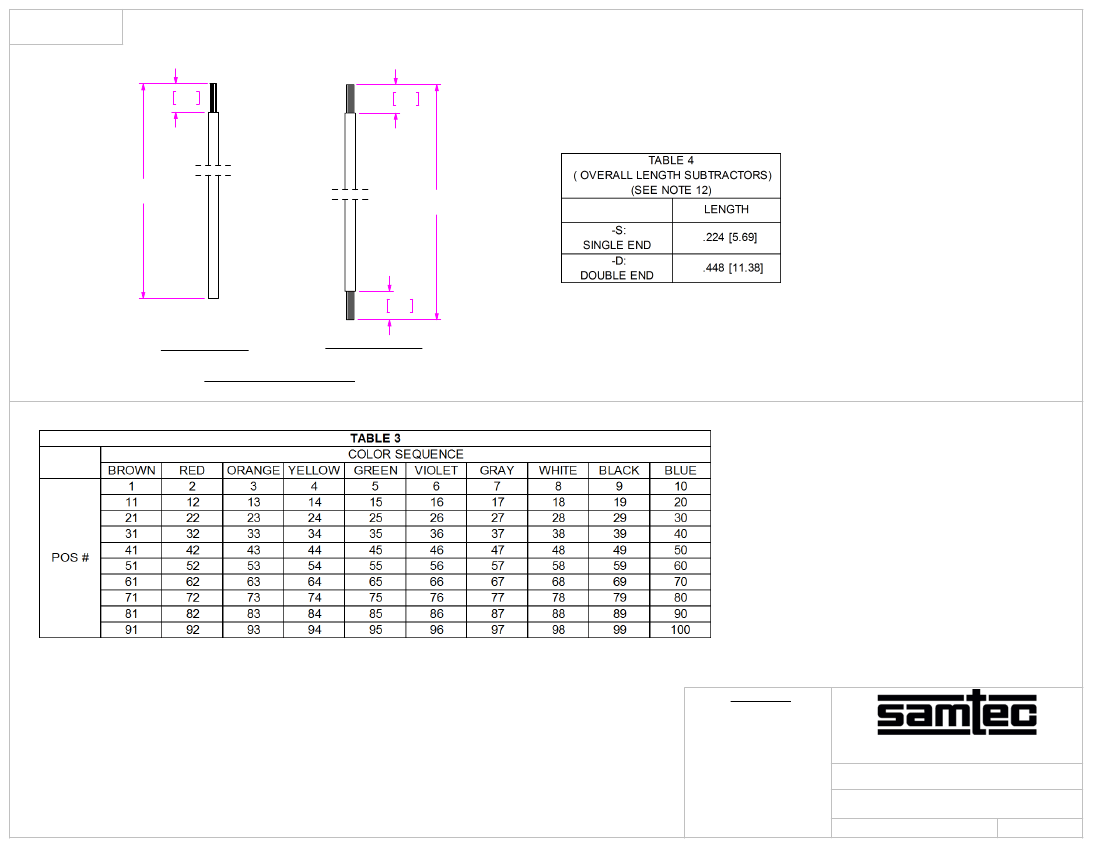

OVERALL LENGTH
(SEE TABLE 4)
OVERALL LENGTH
(SEE TABLE 4)
3.18 .125
-S: SINGLE END
-D: DOUBLE END
CABLE CUT IN-PROCESS
F:\DWG\MISC\MKTG\S2SDX-XX-XXX-XX-XX.XX-XX-XXX-MKT.SLDDRW
*
PROPRIETARY NOTE
*
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
2.00mm SOCKET DISCRETE CABLE ASSEMBLY
S2SDX-XX-XXX-XX-XX.XX-XX-XXX
SHEET
4
OF
4
BY:
J. BORGELT 2/20/09
