Cord Sets
https://www.schurter.com /PG07
3-102-365

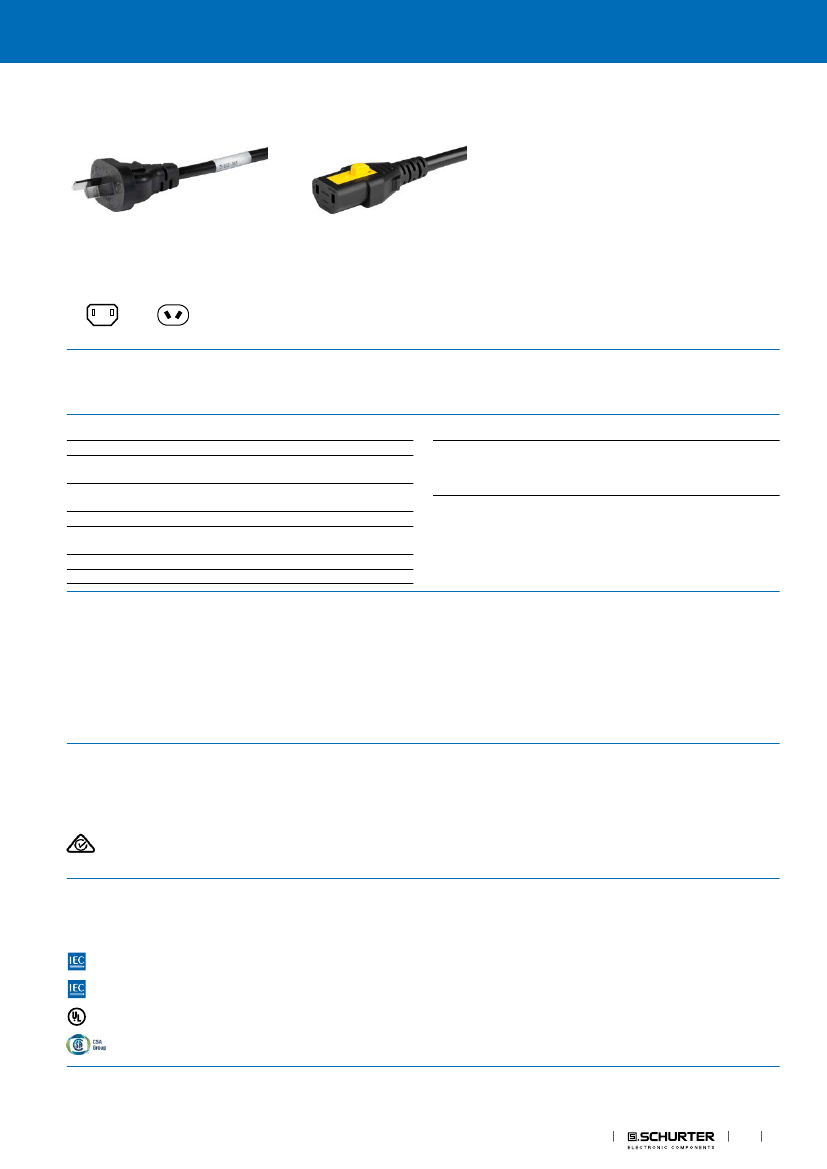

AU Power cord with IEC connector C17, V-Lock, straight
C17
70° C
AS 3112 PC2
See below:
Approvals and Compliances
Description
- Power Cord
- Protection class II , Pin temperature 70 °C
- with V-Lock interlocking system
Technical Data
Ratings IEC
Dielectric Strength
Allowable Operation Tempe-
rature
IP-Protection
Insulation cover
Terminal
Material: Housing
10 A / 250 VAC; 50 Hz
> 2 kVDC between L-N
(1 min/50 Hz)
-25 °C to 70 °C
from front side IP20 acc. to IEC 60529
Suitable for appliances with protection
class II acc. to IEC 61140
moulded
PVC, black
appliance inlet/-outlet
C17 acc. to IEC 60320-1
UL 498, CSA C22.2 no. 42 (for cold
conditions) pin-temperature 70 °C, 10 A,
Protection Class II
Approvals and Compliances
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about
Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national
and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF
16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agree-
ments by SCHURTER.
Approvals
The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.
Approval Reference Type: VAC17KS
Approval Logo
Certificates
Australia Approvals
Certification Body
Australia
Description
Australian power cord connectors with SAA certification are manufactured
according to AS/NZS 3112 and IEC standards for Australian power cord
applications.
Product standards
Product standards that are referenced
Organization
Design
Designed according to
Designed according to
Designed according to
Designed according to
Standard
IEC 60320-1
IEC 60320-1
UL 498
CSA C22.2 no. 42
Description
Appliance couplers for household and similar general purposes
Appliance couplers for household and similar general purposes
Standard for Attachment Plugs and Receptacles
General Use Receptacles, Attachment Plugs, and Similar Wiring Devices
Connectors
1
3-102-365
Application standards
Application standards where the product can be used
Organization
Design
Designed for applications acc.
Standard
IEC/UL 60950
Description
https://www.schurter.com /PG07
Cord Sets

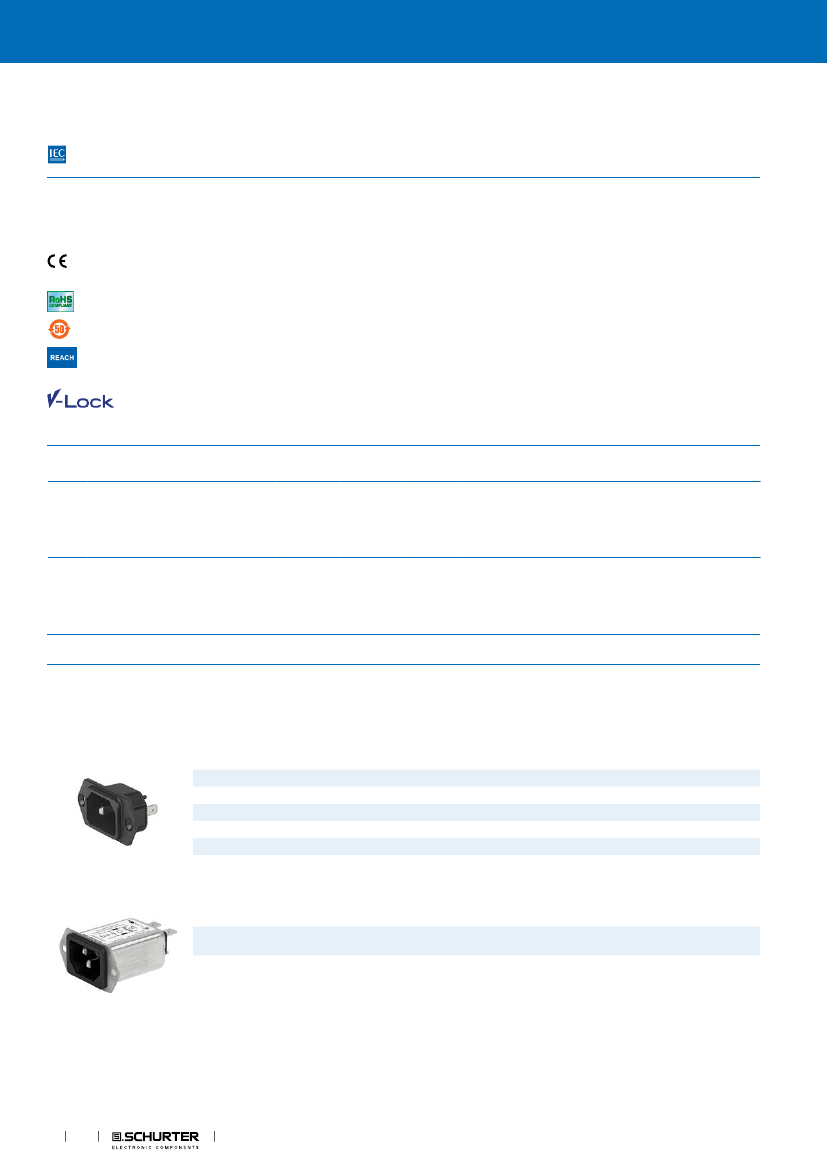

IEC 60950-1 includes the basic requirements for the safety of information
technology equipment.
Compliances
The product complies with following Guide Lines
Identification
Details
CE declaration of conformity
Initiator
SCHURTER AG
Description
The CE marking declares that the product complies with the applicable
requirements laid down in the harmonisation of Community legislation on
its affixing in accordance with EU Regulation 765/2008.
EU Directive RoHS 2011/65/EU
The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March
2007. It is similar to the EU directive RoHS.
On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration,
Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as
"REACH") entered into force.
V-Lock system are based on a matching plug-dose combination. The
connector is equipped with a notch intended for use with the latching
cordset. The cord latching system prevents against accidental removal of
the cordset.
RoHS
China RoHS
REACH
SCHURTER AG
SCHURTER AG
SCHURTER AG
SCHURTER AG
All Variants
Connector
Type
C17
V-Lock
l
Cable
Cord Type
V-75 2G1
Conductor cross
section
2 x 1.0 mm²
Length [m]
3.0
Color
black
Plug
Type
Australia
Country Standard
AU
AS 3112
Style
straight
-
3-102-365
█
Order Number
█
Most Popular.
Availability for all products can be searched real-time:https://www.schurter.com/en/Stock-Check/Stock-Check-SCHURTER
Packaging unit
40 Pcs
Mating Inlets/Plugs shuttered
Category / Description
Appliance Inlet Overview complete
6102-3, Mounting: Screw, Solder terminals or quick connect terminals, Appliance Inlet: IEC C18
6102-5, Mounting: Snap-in, Solder terminals or quick connect terminals, Appliance Inlet: IEC C18
1061, Mounting: Snap-in, Solder, Quick Connect or Screw Terminals, Appliance Inlet: IEC C14
6015, Mounting: Snap-in, Solder, quick-connect, screw, PCB, Appliance Inlet: IEC C18
6061, Mounting: Screw, Appliance Inlet: IEC C14
Appliance Inlet further types to 3-102-365
6102-3
6102-5
1061
6015
6061
...
IEC Inlet Filter Overview complete
5123, Mounting: Screw, Front-/Rear-Side, Filter: Standard and Medical Version, Without fuse holder: 10 A, Themoplast
/ steel tin-plated Appliance Inlet: IEC C14, Suitable for appliances with protection class I or II
5123
5120, Mounting: Screw with plastic flange, Front-/Rear-Side, Filter: Standard and Medical Version, Without fuse holder:
5120
10 A, Themoplast / steel tin-plated Appliance Inlet: IEC C14, Suitable for appliances with protection class I or II
IEC Inlet Filter further types to 3-102-365
2
Connectors
Cord Sets
https://www.schurter.com /PG07
3-102-365
Category / Description

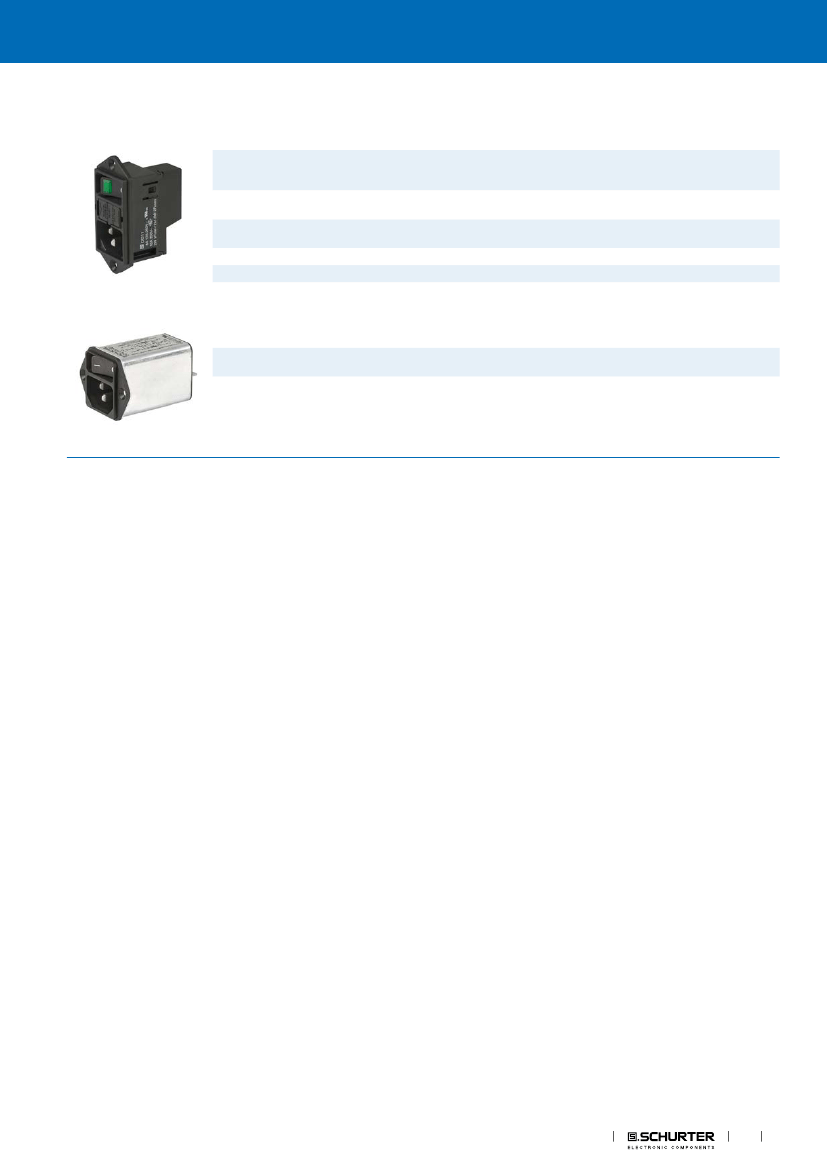

Power Entry Module Overview complete
DD11, Mounting: Screw-on mounting, Rocker switch: non-illuminated or illuminated 2-pole, Quick connect terminals
4.8 x 0.8 mm, Appliance Inlet: IEC C14, With or without protection cover, Fuse holder: 1 or 2 pole, Suitable for appli-
ances with protection class I
DD11
DD21, Mounting: Screw-on mounting Rear Side, Rocker switch: non-illuminated or illuminated 2-pole, additional quick
DD21
connect 4.8 x 0.8 mm Appliance Inlet: IEC C14, Fuse holder: 1 or 2 pole
DC11, Mounting: Screw, Rocker switch: non-illuminated or illuminated 1 or 2 pole, Quick connect terminals 4.8 x 0.8
mm, Appliance Inlet: IEC C14, Without fuse holder: Suitable for appliances with protection class I or II
6765, Power Entry ModuleC14, 70°C, version: L: N: ground: : fuseholder: color: design: dimension S: features:
6762, Power Entry ModuleC14, 70°C, version: L: N: ground: : fuseholder: color: design: dimension S: features:
Power Entry Module further types to 3-102-365
DC11
6765
6762
...
Power Entry Module with line filter Overview complete
DC12, Mounting: Screw, Front-/Rear-Side, Filter, Standard and Medical Version, Without fuse holder:10 A, Rocker
switch: 1 or 2 pole, non-illuminated or illuminated Appliance Inlet: IEC C14, prewired
5707, Mounting: Screw, Front-/Rear-Side, Filter: Standard and Medical Version, Fuse holder: 1 or 2 pole, Front Side, 8
A, Appliance Inlet: IEC C14, Suitable for appliances with protection class I or II
Power Entry Module with line filter further types to 3-102-365
DC12
5707
The specifications, descriptions and illustrations indicated in this document are based on current
information. All content is subject to modifications and amendments. Information furnished is believed
to be accurate and reliable. However, users should independently evaluate the suitability and test each
product selected for their own applications.
Connectors
3
27.02.2019
