JANTXVF2N6988: DescriptionSmall Signal Bipolar Transistor, 0.6A I(C), 60V V(BR)CEO, 1-Element, PNP, Silicon,; CategoryDiscrete semiconductor The transistor; File Size311KB，2 Pages; ManufacturerSemicoa; Websitehttp://www.snscorp.com/Semicoa.htm

Download Datasheet Parametric Compare View All

JANTXVF2N6988 Overview

Small Signal Bipolar Transistor, 0.6A I(C), 60V V(BR)CEO, 1-Element, PNP, Silicon,

JANTXVF2N6988 Parametric

Parameter Name	Attribute value
Maker	Semicoa
package instruction	FLATPACK, R-CDFP-F14
Reach Compliance Code	unknow
Maximum collector current (IC)	0.6 A
Collector-emitter maximum voltage	60 V
Configuration	SINGLE
Minimum DC current gain (hFE)	50
JESD-30 code	R-CDFP-F14
Number of components	1
Number of terminals	14
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	FLATPACK
Polarity/channel type	PNP
Guideline	MIL-19500; RH - 300K Rad(Si)
surface mount	YES
Terminal form	FLAT
Terminal location	DUAL
transistor applications	SWITCHING
Transistor component materials	SILICON

Preview

Download Datasheet

View All

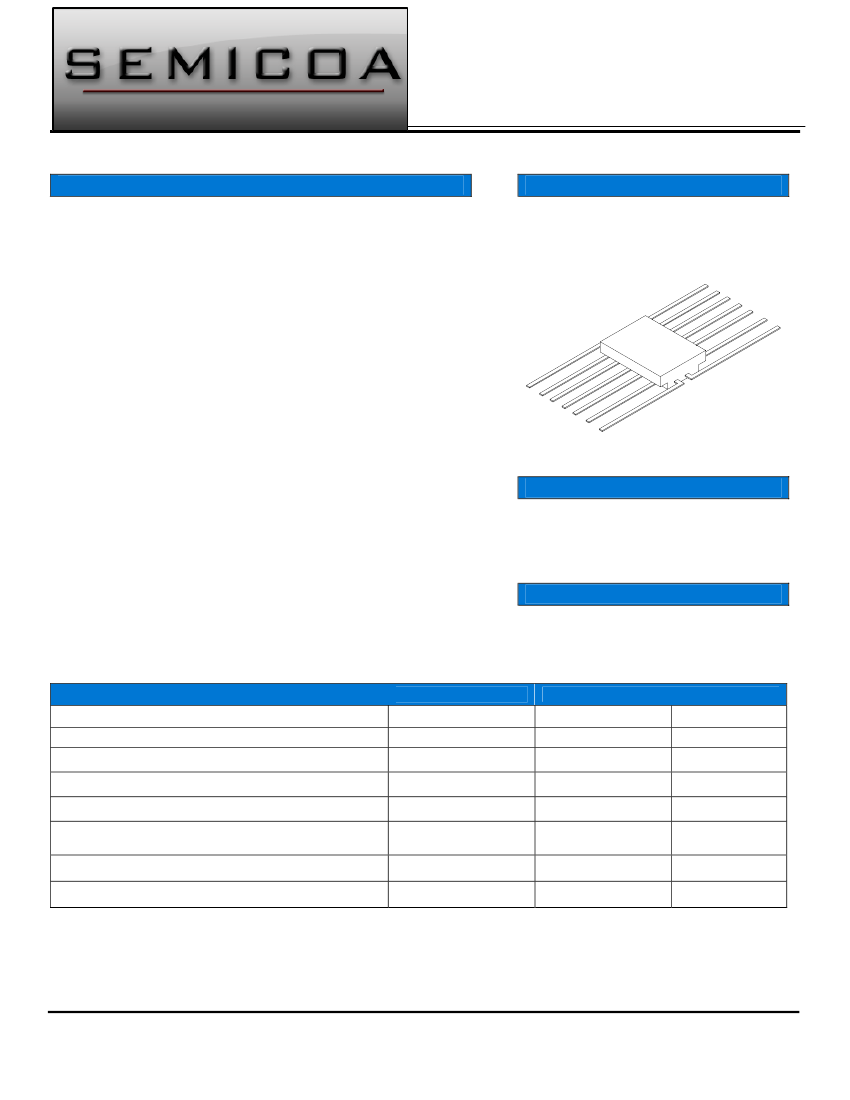

2N6988

Silicon PNP Transistor

D a ta S h e e t

Description

Complement to the 2N6990

Applications

•

General purpose switching

•

4 Transistor Array

•

PNP silicon transistor

Semicoa Semiconductors offers:

•

Screening and processing per MIL-PRF-19500

Appendix E

•

JAN level (2N6988J)

•

JANTX level (2N6988JX)

•

JANTXV level (2N6988JV)

•

JANS level (2N6988JS)

•

QCI to the applicable level

•

100% die visual inspection per MIL-STD-750 method

2072 for JANTXV and JANS

•

Radiation testing (total dose) upon request

Features

•

Hermetically sealed 14 Lead Flat Pack

Also available in chip configuration

Chip geometry 0600

Reference document:

MIL-PRF-19500/558

Benefits

Please contact Semicoa for special configurations

www.SEMICOA.com or (714) 979-1900

•

Qualification Levels: JAN, JANTX,

JANTXV and JANS

•

Radiation testing available

Absolute Maximum Ratings

Parameter

Collector-Emitter Voltage

Collector-Base Voltage

Emitter-Base Voltage

Collector Current, Continuous

Power Dissipation, T

A

= 25

O

C

Derate linearly above 25

O

C

Operating Junction Temperature

Storage Temperature

Symbol

V

CEO

V

CBO

V

EBO

I

C

P

T

J

T

STG

T

C

= 25°C unless otherwise specified

Rating

60

5

600

0.4

2.286

-65 to +200

Unit

Volts

mA

W

mW/°C

°C

10

Rev. D.2

Semicoa

Corporation

333 McCormick Avenue, Costa Mesa, California 92626 714.979.1900, FAX 714.557.4541

Page 1 of 2

www.SEMICOA.com

JANTXVF2N6988 Related Products

	JANTXVF2N6988	2N6988	JANSD2N6988	JANSL2N6988	JANSM2N6988	JANSR2N6988
Description	Small Signal Bipolar Transistor, 0.6A I(C), 60V V(BR)CEO, 1-Element, PNP, Silicon,	Small Signal Bipolar Transistor, 0.6A I(C), 60V V(BR)CEO, 1-Element, PNP, Silicon, HERMETIC SEALED, FP-14	Small Signal Bipolar Transistor, 0.6A I(C), 60V V(BR)CEO, 1-Element, PNP, Silicon,	Small Signal Bipolar Transistor, 0.6A I(C), 60V V(BR)CEO, 1-Element, PNP, Silicon,	Small Signal Bipolar Transistor, 0.6A I(C), 60V V(BR)CEO, 1-Element, PNP, Silicon,	Small Signal Bipolar Transistor, 0.6A I(C), 60V V(BR)CEO, 1-Element, PNP, Silicon,
package instruction	FLATPACK, R-CDFP-F14	FLATPACK, R-PDFP-F14	FLATPACK, R-CDFP-F14	FLATPACK, R-CDFP-F14	FLATPACK, R-CDFP-F14	FLATPACK, R-CDFP-F14
Reach Compliance Code	unknow	compliant	unknow	unknow	unknow	unknow
Maximum collector current (IC)	0.6 A	0.6 A	0.6 A	0.6 A	0.6 A	0.6 A
Collector-emitter maximum voltage	60 V	60 V	60 V	60 V	60 V	60 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Minimum DC current gain (hFE)	50	50	50	50	50	50
JESD-30 code	R-CDFP-F14	R-PDFP-F14	R-CDFP-F14	R-CDFP-F14	R-CDFP-F14	R-CDFP-F14
Number of components	1	1	1	1	1	1
Number of terminals	14	14	14	14	14	14
Package body material	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	FLATPACK	FLATPACK	FLATPACK	FLATPACK	FLATPACK
Polarity/channel type	PNP	PNP	PNP	PNP	PNP	PNP
surface mount	YES	YES	YES	YES	YES	YES
Terminal form	FLAT	FLAT	FLAT	FLAT	FLAT	FLAT
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
transistor applications	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Maker	Semicoa	-	Semicoa	Semicoa	Semicoa	Semicoa
Guideline	MIL-19500; RH - 300K Rad(Si)	-	MIL-19500; RH - 10K Rad(Si)	MIL-19500; RH - 50K Rad(Si)	MIL-19500; RH - 3K Rad(Si)	MIL-19500; RH - 100K Rad(Si)
