It is packaged in a 4pin DIP, available in SMT gullw-
ing lead-form option.
Input-output isolation voltage(rms) is 5.0kV.
Collector-emitter voltage is 80V
(*)
, CTR is 100% to
600% at input current of 0.5mA and CMR is MIN.
10kV/µs.
■
Agency approvals/Compliance
1. Recognized by UL1577 (Double protection isolation),
file No. E64380 (as model No.
PC8171)
2. Package resin : UL flammability grade (94V-0)
■
Applications
1. Programmable controllers
2. Facsimiles
3. Telephones
■
Features

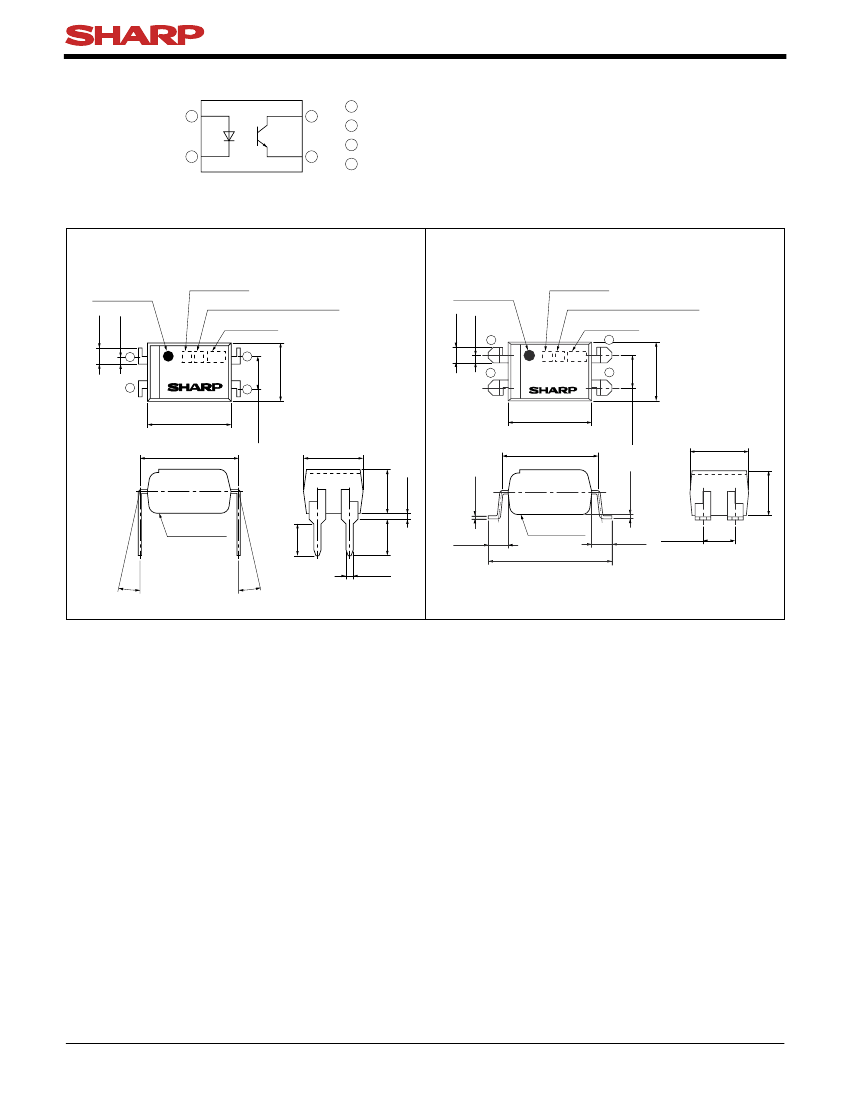

1. 4pin DIP package
2. Double transfer mold package (Ideal for Flow Solder-
ing)
3. Low input current type (I
F
=0.5mA)
4. High collector-emitter voltage(V
CEO
: 80V
(*)
)
5. High noise immunity due to high common rejection
voltage (CMR : MIN. 10kV/µs)
6. High isolation voltage between input and output
(V
iso(rms)
: 5.0 kV)
(*)Up to Date code"P7"(July 2002)V
CEO
: 70V
.
Notice The content of data sheet is subject to change without prior notice.
In the absence of confirmation by device specification sheets, SHARP takes no responsibility for any defects that may occur in equipment using any SHARP
devices shown in catalogs, data books, etc. Contact SHARP in order to obtain the latest device specification sheets before using any SHARP device.
