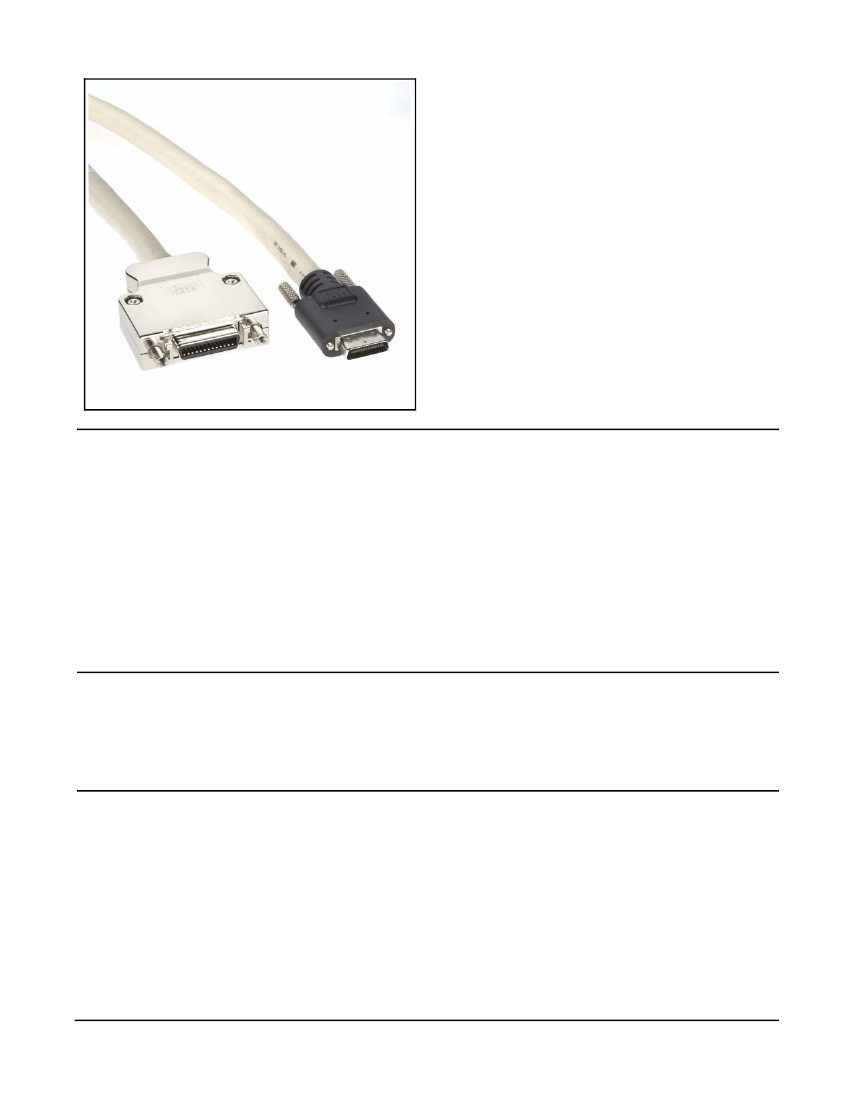

Shrunk Delta Ribbon (SDR) Cable Assembly

.80 mm High Speed Digital Data Transmission, 26 position

1MG26-LFW0-00C-XXX

• Supports new AIA Industrial Camera Link®

Standard for new Mini C/L camera to C/L

frame grabber applications

• 11 shielded, twisted twinax pairs with four

drain wires

• Double overall shield with inner foil and

outer braid

• Rugged ribbon contact type

• EMI shielded cable assembly

• For use as bulkhead feed through or

extension cable

• See regulatory information appendix (RIA)

for chemical compliance information

Date Modified: December 10, 2007

TS-2128-C

Sheet 1 of 3

Physical

Connector Contact Plating:

Wiping Area: 30

μ″

[ 0.76

μm

] Min Gold

Underplating: 100

μ″

[ 2.55

μm

] Nickel

Shell Options:

Color:

Material:

Cable:

Color:

Jacket Material:

Flammability:

Marking:

Silver ( MDR), Black (SDR)

Polyvinyl Chloride (SDR) Metal Plated Polyester Elastomer (MDR)

Beige

Polyvinyl Chloride (PVC)

AWM VW-1

3M Logo

Electrical

Voltage Rating:

30 V

Current Rating:

0.5 A

Insulation Resistance:

1 × 10

min at 100 V

Withstanding Voltage:

125 V

RMS for 1 minute

Environmental

Temperature Rating:

0°C to +70°C

UL File No.: E86982

Interconnect Solutions

http://www.3M.com/interconnects/

Camera Link is a certification mark of Automated Imaging Association.

3M is a trademark of 3M Company.

For technical, sales or ordering information call

800-225-5373
