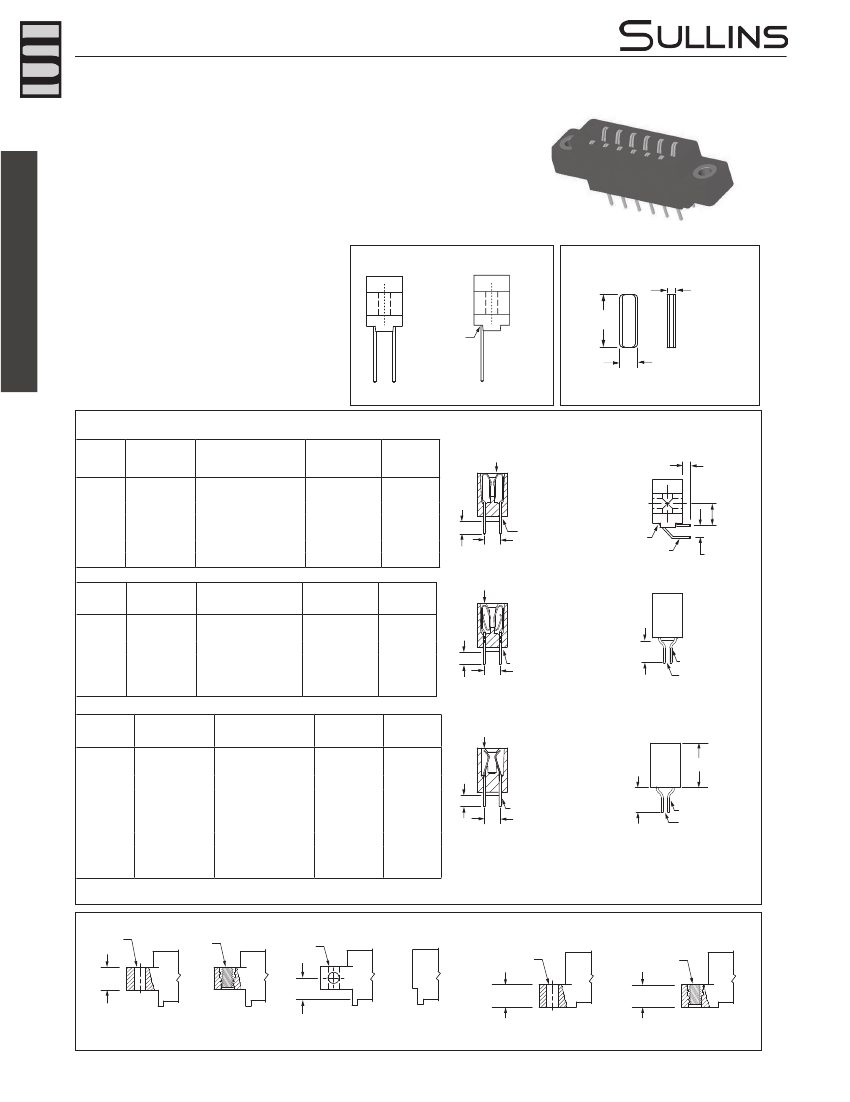

Female Card Edge
.156” [3.96 mm] Contact Centers, .610” [15.49 mm] Insulator Height,
Dip Solder/Wire Wrap/Right Angle/Card Extender
SPECIFICATIONS
• Accommodates .062” ± .008” [1.57 mm ± 0.20 mm] PC board
(See following pages for .093” ± .008” [2.36 mm ± 0.20 mm]
and .125”± .008” [3.18 mm ± 0.20 mm] mating PCB)
• PBT, PPS or PA9T insulator
• Molded-in key available
• 3 Amps current rating for one contact energized
• 30 milli Ohms maximum at rated current
READOUT
• UL Flammability Rating: 94V-0
Sullins Female Card Edge
POLARIZING KEY
PLC-K1
.038”
[0.97]
.285”
[7.24]
NUMBER
SIDE
.100” [2.54]
DUAL (D)
HALF LOADED (H)
KEY IN BETWEEN CONTACTS
(ORDER SEPARATELY)
TERMINATION TYPE
HAIRPIN TERMINATION
BELLOWS
TYPE
CW
CT
CS
CM
CA
CB
CC
DIP SOLDER
DIP SOLDER
DIP SOLDER
WIRE WRAP
RIGHT ANGLE
RIGHT ANGLE
RIGHT ANGLE
POST CROSS SECTION
K
.015ʺ X .025ʺ [0.38 X 0.64]
.015ʺ X .025ʺ [0.38 X 0.64]
.025ʺ [0.64] SQUARE
.025ʺ [0.64] SQUARE
.025ʺ [0.64] SQUARE
.025ʺ [0.64] SQUARE
.025ʺ [0.64] SQUARE
PPOST LENGTH
L
.025”ʺ [0.64]
.125ʺ [3.18]
.170ʺ [4.32]
.160ʺ [4.06]
.560ʺ [14.20]
.100ʺ [2.54]
.180ʺ [4.57]
.250ʺ [6.35]
FITS MIN.
HOLE SIZE
.035ʺ
.035ʺ
.040ʺ
.040ʺ
[0.89]
[0.89]
[1.02]
[1.02]
HAIRPIN BELLOWS
RIGHT ANGLE
L
.043ʺ [1.09]
.043ʺ [1.09]
.043ʺ [1.09]
L
K
.200” [5.08]
(CW, CT, CS, CM)
LETTER SIDE
(SIZES 6 THRU 43)
ODD NUMBER SIDE
K
.150” [3.81]
(47 AND 50)
(CA, CB, CC, TA, TB, TM, KA, KE, KU, KJ)
.275”
[6.98]
LOOP
TERMINATION
BELLOWS
TYPE
TK,CK
RS
RM
TA
TB
TM
DIP SOLDER
DIP SOLDER
WIRE WRAP
RIGHT ANGLE
RIGHT ANGLE
RIGHT ANGLE
POST CROSS SECTION
K
.025ʺ [0.64] ROUND
.025ʺ [0.64] SQUARE
.025ʺ [0.64] SQUARE
.025ʺ [0.64] SQUARE
.025ʺ [0.64] SQUARE
.025ʺ [0.64] SQUARE
POST LENGTH
L
.025”ʺ [0.64]
.190ʺ [4.83]
.190ʺ [4.83]
.560ʺ [14.20]
.100ʺ [2.54]
.180ʺ [4.57]
.250ʺ [6.35]
FITS MIN.
HOLE SIZE
.033ʺ [0.84]
.040ʺ [1.02]
.040ʺ [1.02]
.043ʺ [1.09]
.043ʺ [1.09]
.043ʺ [1.09]
LOOP BELLOWS
HAIRPIN or LOOP CARD EXTENDER
L
K
.200” [5.08]
(TK, CK, RS, RM)
CANTILEVER
KS
KD
KM
*KA
*KE
*KU
*KJ
*KR
*KN
TERMINATION
TYPE
DIP SOLDER
DIP SOLDER
WIRE WRAP
RIGHT ANGLE
RIGHT ANGLE
RIGHT ANGLE
RIGHT ANGLE
CARD EXTENDER
CARD EXTENDER
POST CROSS SECTION POST LENGTH
L
K
.025”ʺ [0.64]
.025ʺ [0.64] SQUARE
.025ʺ [0.64] SQUARE
.025ʺ [0.64] SQUARE
.025ʺ [0.64] SQUARE
.025ʺ [0.64] SQUARE
.025ʺ [0.64] SQUARE
.025ʺ [0.64] SQUARE
.025ʺ [0.64] SQUARE
.025ʺ [0.64] SQUARE
.190ʺ [4.83]
.160ʺ [4.06]
.560ʺ [14.20]
.100ʺ [2.54]
.180ʺ [4.57]
.250ʺ [6.35]
.500ʺ [12.70]
.235ʺ [5.97]
.605ʺ [15.37]
K
ACCOMMODATES
.062” [1.57] PCB
(CT, CS, CM,TK, CK, RS,RM)
Example P/N: EBM10DCSN-S288
(Requires -S288 Modification Code)
L - .015” [0.38]
FITS MIN.
HOLE SIZE
.040ʺ [1.02]
.043ʺ [1.09]
.040ʺ [1.02]
.043ʺ [1.09]
.043ʺ [1.09]
.043ʺ [1.09]
.043ʺ [1.09]
N/A
N/A
CANTILEVER
CANTILEVER CARD EXTENDER
.550” [13.97]
L
K
ACCOMMODATES
.062” [1.57] PCB
(KR, KN)
Example P/N: EBM10DKRN
(-S288 Not required)
L
K
.200” [5.08]
(KS, KD, KM)
* KA, KE, KJ, KR, KN have no standoffs, unless requested.
MOUNTING STYLE
Ø.125”
[3.18]
.250”
[6.35]
#4-40
Ø.125”
[3.18]
.245”
[6.22]
CLEARANCE
HOLE (H)
THREADED
INSERT
(I)
Ø.125” [3.18]
D = .250” [6.35]
W = .430” [10.92]
NO MOUNTING
EARS (N)
FLUSH MOUNTING
(D, W)
#4-40
T = .250” [6.35]
X = .430” [10.92]
FLUSH MOUNTING WITH
THREADED INSERT(T, X)
SIDE MOUNTING
(S)
74
www.sullinscorp.com
|
760-744-0125
|
toll-free 888-774-3100
|
fax 760-744-6081
|
info@sullinscorp.com
Female Card Edge
.156” [3.96 mm] Contact Centers, .610” [15.49 mm] Insulator Height,
Dip Solder/Wire Wrap/Right Angle/Card Extender
PART NUMBER OPTIONS
MATERIALS (INSULATOR/CONTACT)
E =
PBT/Phosphor Bronze (Standard)
R
=
PPS/Phosphor Bronze
G
=
PA9T/Phosphor Bronze
H =
PBT/ Beryllium Copper
A =
PPS/Beryllium Copper
J =
PA9T/Beryllium Copper
(Consult factory for other materials.)
Refer to Page 7 for Operating/Processing Temperatures
CONTACT FINISH - RoHS Compliant
All platings are Lead Free and have .000050” Nickel underplate
E B M 43 D CM H - Sxxx
MODIFICATION CODE
(Consult Factory)
OMIT FOR STANDARD
-S189
=
.200” [5.08 mm] Row Spacing on Right Angle
-S288*
=
Card Extender Accepts .062” [1.57 mm] PCB
* Not Required on KR or KN Terminations
MOUNTING STYLE (Opposite Page)
H =
Clearance Holes
I
=
Threaded Inserts
S
=
Side Mounting
N =
No Mounting
D, W
=
Flush Mounting
T, X
=
Flush Mounting With Threaded Inserts
TERMINATION TYPE (Opposite Page)
Hairpin Bellows -
Available with B or C plating and Phosphor Bronze Only
CS
=
.025” [0.64 mm] Square Dip Solder
CM
=
.025” [0.64 mm] Square Wire Wrap
CA, CB, CC
=
.025” [0.64 mm] Square Right Angle
CW, CT
=
.015” X .025” [0.38 mm X 0.64 mm] Dip Solder
Loop Bellows
RS
=
.025” [0.64 mm] Square Dip Solder
CK, TK
=
.025” [0.64 mm] Round Dip Solder
RM
=
.025” [0.64 mm] Square Wire Wrap
TA, TB, TM
=
.025” [0.64 mm] Square Right Angle
Cantilever Bellows - Available in Y, B, or C Contact Finish Only
KS, KD
=
.025” [0.64 mm] Square Dip Solder
KM =
.025” [0.64 mm] Square Wire Wrap
KA, KE, KU, KJ
=
.025” [0.64 mm] Square Right Angle
KR, KN
=
.025” [0.64 mm] Square Card Extender
Sullins Female Card Edge
Contact Surface
.000010” Gold
.000030” Gold
.000010” Gold
.000030” Gold
Contact Surface
S
=
.000010” Gold
M =
.000030” Gold
E =
.000100” Pure Tin, Matte
B
C
G
Y
=
=
=
=
CONTACT CENTERS
M =
.156” [3.96 mm]
Termination
.000100” Pure Tin, Matte
.000100” Pure Tin, Matte
.000005” Gold
.000005” Gold
Overall Plating
.000010” Gold
.000010” Gold
.000100” Pure Tin, Matte
NUMBER OF CONTACT POSITIONS
See Chart Below
READOUT (Opposite Page)
D =
Dual
H =
Half Loaded
DIMENSIONS
Dimensions in [ ] are in millimeters, all others are in inches.
REFER TO MOUNTING STYLE
.297 [7.54] INSERTION DEPTH
C
.250
[6.35]
.180 [4.57]
.370 [9.40]
A
1
B
2
C
3
_ _ _
W X Y
41 42 43
A
B
D
E
.060
[1.52]
.610
[15.49]
.156 [3.96] TYP.
F
REFER TO
TERMINATION
TYPE
CONTACT MARKINGS
(LETTERS G, I, O & Q NOT USED)
SIZES 06 THRU 25, 28, 30 & 31:
1 2 . . . 23 24 . . . 29 30
AB ... A B ... H J
SIZES 36 THRU 43:
A B ... A B ... X Y
1 2 . . . 23 24 . . . 42 43
SIZES 47 & 50:
1 3 . . . 97 99
2 4 . . . 98 100
Tolerances on non-critical dimensions may very slightly due to shrinkage differential per insulator material; Consult factory.
POSITIONS/
CONTACTS
INCHES
A±.008
B±.008
C±.015
1.221
1.533
1.845
2.157
2.625
3.093
3.405
3.717
4.029
4.185
4.653
4.965
5.121
5.901
6.525
6.993
7.617
8.085
MILLIMETERS
E±.020
1.784
2.096
2.408
2.720
3.188
3.656
3.968
4.280
4.592
4.748
5.216
5.528
5.684
6.464
7.088
7.556
8.180
8.648
D±.010
1.534
1.846
2.158
2.470
2.938
3.406
3.718
4.030
4.342
4.498
4.966
5.278
5.434
6.214
6.838
7.306
7.930
8.398
F±.015
1.030
1.342
1.654
1.966
2.434
2.902
3.214
3.526
3.838
3.994
4.462
4.774
4.930
5.710
6.334
6.802
7.426
7.894
A±0.20
19.81
27.74
35.66
43.59
55.47
67.36
75.29
83.21
91.14
95.10
106.98
114.91
118.87
138.68
154.53
166.42
182.27
194.16
B±0.20
27.99
35.92
43.84
51.77
63.65
75.54
83.46
91.39
99.31
103.28
115.16
123.09
127.05
146.86
162.71
174.60
190.45
202.34
C±0.38
31.01
38.94
46.86
54.79
66.68
78.56
86.49
94.41
102.34
106.30
118.19
126.11
130.07
149.89
165.74
177.62
193.47
205.36
D±0.25
38.96
46.89
54.81
62.74
74.63
86.51
94.44
102.36
110.29
114.25
126.14
134.06
138.02
157.84
173.69
185.57
201.42
213.31
E±0.51
45.31
53.24
61.16
69.09
80.98
92.86
100.79
108.71
116.64
120.60
132.49
140.41
144.37
164.19
180.04
191.92
207.77
219.66
F±0.38
26.16
34.09
42.01
49.94
61.82
73.71
81.64
89.56
97.49
101.45
113.33
121.26
125.22
145.03
160.88
172.77
188.62
200.51
06/12
0.780
1.102
08/16
1.092
1.414
10/20
1.404
1.726
12/24
1.716
2.038
15/30
2.184
2.506
18/36
2.652
2.974
20/40*
2.964
3.286
22/44
3.276
3.598
24/48
3.588
3.910
25/50
3.744
4.066
28/56
4.212
4.534
30/60
4.524
4.846
31/62
4.680
5.002
36/72
5.460
5.782
40/80
6.084
6.406
43/86
6.552
6.874
47/94
7.176
7.498
50/100
7.644
7.966
* Consult factory for availability.
www.sullinscorp.com
|
760-744-0125
|
toll-free 888-774-3100
|
fax 760-744-6081
|
info@sullinscorp.com
75
