800152MA160S400ZU datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 800152MA160S400ZU

Preview

800152MA160S400ZU: DescriptionBoard Connector, 160 Contact(s), 2 Row(s), Male, Straight, 0.031 inch Pitch, Surface Mount Terminal, Latch, Black Insulator, Receptacle; CategoryThe connector The connector; File Size204KB，1 Pages; ManufacturerSUYIN-USA; Websitehttp://www.suyinusa.com

Download Datasheet Parametric View All

800152MA160S400ZU Overview

Board Connector, 160 Contact(s), 2 Row(s), Male, Straight, 0.031 inch Pitch, Surface Mount Terminal, Latch, Black Insulator, Receptacle

800152MA160S400ZU Parametric

Parameter Name	Attribute value
Maker	SUYIN-USA
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	TUBE PKG W/O CAP
Board mount options	SOLDER HOLDING FLANGE
body width	0.236 inch
subject depth	0.394 inch
body length	2.858 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Dielectric withstand voltage	500VDC V
Insulator color	BLACK
Manufacturer's serial number	800152
Plug contact pitch	0.031 inch
Installation option 1	LATCH
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.572 mm
Plating thickness	15u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.7874 mm
Termination type	SURFACE MOUNT
Total number of contacts	160

Preview

Download Datasheet

View All

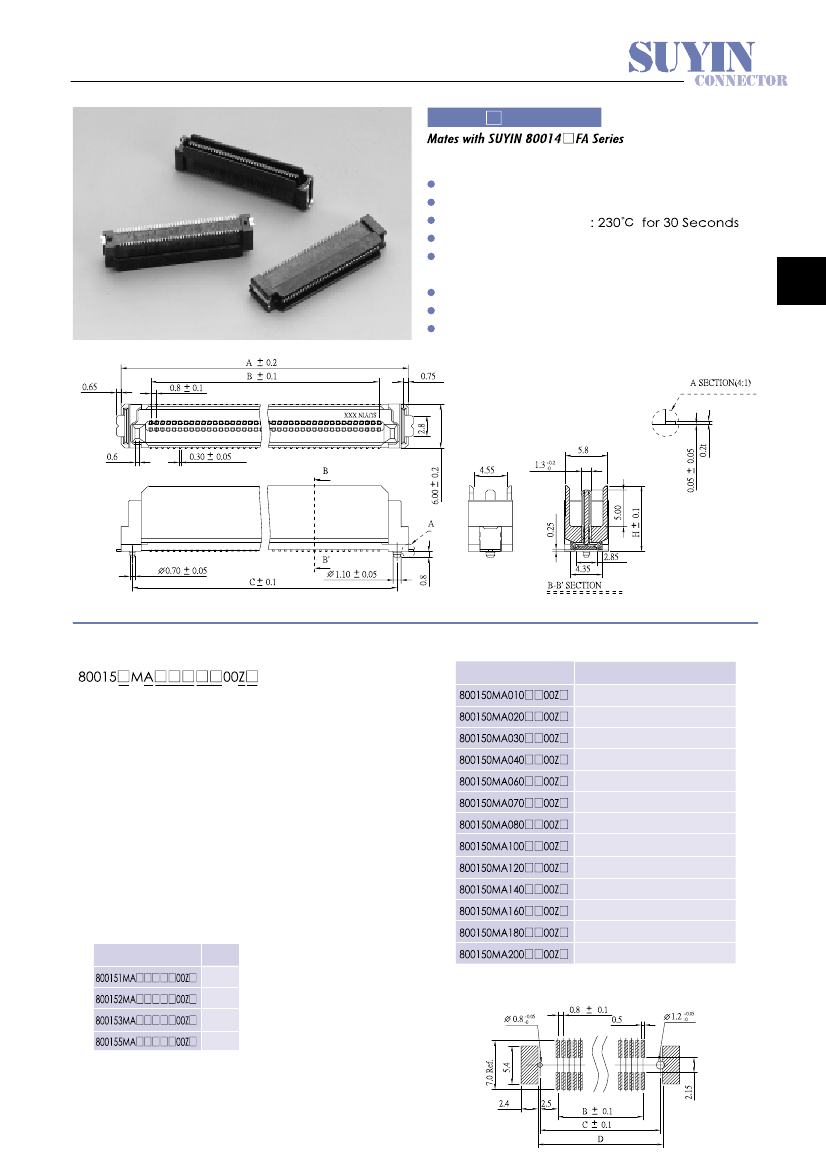

(PLASTIC HEIGHT:9.0mm-13.0mm)

0.8 mm PITCH SURFACE MOUNT PLUG TYPE

80015

MA Series

Specifications:

10~200 Circuits

Insulator Material

Max Processing Temp

Terminal Material

Plating

Max. Current Rating

Voltage Rating

Dielectric Strength

: Black High Temp. Plastic

: Phosphor Bronze

: Selective Plated (Gold/Tin)

0.8

Latch - Tin Plated

mm

: 0.5 A

: 100V AC

: 500V (Min. 60 seconds)

Order Information

6

1

2

3

45

Dimensional Information

SUYIN P/NO.

DIM.A

11.3

15.3

DIM.B

3.2

7.2

11.2

15.2

23.2

27.2

31.2

39.2

47.2

55.2

63.2

71.2

79.2

DIM.C

8.2

12.2

16.2

20.2

28.2

32.2

36.2

44.2

52.2

60.2

68.2

76.2

84.2

DIM.D

8.8

12.8

16.8

20.8

28.8

32.8

36.8

44.8

52.8

60.8

68.8

76.8

84.8

1. 'A' : Straight SMT Type

2. No. of Pins

3. Plating

4. Color 'Z' : Black

5. Package

'U' : Tube Package Without CAP

'R' : Reel Package With CAP

'T' : Tube Package With CAP

6. Indicate Plastic Height:

PART NO.

DIM.. H

9.0

10.0

11.0

13.0

19.3

23.3

31.3

35.3

39.3

47.3

55.3

63.3

71.3

79.3

87.3

Recommended P.C.B. Layout

Reference Page 11

27
