Technical
Specification
PQ60050SMx10
35-75V
Input
100V
Transient Input
5V
Output
50W
Max Power
2250V dc
Isolation
Sixteenth-Brick
DC-DC Converter

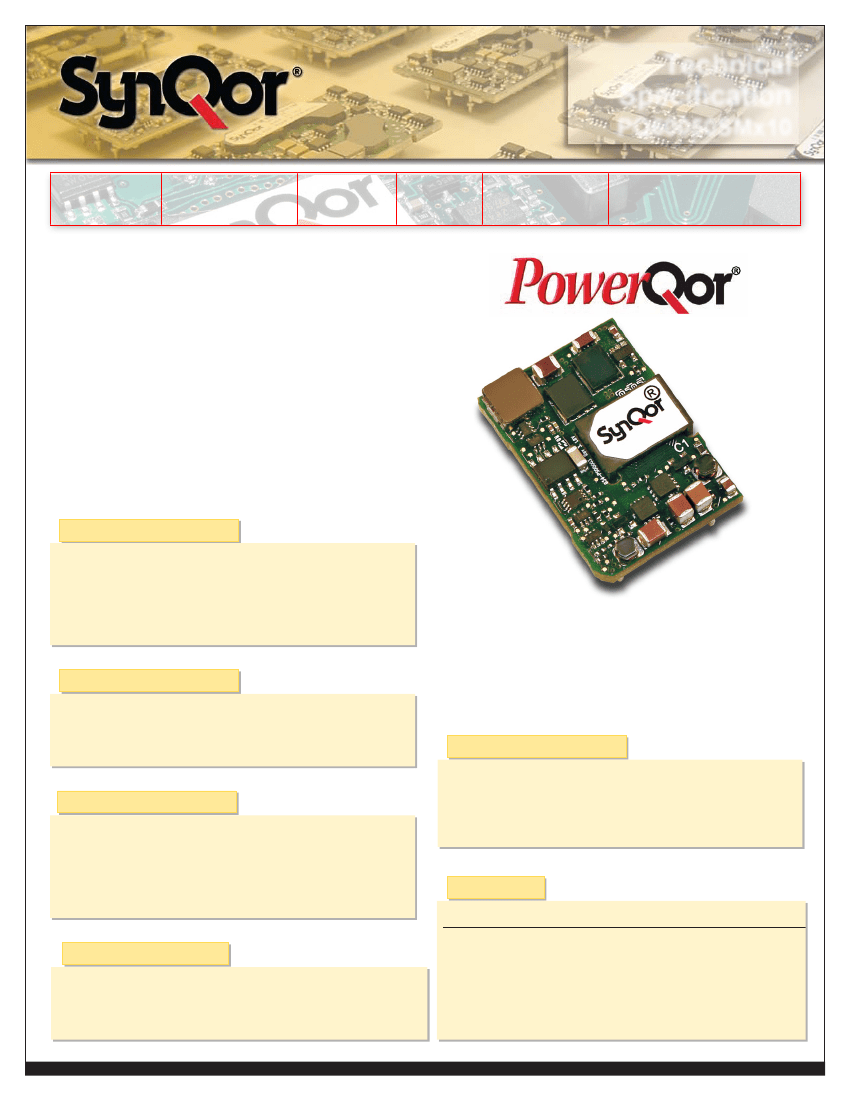

The PQ60050SMx10 PowerQor Mega sixteenth brick
converter is a next-generation, board-mountable,
isolated, fixed switching frequency DC/DC converter
that uses synchronous rectification to achieve
extremely high conversion efficiency. The power
dissipated by the converter is so low that a heatsink
is not required, which saves cost, weight, height,
and application effort. All of the power and control
components are mounted to the multi-layer PCB
substrate with high-yield surface mount technology.
Since the PowerQor converter has not explicit thermal
interfaces, it is extremely reliable. RoHS compliant
(see page 15).
Operational Features
• High efficiency, 86% at full rated load current
• Delivers up to 50W of output power with minimal derating
• Operating input voltage range: 35-75V, 100V with 100ms input
transient capability
• Fixed frequency switching provides predictable EMI
• No minimum load requirement
®
PQ60050SML10 Module
Mechanical Features
•
•
•
•
Industry standard sixteenth-brick pin-out configuration
Size: 0.95" x 1.35" (24.1 x 34.3 mm)
Height: .327" (8.3mm) low profile and .397" (10.1mm) standard
Weight: .476oz (13.5g)
•
•
•
•
•
Protection Features
Input under-voltage lockout
Output current limit and short circuit protection
Active back bias limit
Output over-voltage protection
Thermal shutdown
Control Features
• On/Off control referenced to input side (positive and negative logic
options are available)
• Remote sense for the output voltage compensates for output
distribution drops
• Output voltage trim permits custom voltages and voltage margining
Contents
PQ60-SMA & SML Mechanical Drawing . . . . . . . . . . . . . . . . . . . . . . . . 2
PQ60-SMC Mechanical Drawing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Electrical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Standards & Qualification Testing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
PQ60050SMx10 Figures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Application Section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Ordering Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Page No.
Safety Features
•
•
•
•
UL 60950-1:2007
EN60950-1/A11:2009/A1:2010
CAN/CSA-C22.2 No. 60950-1:2007
IEC 61000-4-2
Phone 1-888-567-9596
Product # PQ60050SMx10
www.synqor.com
Doc.# 005-0005169 Rev. D
06/28/11
Page 1
Technical
Specification
PQ60050SMx10

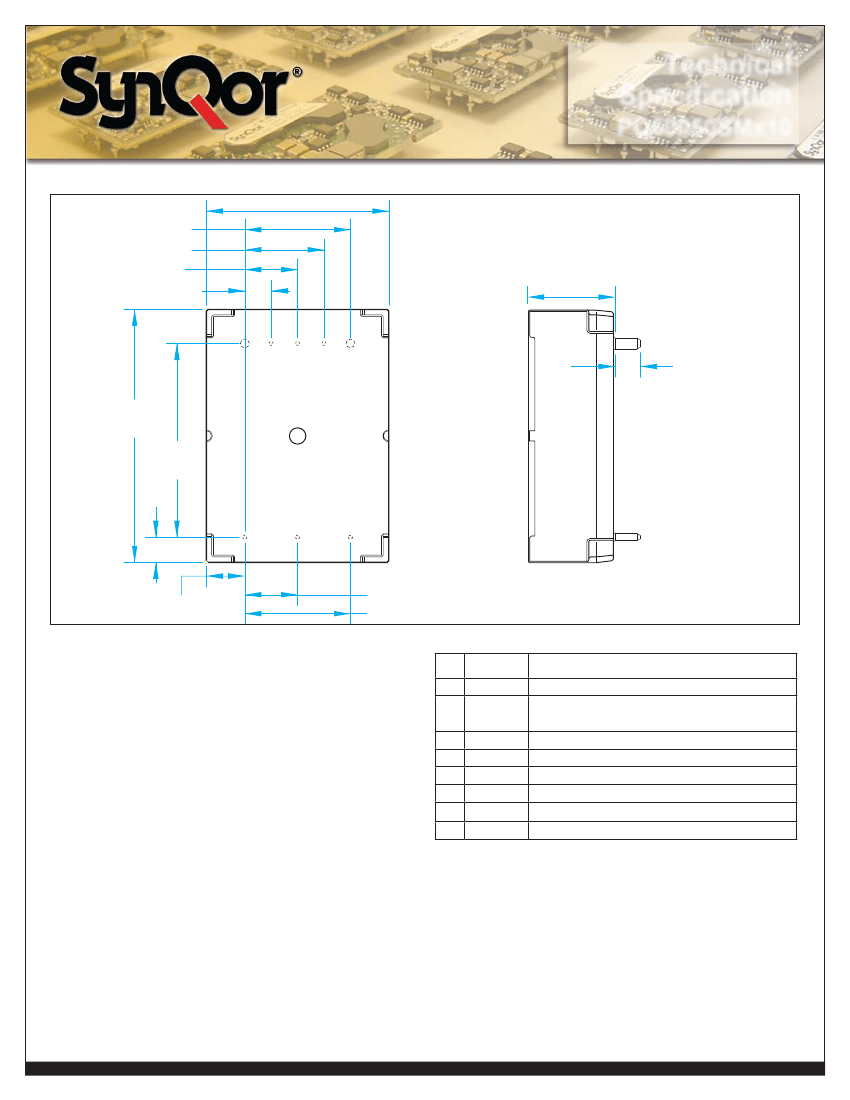

PQ60-SMA & SML Mechanical Drawing
.95 [24.1]
.600 [15.24]
.450 [11.43]
.300 [7.62]
.150 [3.81]
OVERALL HEIGHT
Low Profile
.327 [8.31]
8
1.35
[34.3]
1.10
[27.9]
.100
[2.54]
1
2
3
.18 [4.4]
.300 [7.62]
.600 [15.24]
BOTTOMSIDE CLEARANCE
Low Profile
.027 ±.015 [0.69 ±0.38]
TOP VIEW
7
6 5
4
.145
[3.68]
SIDE VIEW
NOTES
1)
Pins 1-3, 5-7 are 0.040” (1.02mm) diameter, with 0.080”
(2.03mm) diameter standoff shoulders.
2)
Pins 4 and 8 are 0.062” (1.57 mm) diameter with 0.100" (2.54
mm) diameter standoff shoulders.
3)
Other pin extension lengths available. Recommended pin length is
0.03” (0.76mm) greater than the PCB thickness.
4)
All Pins: Material - Copper Alloy- Finish (RoHS 6/6) - Matte Tin
over Nickel plate
5)
Undimensioned components are shown for visual reference only.
6)
All dimensions in inches (mm) Tolerances: x.xx +/-0.02 in. (x.x
+/-0.5mm) x.xxx +/-0.010 in. (x.xx +/-0.25mm)
7)
Weight: .476oz (13.5g)
8)
Workmanship: Meets or exceeds IPC-A-610C Class II
9)
Open frame units have flanged pins are designed to permit surface
mount soldering (avoid wave solder) using PiP technique.
PIN DESIGNATIONS
Pin
1
2
3
4
5
6
7
8
Name
Vin(+)
ON/OFF
Vin(–)
Vout(–)
SENSE(–)
TRIM
SENSE(+)
Vout(+)
Function
Positive input voltage
TTL input to turn converter on and off, referenced to
Vin(–), with internal pull up.
Negative input voltage
Negative output voltage
Negative remote sense(see note 1)
Output voltage trim (see note 2)
Positive remote sense (see note 3)
Positive output voltage
Notes:
SENSE(–) should be connected to Vout(–) either remotely or at
1)
the converter.
2) Leave TRIM pin open for nominal output voltage.
SENSE(+) should be connected to Vout(+) either remotely or at
3)
the converter.
Product # PQ60050SMx10
Phone 1-888-567-9596
www.synqor.com
Doc.# 005-0005169 Rev. D
06/28/11
Page 2
Technical
Specification
PQ60050SMx10

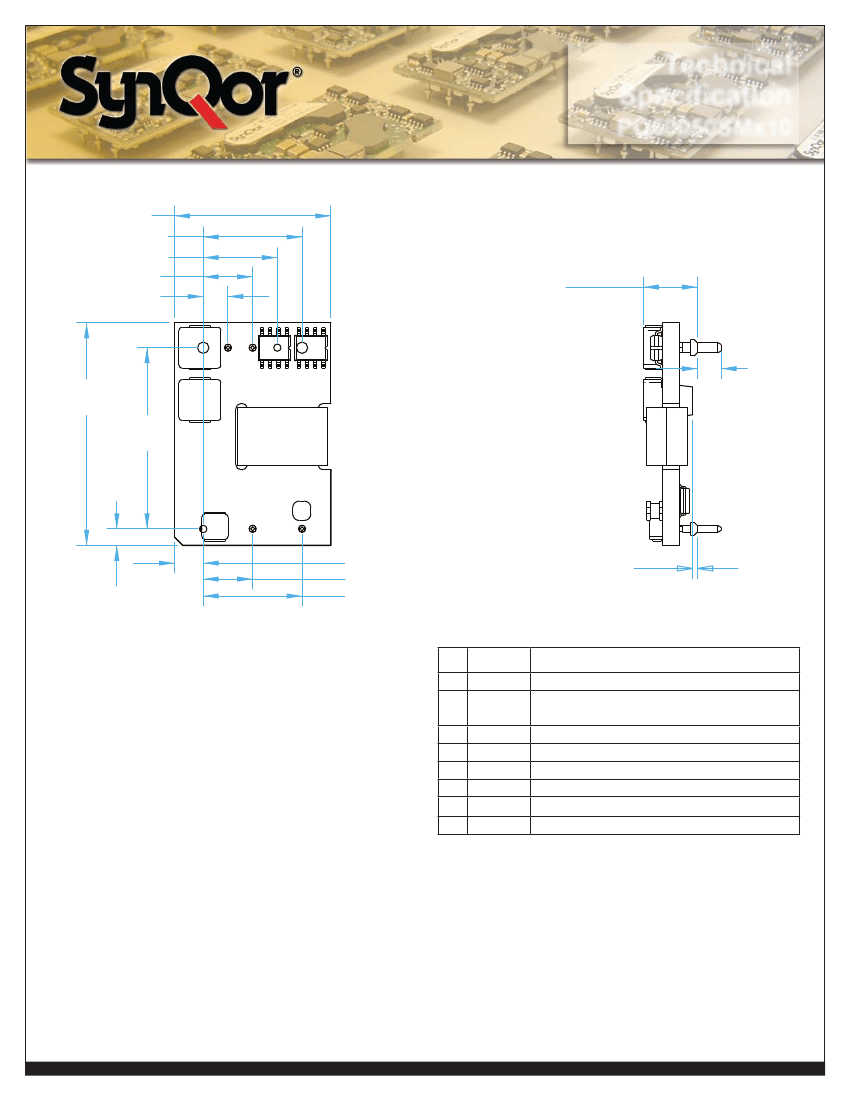

PQ60-SMC Mechanical Drawing
1.036±.020 (26.31±0.5)
.600 (15.24)
.450 (11.43)
.300 (7.62)
.150 (3.81)
0.500±.025
(12.7±0.63)
Overall height
8 7 6 5 4
1.436±.020
(36.47±0.5)
1.10
(27.9)
0.18
(4.6)
Top View
Side View
.143±.020
(3.63±0.5)
1
2
3
.218±.020
(5.54±0.5)
.300 (7.62)
.600 (15.24)
NOTES
1)
2)
3)
4)
5)
6)
7)
Baseplate flatness tolerance is 0.004" (.10mm) TIR for surface.
Pins 1-3, 5-7 are 0.040” (1.02mm) diameter, with 0.080” (2.03mm)
diameter standoff shoulders.
Pins 4 and 8 are 0.062” (1.57 mm) diameter with 0.100" (2.54 mm)
diameter standoff shoulders.
All Pins: Material
–
Copper Alloy; Finish – Matte Tin over Nickel plate
Undimensioned components are shown for visual reference only.
Weight: 1.1oz (31g) typical
All dimensions in inches (mm)
Tolerances: x.xx +/-0.02 in. (x.x +/-0.5mm)
x.xxx +/-0.010 in. (x.xx +/-0.25mm)
Workmanship: Meets or exceeds IPC-A610 Class II
Recommended pin length is 0.03” (0.76mm) greater than the PCB
thickness.
Pin
Pin
Name
Function
Name
Function
1
Vin(+)
Vin(+)
Positive input
1
Positive input voltage
voltage
2
ON/OFF
input
TTL
turn converter
converter on
referenced to
TTL
to
input to turn
on and off,
and off,
2
ON/OFF
referenced to Vin(–),
Vin(–), with internal pull up.
with internal pull up.
3
Vin(–)
Negative input voltage
3
Vin(–)
Negative input voltage
4
Vout(–)
Negative output voltage
4
Vout(–)
Negative output voltage
5
SENSE(–)
Negative remote sense(see note 1)
5
SENSE(–)
Negative remote sense(see note 1)
6
TRIM
Output voltage trim (see note 2)
TRIM
Output voltage trim (see
sense
2)
6
7
SENSE(+)
Positive remote
note
(see note 3)
7
SENSE(+)
Positive remote sense (see note 3)
8
Vout(+)
Positive output voltage
Vout(+)
Positive output voltage
Notes:
Notes:
1)
SENSE(–) should be connected to Vout(–) either remotely or
SENSE(–) should be connected to Vout(–) either remotely or at
1)
the converter.
at the converter.
2)
2)
Leave TRIM pin open for nominal output voltage.
Leave TRIM pin open for nominal output voltage.
SENSE(+) should be connected to Vout(+) either remotely or at
3)
SENSE(+) should be connected to Vout(+) either remotely or
3)
the converter.
at the converter.
8
PIN DESIGNATIONS
PIN DESIGNATIONS
8)
9)
Product # PQ60050SMx10
Phone 1-888-567-9596
www.synqor.com
Doc.# 005-0005169 Rev. D
06/28/11
Page 3
Input:
48V
Output:
5V
Current:
10A
Technical Specification
PQ60050SMx10 Electrical Characteristics
Ta = 25 °C, airflow rate = 300 LFM, Vin = 48V dc unless otherwise noted; full operating temperature range is -40 °C to +100 °C ambient temperature
with appropriate power derating. Specifications subject to change without notice.
Parameter
Min.
Typ.
Max.
Units Notes & Conditions
ABSOLUTE MAXIMUM RATINGS
Input Voltage
Non-Operating
100
V
Continuous
Operating
80
V
Continuous
Operating Transient Protection
100
V
100ms transient
Isolation Voltage
Input to Output
2250
V dc
Input to output
Operating Temperature
-40
100
°C
Storage Temperature
-55
125
°C
Voltage at ON/OFF input pin
-2
8
V
INPUT CHARACTERISTICS
Operating Input Voltage Range
35
48
75
V
Input Under-Voltage Lockout
Turn-On Voltage Threshold
31.2
32.5
33.8
V
28.9
30.5
32.2
V
Turn-Off Voltage Threshold
Lockout Voltage Hysteresis
2.0
V
1.8
A
100% Load, Vin min, nominal Vout
Maximum Input Current
No-Load Input Current
0
50
60
mA
10
14
mA
Disabled Input Current
Response to Input Transient
50
mV
1000V/ms input transient
3
mA
RMS thru 10μH inductor; Figures 13 & 15
Input Reflected Ripple Current
Input Terminal Ripple Current
40
mA
RMS; Figures 13 & 14
20
A
Recommended Input Fuse
µF
Recommended External Input Capacitance
100
Typical ESR 0.1-0.2 Ω
Input Filter Component Values (L\C)
1.0/2.35
µH/µF
Internal values; see Figure E
OUTPUT CHARACTERISTICS
Output Voltage Set Point
4.95
5
5.05
V
Output Voltage Regulation
Over Line
±0.1/5
+0.3/15
%mV
Over Load
±0.1/5
+0.2/15
%mV
Over Temperature
-75
75
mV
Total Output Voltage Range
4.875
5.125
V
Over sample, line, load, temperature & life
Output Voltage Ripple and Noise
20 MHz bandwidth; Figures 13 & 16; see Note 1
Peak-to-Peak
20
40
mV
Full load
mV
RMS
5
10
Full load
Operating Output Current Range
0
10
A
Subject to thermal derating; Figures 5 - 8
Output DC Current-Limit Inception
10.5
12.2
13.5
A
Figure 17
Back-Drive Current Limit while Enabled
2.4
A
Negative current drawn from output
Back-Drive Current Limit while Disabled
2
mA
Negative current drawn from output
Maximum Output Capacitance
5
mF
Vout nominal at full load (resistive load); See Note 2
EFFICIENCY
100% Load
86
%
See Figure 1 for efficiency curve
50% Load
86
%
See Figure 1 for efficiency curve
Note 1: For applications requiring reduced output voltage ripple and noise, consult SynQor applications support (email: support@synqor.com)
Note 2: Recommended minimum output capacitance is 100uF
Product # PQ60050SMx10
Phone 1-888-567-9596
www.synqor.com
Doc.# 005-0005169 Rev. D
06/28/11
Page 4
Input:
48V
Output:
5V
Current:
10A
Technical Specification
PQ60050SMx10 Electrical Characteristics (continued)
Ta = 25 °C, airflow rate = 300 LFM, Vin = 48V dc unless otherwise noted; full operating temperature range is -40 °C to +100 °C ambient temperature
with appropriate power derating. Specifications subject to change without notice.
Parameter
Min.
Typ.
Max.
Units Notes & Conditions
dB
mV
mV
µs
ms
ms
ms
%
120 Hz; Figure 20
50% to 75% to 50% Iout max; Figure 11
50% to 75% to 50% Iout max; Figure 12
To within 1% Vout nom
Full load, Vout=90% nom.
Figure F; See Note 1
Figure F
Max output capacitance and full load
DYNAMIC CHARACTERISTICS
Input Voltage Ripple Rejection
-80
Output Voltage during Load Current Transient
Step Change in Output Current (0.1 A/µs)
200
Step Change in Output Current (2 A/µs)
150
Settling Time
250
Turn-On Transient
Turn-On Time
35
Start-Up Inhibit Time
180
200
250
Power-Up Inhibit Time
2
Output Voltage Overshoot
0
ISOLATION CHARACTERISTICS
Isolation Voltage (dielectric strength)
2250
Isolation Resistance
30
Isolation Capacitance (input to output)
1000
TEMPERATURE LIMITS FOR POWER DERATING CURVES
Semiconductor Junction Temperature
125
Board Temperature
125
Transformer Temperature
125
FEATURE CHARACTERISTICS
Switching Frequency
315
350
385
ON/OFF Control (Option P)
On-State Voltage
2.4
8
Off-State Voltage
-2
0.8
ON/OFF Control (Option N)
On-State Voltage
-2
0.8
Off-State Voltage
2.4
8
ON/OFF Control (Either option)
Pull-Up Voltage
4.5
5
5.5
Pull-Up Resistance
10
Output Voltage Trim Range
-10
10
Output Voltage Remote Sense Range
10
Output Over-Voltage Protection
5.7
6
6.8
Over-Temperature Shutdown OTP Trip Point
125
Over-Temperature Shutdown Restart Hysteresis
10
RELIABILITY CHARACTERISTICS
Calculated MTBF (Telcordia) TR-NWT-000332
3.90
Calculated MTBF (MIL-217) MIL-HDBK-217F
3.50
Field Demonstrated MTBF
Note 1: Maximum value is 400ms for DC current limit and short circuit fault conditions
Note 2: Higher values of isolation capacitance can be added external to the module.
MΩ
pF
°C
°C
°C
kHz
V
V
V
V
See Note 2
Package rated to 150 °C
UL rated max operating temp 130 °C
See Figure 2 for derating curve
Figures A & B
V
kΩ
%
%
V
°C
°C
Measured across Pins 8 & 4; Figure C
Measured across Pins 8 & 4
Over full temp range
Average PCB Temperature; Auto Recovery
106 Hrs.
106 Hrs.
106 Hrs. See our website for details
Product # PQ60050SMx10
Phone 1-888-567-9596
www.synqor.com
Doc.# 005-0005169 Rev. D
06/28/11
Page 5
Electronics Design Contest
京公网安备 11010802033920号
EEWORLD
