SMD LED
Product Data Sheet
LTST-C194KGKT
Spec No. :DS22-2010-0197
Effective Date: 04/21/2017
Revision: A
LITE-ON DCC
RELEASE
BNS-OD-FC001/A4
LITE-ON Technology Corp. / Optoelectronics
No.90,Chien 1 Road, Chung Ho, New Taipei City 23585, Taiwan, R.O.C.
Tel: 886-2-2222-6181 Fax: 886-2-2221-1948 / 886-2-2221-0660
http://www.liteon.com/opto
LITE-ON TECHNOLOGY CORPORATION
Property of Lite-On Only
Features
* Meet ROHS, Green Product.
* Extra thin (0.30H mm) Chip LED.
* Package in 8mm tape on 7" diameter reels.
* EIA STD package.
* I.C. compatible.
* Compatible with automatic placement equipment.
* Compatible with infrared reflow solder process.

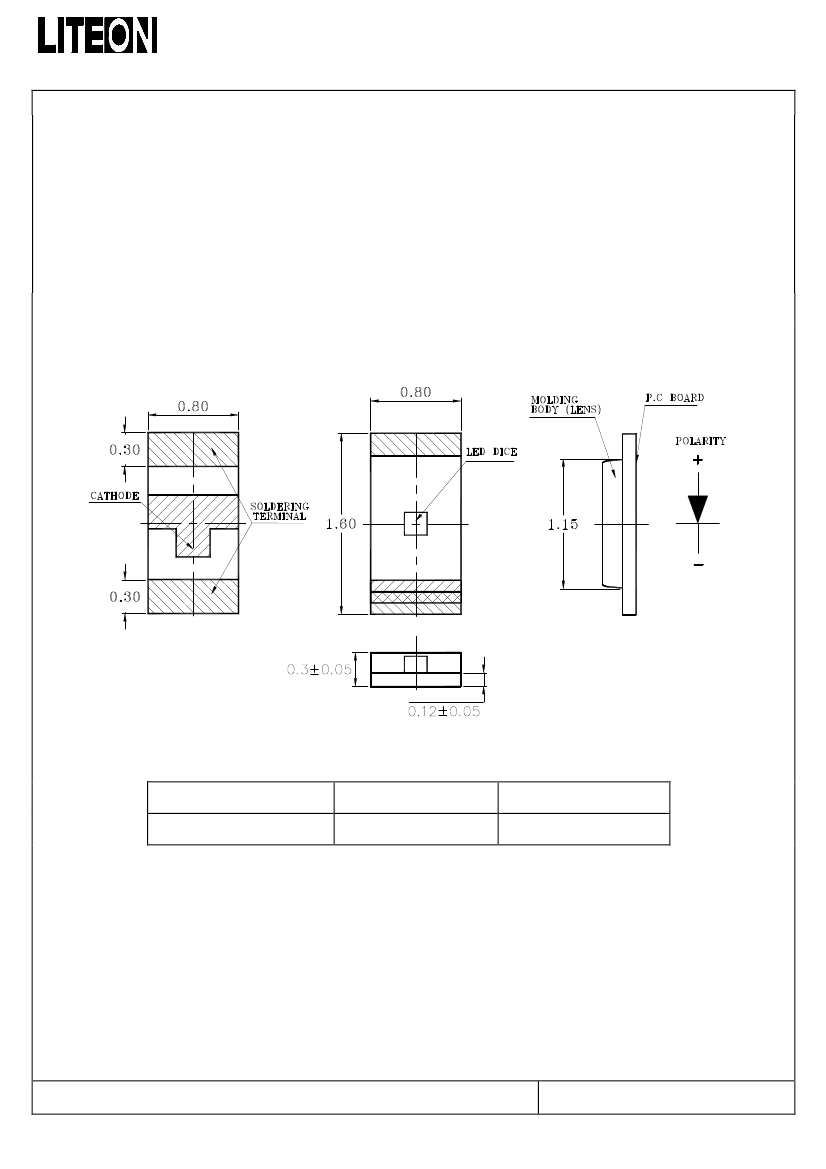

Package
Dimensions
Part no.
LTST-C194KGKT
Notes:
1. All dimensions are in millimeters (inches).
Lens
Water Clear
Source Color
AlInGaP Green
2. Tolerance is ± 0.10 mm (.004") unless otherwise noted.
Part
No. : LTST-C194KGKT
Page :
1
of
12
BNS-OD-C131/A4
LITE-ON TECHNOLOGY CORPORATION
Property of Lite-On Only
Absolute
Maximum
Ratings
At
Ta=25
℃
LTST-C194KGKT
75
Parameter
Power Dissipation
Peak Forward Current
(1/10 Duty Cycle, 0.1ms Pulse Width)
DC Forward Current
Reverse Voltage
Operating Temperature Range
Storage Temperature Range
Infrared Soldering Condition
Unit
mW
80
mA
30
5
-30°C to + 85°C
-40°C to + 85°C
260°C For 10 Seconds
mA
V
Part
No. : LTST-C194KGKT
Page :
2
of
12
BNS-OD-C131/A4
LITE-ON TECHNOLOGY CORPORATION
Property of Lite-On Only

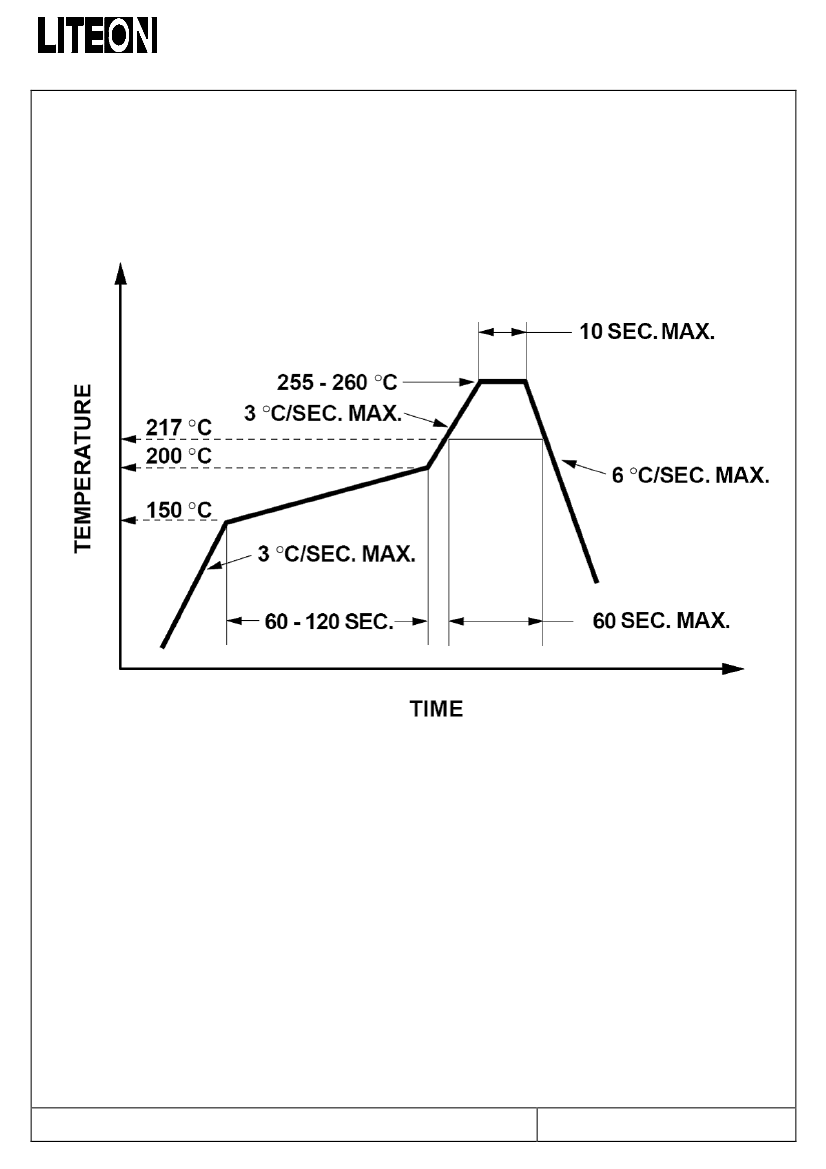

Suggestion Profile:
Suggestion IR Reflow Profile For Pb Free Process
Part
No. : LTST-C194KGKT
Page :
3
of
12
BNS-OD-C131/A4
LITE-ON TECHNOLOGY CORPORATION
Property of Lite-On Only
Electrical
Optical
Characteristics
Symbol
At
Ta=25
℃
Min.
Typ.
Max.
Unit
Test Condition
IF = 20mA
Note 1
Parameter
Part No.
LTST-
Luminous Intensity
IV
C194KGKT
18.0
-
112.0
mcd
Viewing Angle
2θ1/2
C194KGKT
130
deg
Note 2 (Fig.6)
Peak Emission Wavelength
λP
C194KGKT
574
nm
Measurement
@Peak (Fig.1)
IF = 20mA
Note 3
Dominant Wavelength
λd
C194KGKT
567.5
-
576.5
nm
Spectral Line Half-Width
Δλ
C194KGKT
15
nm
Forward Voltage
VF
C194KGKT
1.80
-
2.40
V
IF = 20mA
Reverse Current
IR
C194KGKT
10
μA
VR = 5V
Notes: 1. Luminous intensity is measured with a light sensor and filter combination that approximates the
CIE eye-response curve.
2.
θ1/2
is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
3. The dominant wavelength,
λd
is derived from the CIE chromaticity diagram and represents the
single wavelength which defines the color of the device.
Part
No. : LTST-C194KGKT
Page :
4
of
12
BNS-OD-C131/A4
