SF11X0

Description
Rectifier Diode, 1 Element, 1A, 50V V(RRM), Silicon, DO-41,
CategoryDiscrete semiconductor    diode
File Size422KB,4 Pages
ManufacturerTaiwan Semiconductor
Websitehttp://www.taiwansemi.com/
Download Datasheet Parametric View All

SF11X0 Overview

Rectifier Diode, 1 Element, 1A, 50V V(RRM), Silicon, DO-41,

SF11X0 Parametric

Parameter NameAttribute value
MakerTaiwan Semiconductor
package instructionO-PALF-W2
Reach Compliance Codecompli
ECCN codeEAR99
Other featuresFREE WHEELING DIODE, HIGH RELIABILITY, LOW POWER LOSS
Shell connectionISOLATED
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeRECTIFIER DIODE
JEDEC-95 codeDO-41
JESD-30 codeO-PALF-W2
Number of components1
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-65 °C
Maximum output current1 A
Package body materialPLASTIC/EPOXY
Package shapeROUND
Package formLONG FORM
Maximum repetitive peak reverse voltage50 V
Maximum reverse recovery time0.035 µs
surface mountNO
Terminal formWIRE
Terminal locationAXIAL

SF11X0 Preview

CREAT BY ART

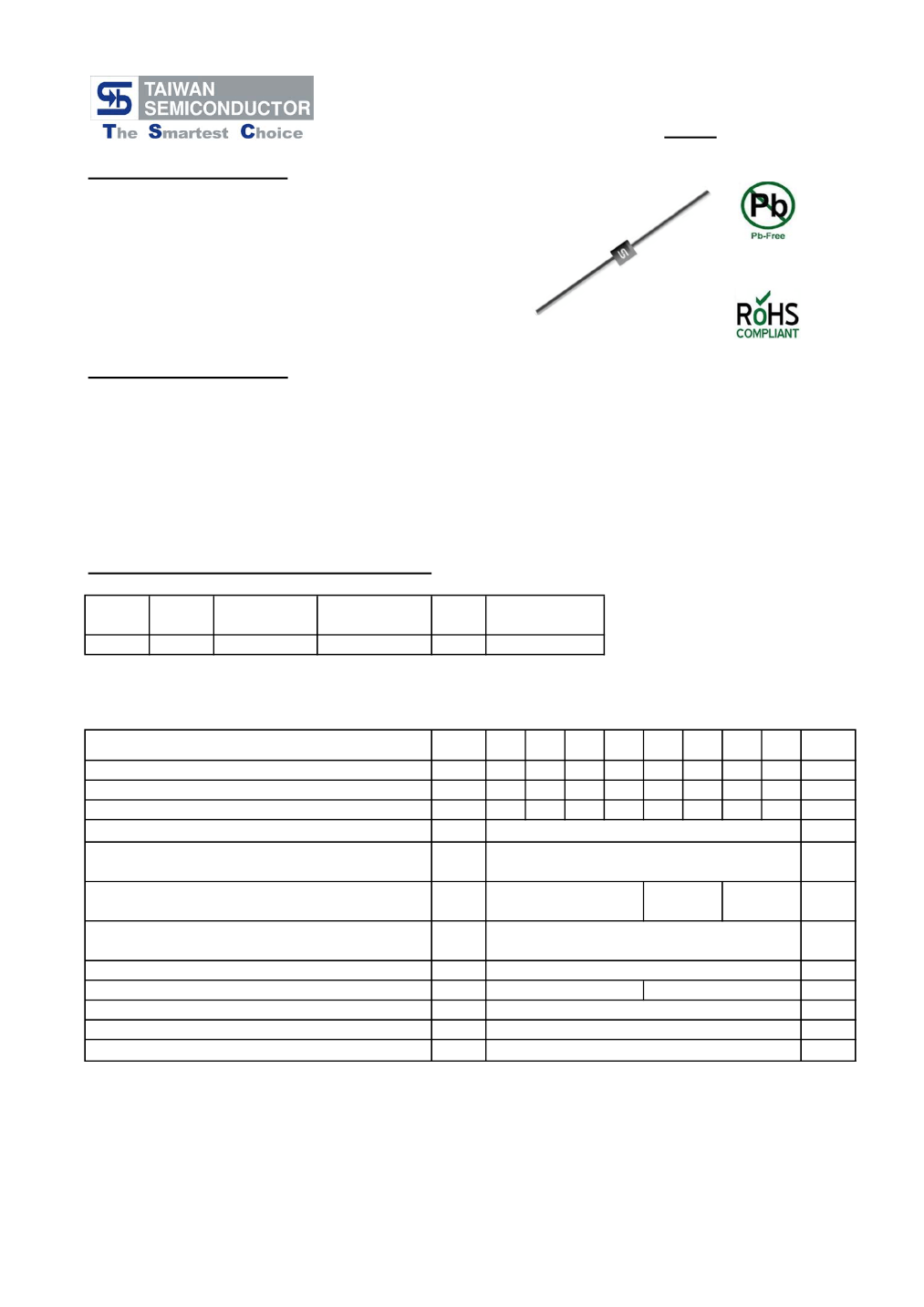

SF11 - SF18
1.0AMP. Super Fast Rectifiers
DO-41
Features
High efficiency, low VF
High current capability
High reliability
High surge current capability
Low power loss
For use in low voltage, high frequency inverter,
Free wheeling, and polarity protection application
Green compound with suffix "G" on packing
code & prefix "G" on datecode
Mechanical Data
Cases: Molded plastic
Epoxy: UL 94V-0 rate flame retardant
Lead: Pure tin plated, lead free, solderable
per MIL-STD-202, Method 208 guaranteed
Polarity: Color band denotes cathode
High temperature soldering guaranteed:
260℃/10 seconds/.375",(9.5mm) lead
lengths at 5 lbs., (2.3kg) tension
Weight: 0.34 grams
Ordering Information (example)
Part No.
SF11
Package
DO-41
Packing
3K / AMMO box
INNER
TAPE
52mm
Packing
code
A0
Green Compound
Packing code
A0G
Maximum Ratings and Electrical Characteristics
Rating at 25
ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%
Type Number
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
Peak Forward Surge Current, 8.3 ms Single Half Sine-wave
Superimposed on Rated Load (JEDEC method)
Maximum Instantaneous Forward Voltage (Note 1)
@1A
Maximum DC Reverse Current at Rated
@ T
A
=25
DC Blocking Voltage
@ T
A
=125
Maximum Reverse Recovery Time (Note 2)
Typical Junction Capacitance (Note 3)
Typical Thermal Resistance
Operating Temperature Range
Storage Temperature Range
Note 1: Pulse Test with PW=300 usec, 1% Duty Cycle
Symbol
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
I
R
Trr
Cj
R
θJA
T
J
T
STG
SF
11
50
35
50
SF
12
100
70
100
SF
13
150
105
150
SF
14
200
140
200
1
30
SF
15
300
210
300
SF
16
400
280
400
SF
17
500
350
500
SF
18
600
420
600
Units
V
V
V
A
A
0.95
5
100
35
30
70
1.3
1.7
V
uA
uA
nS
15
O
pF
C/W
O
O
- 65 to + 125
- 65 to + 150
C
C
Note 2: Reverse Recovery Test Conditions: I
F
=0.5A, I
R
=1.0A, I
RR
=0.25A
Note 3: Measured at 1 MHz and Applied Reverse Voltage of 4.0V D.C.
Version:D13

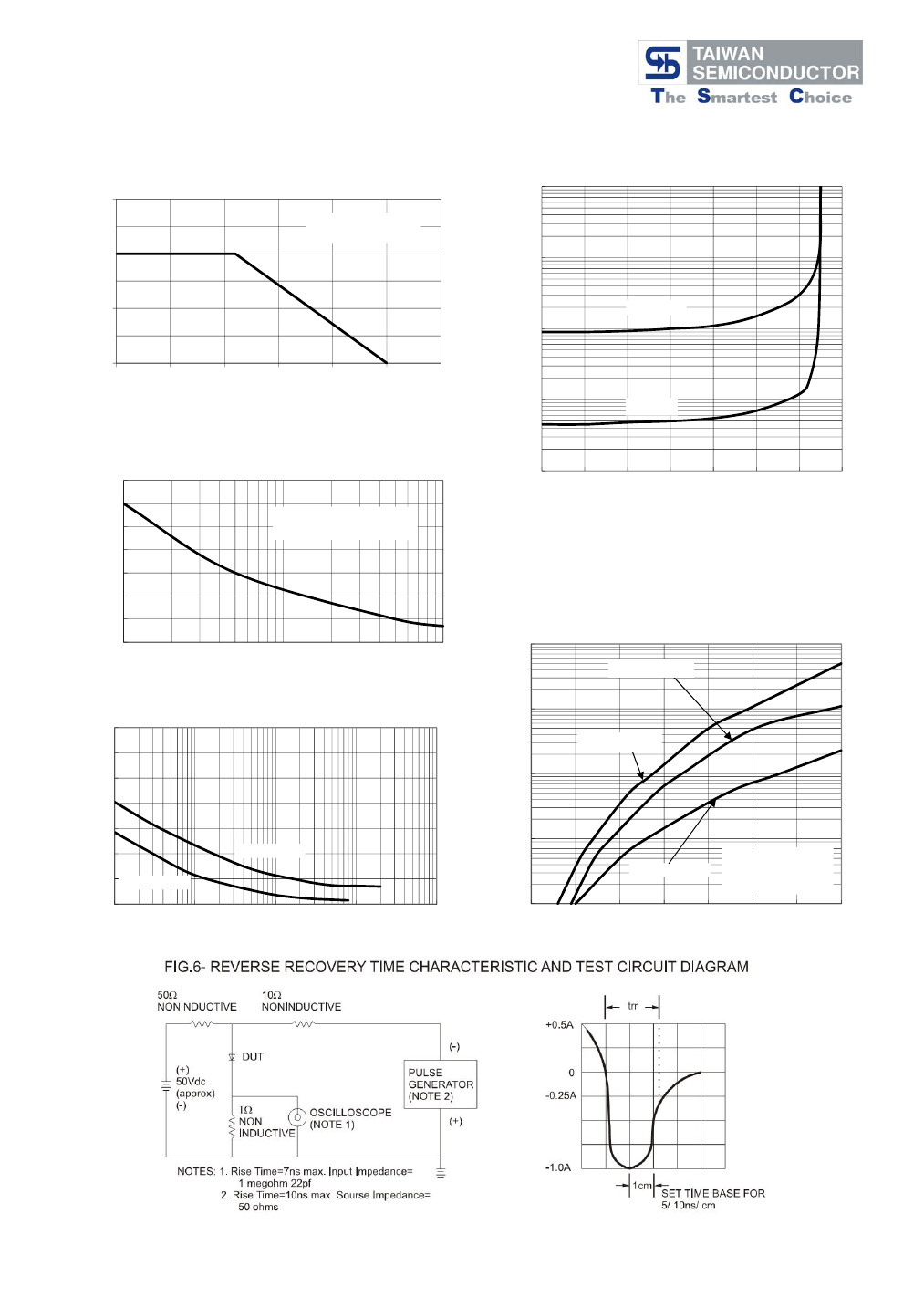

RATINGS AND CHARACTERISTIC CURVES (SF11 THRU SF18)
FIG.1- MAXIMUM AVERAGE FORWARD CURRENT
DERATING
AVERAGE FORWARD CURRENT (A)
FIG.2- TYPICAL REVERSE CHARACTERISTICS
1000
1.5
INSTANTANEOUS REVERSE CURRENT (uA)
RESISTIVE OR
INDUCTIVE LOAD
1.0
100
0.5
TA=100℃
10
0.0
0
25
50
75
100
125
150
AMBIENT TEMPERATURE (
o
C)
1
TA=25℃
FIG. 3- MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
PEAK FORWARD SURGE CURRENT (A)
35
30
25
20
15
10
5
0
1
10
NUMBER OF CYCLES AT 60 Hz
100
INSTANTANEOUS FORWARD CURRENT (A)
8.3ms Single Half Sine Wave
JEDEC Method
0.1
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
FIG. 5- TYPICAL FORWARD CHARACTERISTICS
100
SF15G-SF16G
FIG. 4- TYPICAL JUNCTION CAPACITANCE
140
JUNCTION CAPACITANCE (pF)
120
100
80
60
40
20
0
0.1
1
10
REVERSE VOLTAGE (V)
100
1000
10
SF11G-SF14G
1
0.1
SF17G-SF18G
0.01
0.4
0.6
0.8
1
1.2
1.4
1.6
1.8
FORWARD VOLTAGE (V)
SF11~SF14
SF15~SF18
TA=25℃
Pulse Width=300us
1% Duty Cycle
Version:D13
Ordering information
Part No.
Package
DO-41
DO-41
Packing
3K / AMMO box
5K / 13" Reel
5K / 13" Reel
1K / Bulk packing
1K / Bulk packing
INNER
TAPE
52mm
52mm
52mm
Packing
code
A0
R0
R1
B0
X0
Green Compound
Packing code
A0G
R0G
R1G
B0G
X0G
SF1x
DO-41
DO-41
DO-41
Note: "x" is Device Code from "1" thru "8".

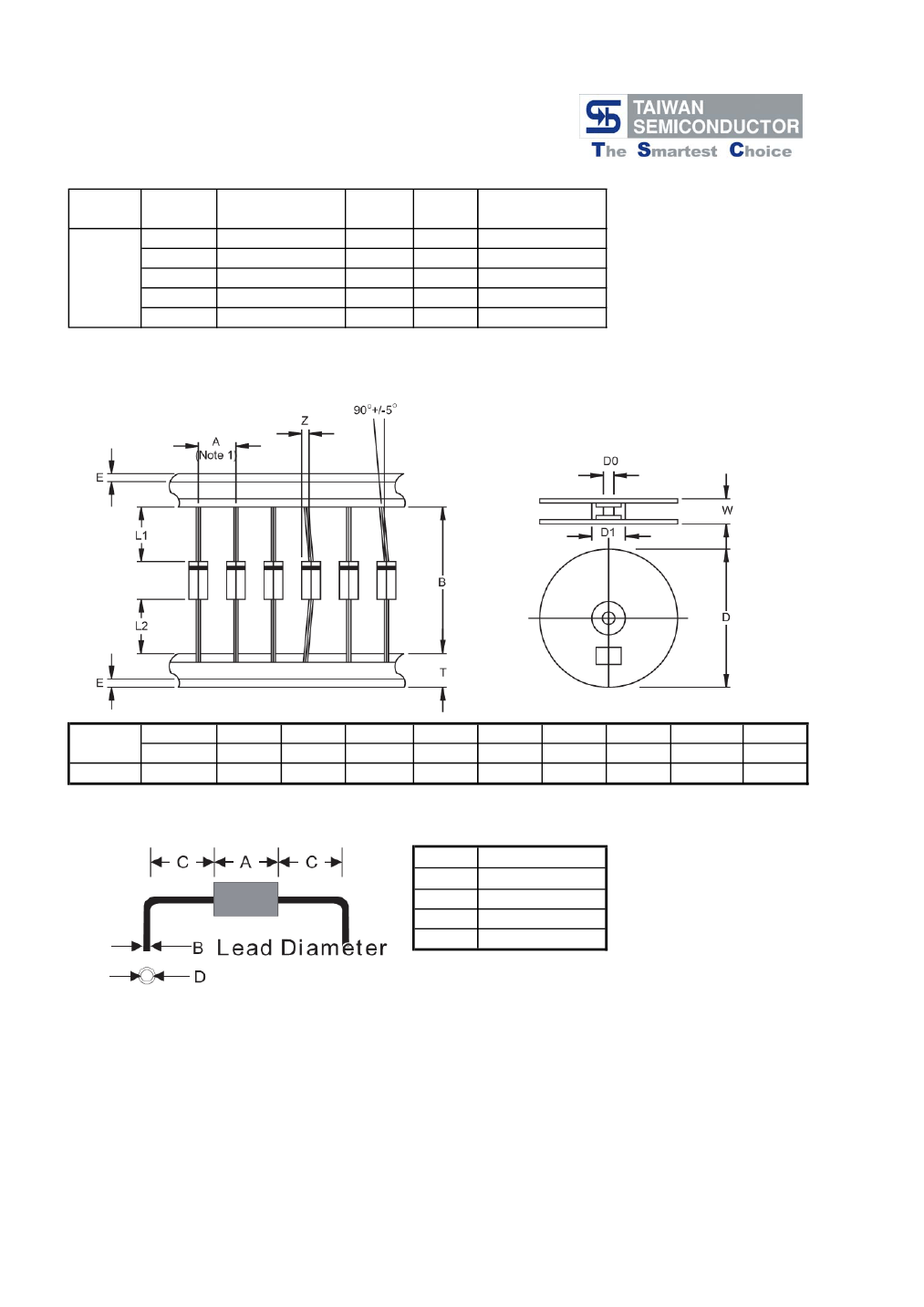

AXIAL LEAD TAPING SPECIFICATIONS
Outline
DO-41
A
±0.5
5
B
±1.5
52.4
Z
MAX
1.2
T
±0.4
6
E
∣L1-L2∣
MAX
MAX
0.8
1
D
330
D1
±0.3
85.7
D0
±0.4
16.6
Unit (mm)
W
±1.0
76
Suggested Mounting Hole Rule
Symbol
A
B
C
D
Unit(mm)
5.1
0.8
3.0
1.2
Dimensions
DIM.
A
B
C
D
E
Unit(mm)
Min
2.00
0.71
25.40
4.20
25.40
Max
2.70
0.86
-
5.20
-
Unit(inch)
Min
0.079
0.028
1.000
0.165
1.000
Max
0.106
0.034
-
0.205
-
Marking Diagram
P/N
G
YWW
= Specific Device Code
= Green Compound
= Date Code
