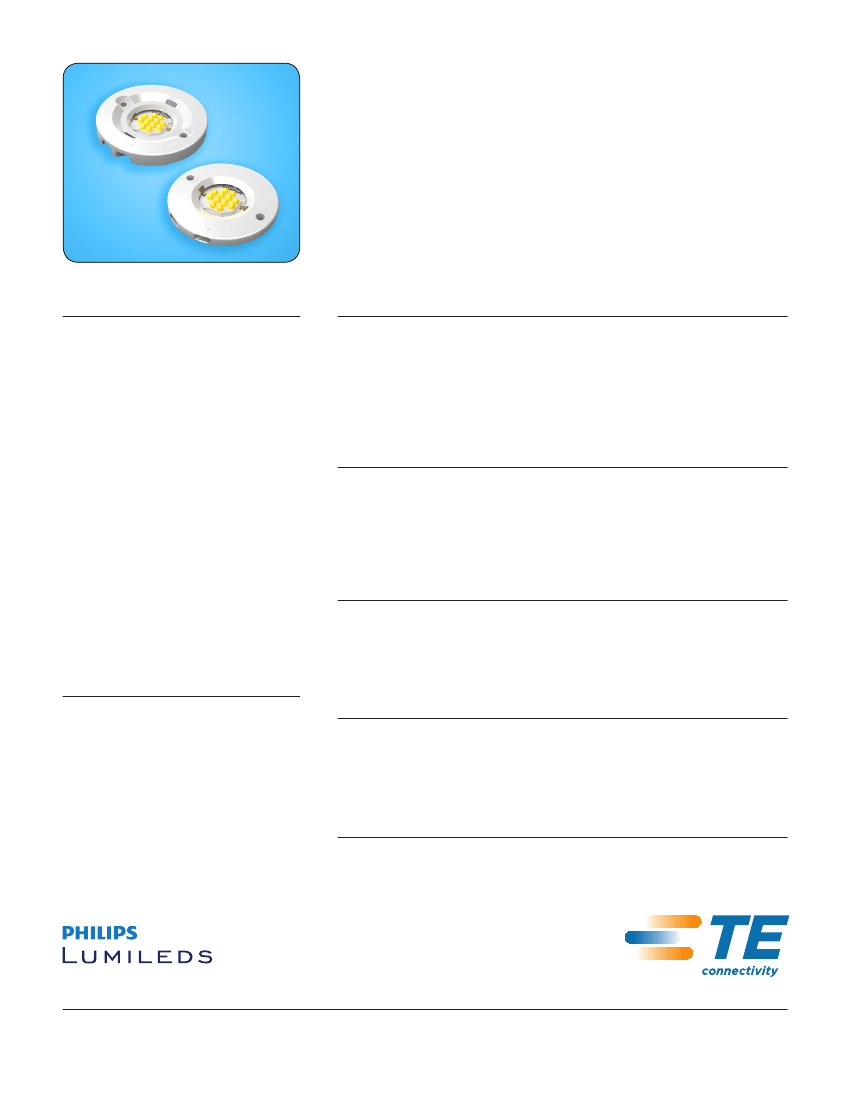

Introducing
TE LED holder for
Philips Lumileds LUXEON® K
The TE Solderless LED Holder, Type Z50, is a circular LED holder that provides a
quick and easy solderless connection to the Philips Lumileds LUXEON K 12 and 16
LED array families. TE’s Type Z50 holder allows the direct attachment of LUXEON
K LEDs to a heat sink using standard screws, which enables designs to be more
reliable, easier to user, and faster to market. The Type Z50 reduces assembly costs
and provides a reliable solderless power connection, secure mechanical attachment,
proper thermal hold down forces, and a landing zone with attachment features for
additional secondary optics.
KEY FEATURES
•
Snap-in LED retention feature simplifies
MECHANICAL
•
Operating temperature range -40 to 105°C
•
Utilize a minimum screw size of #4 or M3 for attachment
•
Poke-in style electrical contacts supporting 18-22 AWG (0.35 - 0.75mm²
)
solid, fused
installation by securing the LED to the
holder before mounting
•
Poke-in wire connection eliminates time
consuming soldering to the LED
•
Enables constant thermal down force
and stranded wire
•
Zhaga compatible 50mm diameter by 6mm high
•
Low profile 45mm by 3.4mm high
to minimize influence by thermal plastic
deformation at high temperature
•
Makes easy and clean thermal paste
application possible with built-in excess
paste overflow feature
•
Provides a specified and stable landing area
ELECTRICAL
•
Current rating:
•
Voltage rating:
5A
60VDC
for additional secondary optics
•
Optional alternate mechanical optic
•
Designed to comply to UL1977 which may help application approbation according to
UL8750 and UL1598
•
IEC 60838-2-2
attachment accessory
•
Minimalistic aesthetic design with clear
polarity indication to aid assembly
•
Mechanically strong and robust design with
MATERIALS
•
High Mechanical strength
•
High heat resistance
•
Good electrical properties
•
UL94V-0 flammability rating
negligible light interference
•
Available optics from Carclo and LEDIL for
Zhaga version
APPLICATIONS
•
Spotlights
•
Down Lights
•
Stage lights
•
Wall washers
•
Architectural lighting
PRODUCT OFFERING
Z50 Low Profile Holder profile:
Z50 Zhaga profile with optic attachment holes:
Optional:
Z50 Reflector Optics Retaining Clip Model 1:
2213194-1
2213130-1
2213130-2
APPLICATIONS AND SPECIFICATIONS
•
Application specification #:
•
Product Specification #:
•
Product Drawing #:
114-32047
108-133009
2213134
te.com/lighting
1-1773700-5 JG PDF 12/2012
© 2012 Tyco Electronics Corporation, a TE Connectivity Ltd. Company. All Rights Reserved.
TE Connectivity and TE connectivity (logo) are trademarks. LUXEON® is a trademark of Philips
Lumileds Lighting Company. Other logos, product and/or company names might be trademarks of
their respective owners.
USA: 1-800-522-6752
Canada: +1-905-475-6222
Mexico: +52 (0) 55-1106-0800
Latin/S. America: +54 (0) 11-4733-2200
Germany: +49 (0) 6251-133-1999
UK: +44 (0) 800-267666
France: +33 (0) 1-3420-8686
Netherlands: +31 (0) 73-6246-999
China: +86 (0) 400-820-6015
TE Connectivity

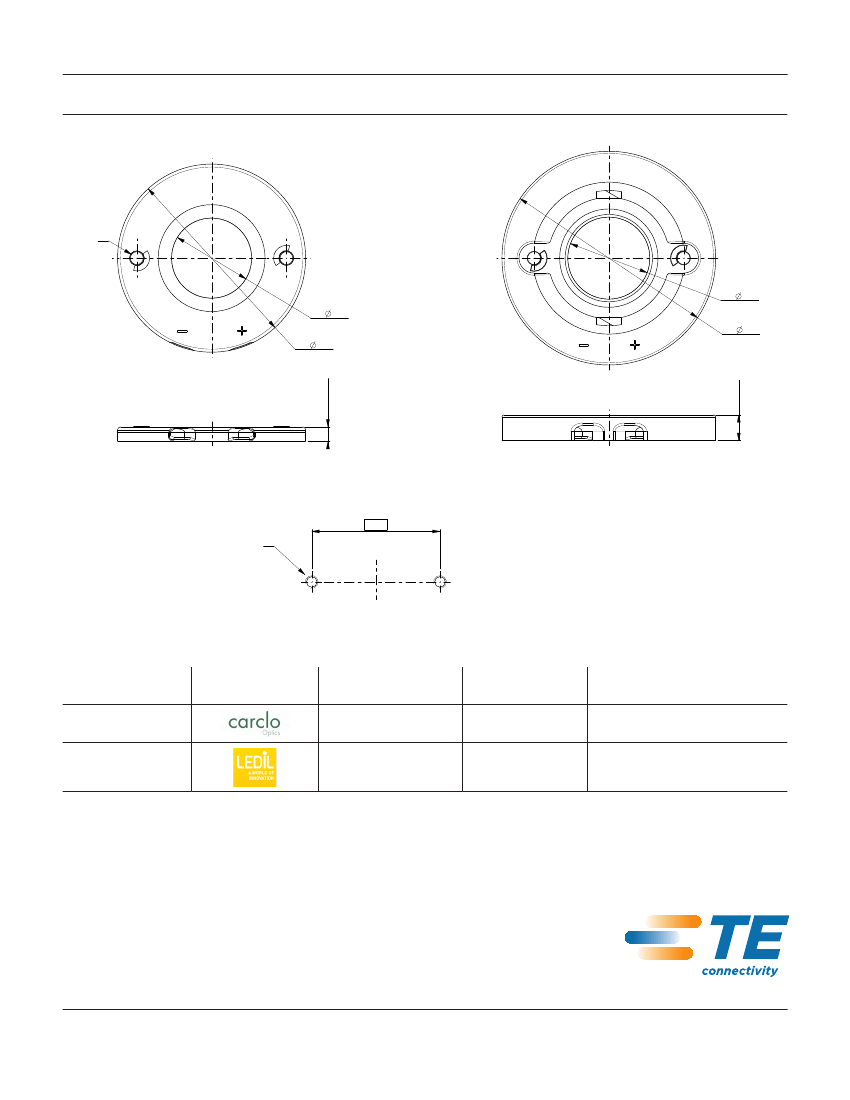

PRODUCT DIMENSIONS
TE Solderless LED Holder, Type Z50
M3
(
(
19 )
(
(
44)
19 )
50)
Low Profile Version
(3,4)
Zhaga profile with optic attachment feature
35,0
M3
DEPTH 4MM MIN.
Recommended Mounting Hole Pattern
Available Optics
TE Attachment
Accessory Required
None
TE Holder
2213134-2
Optics Partner
Product
NEWTON Series Reflectors
Website
www.carclo-optics.com
2213134-2
ANGELA and ANGELINA
Series Reflectors
www.ledil.com
2213194-1
(Reflector Optics Retaining Clip Model 1)
Dimensions are shown for reference purposes only. Specifications subject to change.
Customer drawing should be used for all design activity.
te.com/lighting
1-1773700-5 JG PDF 12/2012
