3-2110107-1: DescriptionHEADER CONNECTOR,PCB MNT,RECEPT,180 CONTACTS,SKT,0.075 PITCH,COMPLIANT FIT TERMINAL,LOCKING,BLACK; CategoryThe connector The connector; File Size363KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

3-2110107-1 Overview

HEADER CONNECTOR,PCB MNT,RECEPT,180 CONTACTS,SKT,0.075 PITCH,COMPLIANT FIT TERMINAL,LOCKING,BLACK

3-2110107-1 Parametric

Parameter Name	Attribute value
Objectid	307227541
Reach Compliance Code	unknown
ECCN code	EAR99
YTEOL	7.9
body width	0.909 inch
subject depth	1.272 inch
body length	1.197 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Insulator color	BLACK
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
Manufacturer's serial number	2110107
Plug contact pitch	0.075 inch
Match contact row spacing	0.053 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	15
Number of rows loaded	15
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.3462 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.047 inch
Terminal pitch	1.905 mm
Termination type	PRESS FIT
Total number of contacts	180

Preview

Download Datasheet

View All

8

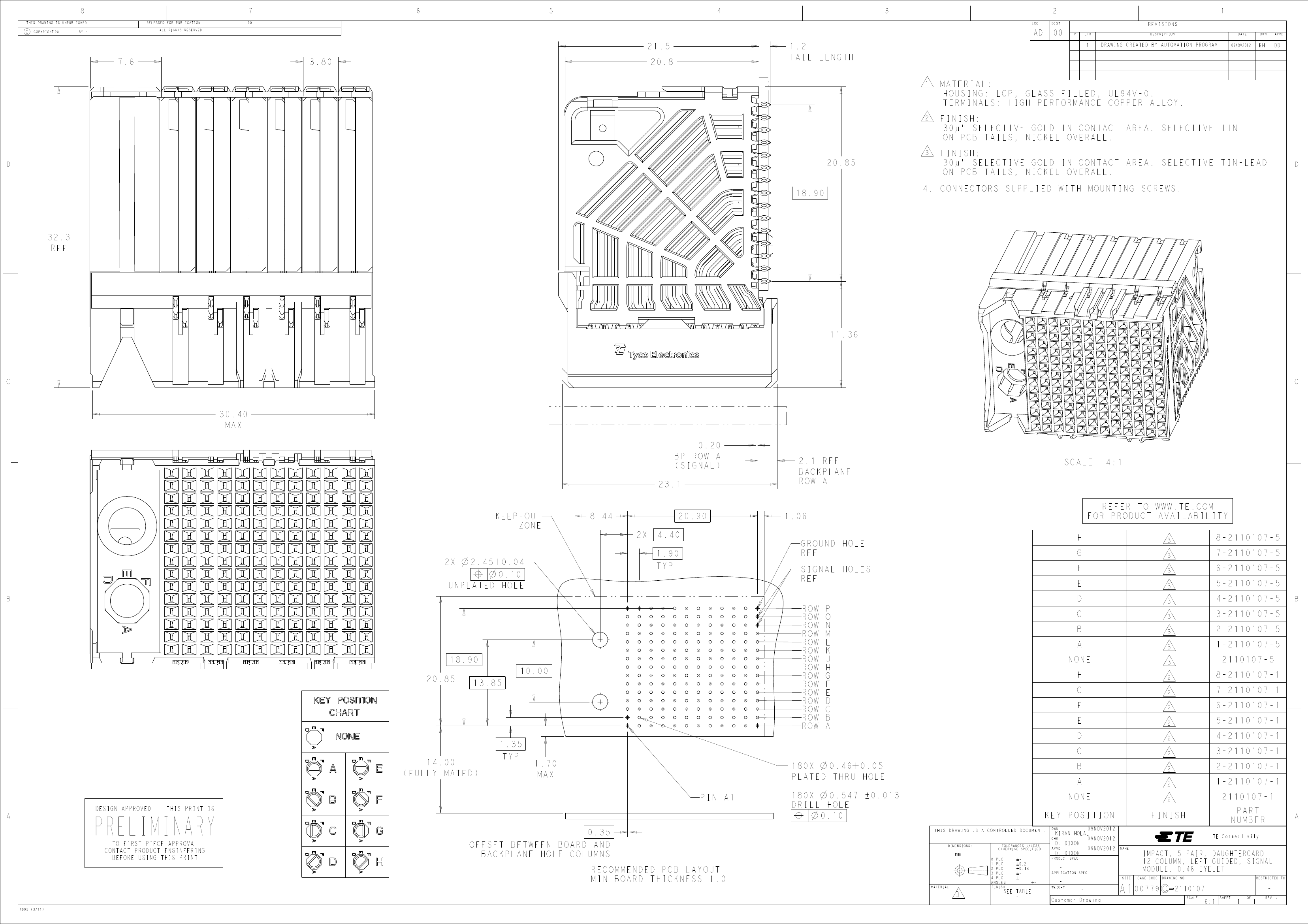

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

7

6

5

4

3

LOC

2

DIST

P

LTR

1

REVISIONS

DESCRIPTION

DATE

DWN

APVD

C

COPYRIGHT

21.5

7.6

3.80

20.8

1.2

TAIL LENGTH

D

20.85

18.90

4. CONNECTORS SUPPLIED WITH MOUNTING SCREWS.

D

32.3

REF

11.36

C

30.40

MAX

0.20

BP ROW A

(SIGNAL)

23.1

KEEP-OUT

ZONE

8.44

2X

4.40

1.90

TYP

20.90

2.1 REF

BACKPLANE

ROW A

SCALE

4:1

1.06

GROUND HOLE

REF

SIGNAL HOLES

REF

ROW

P

O

N

M

L

K

J

H

G

F

E

D

C

B

A

H

G

F

E

D

C

B

A

NONE

8- 2110107 -5

7- 2110107 -5

6- 2110107 -5

5- 2110107 -5

4- 2110107 -5

3- 2110107 -5

2- 2110107 -5

1- 2110107 -5

2110107 -5

8- 2110107 -1

7- 2110107 -1

6- 2110107 -1

5- 2110107 -1

4- 2110107 -1

3- 2110107 -1

2- 2110107 -1

1- 2110107 -1

2110107 -1

FINISH

B

2X

0.10

UNPLATED HOLE

2.45

0.04

B

18.90

20.85

13.85

10.00

H

G

F

E

D

C

B

A

NONE

KEY POSITION

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

DWN

CHK

1.35

14.00

(FULLY MATED)

TYP

1.70

MAX

PIN A1

A

180X

0.46 0.05

PLATED THRU HOLE

0.547

180X

DRILL HOLE

0.10

±0.013

OFFSET BETWEEN BOARD AND

BACKPLANE HOLE COLUMNS

0.35

PART

NUMBER

TE Connectivity

A

APVD

RECOMMENDED PCB LAYOUT

MIN BOARD THICKNESS

4805 (3/11)

1.0

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

PRODUCT SPEC

PRELIMINARY

NAME

APPLICATION SPEC

WEIGHT

A1

SIZE

CAGE CODE

DRAWING NO

RESTRICTED TO

SCALE

SHEET

OF

REV

3-2110107-1 Related Products

	3-2110107-1	3-2110107-5	4-2110107-1	4-2110107-5	5-2110107-1	7-2110107-5
Description	HEADER CONNECTOR,PCB MNT,RECEPT,180 CONTACTS,SKT,0.075 PITCH,COMPLIANT FIT TERMINAL,LOCKING,BLACK	HEADER CONNECTOR,PCB MNT,RECEPT,180 CONTACTS,SKT,0.075 PITCH,COMPLIANT FIT TERMINAL,LOCKING,BLACK	HEADER CONNECTOR,PCB MNT,RECEPT,180 CONTACTS,SKT,0.075 PITCH,COMPLIANT FIT TERMINAL,LOCKING,BLACK	HEADER CONNECTOR,PCB MNT,RECEPT,180 CONTACTS,SKT,0.075 PITCH,COMPLIANT FIT TERMINAL,LOCKING,BLACK	HEADER CONNECTOR,PCB MNT,RECEPT,180 CONTACTS,SKT,0.075 PITCH,COMPLIANT FIT TERMINAL,LOCKING,BLACK	HEADER CONNECTOR,PCB MNT,RECEPT,180 CONTACTS,SKT,0.075 PITCH,COMPLIANT FIT TERMINAL,LOCKING,BLACK
Objectid	307227541	307227532	307227540	307227531	307227539	307227528
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
YTEOL	7.9	7.9	7.9	7.9	7.9	7.9
body width	0.909 inch	0.909 inch	0.909 inch	0.909 inch	0.909 inch	0.909 inch
subject depth	1.272 inch	1.272 inch	1.272 inch	1.272 inch	1.272 inch	1.272 inch
body length	1.197 inch	1.197 inch	1.197 inch	1.197 inch	1.197 inch	1.197 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact completed and terminated	TIN OVER NICKEL	TIN/LEAD OVER NICKEL	TIN OVER NICKEL	TIN/LEAD OVER NICKEL	TIN OVER NICKEL	TIN/LEAD OVER NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER
Manufacturer's serial number	2110107	2110107	2110107	2110107	2110107	2110107
Plug contact pitch	0.075 inch	0.075 inch	0.075 inch	0.075 inch	0.075 inch	0.075 inch
Match contact row spacing	0.053 inch	0.053 inch	0.053 inch	0.053 inch	0.053 inch	0.053 inch
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	15	15	15	15	15	15
Number of rows loaded	15	15	15	15	15	15
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	1.3462 mm	1.3462 mm	1.3462 mm	1.3462 mm	1.3462 mm	1.3462 mm
Plating thickness	30u inch	30u inch	30u inch	30u inch	30u inch	30u inch
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Guideline	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.047 inch	0.047 inch	0.047 inch	0.047 inch	0.047 inch	0.047 inch
Terminal pitch	1.905 mm	1.905 mm	1.905 mm	1.905 mm	1.905 mm	1.905 mm
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	180	180	180	180	180	180
