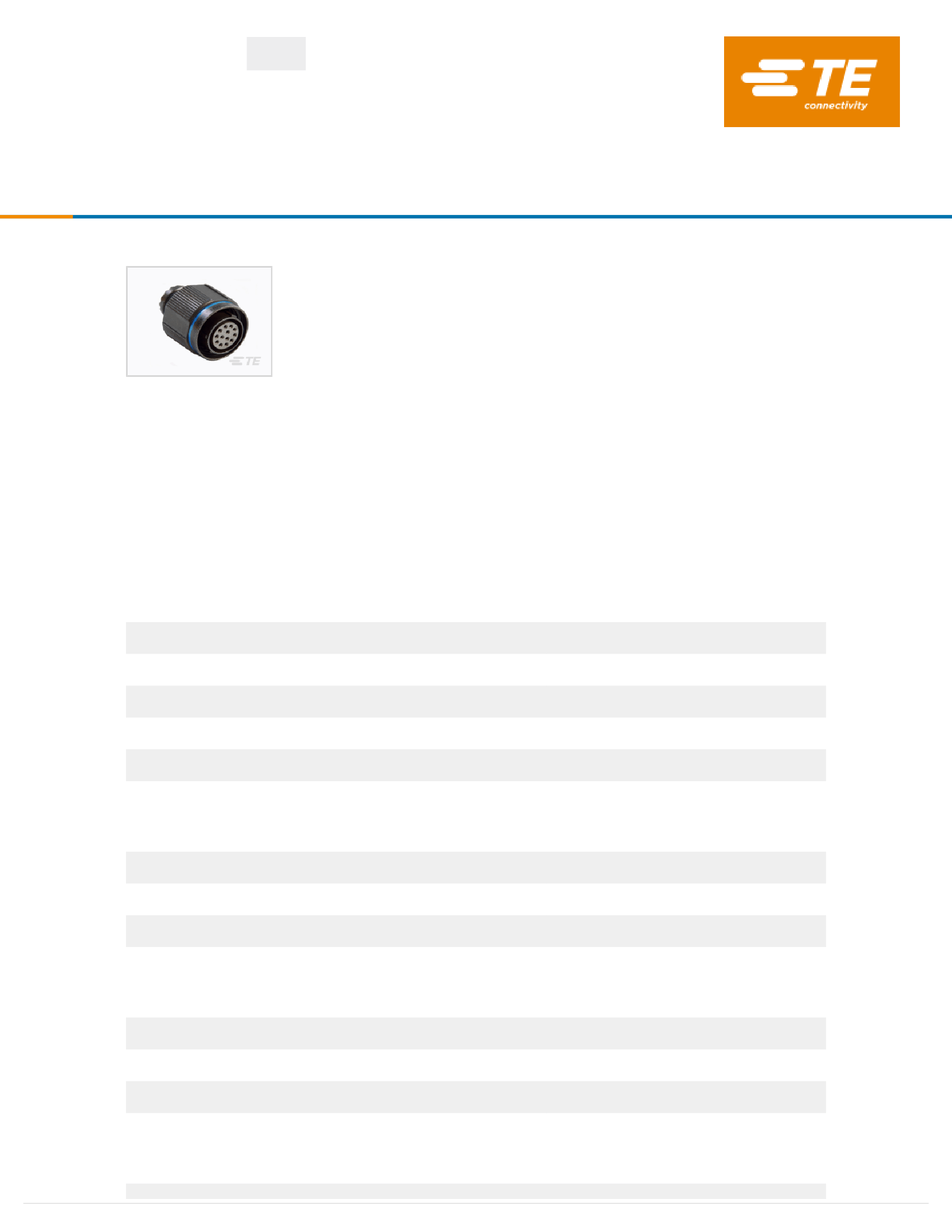

ACT26MJ24HC-6149
Standard Circular Connectors, Wire-to-Wire, 24 Position, .06mm [.1in] Centerline,
Sealable, Wire & Cable, 23A Contact Current Rating (Max)
ACT26MJ24HC-6149
DEUTSCH
ACTIVE
TE Internal #: YACT26MJ24HC-61490
Standard Circular Connectors, Wire-to-Wire, 24 Position, .06mm [.
1in] Centerline, Sealable, Wire & Cable, 23A Contact Current
Rating (Max)
View on TE.com >
Connectors
>
Circular Connectors
>
Standard Circular Connectors
Connector System:
Wire-to-Wire
Number of Positions:
24
Centerline (Pitch):
.06 mm [ .1 in ]
Sealable:
Yes
Connector & Contact Terminates To:
Wire & Cable
Features
Product Type Features
Product Type
Connector System
Sealable
Connector & Contact Terminates To
Circular Connector Type
Shell Type
Configuration Features
Number of Positions
Number of Power Positions
Number of Signal Positions
Contacts Preloaded
Body Features
Shell Plating Material
Shell Base Material
Circular Connector Insulation Material Type
Hermetically Sealed
Contact Features
Contact Current Rating (Max)
23 A
Electroless Nickel
Composite
Hard Dielectric/Silicone
No
24
12
12
No
Connector
Wire-to-Wire
Yes
Wire & Cable
Plug
Straight Plug
For support call+1 800 522 6752
04/19/2021 03:19PM | Page 1
ACT26MJ24HC-6149
Standard Circular Connectors, Wire-to-Wire, 24 Position, .06mm [.1in] Centerline,
Sealable, Wire & Cable, 23A Contact Current Rating (Max)
Contact Current Rating (Max)
Reverse Gender
Contact Layout Arrangement
Circular Connector Contact Type
Mechanical Attachment
Connector Mounting Type
Polarization Code
Mating Alignment Type
Mating Retention
Housing Features
Centerline (Pitch)
Circular Connector Shell Size
Alignment Keyed
Dimensions
Wire Size
Usage Conditions
Operating Temperature Range
Operation/Application
Circuit Application
Shielded
23 A
No
Circular
Pin/Socket
Cable Mount (Free-Hanging)
Normal
Polarization
Without
.06 mm[.1 in]
J (25)
Clocking
2 – 3 mm²
-65 – 200 °C[-85 – 392 °F]
Power & Signal
Yes
Product Compliance
For compliance documentation, visit the product page on TE.com>
EU RoHS Directive 2011/65/EU
EU ELV Directive 2000/53/EC
China RoHS 2 Directive MIIT Order No 32, 2016
EU REACH Regulation (EC) No. 1907/2006
Compliant with Exemptions
Compliant with Exemptions
Restricted Materials Above Threshold
Current ECHA Candidate List: JAN 2021
(211)
Candidate List Declared Against: JUN 2020
(209)
SVHC > Threshold:
Pb (1.2% in Contact Lead-Copper Alloy)
Decamethylcyclopentasiloxane (D5) (5% in
Insert Assembly)
Article Safe Usage Statements:
Do not eat, drink or smoke when using this product. Wash thoroughly after
For support call+1 800 522 6752
04/19/2021 03:19PM | Page 2
ACT26MJ24HC-6149
Standard Circular Connectors, Wire-to-Wire, 24 Position, .06mm [.1in] Centerline,
Sealable, Wire & Cable, 23A Contact Current Rating (Max)
Do not eat, drink or smoke when using this product. Wash thoroughly after
handling. Recycle if possible and dispose of the article by following all applicable
governmental regulations relevant to your geographic location.
Halogen Content
Solder Process Capability
Not Yet Reviewed for halogen content
Not reviewed for solder process capability
Product Compliance Disclaimer
This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge
based on the information they provided. This information is subject to change. The part numbers that TE has identified as
EU RoHS compliant have a maximum concentration of 0.1% by weight in homogenous materials for lead, hexavalent
chromium, mercury, PBB, PBDE, DBP, BBP, DEHP, DIBP, and 0.01% for cadmium, or qualify for an exemption to these
limits as defined in the Annexes of Directive 2011/65/EU (RoHS2). Finished electrical and electronic equipment products
will be CE marked as required by Directive 2011/65/EU. Components may not be CE marked. Additionally, the part
numbers that TE has identified as EU ELV compliant have a maximum concentration of 0.1% by weight in homogenous
materials for lead, hexavalent chromium, and mercury, and 0.01% for cadmium, or qualify for an exemption to these limits
as defined in the Annexes of Directive 2000/53/EC (ELV). Regarding the REACH Regulation, the information TE provides
on SVHC in articles for this part number is based on the latest European Chemicals Agency (ECHA) ‘Guidance on
requirements for substances in articles’ posted at this URL: https://echa.europa.eu/guidance-documents/guidance-on-
reach

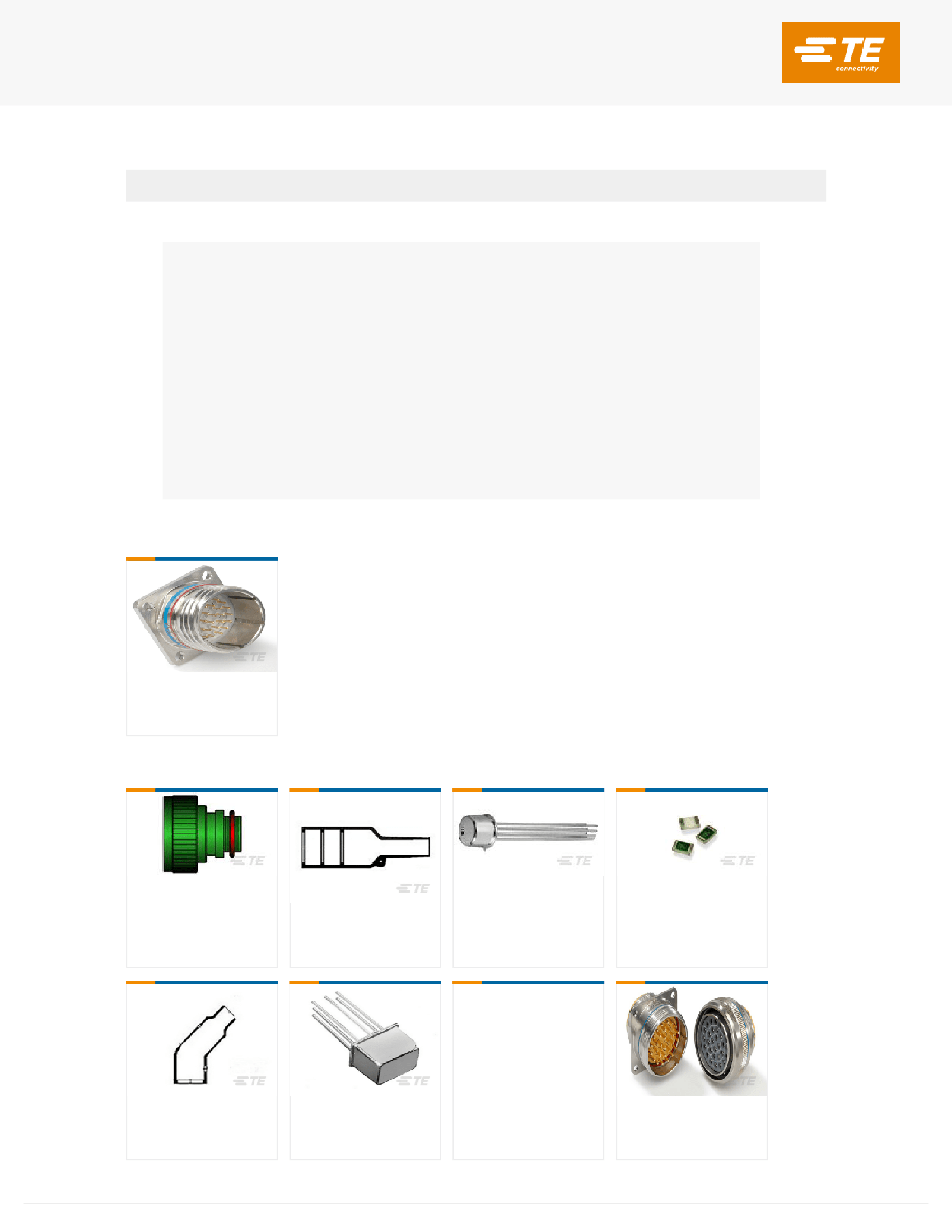

Compatible Parts
TE Part # YACT20MJ24JCV00100
SQUARE FLANGE RECEPTACLE
Customers Also Bought
TE Part #661269-000
TXR21AB00-1605AI
TE Part #358203-000
Bulbous HS Boots: Lipped, Straight
TE Part #1617164-9
JMACT-5XM = M28776/1-025M
TE Part #2-1614894-3
CPF 0805 301K 0.1% 25PPM 1K RL
TE Part #642427-000
Heat Shrink Boots Poly Mold, Lipped
TE Part #1617147-5
JMGAP-26P = M39016/17-030P
TE Part #358279-000
382C312-50-01-0
TE Part #ZPF000000000007174
983-0RS 08-98 PN
For support call+1 800 522 6752
04/19/2021 03:19PM | Page 3
ACT26MJ24HC-6149
Standard Circular Connectors, Wire-to-Wire, 24 Position, .06mm [.1in] Centerline,
Sealable, Wire & Cable, 23A Contact Current Rating (Max)
TE Part #1617119-5
J1MAW-18XP = M39016/7-021P
TE Part #CS8624-000
BSTS-15X4FR/NM
Documents
Product Drawings
STRAIGHT PLUG
English
Datasheets & Catalog Pages
DEUTSCH MIL-DTL-38999 CIRCULAR CONNECTORS
English
